5SY4240-7

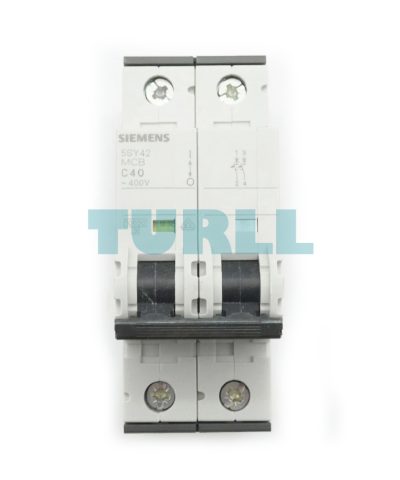

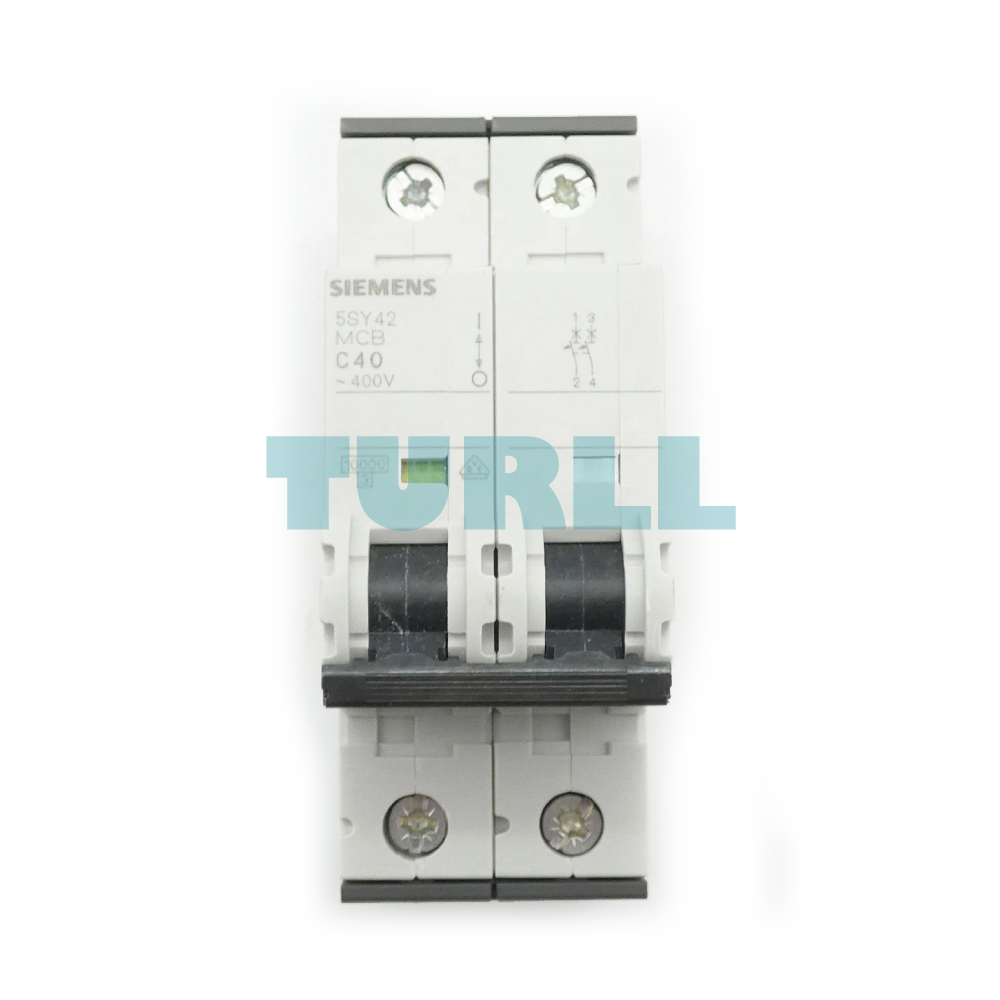

Siemens 5SY4240-7 Miniature Circuit Breaker 2-Pole, 40A, C-Curve, 10kA, 400V Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
KEY SPECIFICATIONS
- supply voltage
- -
Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 5SY4240-7 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | - |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | - |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | - |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3.5 W |
| operational current | - |
| ● at 35 °C / rated value | 40 A |
| ● at 40 °C / rated value | 37.56 A |
| ● at 45 °C / rated value | 36.28 A |
| ● at 50 °C / rated value | 34.96 A |
| ● at 55 °C / rated value | 33.6 A |
| ● at 60 °C / rated value | 32.16 A |
| ● at AC / rated value | 40 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | - |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | - |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | - |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| AWG number / as coded connectable conductor cross section | - |
| tightening torque [lbf·in] / with screw-type terminals | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | Any |

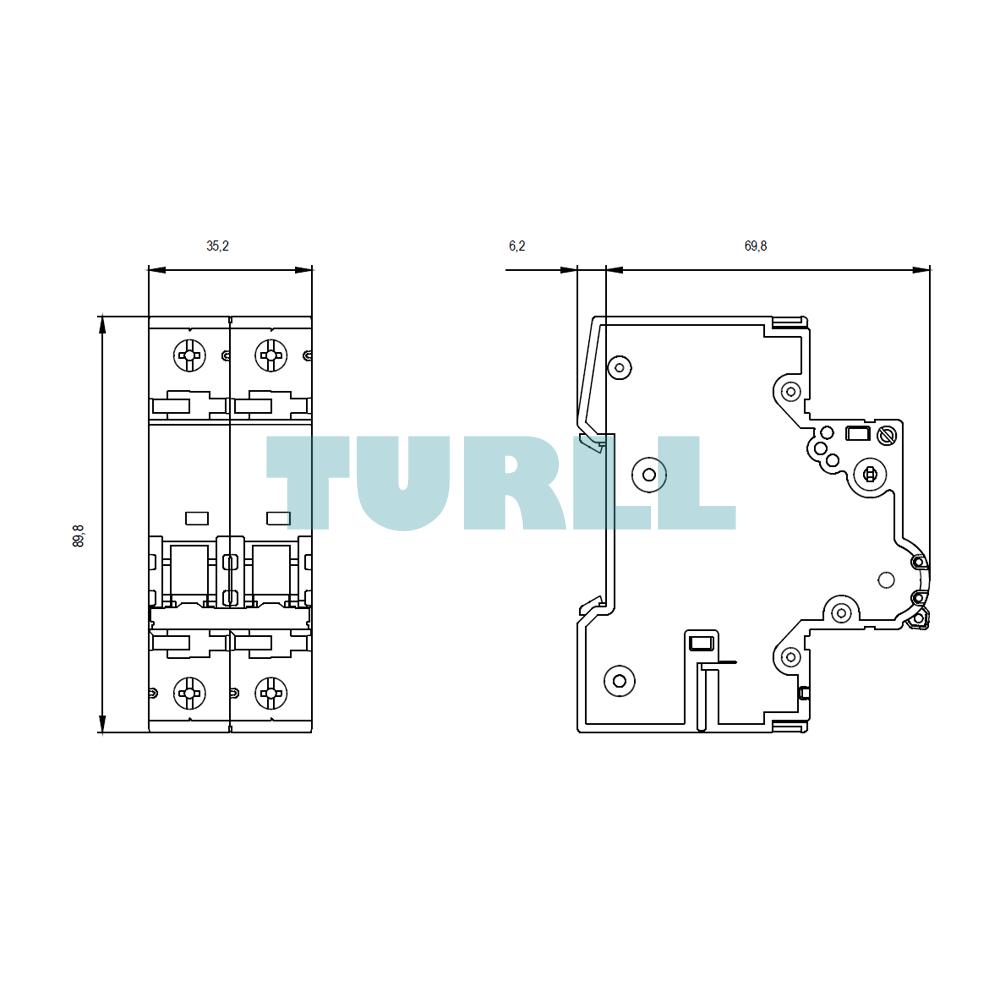

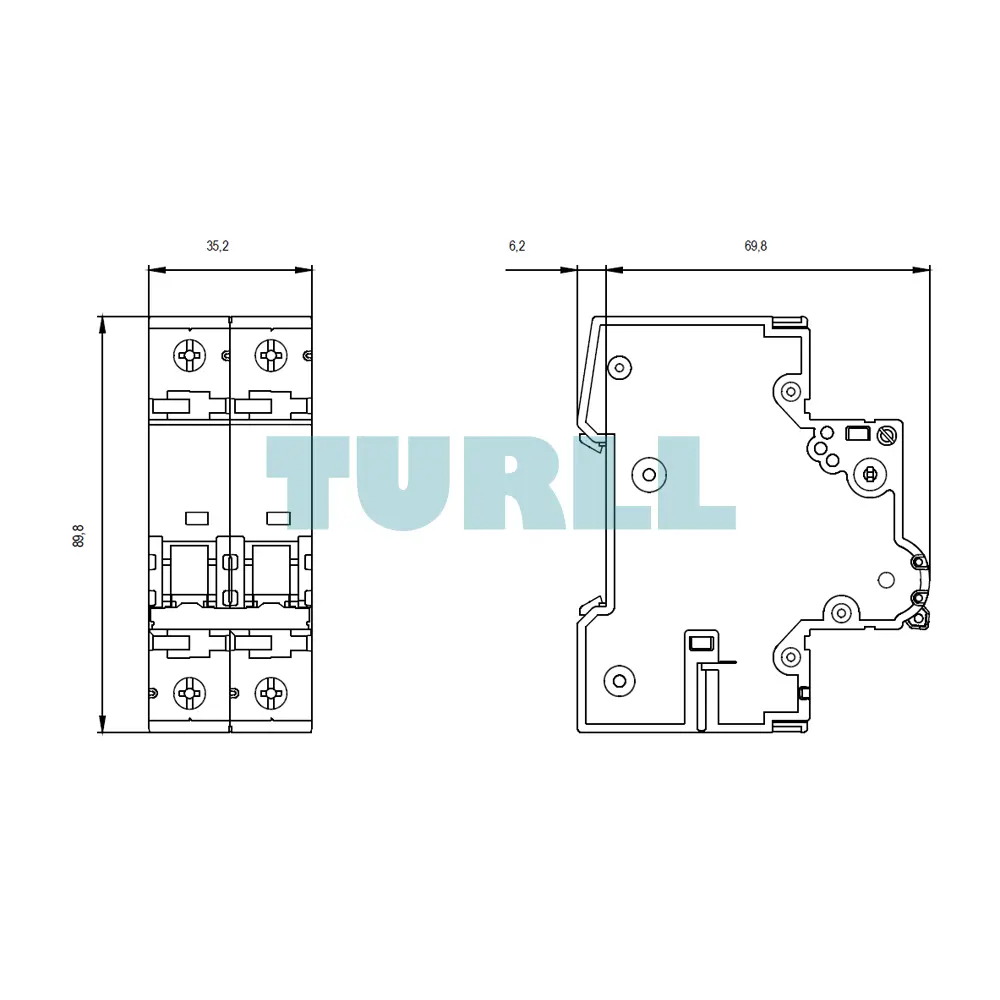

| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | - |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Vibration and Shock | - |
| Weight for shipping | 0.316 kg |
| Dimensions for shipping | 40.00 × 92.00 × 84.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 5SY4240-7 Miniature Circuit Breaker (MCB) is a high-performance electrical protection device designed to safeguard electrical circuits from overloads and short circuits. Built to Siemens’ strict quality standards, this 2-pole MCB offers reliable protection in residential, commercial, and industrial electrical installations.
With a rated current of 40A, C-curve tripping characteristic, and short-circuit breaking capacity of 10kA, it ensures stable and safe circuit operation under demanding conditions. Its compact 70 mm depth allows easy installation in standard distribution boards.
Benefit
-
Reliable protection against overload and short circuits
-
High breaking capacity for enhanced safety
-
Compact design for space-saving installations
-
Trusted Siemens quality and long service life
-
Suitable for residential, commercial, and industrial use
Function
-
Automatically interrupts electrical flow during overload conditions
-
Protects connected equipment from damage caused by short circuits
-
Ensures stable power distribution in multi-phase systems
-
Supports safe maintenance with fast and precise tripping
Technical Specification
-
Brand: Siemens
-
Product Number: 5SY4240-7
-
Product Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 2-Pole
-
Rated Voltage: 400 V
-
Rated Current: 40 A
-
Tripping Characteristic: C Curve
-
Breaking Capacity: 10 kA
-
Depth (D): 70 mm
-
Mounting: DIN rail
Visit 5SY4240-7 for more detail info
