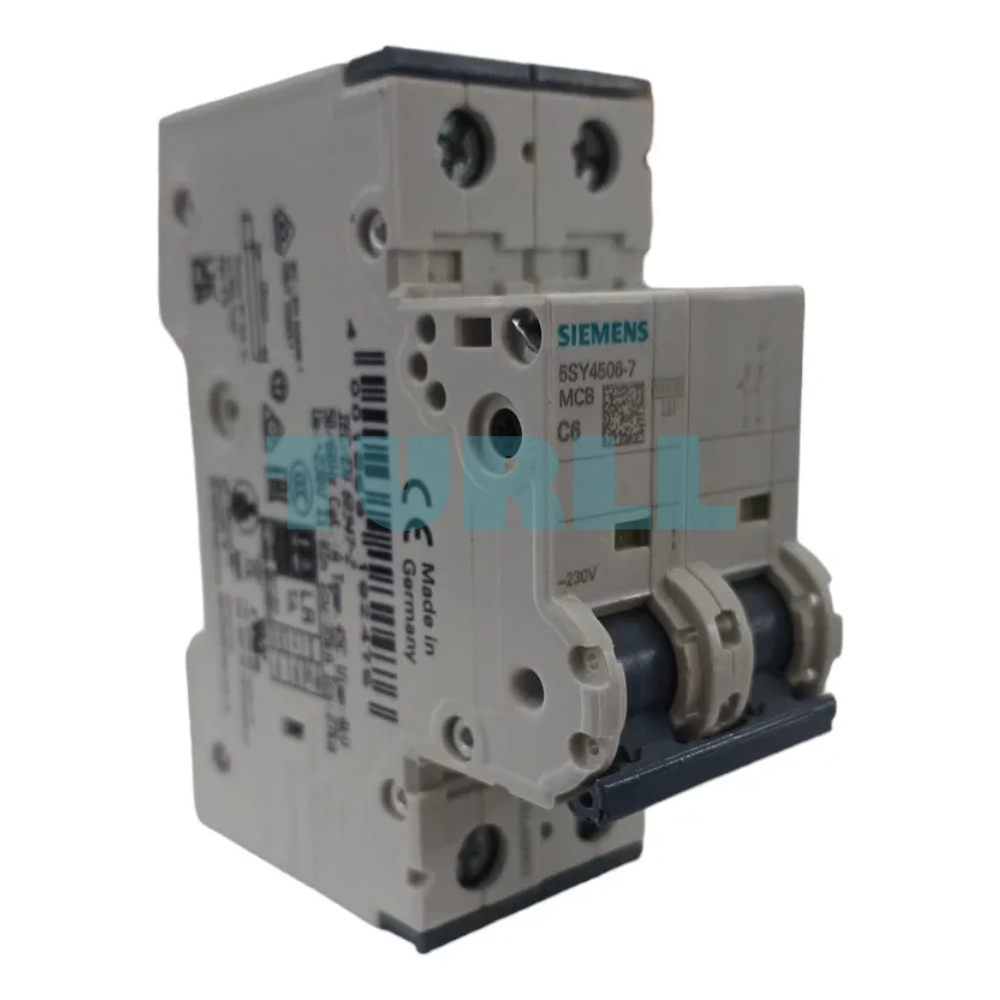

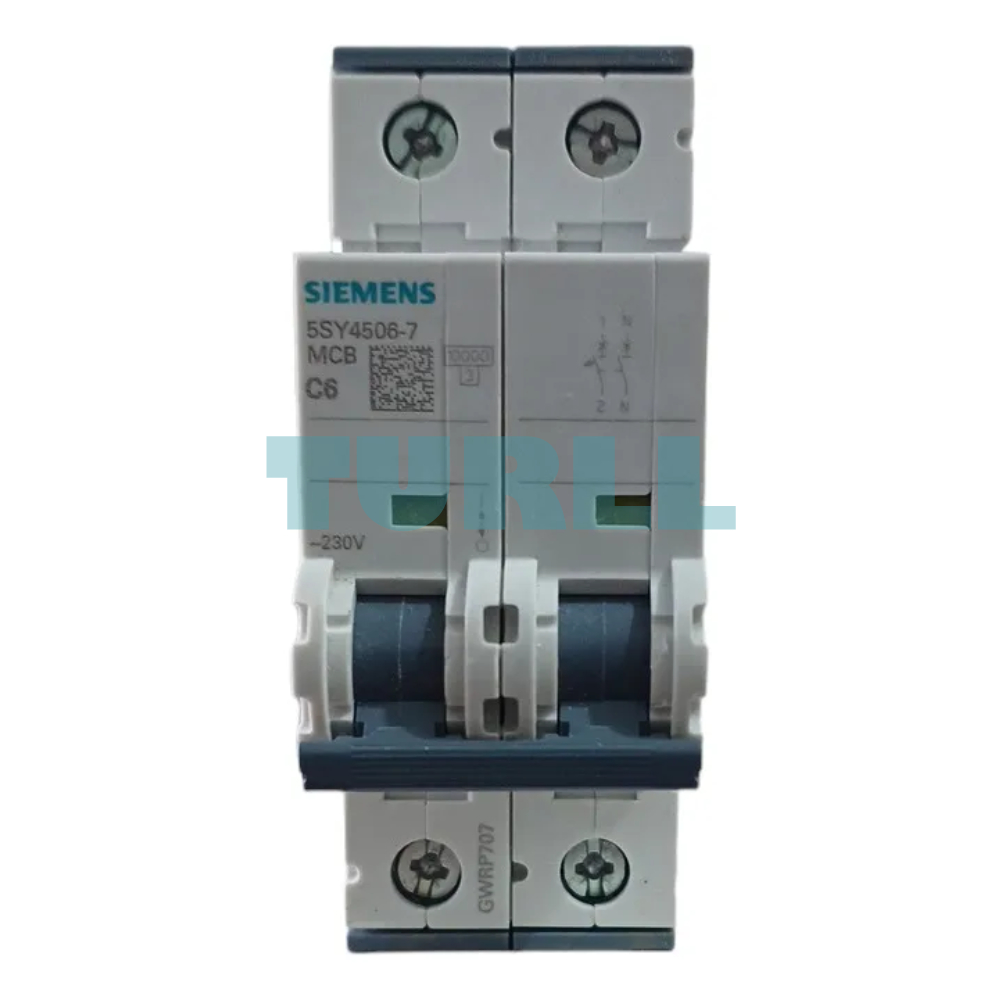

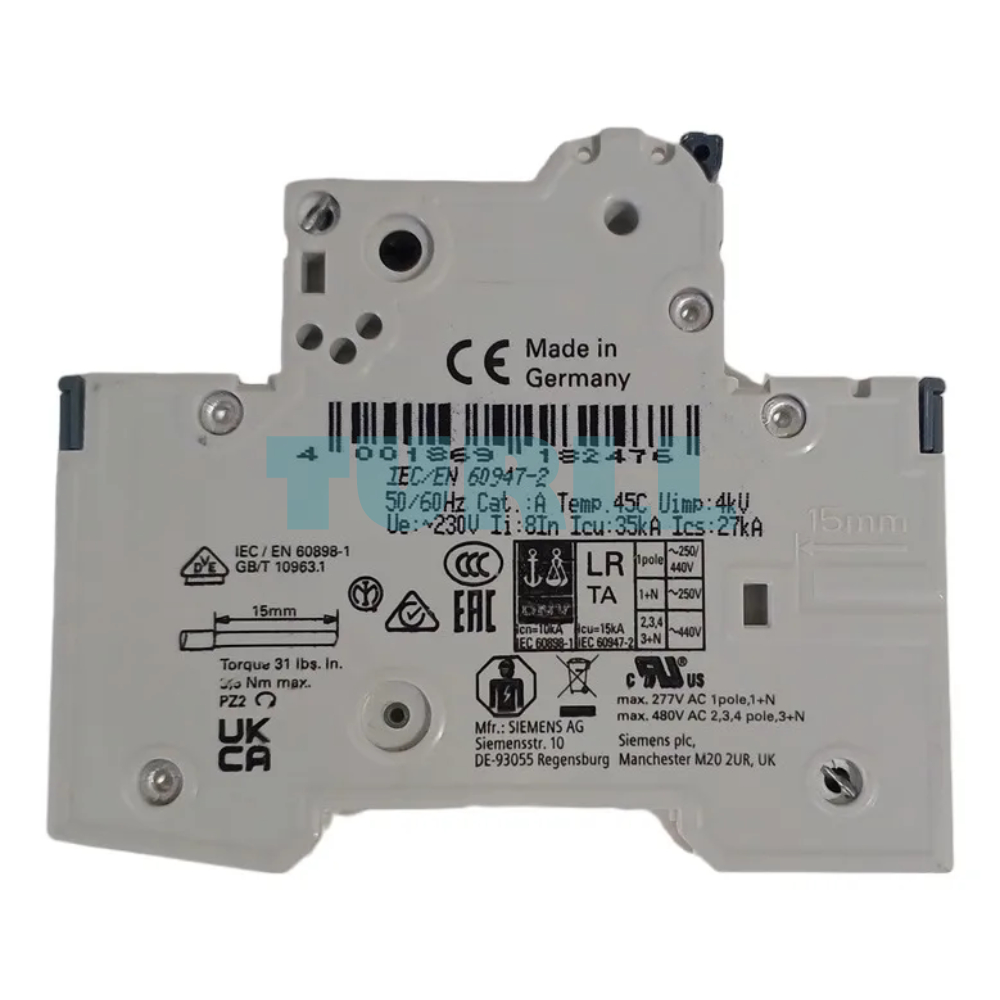

Siemens 5SY4506-7 Miniature Circuit Breaker 230 V 10kA, 1+N-pole, C, 6 A, D=70 mm Original Brand New
$70.92
High-performance Miniature Circuit Breaker (MCB) designed for superior electrical protection. Featuring a 6A current rating and Type C tripping characteristic, this 1+N pole device ensures safety against overloads and short circuits in 230V systems with a 10kA breaking capacity.
Availability: In stock
Overview
The Siemens 5SY4506-7 Miniature Circuit Breaker is designed to provide reliable overcurrent protection for residential, commercial, and industrial electrical systems. With a voltage rating of 230 V and a short-circuit withstand capacity of 10 kA, this MCB is ideal for safeguarding circuits from overloads and faults. Its 1+N-pole configuration and C-curve characteristic ensure effective protection in various applications.
Key Benefit
-
Reliable Overcurrent Protection: The Siemens 5SY4506-7 offers high protection against overloads and short circuits, minimizing the risk of electrical hazards.
-
Compact Design: With a width of just 70 mm, this miniature circuit breaker fits easily into standard electrical distribution panels, saving space without compromising on performance.
-
High Breaking Capacity: Rated at 10 kA, it ensures safety in the event of a short circuit, protecting your electrical installation from potential damage.
-
Versatile Application: Ideal for both residential and commercial applications, offering protection for a wide range of electrical devices and circuits.
-
Efficient Load Protection: The C-curve characteristic allows the breaker to trip at a moderate current, making it suitable for most standard loads like lighting, heating, and small appliances.
Function
-
Overcurrent Protection: Safeguards electrical systems against overloads and short circuits, ensuring that your devices and cables are not damaged by excessive currents.
-
Thermal & Magnetic Trip Mechanisms: Provides both thermal and magnetic protection to quickly detect and disconnect in case of faults.
-
Compact and User-Friendly: Designed for easy installation and maintenance, making it perfect for both electricians and DIY users.
Visit 5SY4506-7 for more detail info
For more our products visit turll
Download
| Weight | 0.316 kg |
|---|---|

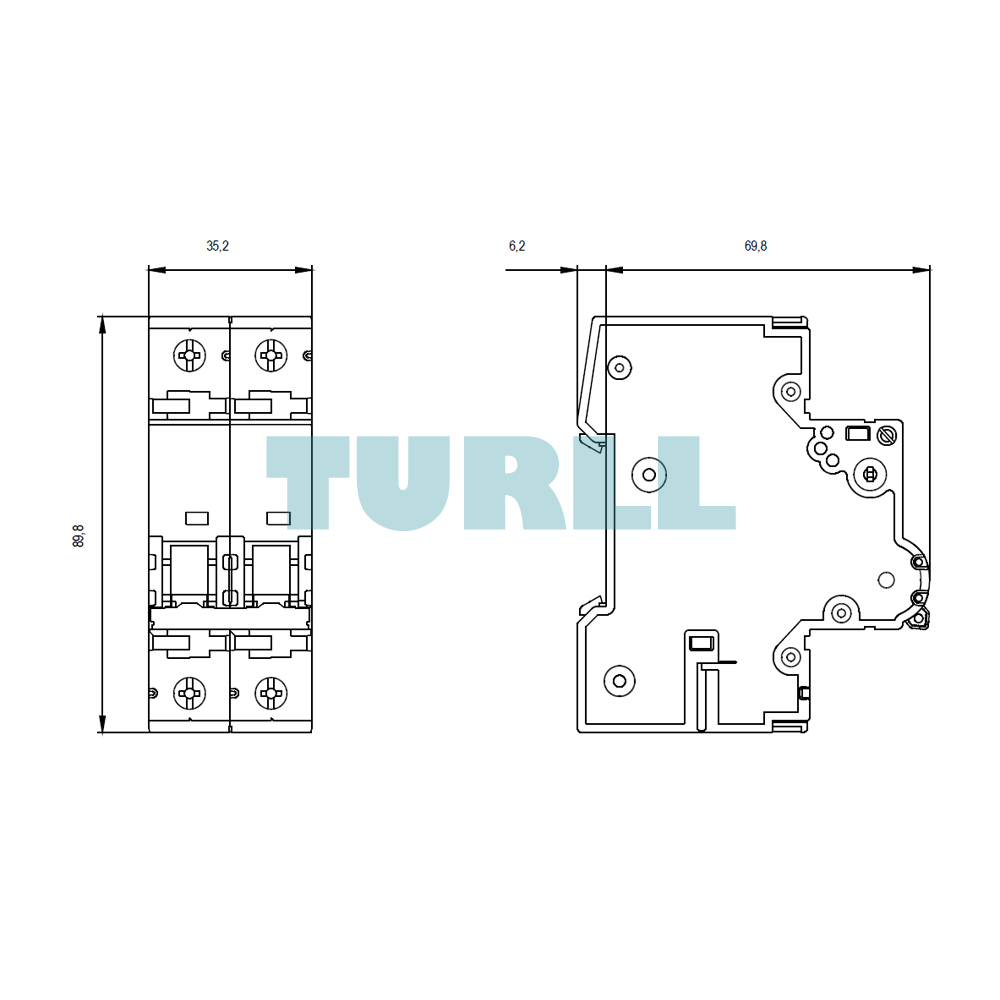

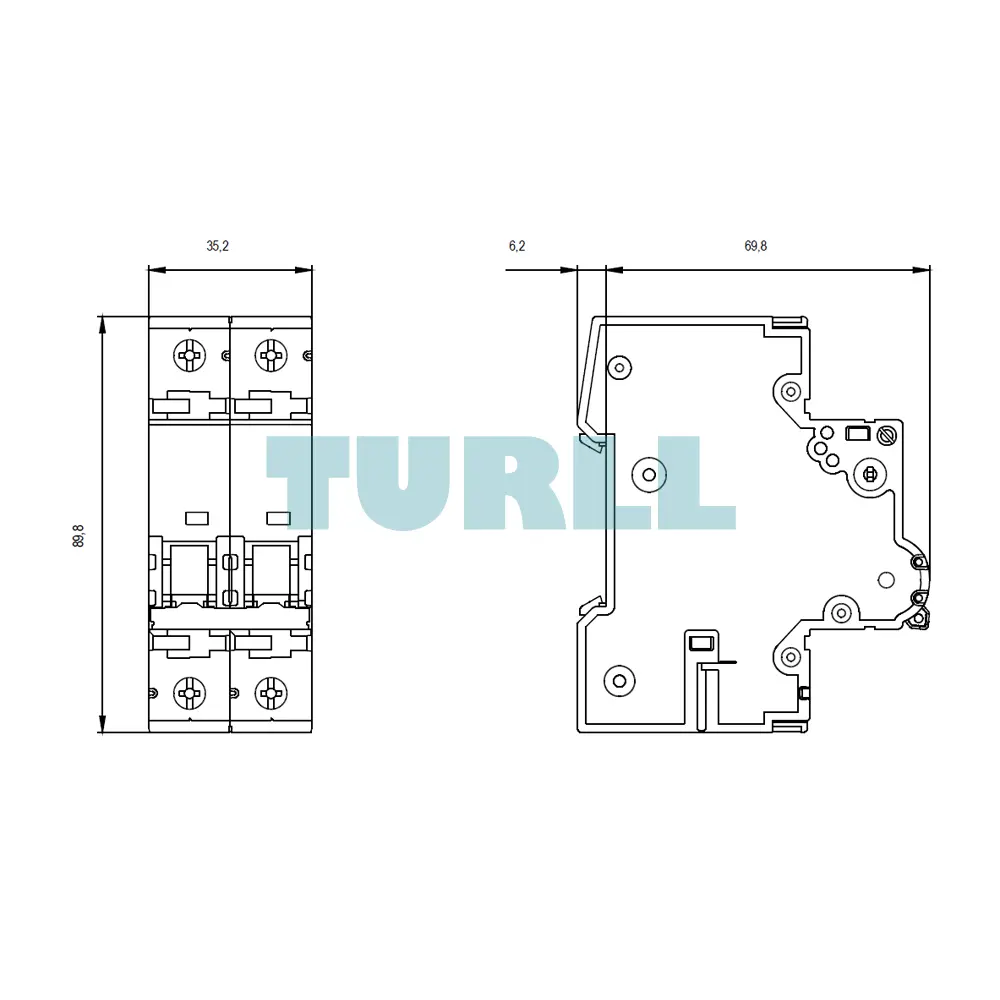

| Dimensions | 40.00 × 92.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |

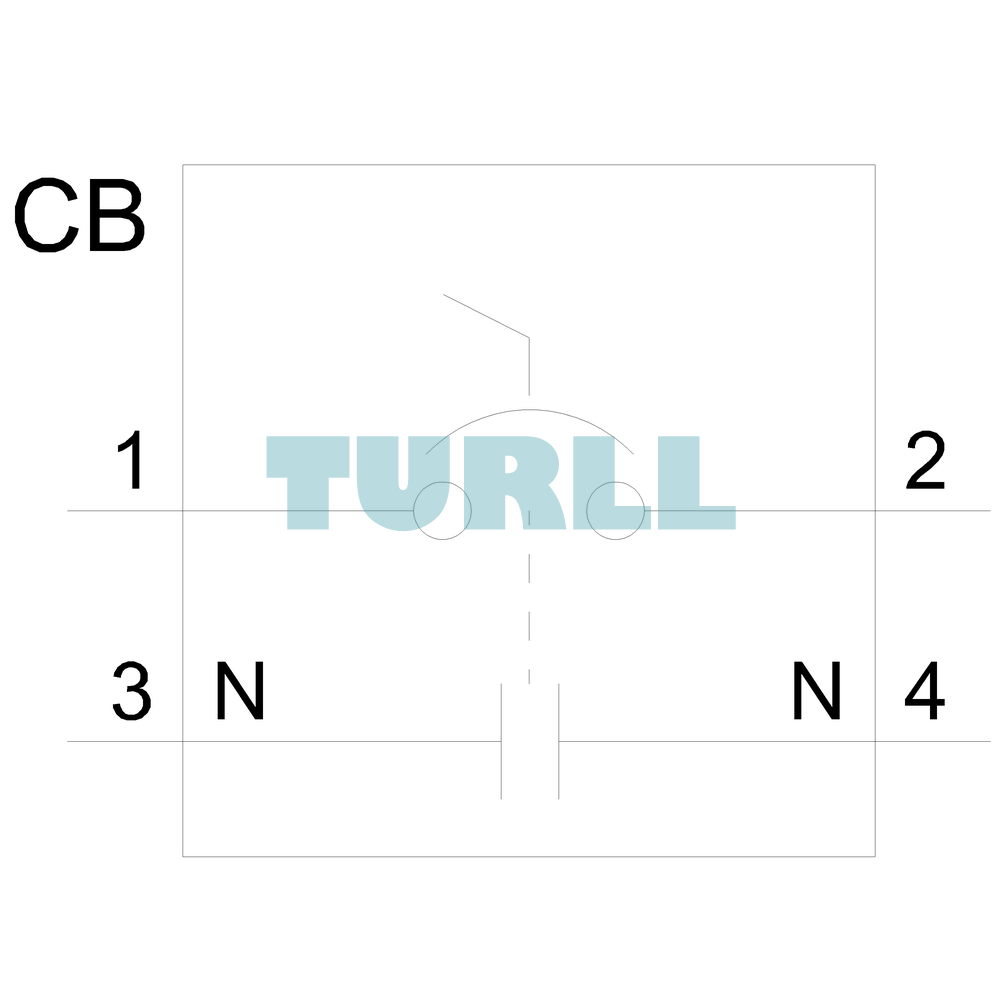

| design of pole | 1P+N |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 250 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 35 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| operational current | – |
| ● at 35 °C / rated value | 6 A |
| ● at 40 °C / rated value | 5.63 A |
| ● at 45 °C / rated value | 5.44 A |
| ● at 50 °C / rated value | 5.24 A |
| ● at 55 °C / rated value | 5.04 A |
| ● at 60 °C / rated value | 4.82 A |
| ● at AC / rated value | 6 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | Yes |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
