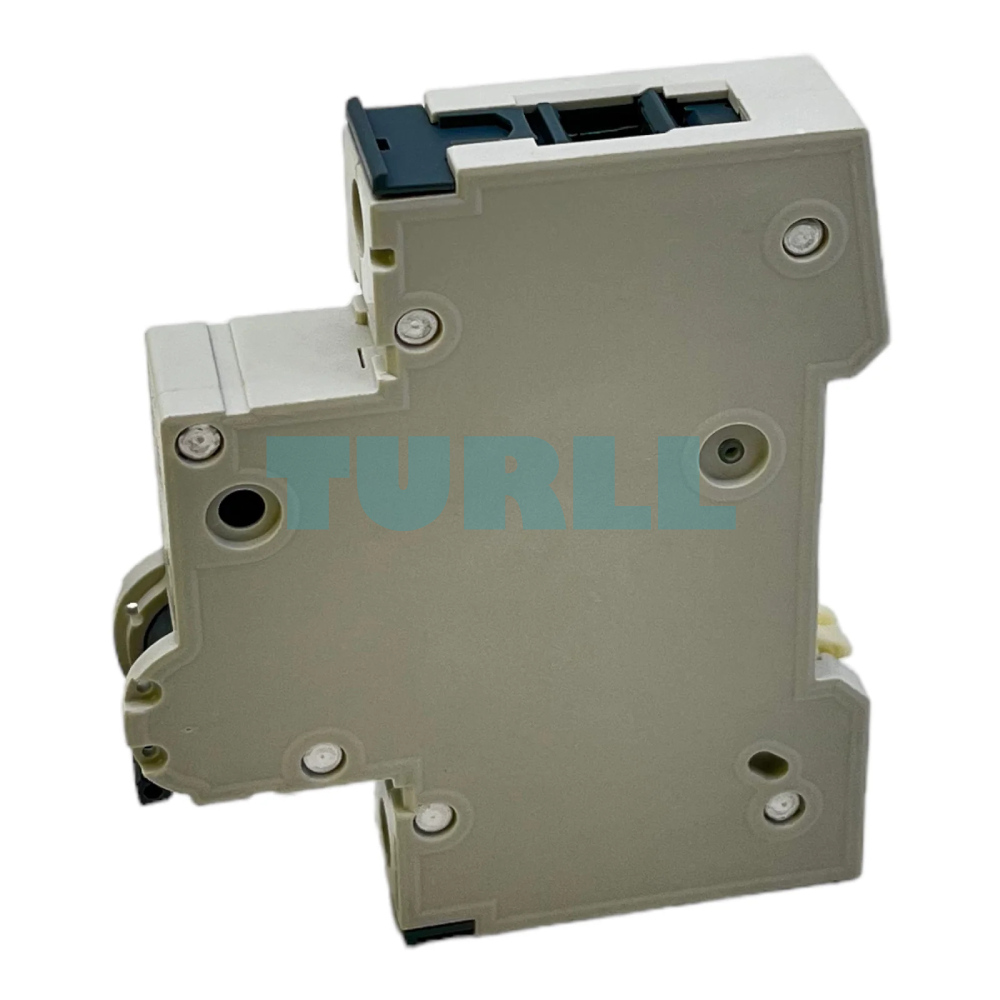

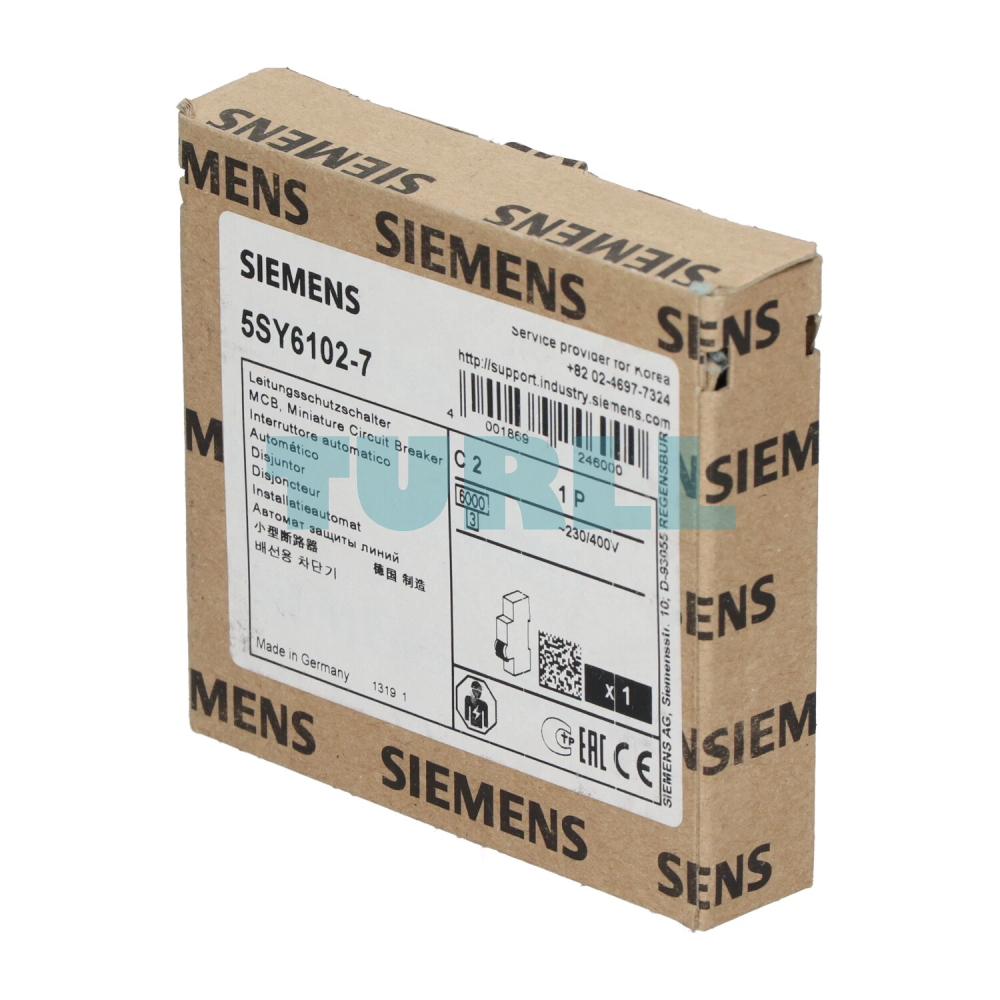

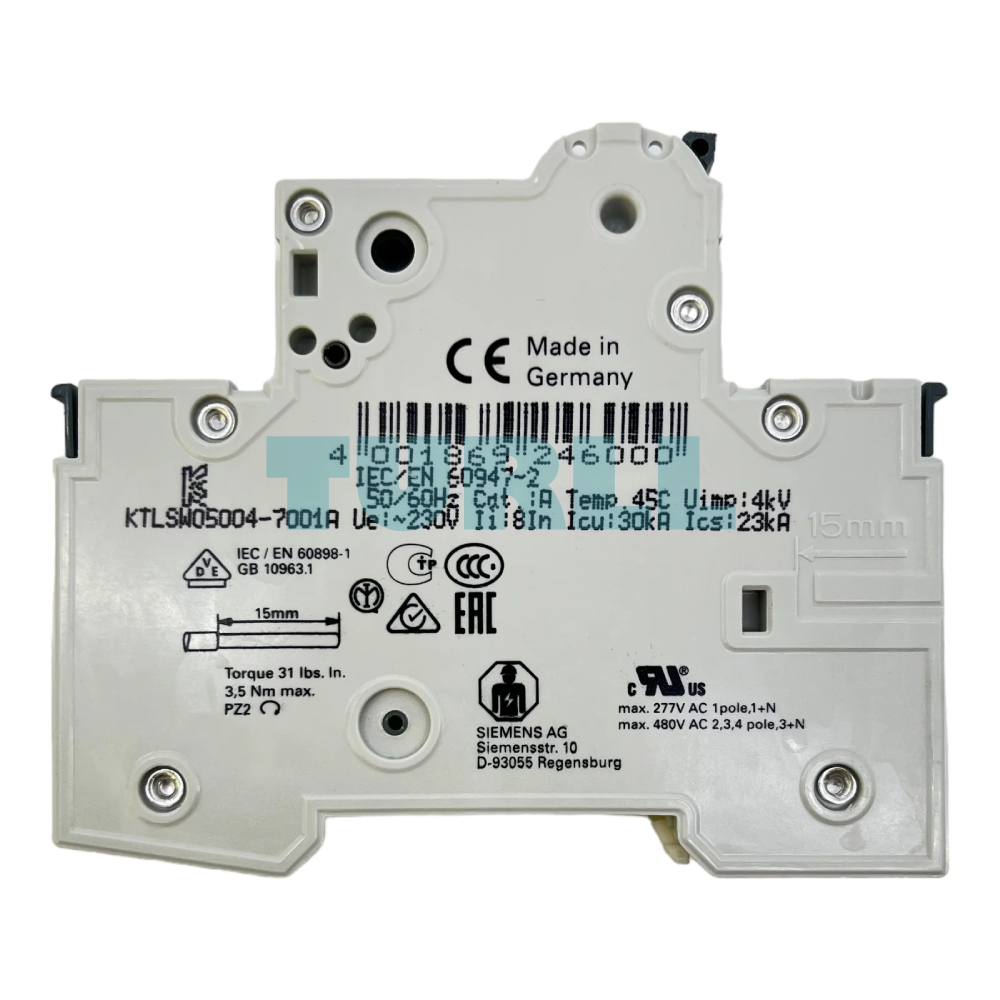

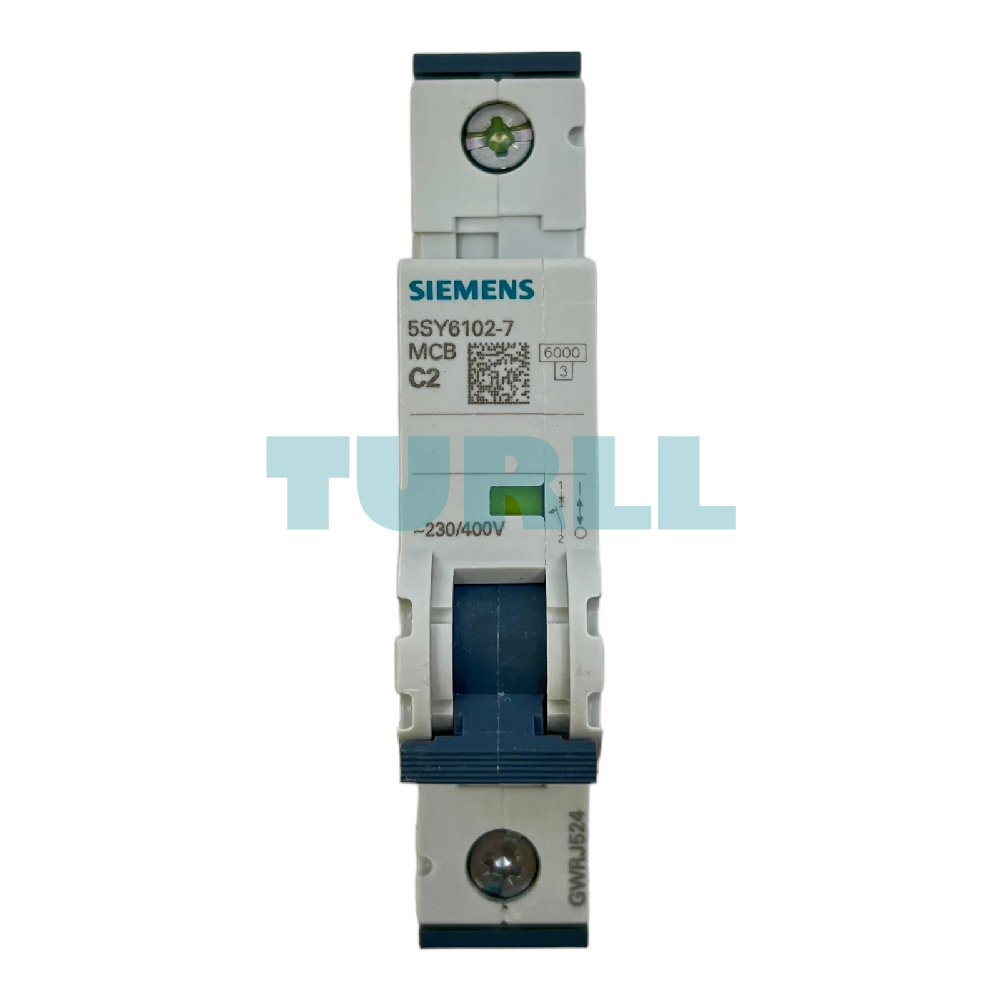

Siemens 5SY6102-7 Miniature Circuit Breaker 230/400V 6kA, 1-Pole, C Curve, 2A Original Brand New
$37.07
Siemens 5SY6102-7 is a high-performance 1-pole miniature circuit breaker designed for reliable electrical protection. Featuring a 2A rated current and a Type C tripping characteristic, this 70mm depth MCB offers a 6kA breaking capacity, making it ideal for standard residential and industrial applications.
Availability: In stock
Overview
The Siemens 5SY6102-7 Miniature Circuit Breaker is a high-performance protective device designed for 230/400V applications. This 1-pole circuit breaker features a C curve and a current rating of 2A, offering reliable overcurrent protection with a short-circuit breaking capacity of 6kA. It is ideal for residential, commercial, and industrial electrical systems. With a compact design (D=70mm), this circuit breaker is a must-have for ensuring the safety and longevity of your electrical circuits.
Benefit
-
Reliable Protection: Offers consistent overcurrent protection to prevent electrical faults and ensure the safety of electrical installations.
-
Compact Design: The compact 70mm profile fits easily into standard electrical panels, making it ideal for space-constrained installations.
-
High Short-Circuit Breaking Capacity: With a breaking capacity of 6kA, it is capable of handling significant fault currents, ensuring high reliability in demanding environments.
-
Durability: Siemens is a trusted brand known for producing durable, high-quality electrical components.
-
Versatile Application: Perfect for use in various residential, commercial, and industrial settings.
-
Easy Installation: Quick and simple installation with standard DIN rail mounting.
Function
-
The Siemens 5SY6102-7 Miniature Circuit Breaker is designed to automatically disconnect power in case of an overcurrent or short circuit, preventing damage to electrical systems and enhancing safety.
-
It operates with a C curve, which means it trips at a moderate level of overload, offering protection to electrical appliances and circuits that have short-term inrush currents.
Visit 5SY6102-7 for more detail info
For more our products visit turll
Download
| Weight | 0.157 kg |
|---|---|
| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 30 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.2 W |
| operational current | – |
| ● at 35 °C / rated value | 2 A |
| ● at 45 °C / rated value | 1.85 A |
| ● at 50 °C / rated value | 1.8 A |
| ● at 55 °C / rated value | 1.75 A |
| ● at AC / rated value | 2 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
