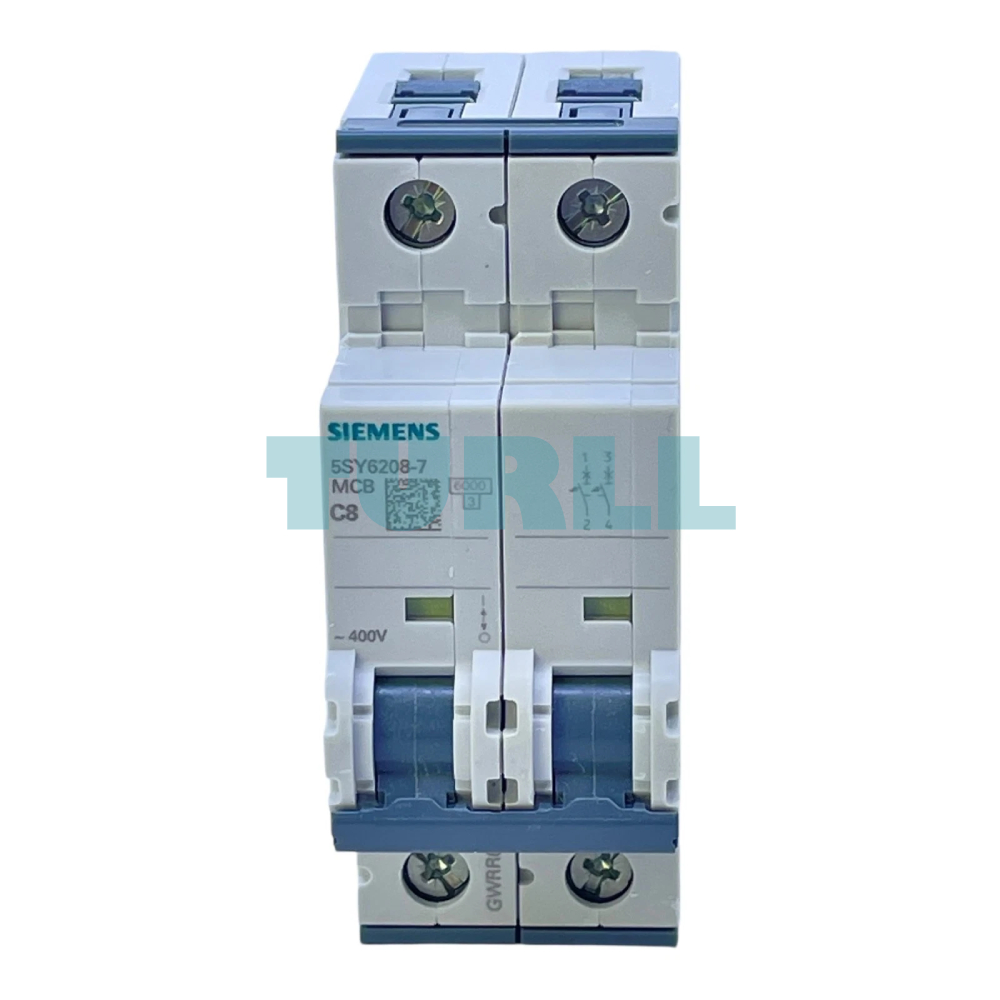

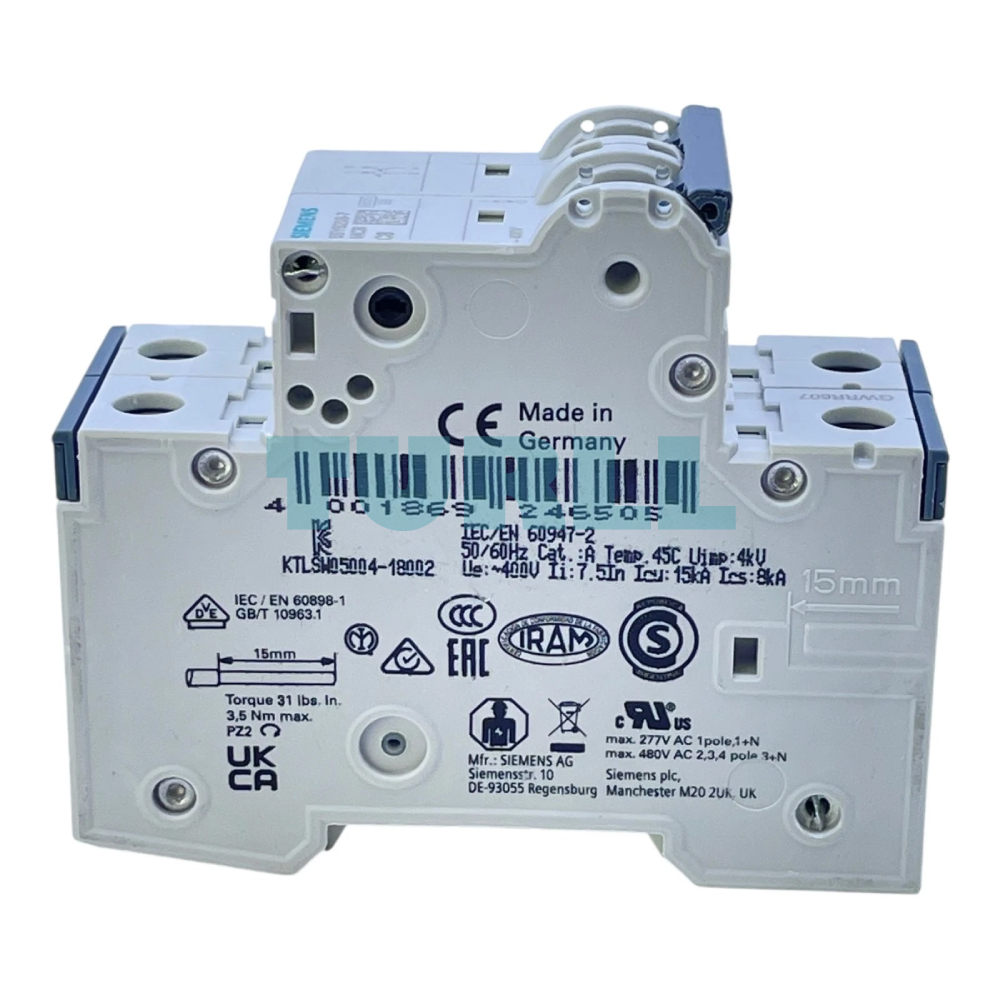

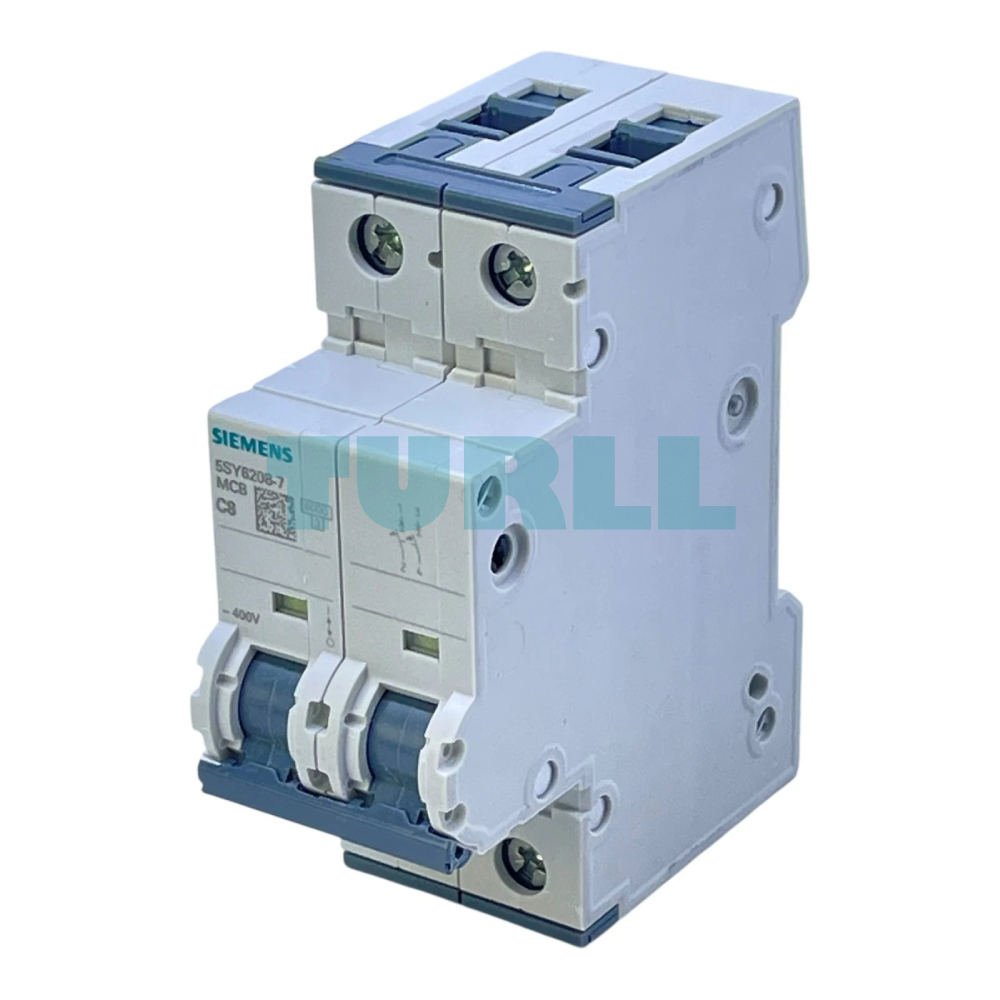

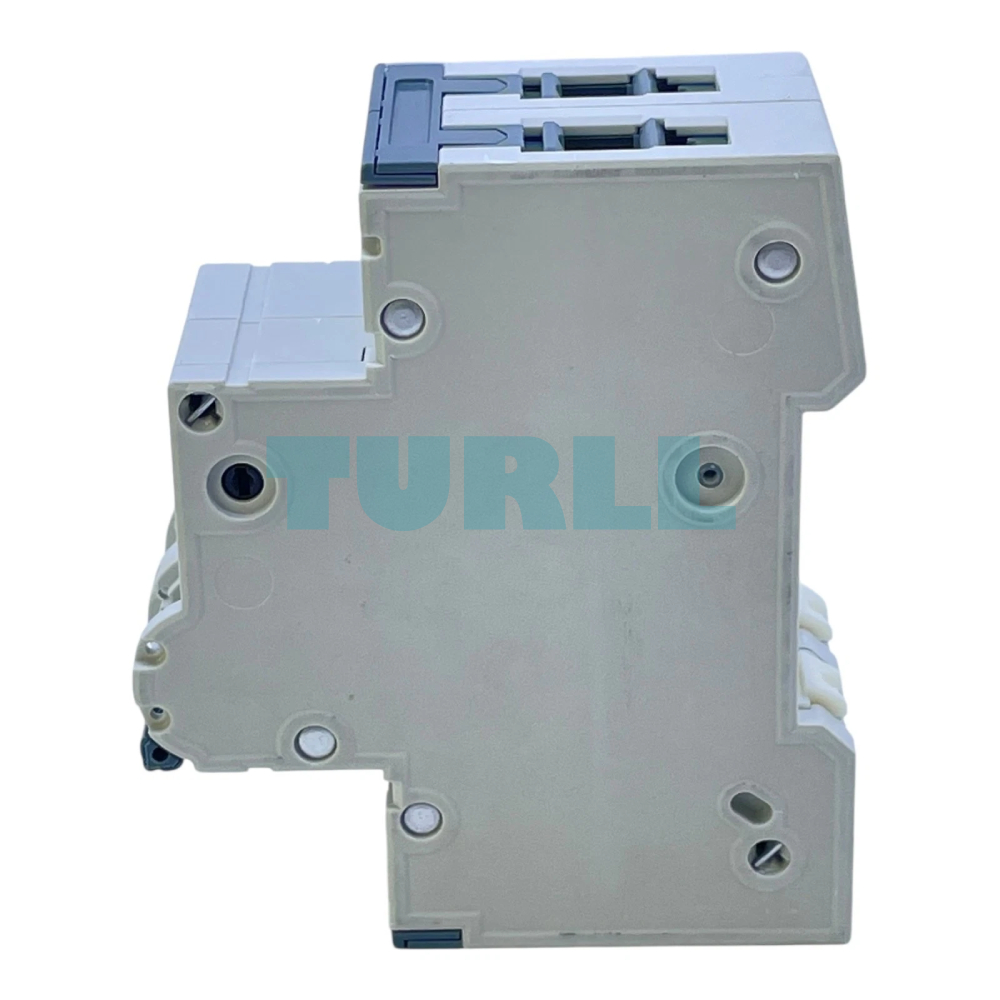

Siemens 5SY6208-7 Miniature Circuit Breaker 400 V, 6kA, 2-Pole, 8A, C Curve Original Brand New
$65.82
High-performance Miniature Circuit Breaker from the SENTRON series. Designed for 400V AC applications, this 2-pole device features an 8A rated current and a Type C tripping characteristic, making it ideal for protecting circuits with moderate inrush currents.
Availability: In stock
Overview
The Siemens 5SY6208-7 is a high-quality miniature circuit breaker designed for reliable protection in electrical systems. With a 6kA breaking capacity and 400V rating, it ensures safety against overloads and short circuits. This 2-pole, 8A breaker is ideal for both residential and industrial applications, offering quick and effective response in case of fault conditions. Its compact design (D=70mm) makes it a great choice for installations with limited space.
Benefit
-
High Safety Standards: With a 6kA breaking capacity, the Siemens 5SY6208-7 effectively handles short circuits, preventing damage to wiring and equipment.
-
Space-Saving Design: Its D=70mm compact size makes it ideal for installations where space is limited.
-
Versatile Applications: Perfect for use in both residential and industrial electrical circuits.
-
Reliable Protection: The 2-pole configuration and C curve characteristics ensure stable performance for everyday electrical devices and load protection.
-
Easy Installation: Designed for hassle-free mounting in standard distribution boards, enhancing efficiency during setup.
Function
The Siemens 5SY6208-7 miniature circuit breaker provides overload protection and short circuit protection for electrical systems. It is engineered to interrupt the circuit in case of excessive current, protecting your electrical devices and systems from potential damage. Ideal for lighting, heating, and motor circuits, it’s built to operate efficiently under a variety of loads and environmental conditions.
Visit 5SY6208-7 for more detail info
For more our products visit turll
Download
| Weight | 0.315 kg |
|---|---|
| Dimensions | 40.00 × 92.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.9 W |
| operational current | – |
| ● at 35 °C / rated value | 8 A |
| ● at 45 °C / rated value | 7.26 A |
| ● at 50 °C / rated value | 6.99 A |
| ● at 55 °C / rated value | 6.72 A |
| ● at AC / rated value | 8 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
