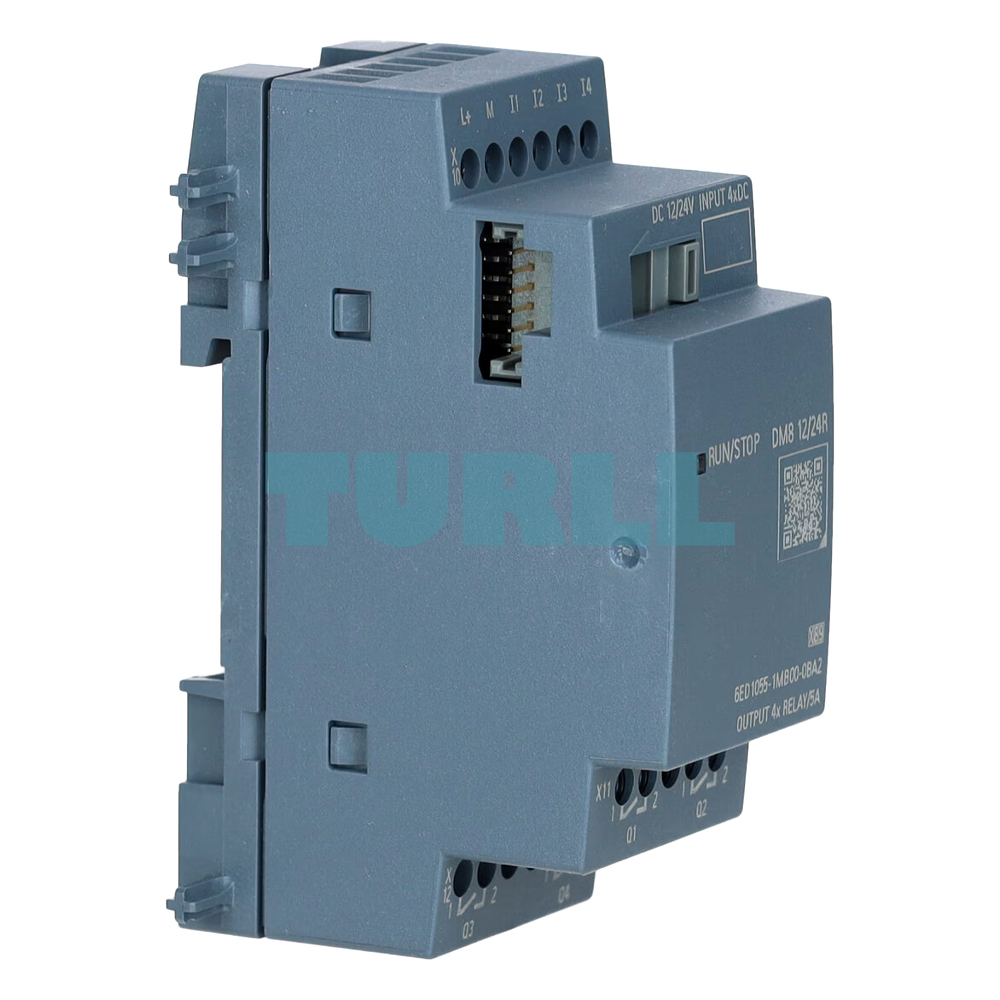

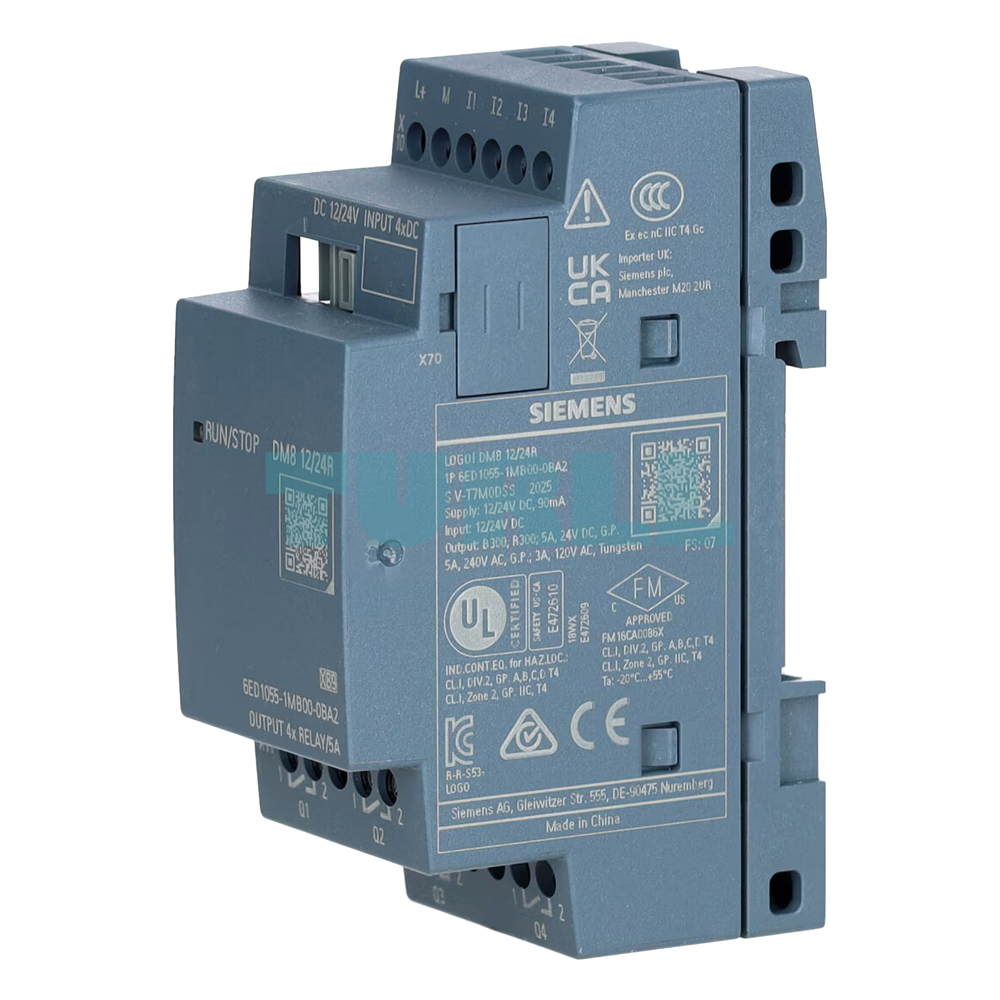

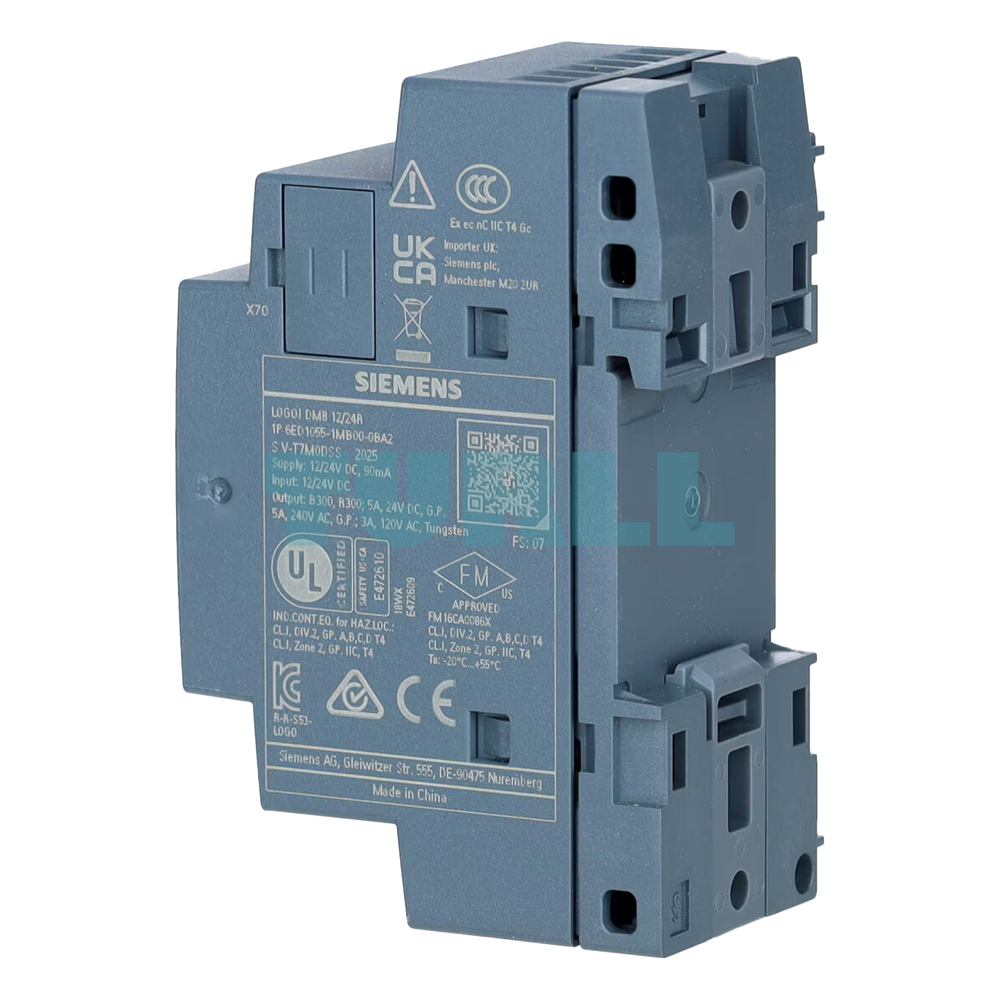

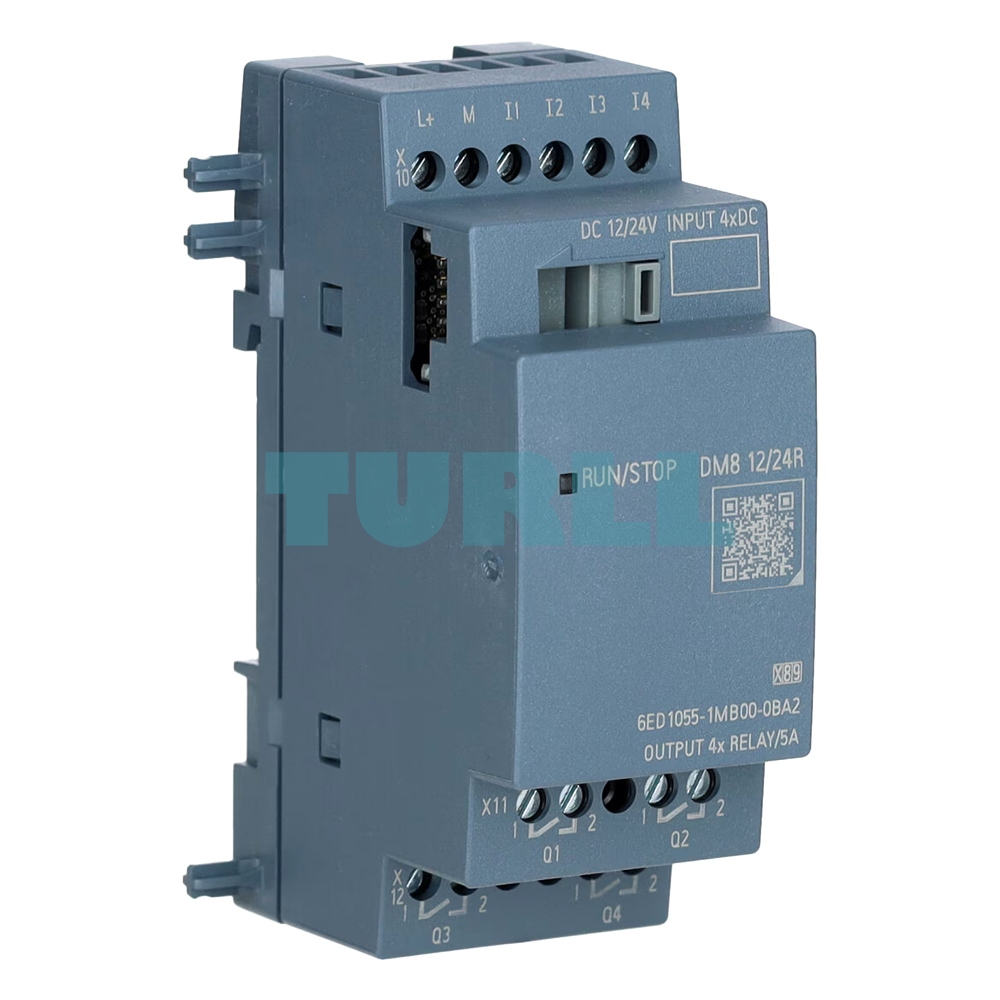

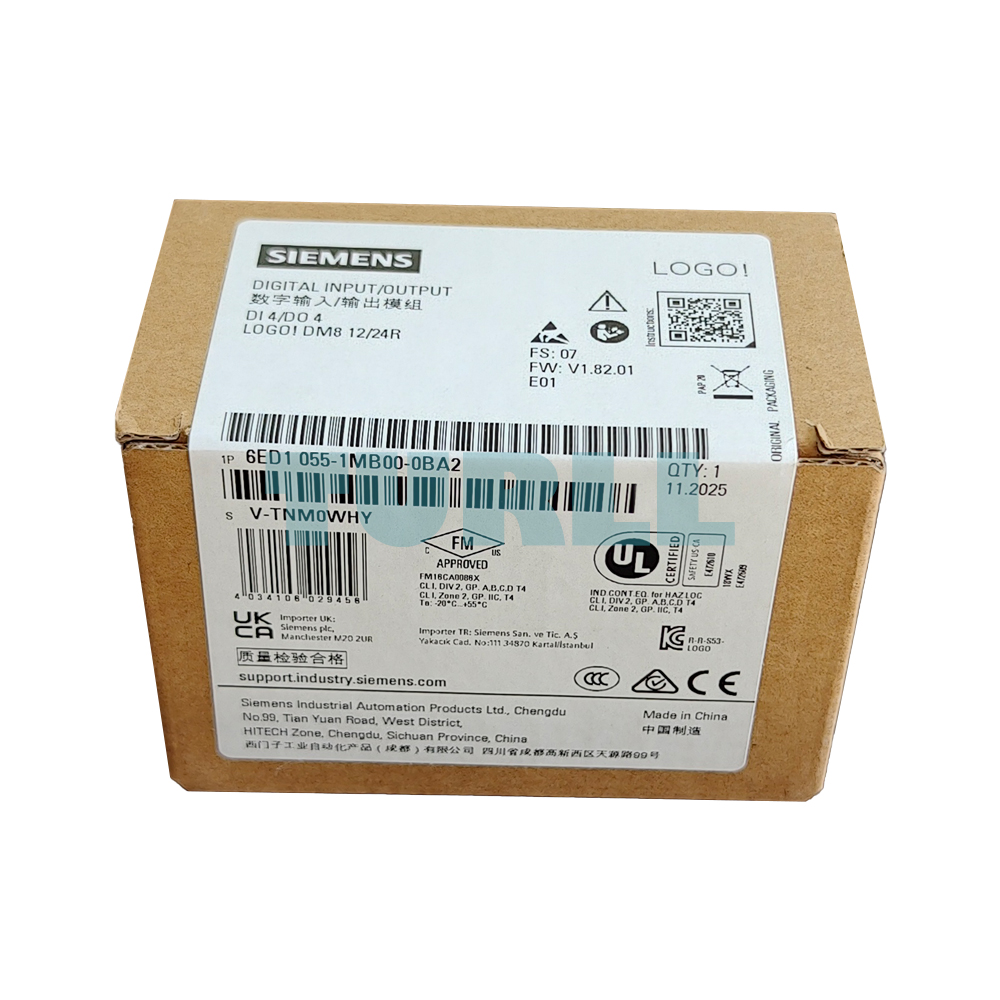

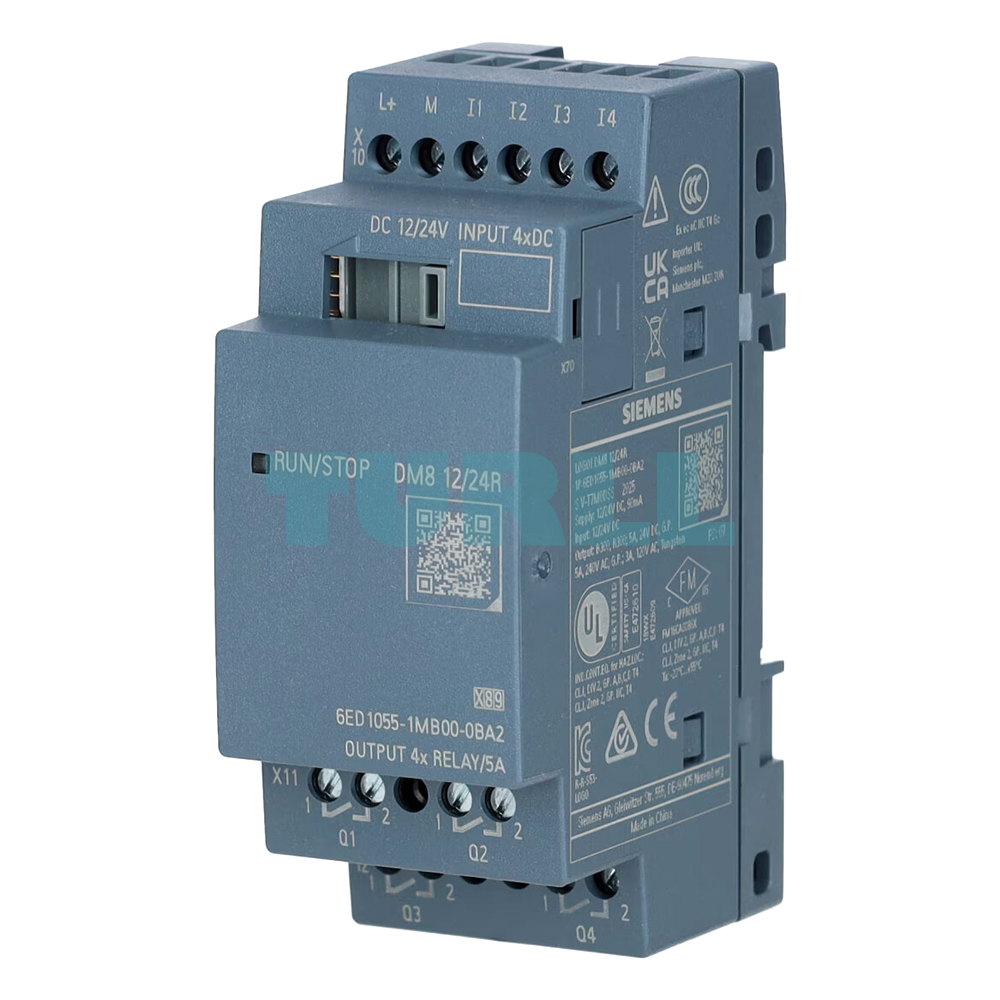

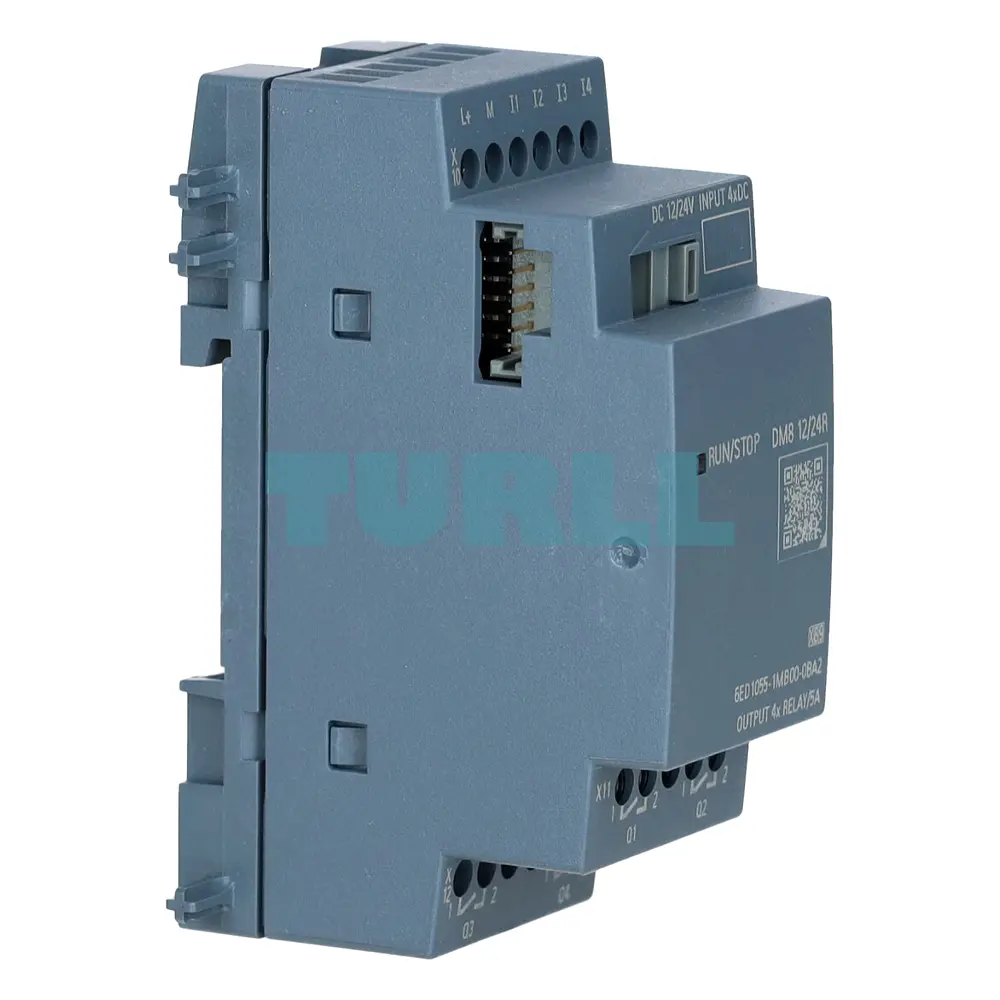

Siemens 6ED1055-1MB00-0BA2 LOGO! DM8 12/24R Expansion Module 4 DI / 4 DO Relay Original Brand New
$56.09
Siemens LOGO! DM8 12/24R expansion module with 4 digital inputs and 4 relay outputs, designed for LOGO! 8 controllers. Supports 12V and 24V DC for flexible automation applications.
Availability: In stock
Overview
The 6ED1055-1MB00-0BA2 LOGO! DM8 12/24R is a robust and compact digital I/O expansion module designed specifically to extend the capabilities of the Siemens LOGO! 8 series of logic controllers. This essential component allows you to cost-effectively increase the number of digital inputs and outputs for greater flexibility in your small-scale automation projects. With its versatile power supply range and relay outputs, it’s ideal for a wide array of applications, including building management, HVAC systems, and simple machine control.
Benefit
-
Cost-Effective I/O Scaling: Easily add digital I/O points without upgrading to a larger, more expensive PLC system.
-
Versatile Application: The relay outputs allow direct control of higher current or different voltage loads (AC or DC) than typical transistor outputs.
-
Space-Saving Design: Its compact, narrow housing (35.5 mm wide) conserves valuable space within control cabinets.
-

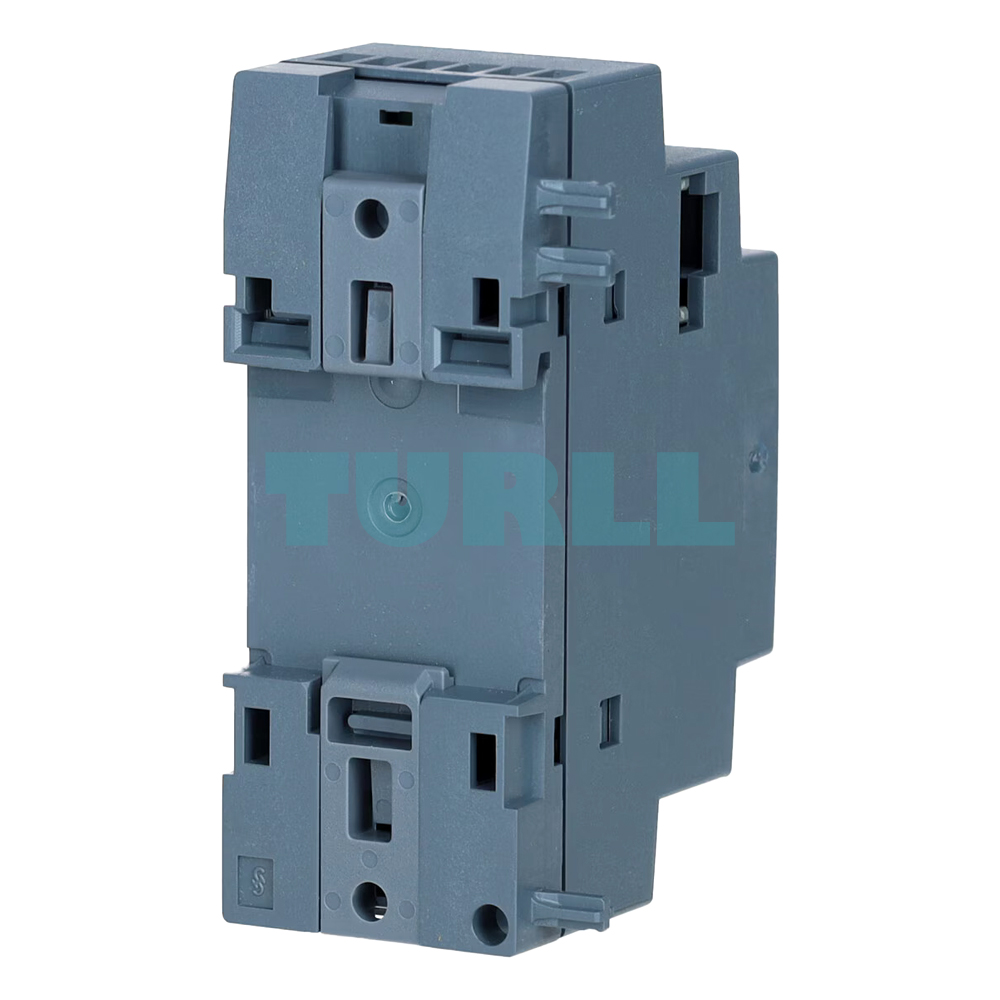

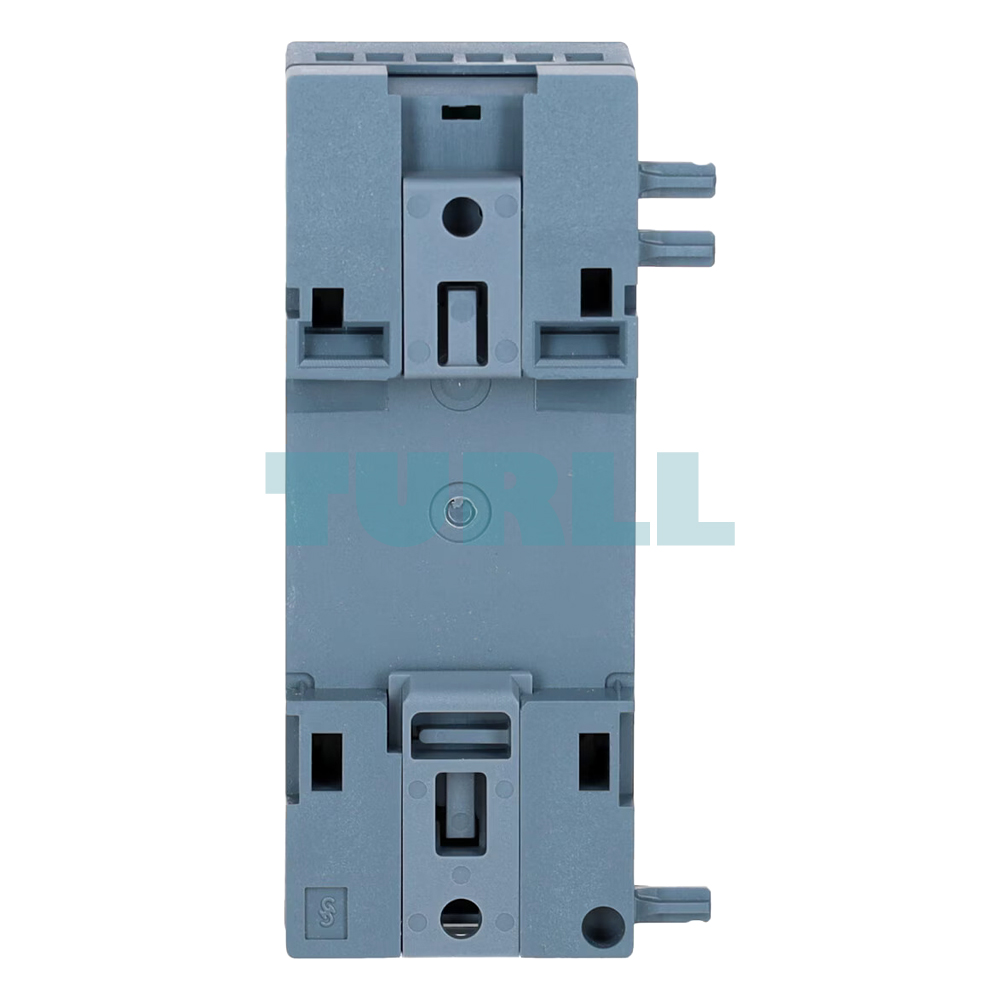

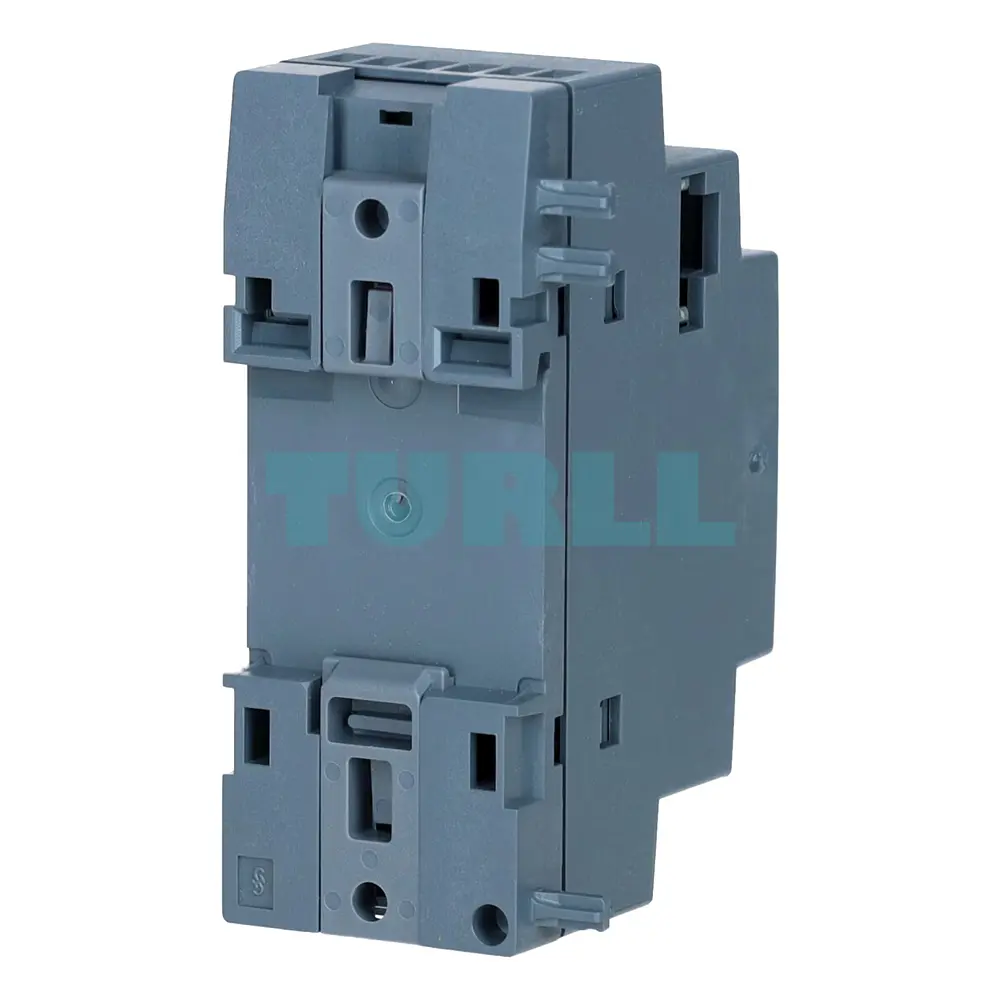

Easy Installation: Designed for quick and secure mounting on a 35 mm DIN rail.
-
Reliability: Manufactured by Siemens, ensuring high quality, durability, and long-term performance in industrial environments.
Function & Features
-
Inputs: 4 Digital Inputs (DI)
-
Outputs: 4 Digital Relay Outputs (DO)
-
Power Supply: 12V / 24V DC
-
Relay Type: Electromechanical relay
-
Memory Words: 2 MW
-
Compatibility: Siemens LOGO! 8 series
-
Application Areas: Industrial automation, building automation, control panels
Application
-
Industrial automation systems
-
Machine control
-
Building management systems
-
Electrical control cabinets
-
Smart automation projects
Download
Visit 6ED1055-1MB00-0BA2 for more detail info
For more our products visit turll
| Weight | 0.172 kg |
|---|---|
| Dimensions | 5.70 × 9.60 × 7.10 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | – |
| ● 12 V DC | Yes |
| ● 24 V DC | Yes |
| permissible range, lower limit (DC) | 10.8 V |
| permissible range, upper limit (DC) | 28.8 V |
| Number of digital inputs | 4 |
| ● Type of input voltage | DC |
| ● for signal "0" | < 5 V DC |
| ● for signal "1" | > 8.5 V |
| ● for signal "0", max. (permissible quiescent current) | 0.88 mA |
| ● for signal "1", typ. | 1.5 mA |
| — at "0" to "1", max. | 1.5 ms |
| — at "1" to "0", max. | 1.5 ms |
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| ● on lamp load, max. | 1 000 W |
| ● for signal "1" rated value | 5 A |
| ● for signal "1" minimum load current | 100 mA |
| ● for uprating | No |
| ● with resistive load, max. | 2 Hz |
| ● with inductive load, max. | 0.5 Hz |
| ● mechanical, max. | 10 Hz |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 5 A |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
