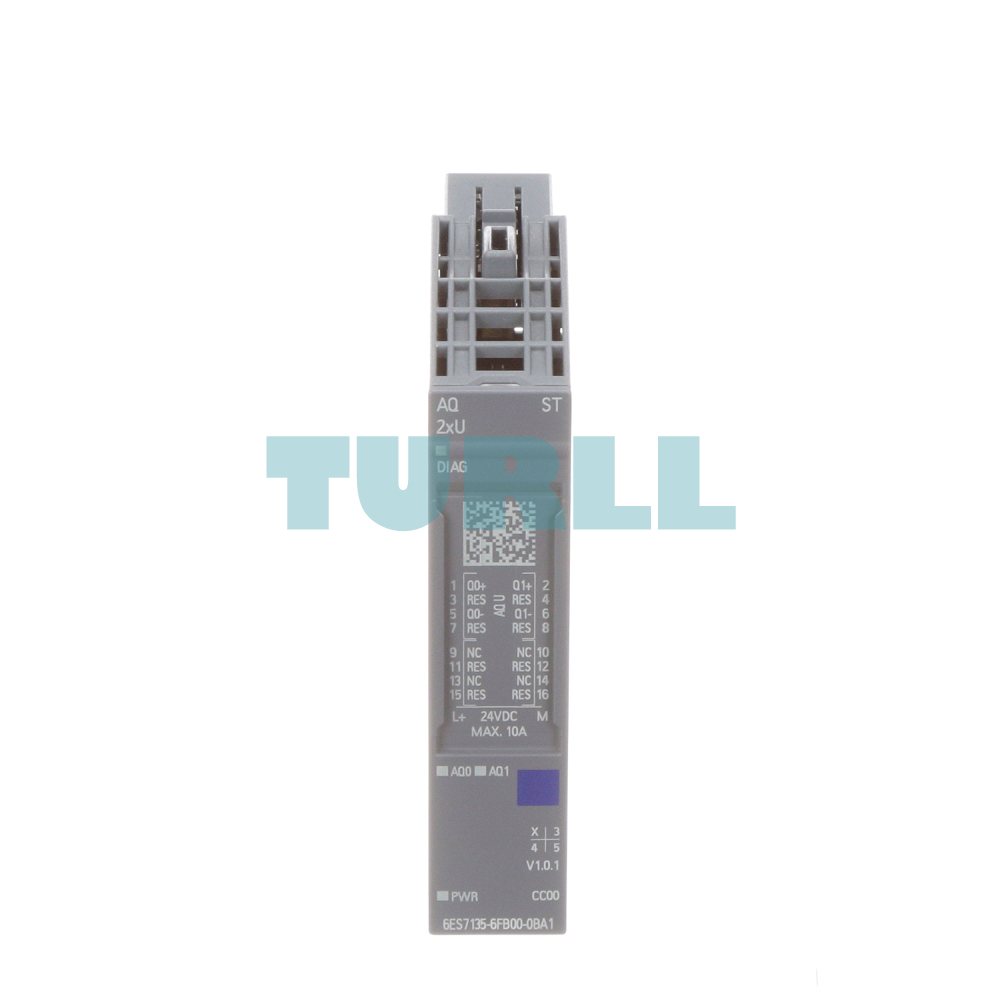

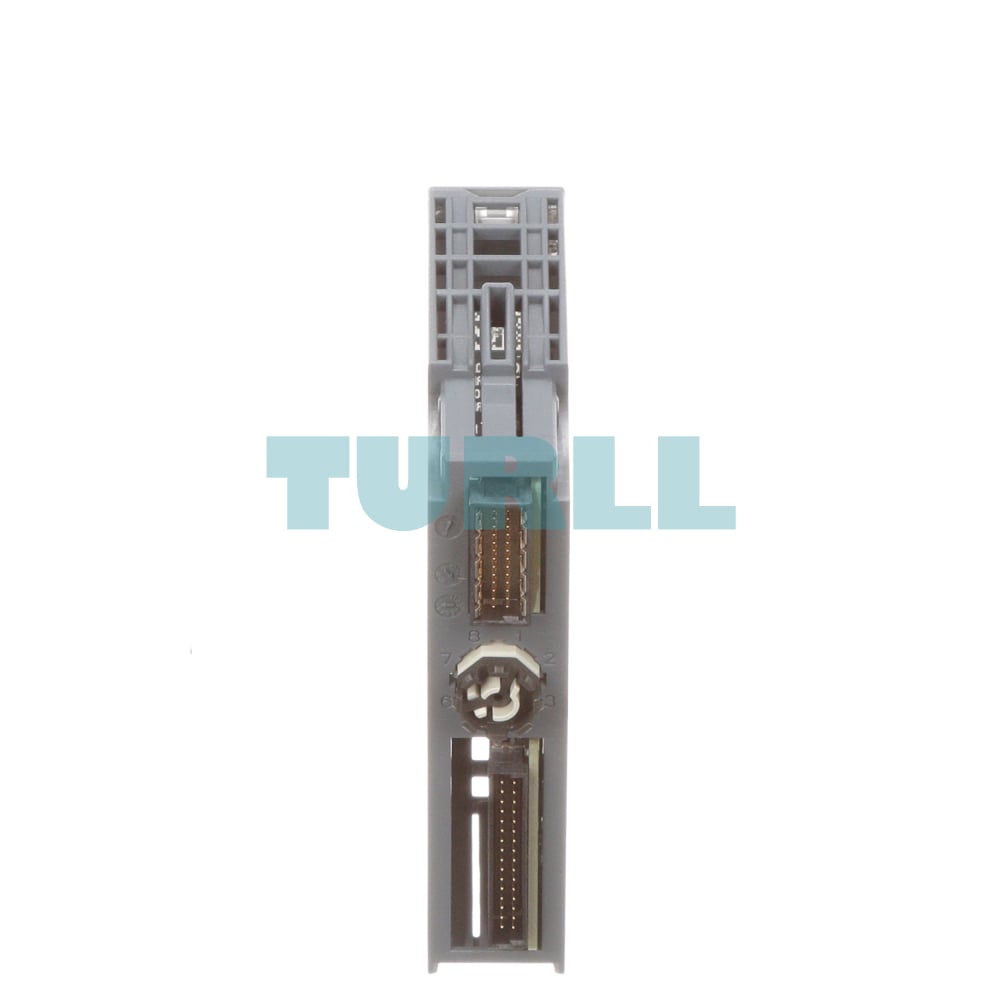

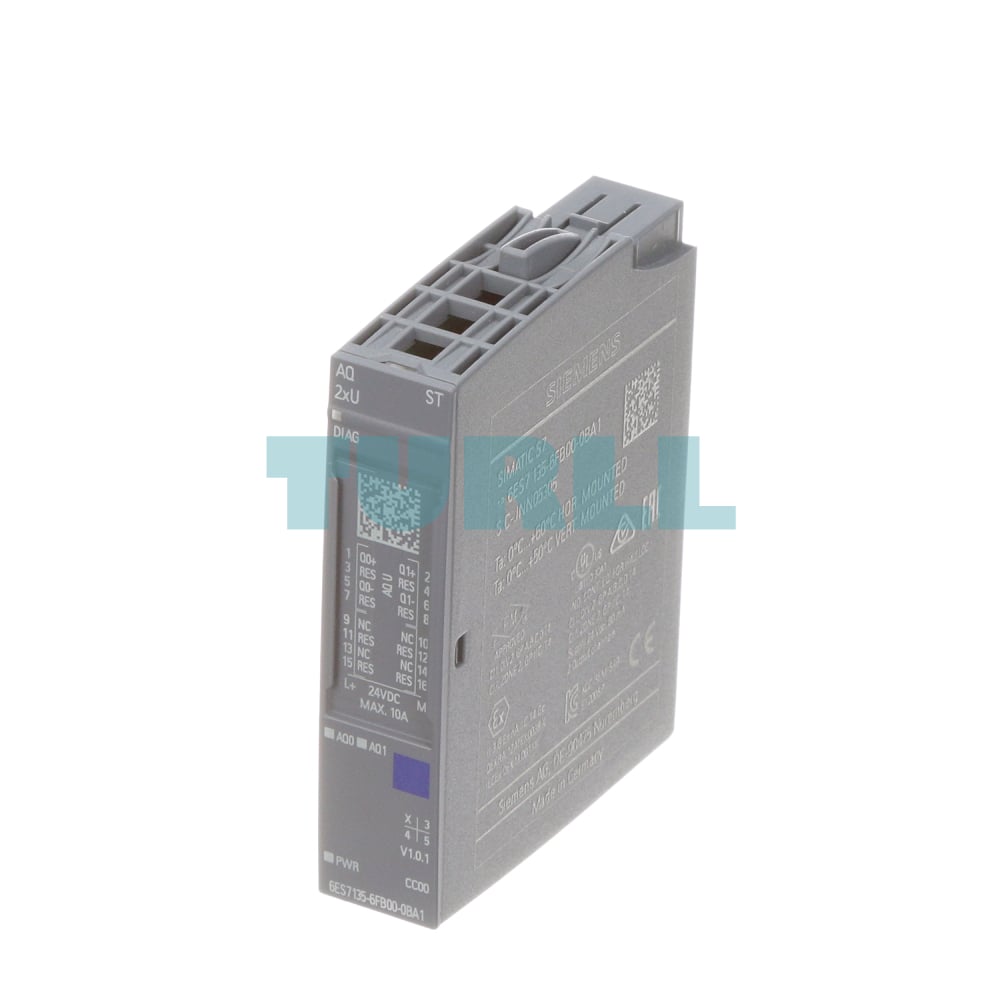

Siemens 6ES7135-6FB00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 2xU Standard Original Brand New

Model / SKU6ES7135-6FB00-0BA1

SIMATIC ET 200SP Analog Output Module AQ 2xU Standard, 16-bit, with module diagnostics. Compatible with BU types A0 & A1, color code CC00. Pack of 1 unit.

$14,675.74
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7135-6FB00-0BA1 is a high-performance analog output module designed for use with the SIMATIC ET 200SP distributed I/O system. This compact, channel-granular module is built for standard industrial environments, providing two high-resolution voltage output channels (AQ 2xU Standard). Featuring 16-bit resolution, it ensures highly accurate and precise control over analog actuators and devices in your automation processes. Its simple integration, coupled with robust module diagnostics, guarantees reliable operation and fast troubleshooting, minimizing downtime.

Benefit

  • High precision control: 16-bit analog output ensures accurate signal transmission.

  • Diagnostic support: Built-in module diagnostics enable quick fault detection and maintenance.

  • Flexible installation: Compatible with BU types A0 and A1 for seamless integration.

  • Reliable operation: Designed for industrial automation with robust Siemens quality.

  • Easy identification: Color-coded CC00 module simplifies installation and configuration.

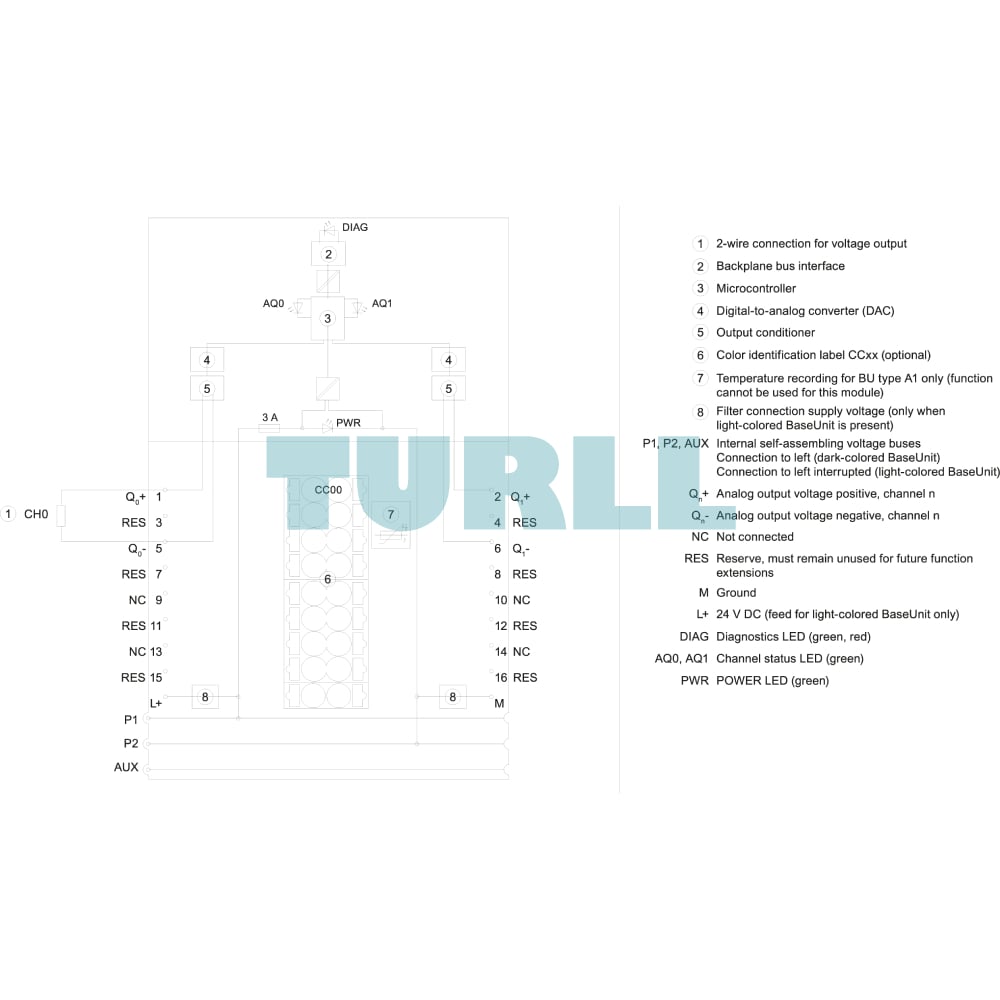

Function

  • Provides 2 analog outputs for controlling external devices.

  • Supports 16-bit resolution for fine signal granularity.

  • Enables module diagnostics for real-time error detection.

  • Integrates with SIMATIC ET 200SP system for scalable automation solutions.

  • Color-coded design ensures proper slot installation.

Technical Specification

  • Product Number: 6ES7135-6FB00-0BA1

  • Module Type: SIMATIC ET 200SP Analog Output Module

  • Outputs: 2xU Standard

  • Resolution: 16-bit

  • Diagnostics: Module diagnostics included

  • Suitable BU types: A0, A1

  • Color Code: CC00

  • Pack Quantity: 1 unit

Application

This module is ideal for applications requiring the precise control of analog voltage signals, such as:

  • Controlling variable speed drives (VSDs)

  • Positioning proportional valves and actuators

  • Setting setpoints for process controllers (e.g., flow, pressure, temperature)

  • General analog signal generation in manufacturing and process automation.

Download

Datasheet in PDF

Visit 6ES7135-6FB00-0BA1 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7135-6FB00-0BA1
BrandSIEMENS
Product type designationAQ 2xU ST
HW functional statusFrom FS03
Firmware version-
● FW update possibleYes
usable BaseUnitsBU type A0, A1
Color code for module-specific color identification plateCC00
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● Output range scalableNo
● STEP 7 TIA Portal configurable/integrated from versionV13 SP1 / -
● STEP 7 configurable/integrated from versionV5.5 SP3 / -
● PROFIBUS from GSD version/GSD revisionGSD Revision 5
● PROFINET from GSD version/GSD revisionGSDML V2.3
● OversamplingNo
● MSONo
Reparameterization possible in RUNYes
Calibration possible in RUNNo
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.80 mA
Power loss, typ.1 W
● Address space per module, max.4 byte; + 1 byte for QI information
Automatic encoding-
● Mechanical coding elementYes
● Type of mechanical coding elementType A
Number of analog outputs2
Voltage output, short-circuit current, max.45 mA
Cycle time (all channels), min.1 ms
Analog output with oversamplingNo
● 0 to 10 VYes; 15 bit
● 1 V to 5 VYes; 13 bit
● -5 V to +5 VYes; 15 bit incl. sign
● -10 V to +10 VYes; 16 bit incl. sign
● for voltage output two-wire connectionYes
● for voltage output four-wire connectionNo
● with voltage outputs, min.2 kΩ
● with voltage outputs, capacitive load, max.1 µF
● Voltages at the outputs30 V
● shielded, max.200 m
● Resolution with overrange (bit including sign), max.16 bit
● for resistive load0.1 ms
● for capacitive load1 ms
Linearity error (relative to output range), (+/-)0.03 %
Temperature error (relative to output range), (+/-)0.005 %/K
Crosstalk between the outputs, min.-50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.05 %
● Voltage, relative to output range, (+/-)0.3 %
● Current, relative to output range, (+/-)0.3 %
Diagnostics functionYes
Substitute values connectableYes
● Diagnostic alarmYes
● Monitoring the supply voltageYes
● Short-circuitYes
● Group errorYes
● Overflow/underflowYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsYes
Isolation tested with707 V DC (type test)
● horizontal installation, min.-30 °C; < 0 °C as of FS03
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C; < 0 °C as of FS03
● vertical installation, max.50 °C
● Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

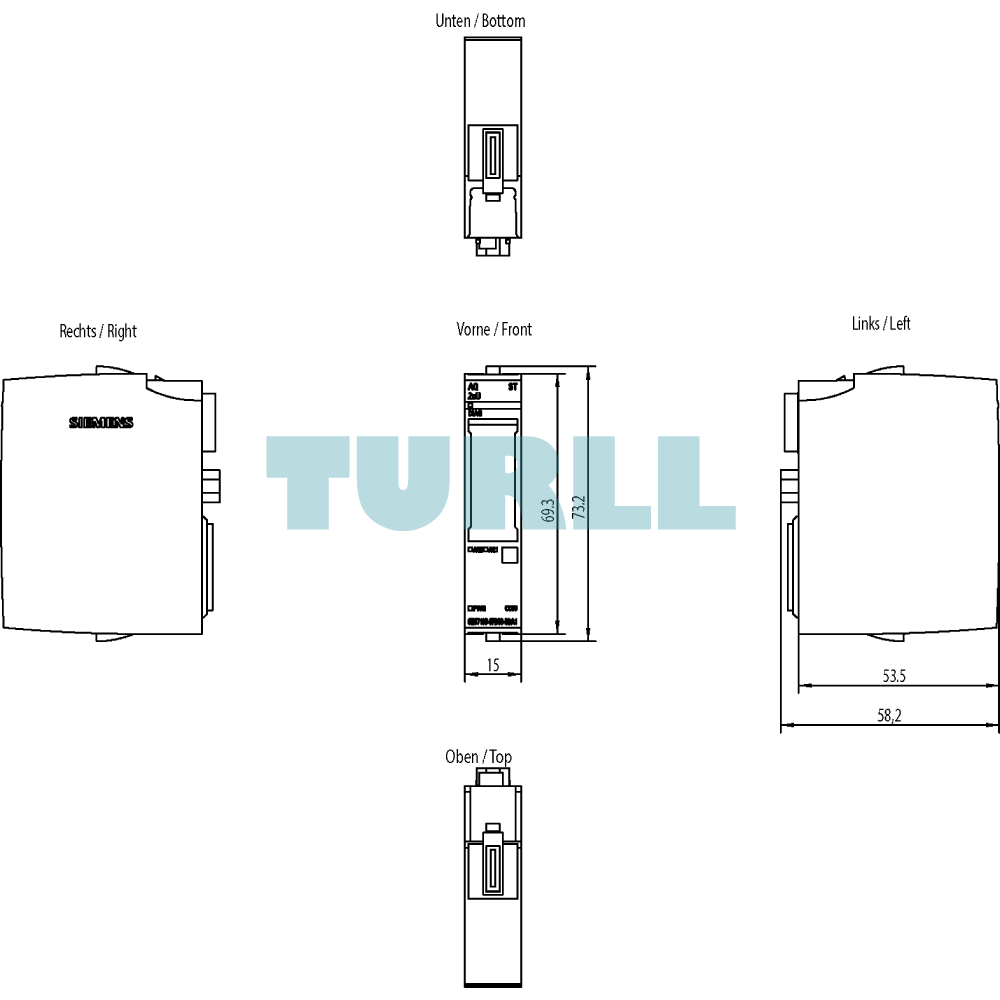

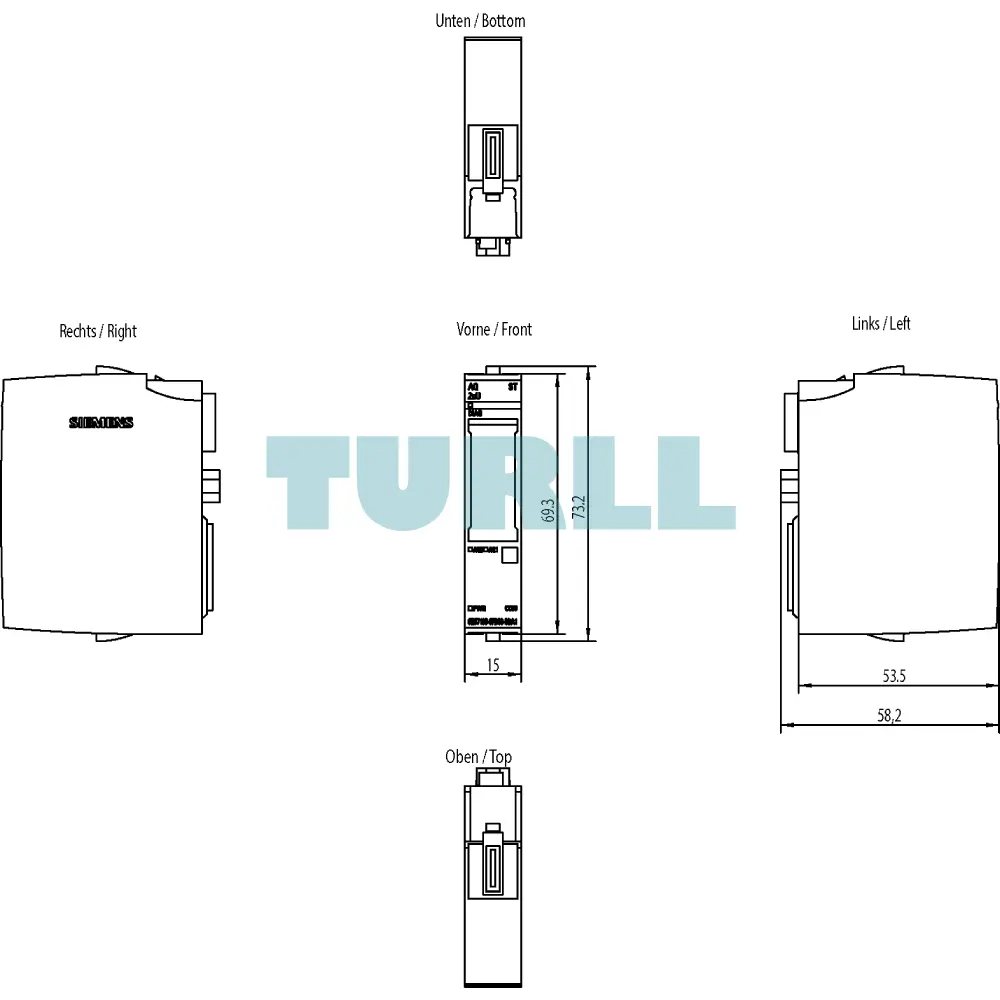

Width15 mm
Height73 mm
Depth58 mm
Weight, approx.31 g
last modified:1/16/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.039 kg
Dimensions6.50 × 7.70 × 2.30 mm
