Siemens 6ES7138-4DB03-0AB0 SIMATIC DP ET 200S Electronics Module with 1 SSI 25-bit Interface Original Brand New
$438.90
High-performance SIMATIC DP electronics module designed for the ET 200S distributed I/O system. This 15mm wide module facilitates the seamless connection of absolute value encoders via a Synchronous Serial Interface (SSI), supporting 25-bit resolution and 1 MHz frequency for precision motion control and positioning.
Availability: In stock
Overview
The Siemens 6ES7138-4DB03-0AB0 SIMATIC DP Electronics Module is a high-performance ET 200S component designed for seamless integration with absolute value encoders. With a 1 SSI 25-bit interface and a 1 MHz clock, this compact 15 mm module ensures precise data acquisition and reliable communication in industrial automation environments.
Key Benefit
-
High Precision: Supports absolute value encoders via SSI interface, ensuring accurate position data.
-
Compact Design: Only 15 mm width, ideal for space-constrained applications.
-
Fast Communication: 1 MHz clock synchronization for real-time data processing.
-
Versatile Functionality: Includes DI and comparison value features for enhanced monitoring and control.
-
Seamless Integration: Fully compatible with SIMATIC ET 200S systems.
Function & Features
-
Electronics module for ET 200S
-
Connection of absolute value encoders with SSI Synchronous Serial Interface
-
25-bit data resolution and 1 MHz transfer speed
-
Digital input (DI) for status monitoring
-
Clock synchronization for accurate comparison values
-
Compact 15 mm module width for easy installation
Technical Specification
-
Product Number: 6ES7138-4DB03-0AB0
-
Interface: 1 SSI, 25-bit, 1 MHz
-
Module Width: 15 mm
-
Function: Connection of absolute value encoders, DI input, comparison value with clock synchronization
-
System Compatibility: SIMATIC ET 200S
Visit 6ES7138-4DB03-0AB0 for more detail info
For more our products visit turll
Download
| Weight | 0.04 kg |
|---|---|

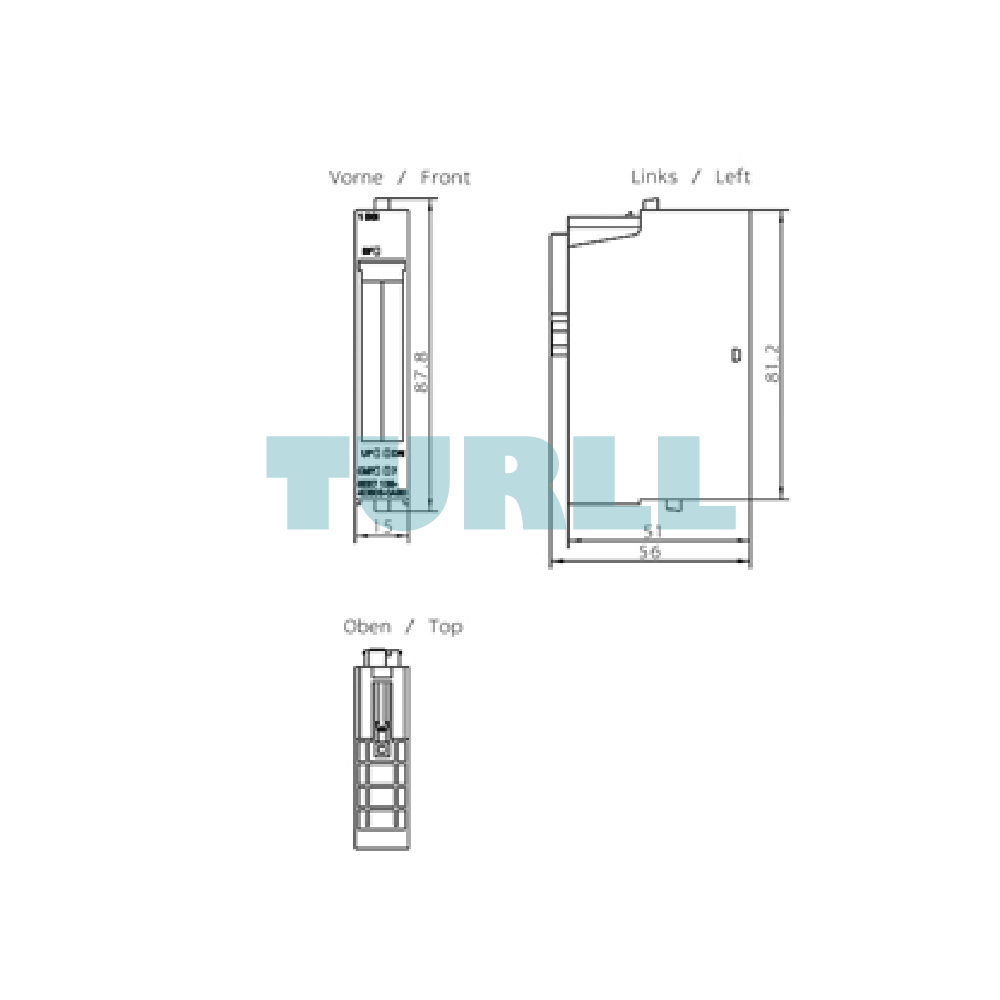

| Dimensions | 52 × 15 × 81 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
