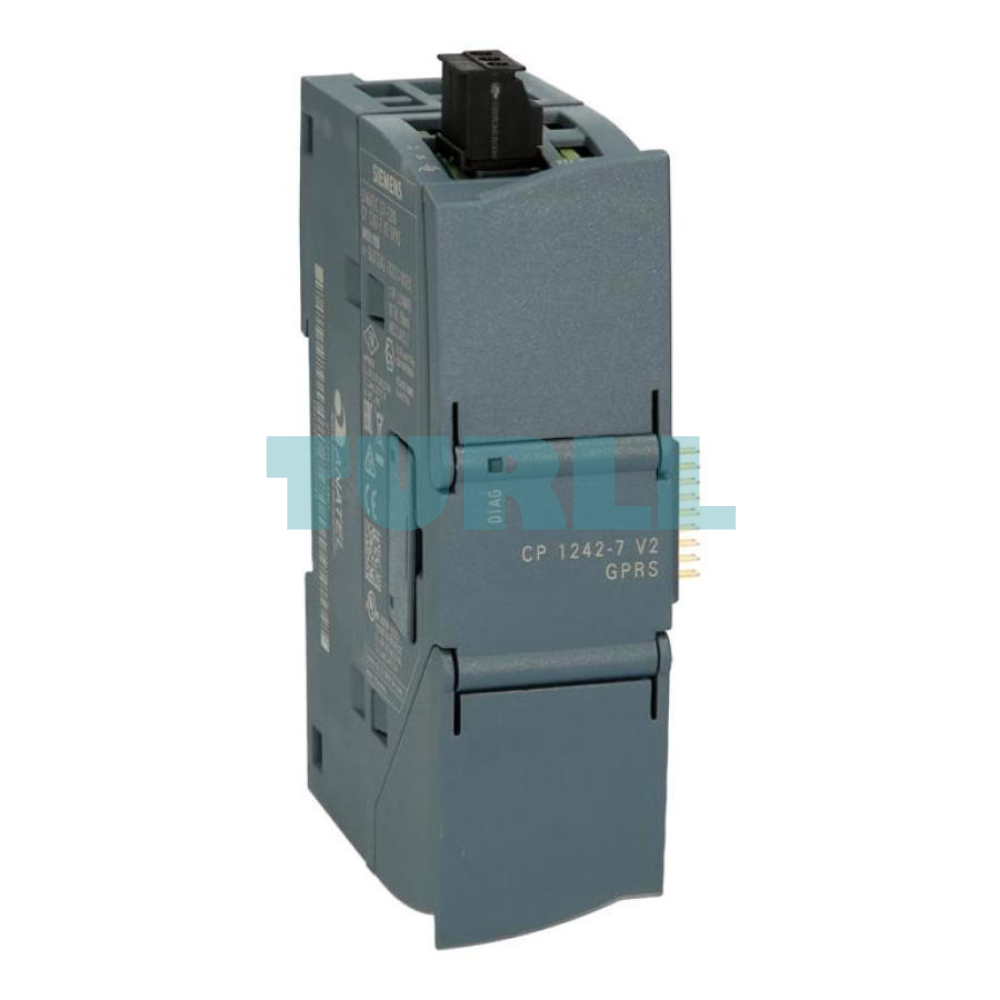

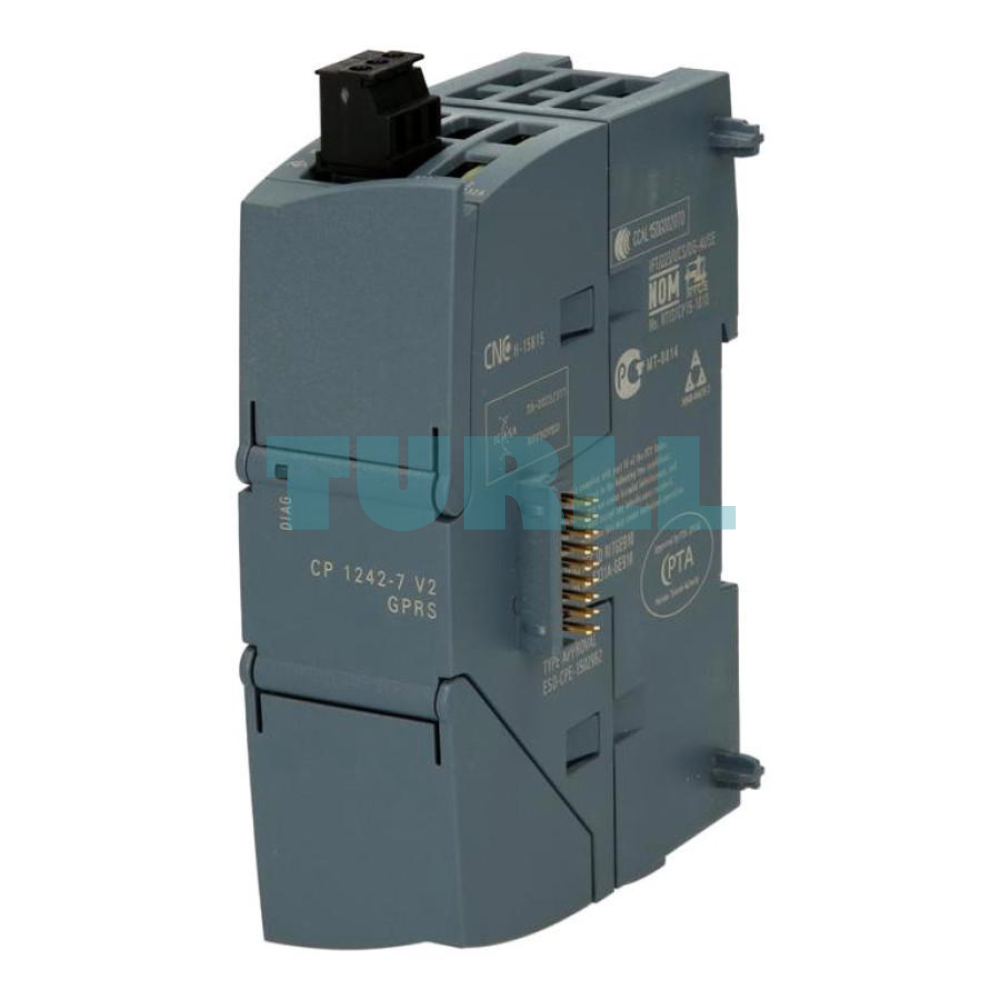

Siemens 6GK7242-7KX31-0XE0 Communications Processor CP 1242-7 V2 for SIMATIC S7-1200 Original Brand New
$1,110.47
Communications processor CP 1242-7 V2 for connecting SIMATIC S7-1200 to GSM/GPRS networks; includes web server CPU access, data point configuration, and compliance with national approvals.
Availability: In stock
Overview
The Siemens CP 1242-7 V2 (6GK7242-7KX31-0XE0) is a robust communication module engineered to extend the communication capability of SIMATIC S7-1200 automation controllers. By enabling GSM/GPRS connectivity, it empowers industrial operators to remotely access and manage systems, improving uptime and operational efficiency.
Its integrated web server ensures easy access to CPU information, while secure data point configuration simplifies exchanging data over long distances. Built for versatility and efficiency, this module is ideal for remote maintenance, telemetry, distributed automation, and industrial IoT applications. It guarantees compliance with national communication rules, making it suitable for global operations.
Benefit
-
Reliable Remote Connectivity
Connect SIMATIC S7-1200 controllers to GSM/GPRS networks for real-time data and diagnostics from anywhere. -
Enhanced Control & Monitoring
Built-in web server enables remote CPU access, making system supervision effortless. -
Flexible Data Exchange
Powerful data point configuration allows secure and easy data transmission between distributed automation stations. -
Global Compliance
Designed with attention to national communication standards and approvals to ensure uninterrupted international usage. -
Easy Integration
Seamlessly integrates into existing Siemens automation ecosystems without complex setup.
Function
-
Provides GSM/GPRS communication for SIMATIC S7-1200 PLCs
-
Enables remote monitoring, control, and diagnostics
-
Supports web-based access to CPU data
-
Offers configurable data points for efficient data exchange
-
Designed for industrial-grade reliability and communication stability
-
Ensures compliance with national GSM/GPRS communication regulations
Visit 6GK7242-7KX31-0XE0 for more detail info
For more our products visit turll
Download
| Weight | 0.201 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 mm |
| Brand | SIEMENS |
| product type designation | CP 1242-7 V2 |
| transfer rate | – |
| ● for GPRS transmission | – |
| — with downlink / maximum | 86 kbit/s |
| — with uplink / maximum | 43 kbit/s |
| number of interfaces / acc. to Industrial Ethernet | 0 |
| number of electrical connections | – |
| number of slots | – |
| ● for SIM cards | 1 |
| type of electrical connection | – |

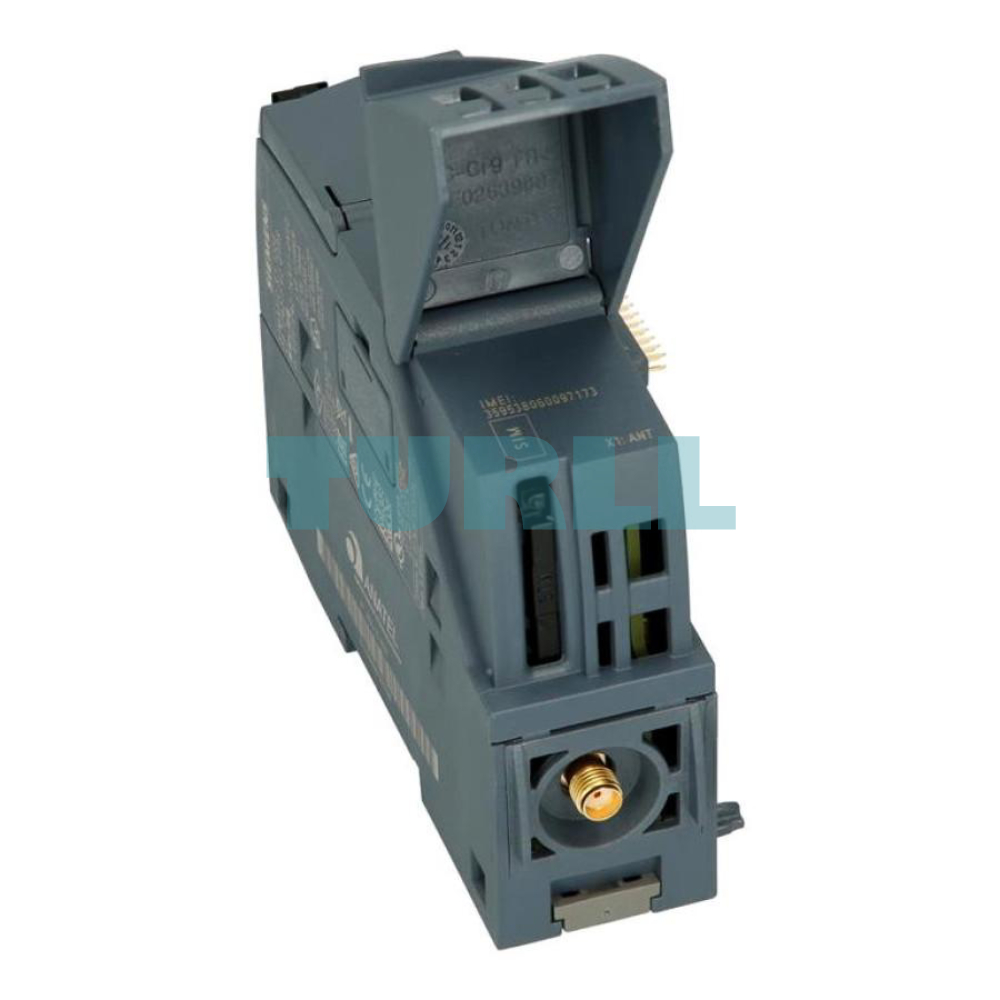

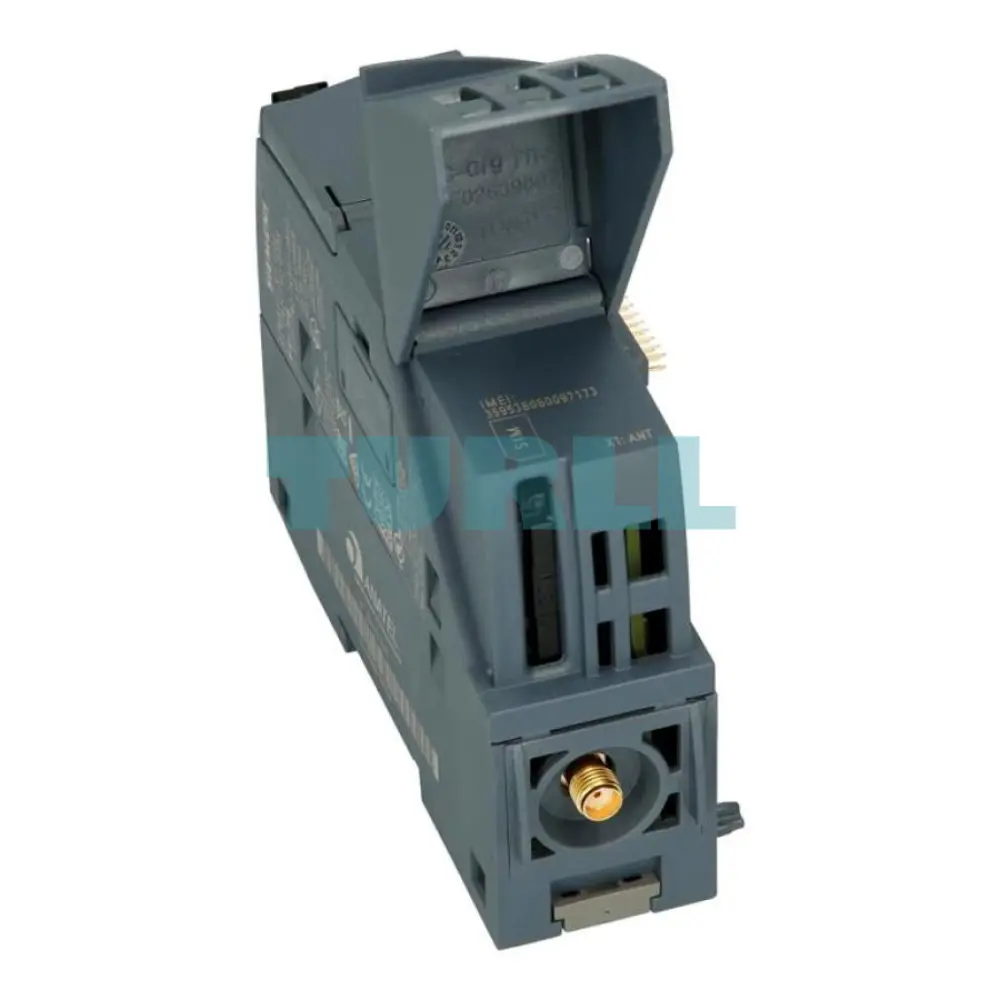

| ● for external antenna(s) | SMA socket (50 ohms) |
| ● for power supply | 3-pole terminal block |
| slot version | – |
| ● for SIM card | Standard |
| type of mobile wireless service | – |
| ● is supported / SMS | Yes |
| ● is supported / GPRS | Yes |
| type of wireless network / is supported | – |
| ● GSM | Yes |
| ● UMTS | No |
| ● LTE | No |
| operating frequency | – |
| ● 850 MHz | Yes |
| ● 900 MHz | Yes |
| ● 1800 MHz | Yes |
| ● 1900 MHz | Yes |
| transmit power | – |
| ● at operating frequency 900 MHz | 2 W |
| ● at operating frequency 1800 MHz | 1 W |
| ● at operating frequency 1900 MHz | 1 W |
| type of voltage / of the supply voltage | DC |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 20 % |
| consumed current | – |
| ● from external supply voltage / at DC / at 24 V / typical | 0.1 A |
| ● from external supply voltage / at DC / at 24 V / maximum | 0.22 A |
| power loss [W] | 2.4 W |
| ambient temperature | – |
| ● for vertical installation / during operation | -20 … +60 °C |
| ● for horizontally arranged busbars / during operation | -20 … +70 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| relative humidity | – |
| ● at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1200 single width |
| fastening method | – |
| ● 35 mm top hat DIN rail mounting | Yes |
| ● S7-300 rail mounting | No |
| ● wall mounting | Yes |
| number of units | – |
| ● per CPU / maximum | 3 |
| number of users/telephone numbers / definable / maximum | 10 |
| number of possible connections / for open communication | – |
| ● by means of T blocks / maximum | like CPU |
| number of possible connections | – |
| ● as email client / maximum | 1 |
| control center connection | Telecontrol Server Basic |
| ● by means of a permanent connection | supported |
| ● by means of demand-oriented connection | supported |
| ● note | Connection to SCADA system using OPC interface |
| ● DNP3 | No |
| ● IEC 60870-5 | No |
| product function / data buffering if connection is aborted | Yes; 64,000 events |
| number of stations / for direct communication / with Telecontrol Server Basic | – |
| ● in send direction / maximum | 3 |
| ● in receive direction / maximum | 15 |
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes |
| ● program download with SIMATIC STEP 7 | Yes |
| ● remote firmware update | Yes |
| configuration software | – |
| ● required | STEP 7 Basic/Professional |
| product function / web-based diagnostics | Yes |
| product function | – |
| ● password protection for teleservice access | Yes |
| ● encrypted data transmission | Yes |
| protocol / is supported | – |
| ● NTP | Yes |
| time synchronization | – |
| ● from control center | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| Internet-Link | – |
| ● to web page: selection aid TIA Selection Tool | |
| ● to website: Industrial communication | |
| ● to website: Industry Mall | |
| ● to website: Information and Download Center | |
| ● to website: Image database | |
| ● to website: CAx-Download-Manager | |
| ● to website: Industry Online Support | |
| security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4) |
| last modified: | 8/3/2021 |
