6SL3210-1PB21-0UL0

Description

Overview

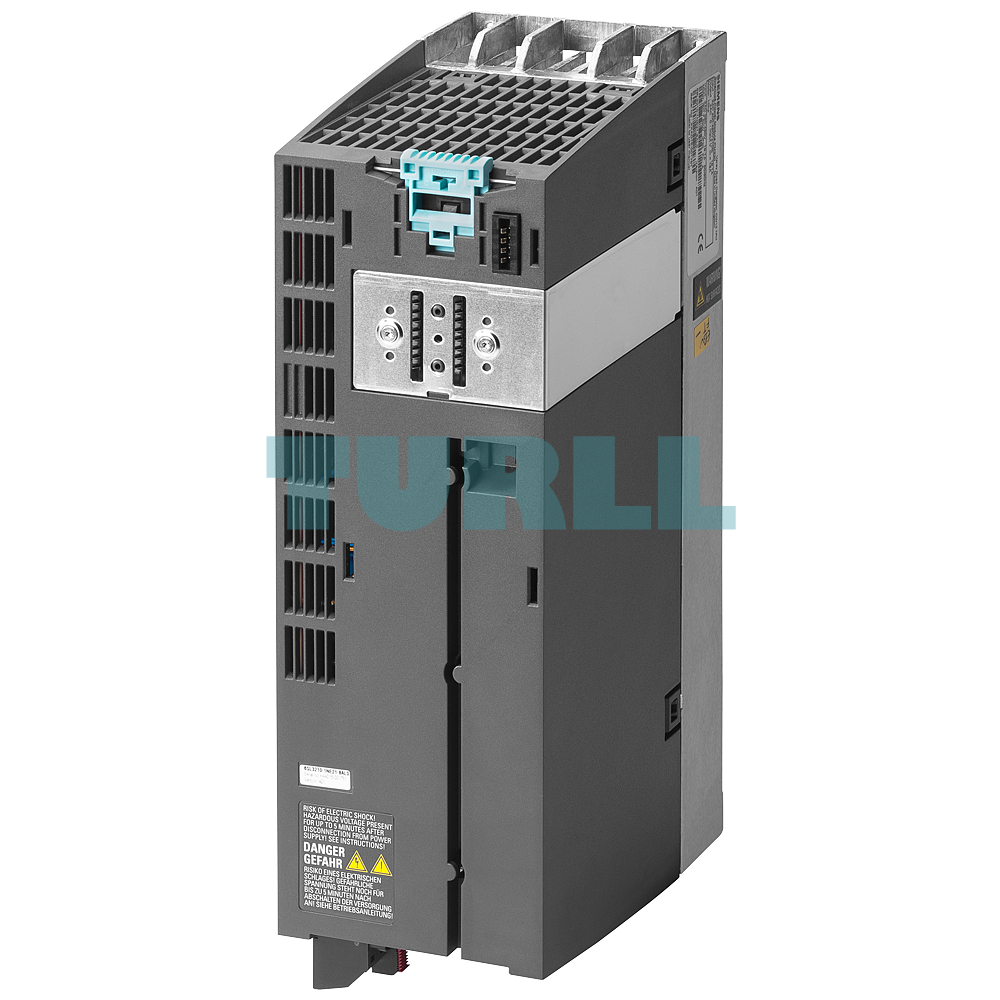

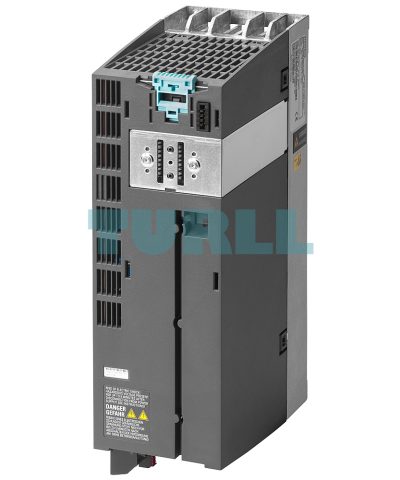

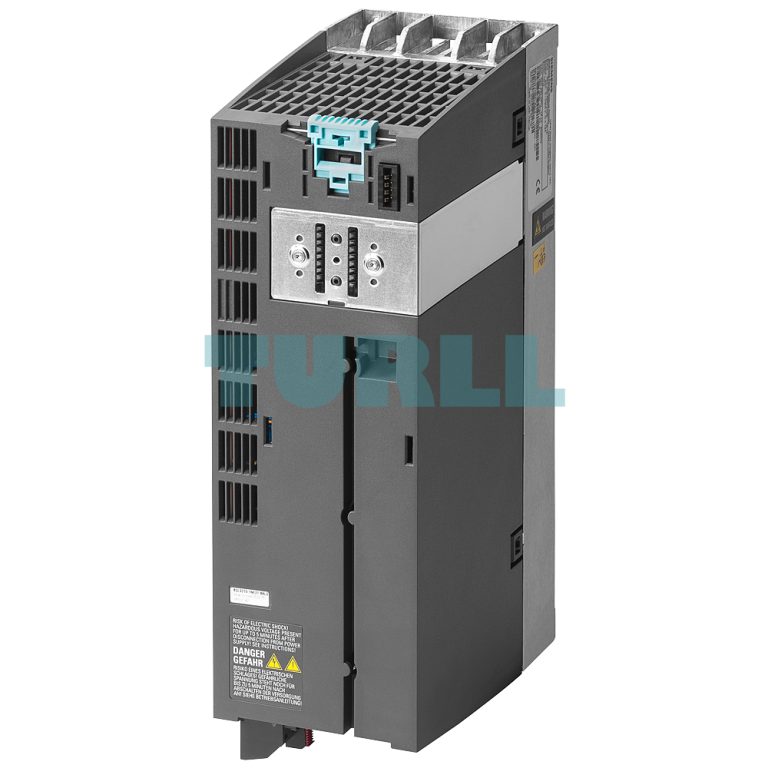

The Siemens 6SL3210-1PB21-0UL0 Power Module is part of the robust SINAMICS PM240-2 series, engineered for reliable motor control in industrial automation. This module is designed without an integrated filter, making it ideal for systems where external filtering is preferred or common DC bus configurations are used. With its built-in braking chopper, it efficiently manages energy during motor deceleration, protecting your equipment and improving process cycles.

Key Benefit

• Flexible Power Ratings: Dual-rated for High Overload (1.5kW) and Low Overload (2.2kW) applications.

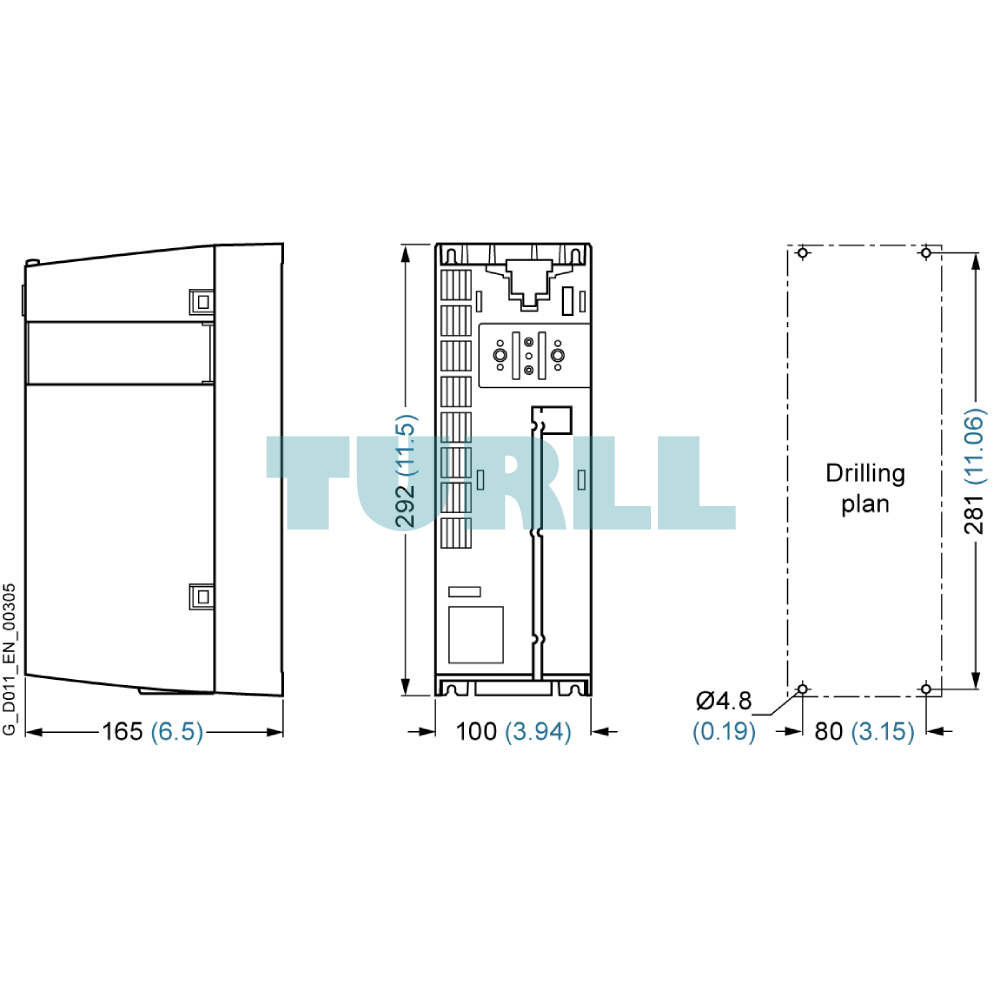

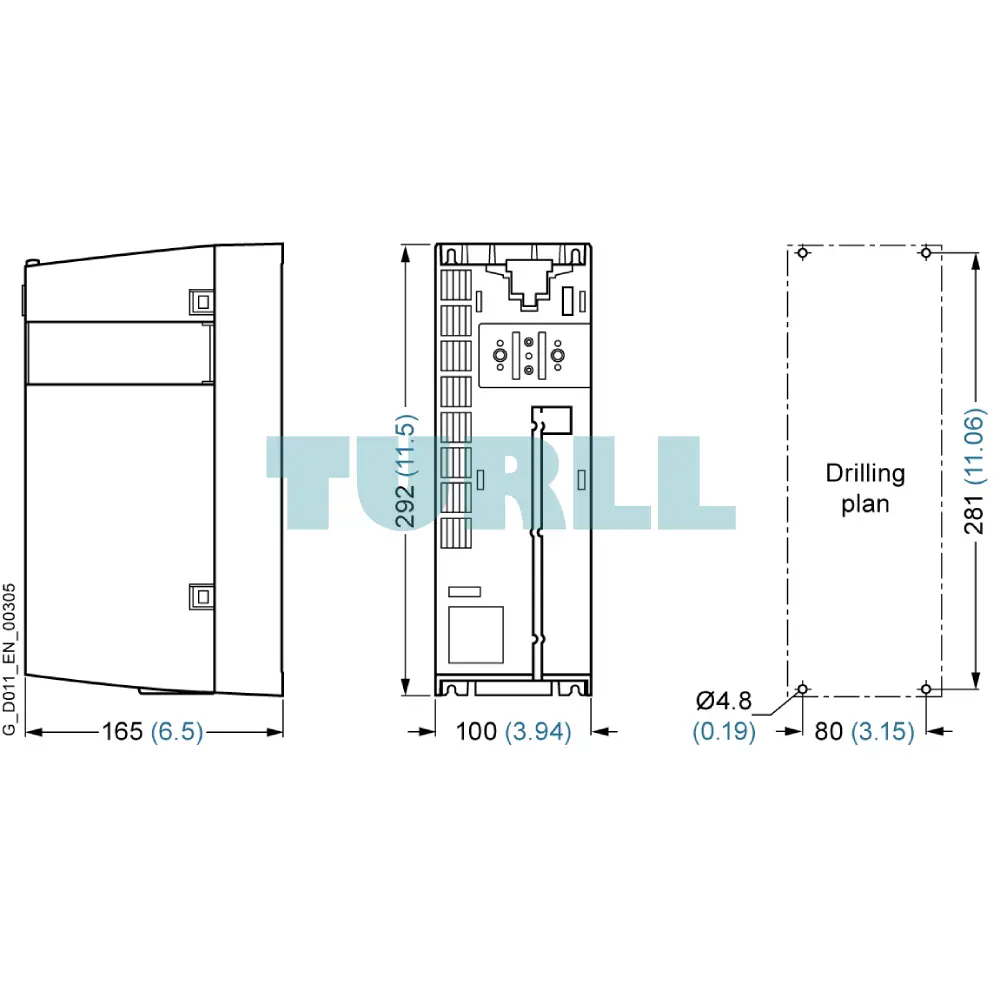

• Space-Saving Design: The FSB (Frame Size B) dimensions (291 x 100 x 165 mm) allow for high-density cabinet mounting.

• Efficient Thermal Management: Operates reliably in ambient temperatures up to +50°C.

• System Versatility: Compatible with various SINAMICS Control Units (CU) and Operator Panels.

Function & Technical Specification

• Input Voltage: 1/3AC 200V to 240V (+10% / -10%) at 47–63Hz.

• High Overload (HO): 1.5kW (200% for 3s, 150% for 57s, 100% for 240s).

• Low Overload (LO): 2.2kW (150% for 3s, 110% for 57s, 100% for 240s).

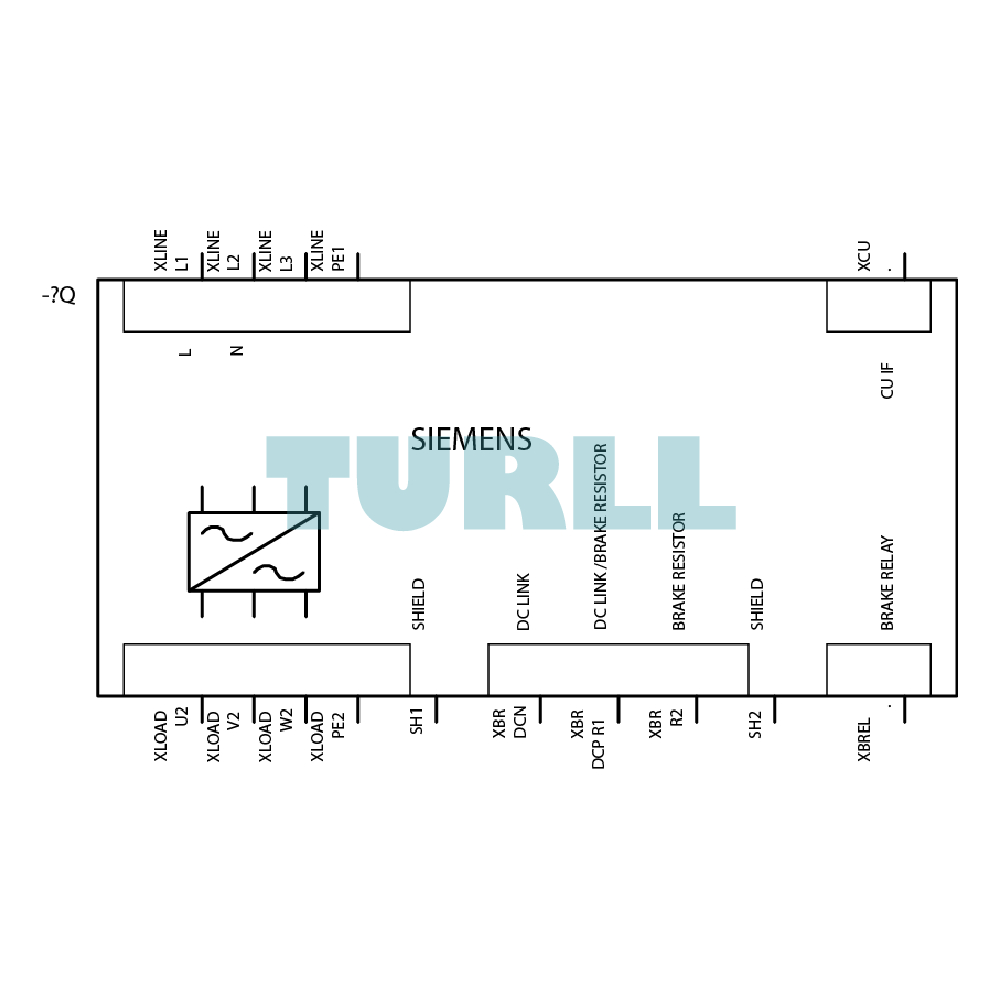

• Braking Chopper: Integrated for dynamic braking applications.

• Protection Rating: IP20 (suitable for cabinet installation).

• Compatibility: Approved for CU Firmware Version V4.6 and higher.
