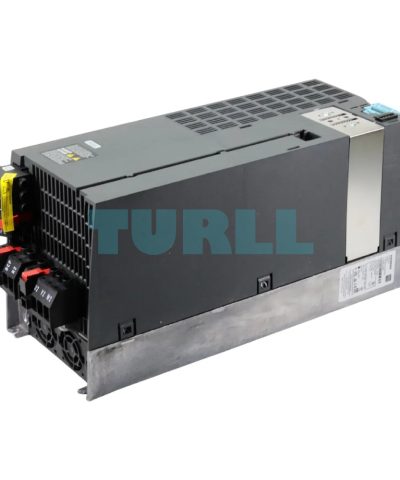

Siemens 6SL3210-1PC22-2UL0 SINAMICS Power Module PM240-2, 3AC 200-240V, 4kW/5.5kW Original Brand New

Overview

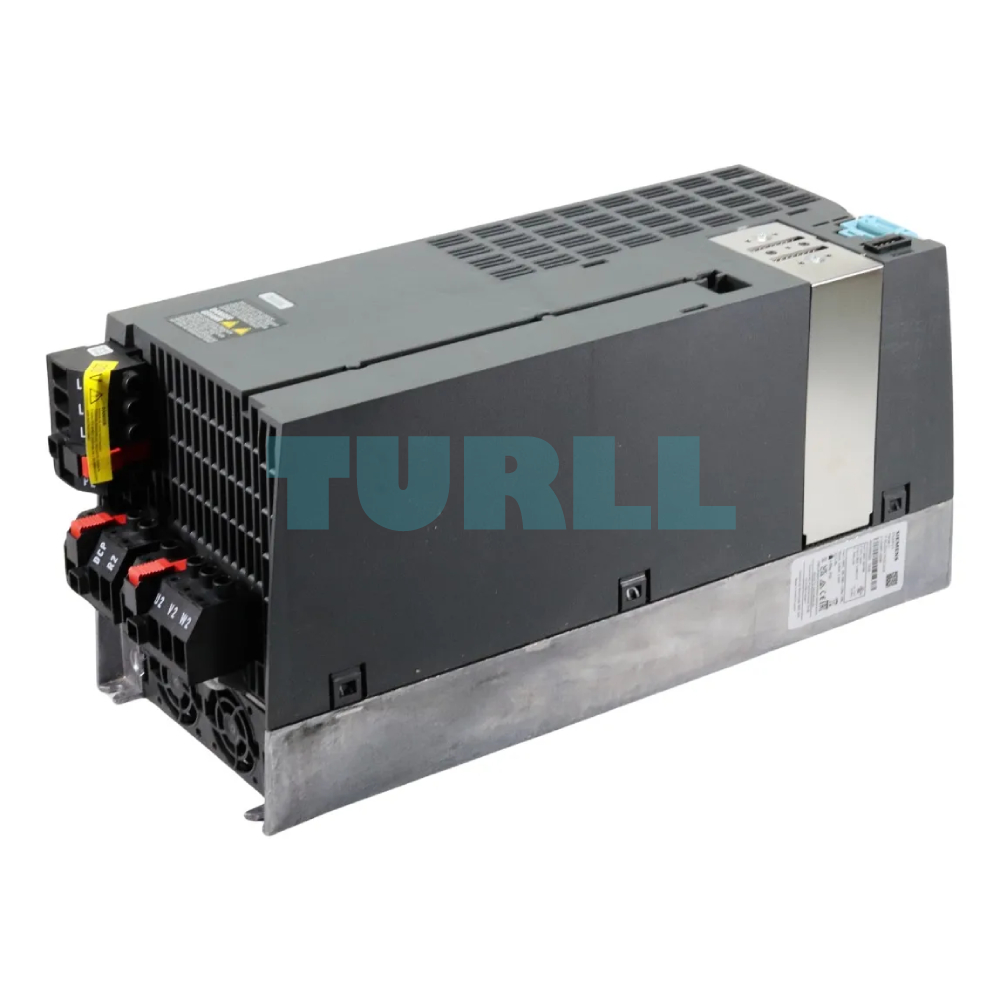

The SINAMICS PM240-2 (6SL3210-1PC22-2UL0) is part of the modular SINAMICS family, engineered to deliver precision and efficiency. This Power Module is designed to be paired with a Control Unit (CU) and an optional operator panel to create a complete functional drive.

Without an integrated filter, this unit is ideal for applications where external filtering is preferred or where the electrical environment doesn’t require standard suppression. Its compact FSC design (355 x 140 x 165 mm) ensures it fits seamlessly into standard industrial control cabinets.

Key Benefit

• Flexible Overload Capabilities: Switch between High Overload (4kW) for demanding startup cycles and Low Overload (5.5kW) for continuous operations.

• Built-in Braking Chopper: Enhances safety and control by managing regenerative energy during motor deceleration.

• Space-Efficient Design: The FSC frame size allows for high power density in a compact footprint.

• High Temperature Tolerance: Operates effectively in ambient temperatures up to +50°C (High Overload) or +40°C (Low Overload).

Function & Technical Specification

Power & Input

• Input Voltage: 3AC 200-240V (+10/-10%)

• Line Frequency: 47–63 Hz

• Power Output (LO): 5.5kW (150% 3s, 110% 57s, 100% 240s)

• Power Output (HO): 4kW (200% 3s, 150% 57s, 100% 240s)

Physical & Environmental

• Frame Size: FSC

• Dimensions: 355 x 140 x 165 mm (H x W x D)

• Protection Rating: IP20 (Finger-safe)

• Operating Temp: -10°C to +50°C (Load dependent)

Compatibility

• Firmware: Approved for CU Firmware version V4.6 and higher.

• Requirement: Requires a separate Control Unit and Panel (sold separately).

Visit 6SL3210-1PC22-2UL0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
