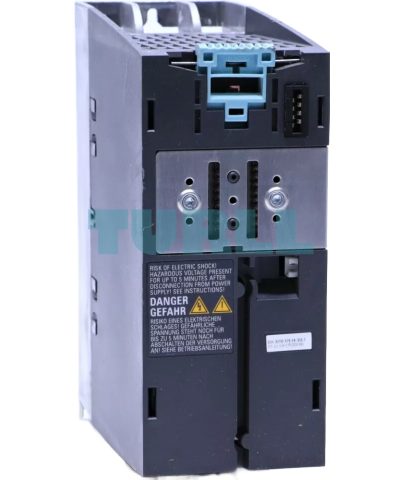

Siemens 6SL3210-1PE14-3UL1 SINAMICS PM240-2 Power Module, 1.1kW/1.5kW, 3AC 380-480V, IP20 Original Brand New

Overview

The Siemens SINAMICS PM240-2 Power Module (6SL3210-1PE14-3UL1) is a high-performance, unfiltered power module designed for robust industrial applications. Featuring an integrated braking chopper, this module provides reliable power conversion for 3 AC systems at 380–480 V, ensuring optimal performance in both high and low overload scenarios. Built to withstand challenging ambient conditions, it supports seamless operations in temperatures ranging from -10°C to +50°C.

This compact unit (196 x 73 x 165 mm) offers an IP20 protection rating, delivering efficiency and safety without the need for additional control or operating units. Compatible with CU firmware version V4.6 or later, the PM240-2 is engineered for reliability, flexibility, and maximum uptime.

Key Features & Function

• Voltage & Frequency Range: 380–480 V, 3 AC ±10%, 47–63 Hz

• High Overload Capacity: 1.1 kW at 200% for 3s, 150% for 57s, 100% for 240s

• Low Overload Capacity: 1.5 kW at 150% for 3s, 110% for 57s, 100% for 240s

• Operating Temperature: -10°C to +50°C (high power), -10°C to +40°C (low power)

• Compact Design: Dimensions 196 x 73 x 165 mm (HxWxD)

• Protection Class: IP20 (without control unit and operating unit)

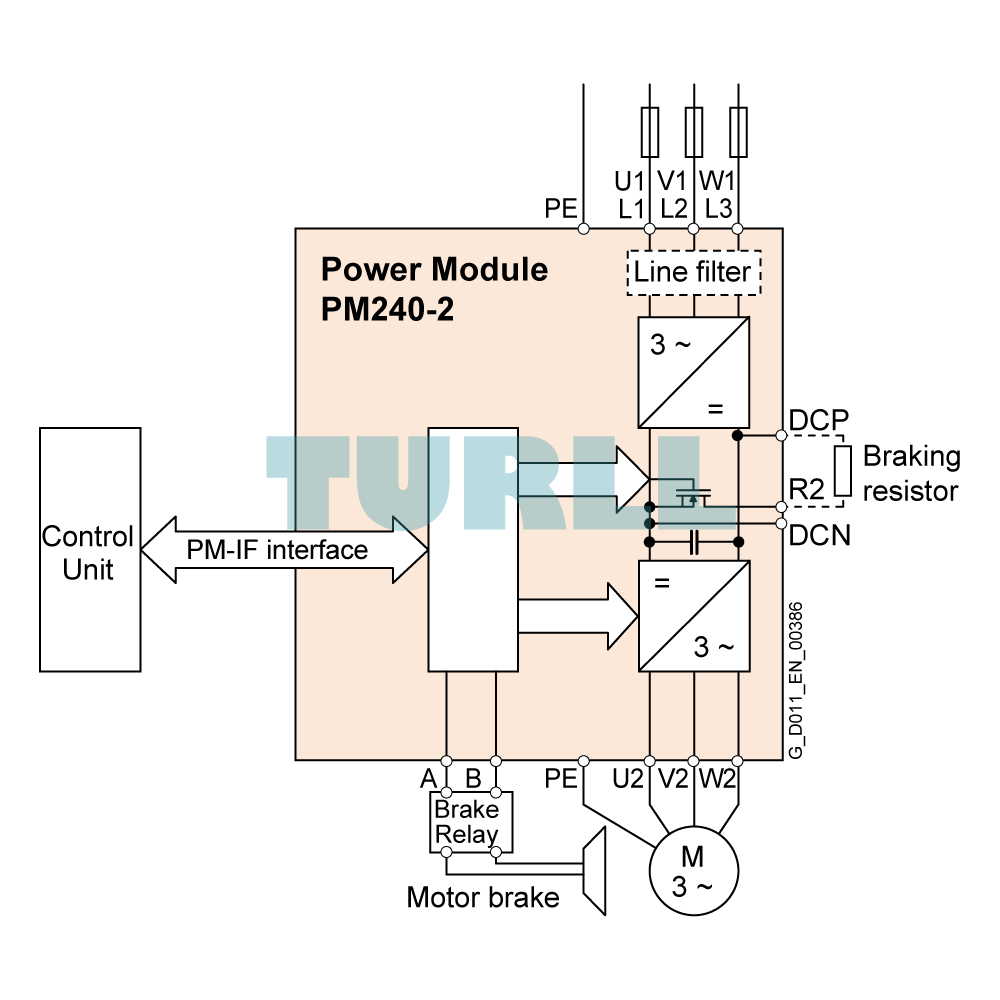

• Integrated Braking Chopper: Ensures efficient deceleration and energy management

• Firmware: Compatible with CU firmware version V4.6 or newer

Benefit

• Reliable Performance: Handles high and low overloads with precision, reducing downtime

• Compact & Durable: Space-saving design with IP20 protection for safe operation

• Energy Efficient: Integrated braking chopper maximizes energy recovery

• Easy Integration: Compatible with existing SINAMICS CU firmware, simplifying upgrades

• Wide Application Range: Suitable for industrial machinery, pumps, and automation systems
