Siemens 6SL3210-1PE31-8AL0 SINAMICS G120, PM240-2 Power Module, 75kW/90kW Original Brand New

Overview

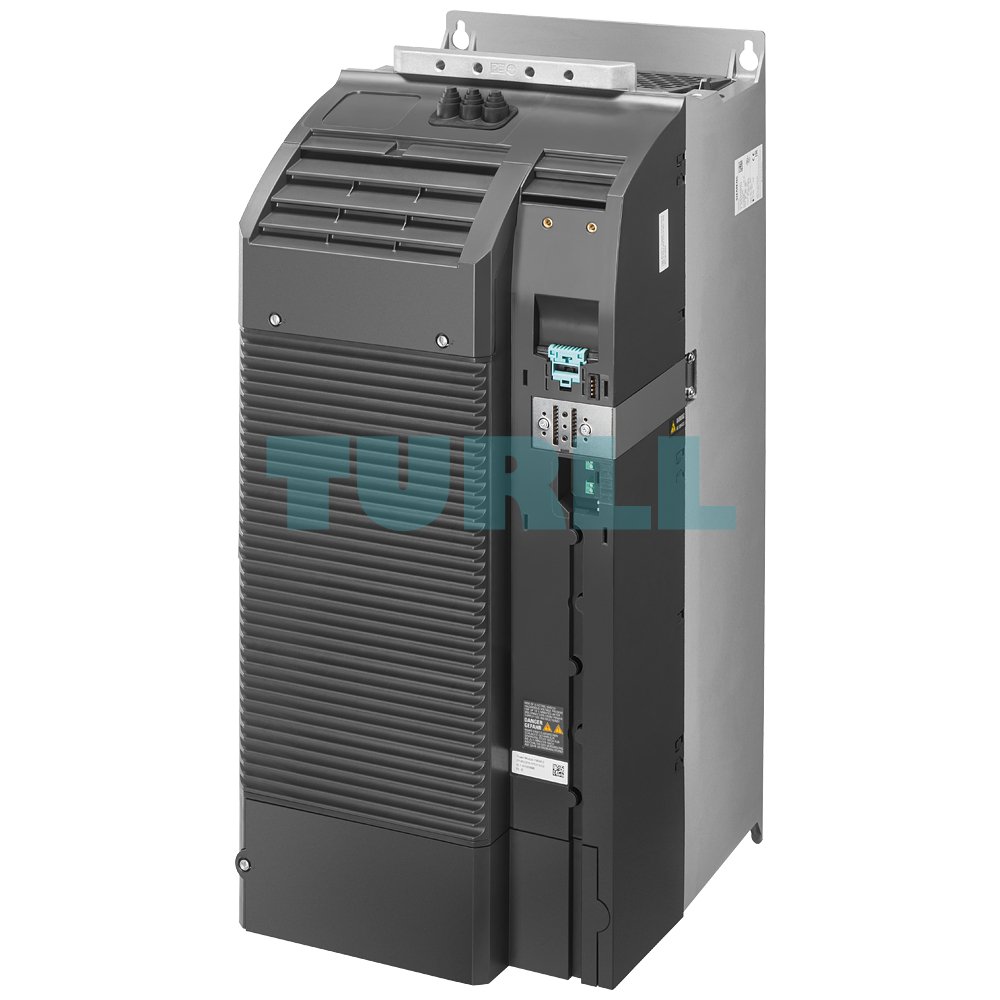

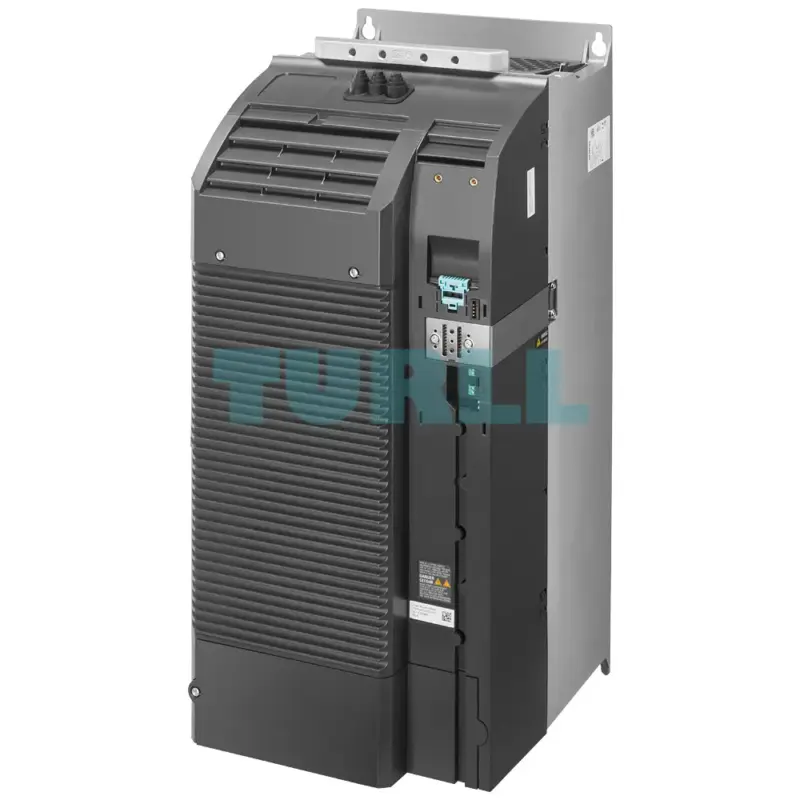

The Siemens 6SL3210-1PE31-8AL0 is a robust SINAMICS G120 PM240-2 Power Module designed for high-efficiency motor control in industrial environments. This unit is engineered to handle demanding load cycles with integrated safety and interference suppression.

Equipped with an integrated Class A Filter and a Braking Chopper, this power module ensures clean energy distribution and precise deceleration control. It is designed for use with a separate Control Unit (CU) and operator panel, providing a modular approach to drive technology.

Key Benefit

• Dual Overload Ratings: Versatile performance with 75kW (HO) for heavy-duty torque and 90kW (LO) for standard centrifugal applications.

• Integrated Protection: Built-in Class A filter reduces electromagnetic interference, ensuring compliance with industrial EMC standards.

• Compact Frame Size: The FSF frame (708 x 305 x 357 mm) provides high power density with an IP20 protection rating.

• Efficient Heat Dissipation: Optimized for ambient temperatures up to +50°C, ensuring reliability in harsh industrial climates.

Technical Function

• Input Voltage: 3AC 380V to 480V (+10% / -20%).

• Braking Chopper: Integrated for dynamic braking applications without requiring extra external components.

• High Overload (HO): 75kW capacity; 200% for 3s, 150% for 57s, 100% for 240s.

• Low Overload (LO): 90kW capacity; 150% for 3s, 110% for 57s, 100% for 240s.

• Firmware Compatibility: Approved for Control Unit firmware version V4.7 HF8 and higher.

Visit 6SL3210-1PE31-8AL0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
