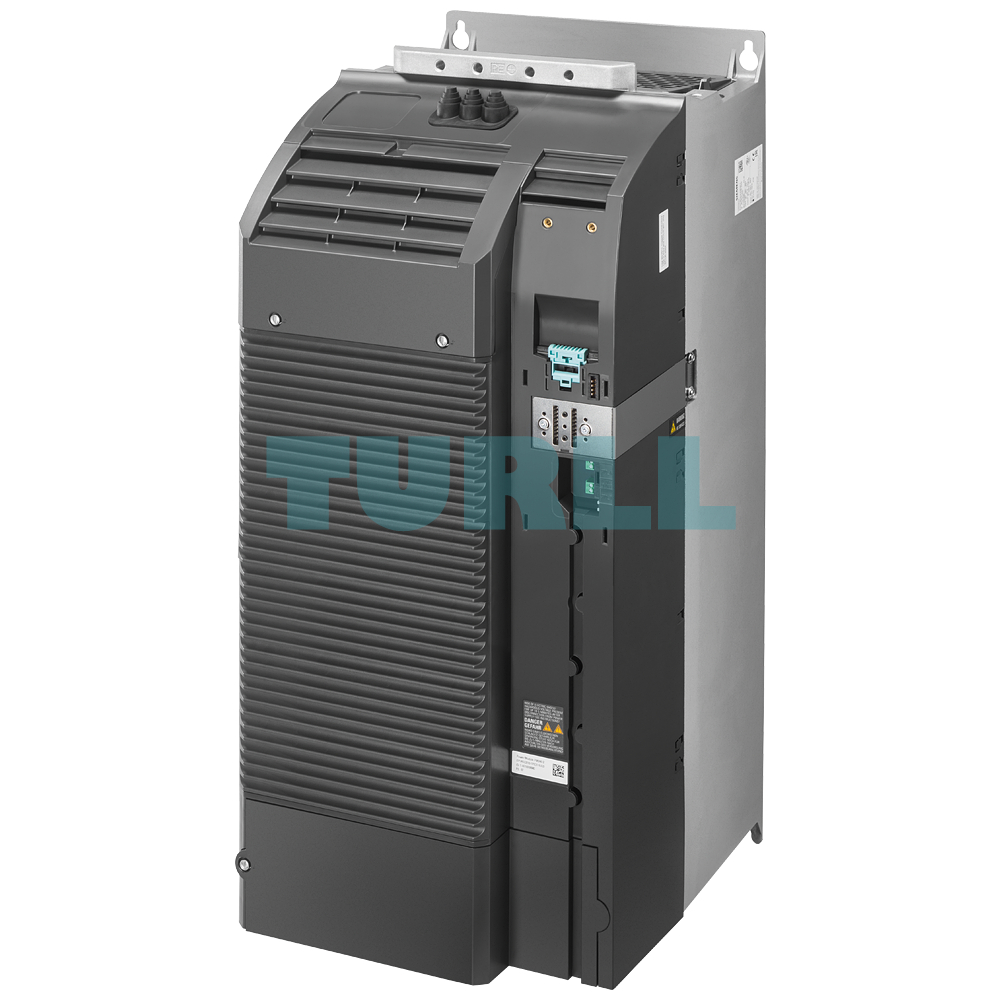

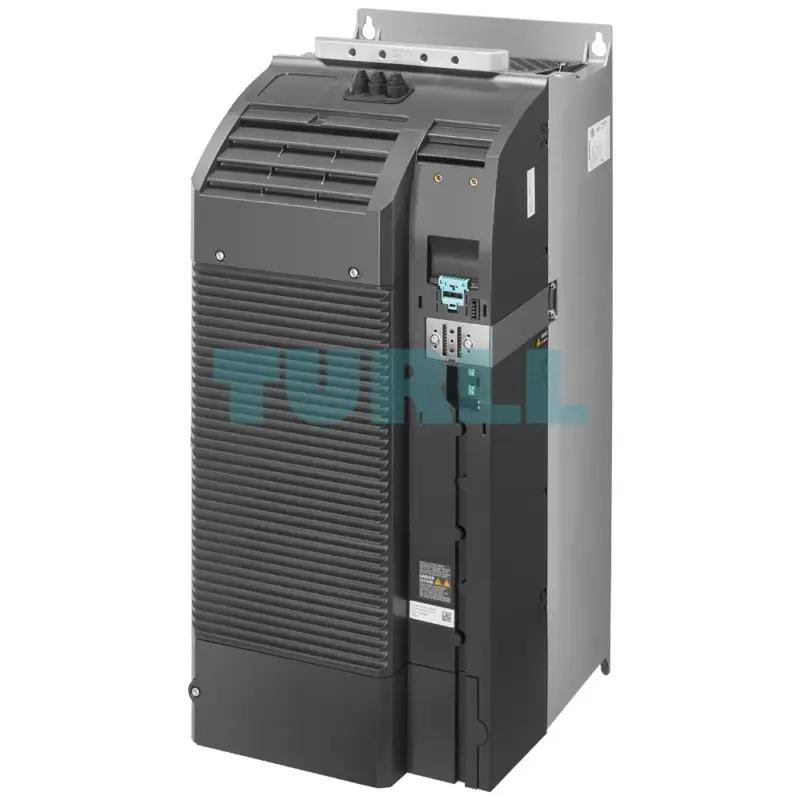

Siemens 6SL3210-1PE32-5AL0 SINAMICS G120, Power Module PM240-2, 110kW – 132kW Original Brand New
$8,246.52
High-performance SINAMICS G120 PM240-2 Power Module. Featuring a built-in Class A filter and braking chopper, this Frame Size F (FSF) module delivers reliable power distribution for industrial applications, supporting High Overload (110kW) and Low Overload (132kW) requirements.
Availability: In stock
Overview
The SINAMICS G120 Power Module PM240-2 (6SL3210-1PE32-5AL0) is designed to provide robust and efficient motor control. As part of the modular G120 series, this unit acts as the power powerhouse, converting a fixed-frequency line supply into a variable-frequency output.
Equipped with an integrated Class A Filter and Braking Chopper, it is ideal for demanding industrial environments where electromagnetic compatibility and dynamic braking are essential. Note: This unit requires a separate Control Unit (CU) and Operator Panel for full functionality.
Key Benefit
-
Dual Overload Capabilities: Flexible performance for both High Overload (HO) and Low Overload (LO) applications.
-
Integrated Safety & Efficiency: Built-in Class A filter ensures EMC compliance, while the braking chopper manages regenerative energy.
-
Rugged Design: Operates in ambient temperatures up to +50°C (HO), ensuring reliability in harsh conditions.
-
Compact Frame Size: The FSF dimensions (708 x 305 x 357 mm) optimize cabinet space.
Technical Function
-
Voltage Range: 3AC 380V to 480V (+10%/-20%).
-
High Overload (HO): 110kW (200% for 3s, 150% for 57s, 100% for 240s).
-
Low Overload (LO): 132kW (150% for 3s, 110% for 57s, 100% for 240s).
-
Protection Rating: IP20 (Indoor/Cabinet mounting).
-
Firmware Support: Approved for CU Firmware Version V4.7 HF8.
Visit 6SL3210-1PE32-5AL0 for more detail info
For more our products visit turll
Download
| Weight | 66.000 kg |
|---|---|
| Dimensions | 469.00 × 745.00 × 385.00 mm |
