6SL3225-0BE31-5UA0

Description

Overview

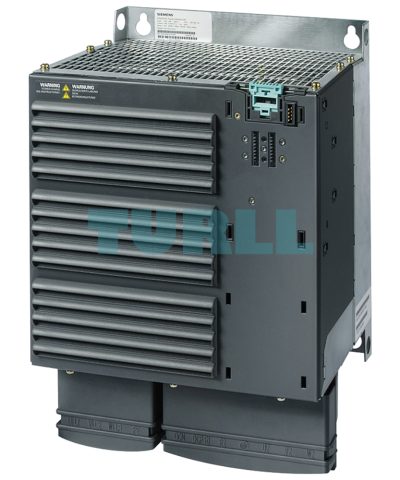

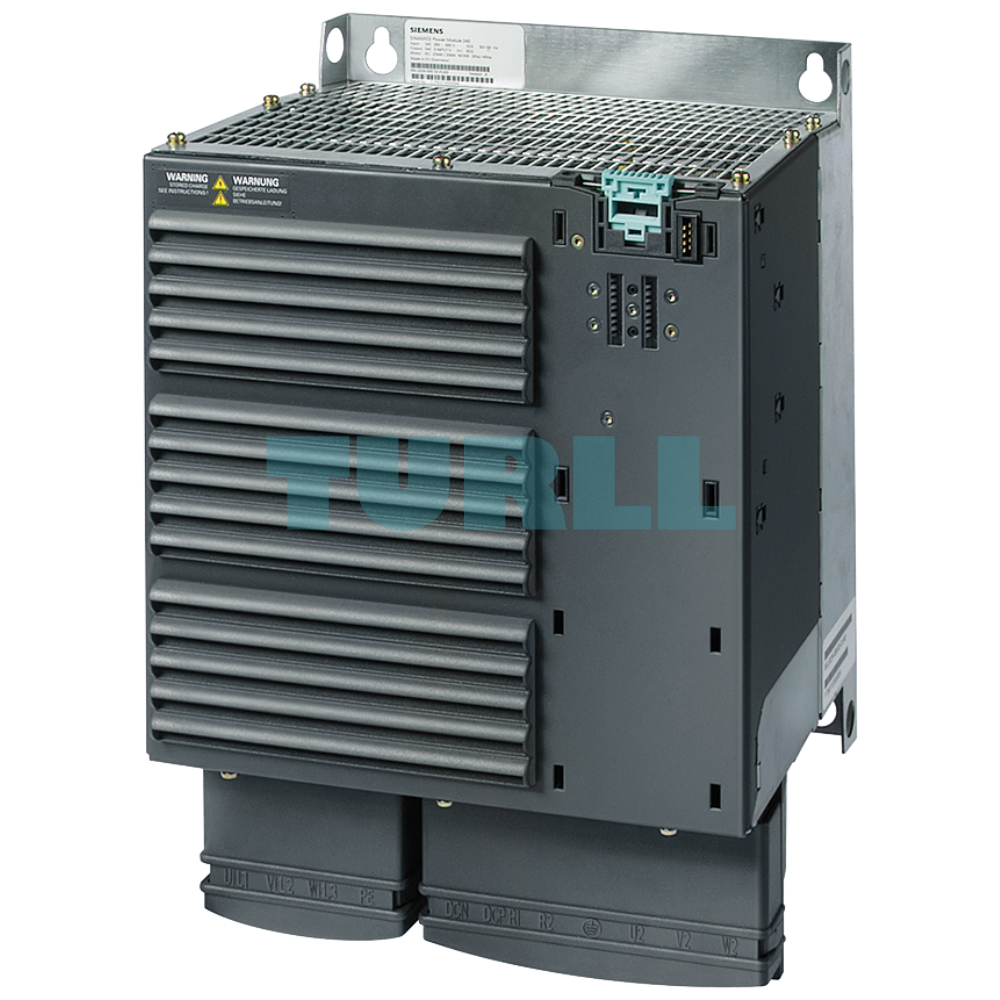

The Siemens SINAMICS G120 Power Module PM250 (6SL3225-0BE31-5UA0) is a high-performance regenerative power module designed for advanced industrial drive applications. Operating on a 3-phase 380–480V AC power supply, this module enables energy regeneration back into the grid, improving system efficiency and reducing energy consumption.

Built for demanding environments, the PM250 supports both high overload and light overload operations, making it ideal for applications such as conveyors, pumps, fans, compressors, and material handling systems. The unit is supplied without filter, control unit, and BOP, allowing flexible system configuration.

Benefit

• Energy-efficient regeneration back to the power grid

• High overload capability for demanding industrial processes

• Flexible configuration – compatible with SINAMICS G120 control units

• Wide operating temperature range for industrial environments

• Reliable Siemens quality with IP20 protection

Function & Features

Electrical Specifications

• Input Voltage: 3AC 380–480V (+10% / -10%)

• Frequency: 47–63 Hz

• Regenerative operation: Yes

• Output without line filter

Overload Performance

High Overload Mode:

• 15 kW at 200% for 3 seconds

• 150% for 57 seconds

• 100% for 240 seconds

• Ambient temperature: 0 to +50°C

Light Overload Mode:

• 18.5 kW at 150% for 3 seconds

• 110% for 57 seconds

• 100% for 240 seconds

• Ambient temperature: 0 to +40°C

Mechanical & Protection

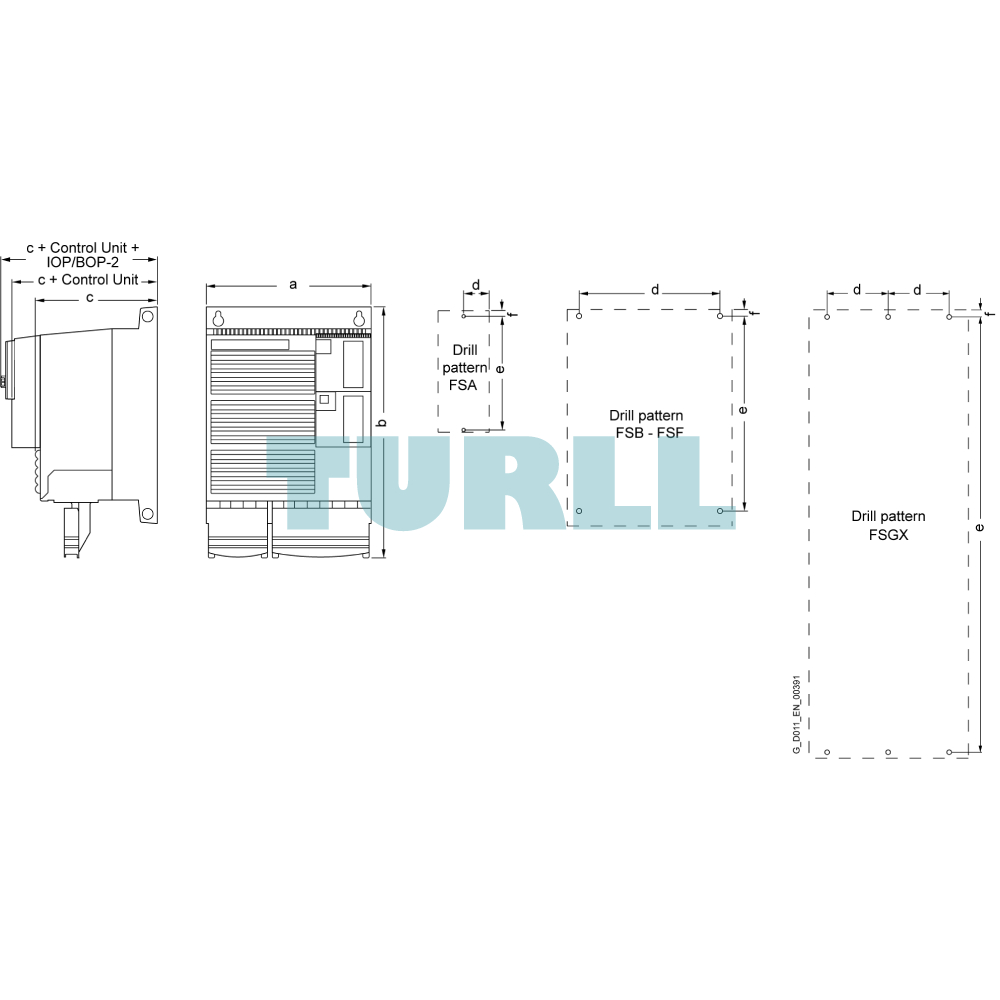

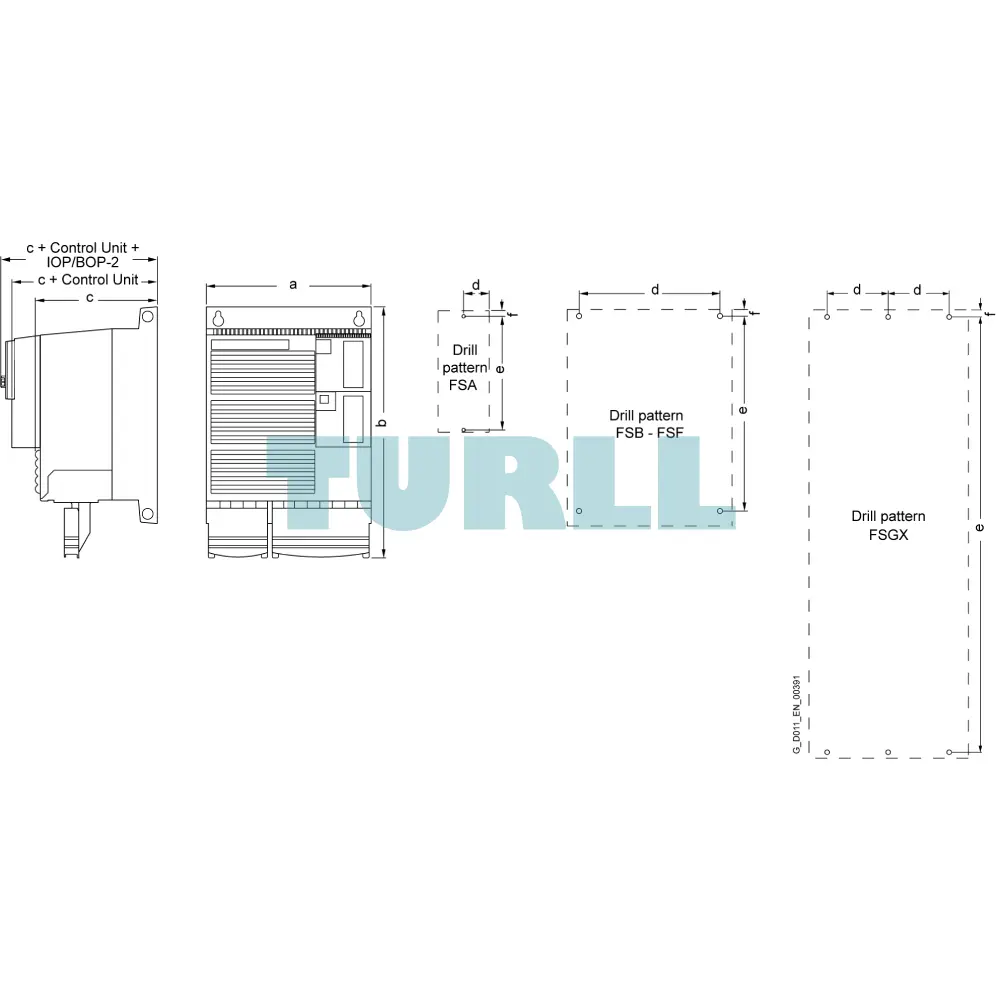

• Dimensions (H × W × D): 512 × 275 × 204 mm

• Frame Size: FSD

• Protection Class: IP20

• Supplied without: Control Unit and BOP

Application

• Conveying systems

• Pumps and fans

• Compressors

• Hoisting and lifting equipment

• Energy-efficient industrial automation systems
