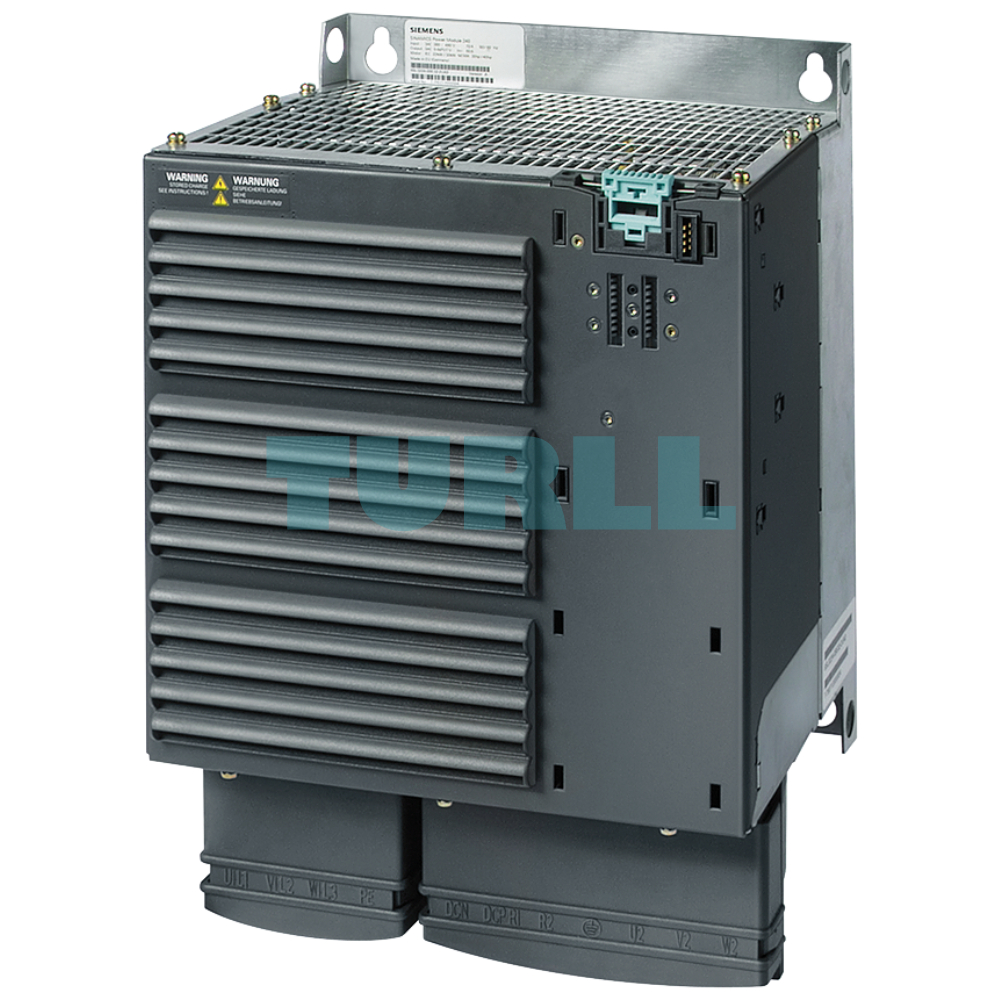

Siemens 6SL3225-0BE32-2UA0 SINAMICS G120 PM250 Power Module, 22kW – 30kW, 3AC 380-480V, IP20 Original Brand New

Overview

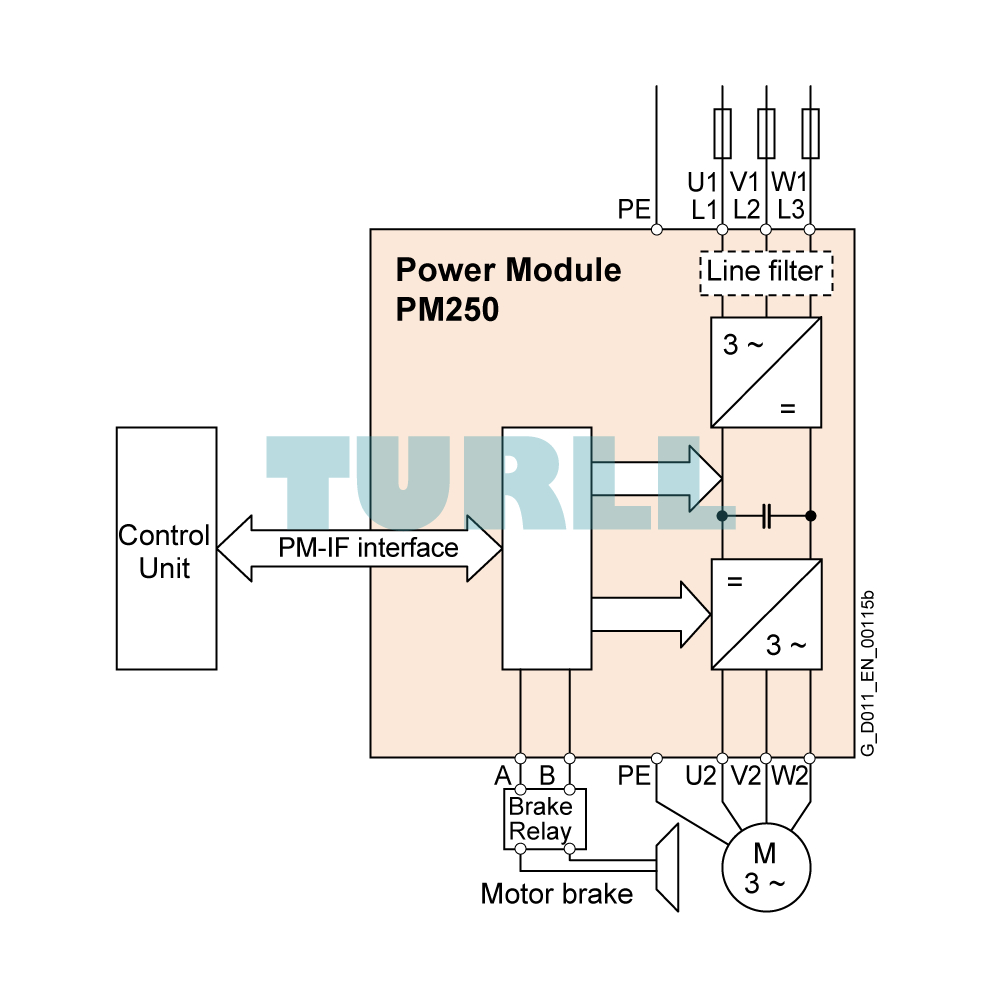

The SINAMICS G120 PM250 Power Module (6SL3225-0BE32-2UA0) is a cornerstone of the Siemens modular drive system. Unlike standard modules, the PM250 features Regenerative Feedback, allowing it to return braking energy to the power supply instead of dissipating it as heat. This results in significant energy savings and eliminates the need for external braking resistors. This unit is designed for 3-phase 380V to 480V systems and is housed in a robust IP20-rated Frame Size D (FSD).

Key Benefit

• Energy Efficiency: Integrated regeneration technology feeds energy back into the grid, reducing operational costs and cooling requirements.

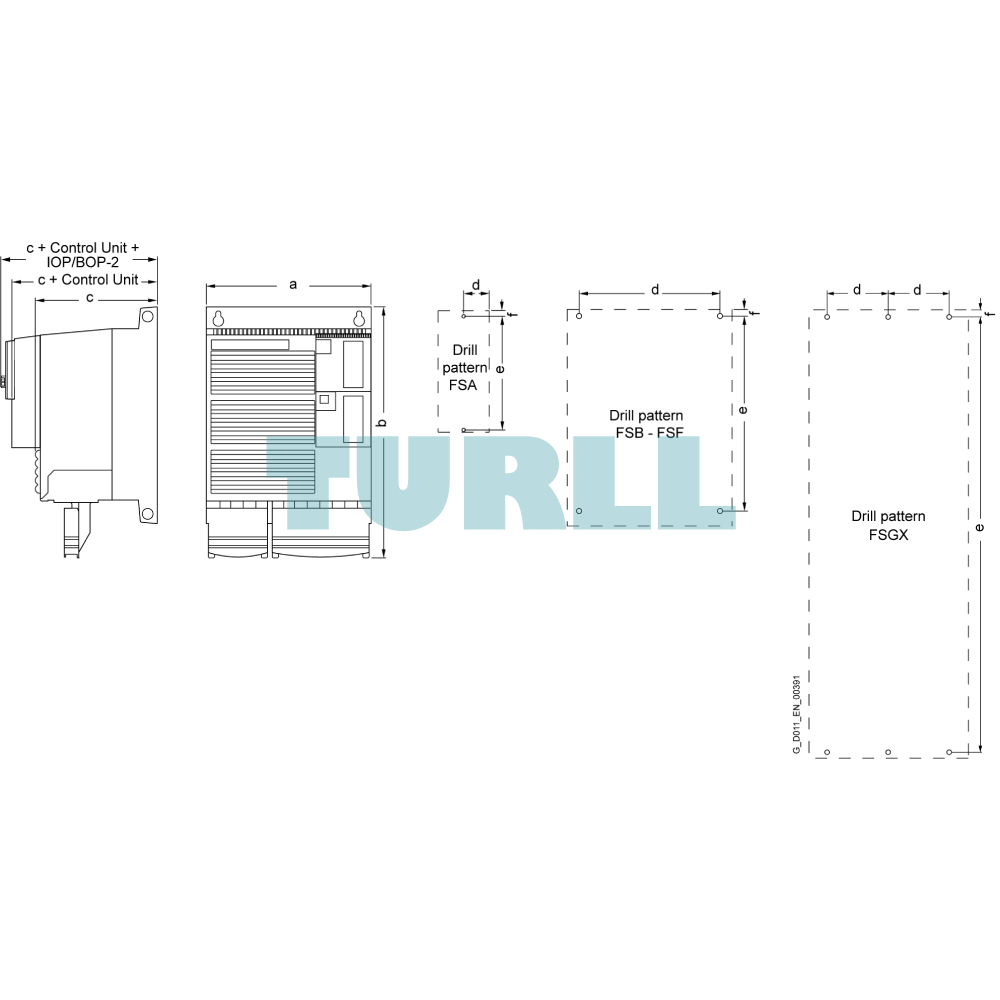

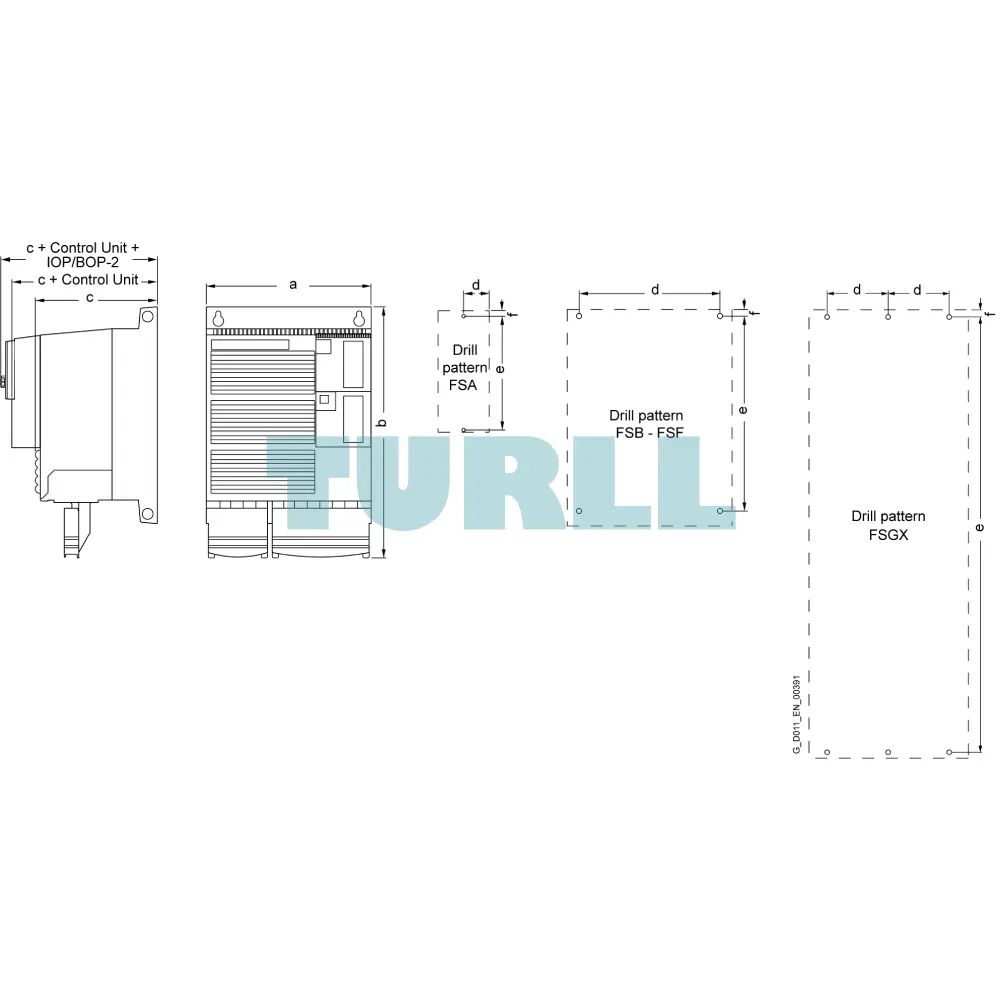

• Space-Saving Design: The lack of a braking resistor and compact FSD dimensions (419 x 275 x 204 mm) save valuable control cabinet space.

• Versatile Loading: Dual-rated for High Overload (22kW) and Light Overload (30kW) to suit varied industrial demands.

• Durable Performance: Capable of operating in ambient temperatures up to +50°C (High Overload).

Technical Function

• Voltage Range: 3AC 380V to 480V (+10%/-10%).

• Overload Capability:

  • High Overload (HO): 22kW; 200% for 3s, 150% for 57s, 100% for 240s.

  • Light Overload (LO): 30kW; 150% for 3s, 110% for 57s, 100% for 240s.

• Protection Rating: IP20 (Finger-safe protection).

• Cooling: Advanced internal cooling systems designed for FSD frame sizes.
