Siemens 3SU1150-0AB60-1BA0 Metal Pushbutton Switch, 22mm, White Flat Momentary, 1NO Original Brand New
$11.55
High-durability 22mm SIRIUS ACT momentary pushbutton. Featuring a sleek, shiny metal design and a flat white actuator, this unit includes 1 NO contact block and secure screw terminals for professional industrial applications.
Availability: In stock
Overview

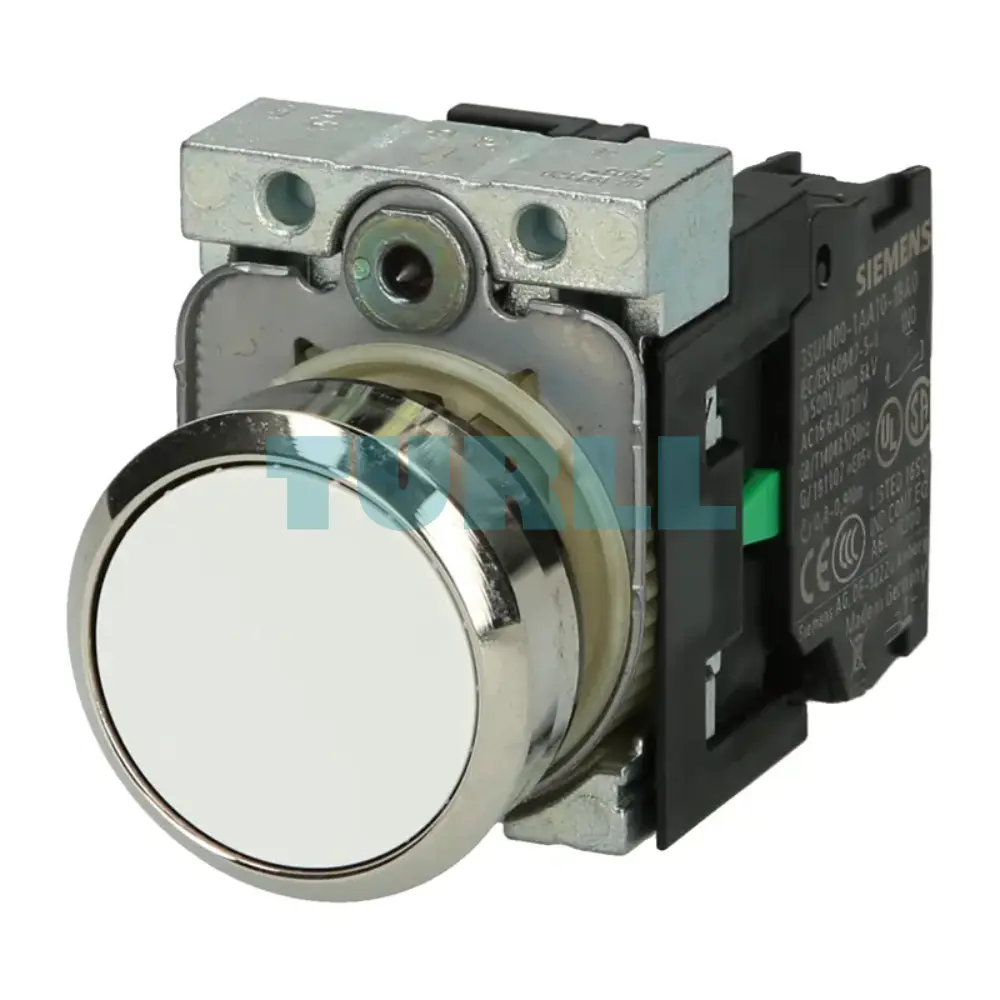

The Siemens 3SU1150-0AB60-1BA0 Pushbutton Switch is a high-quality industrial control component designed for reliable operation in automation and control panel applications. Featuring a 22 mm round metal housing with a shiny finish, this pushbutton offers durability, precision, and a clean professional appearance. Its flat white actuator and momentary contact mechanism make it ideal for start, reset, and control functions in demanding industrial environments.
Benefit
-
Industrial Durability: Constructed with high-quality shiny metal for resistance to harsh environments.
-
Sleek Aesthetics: The flat, white actuator provides a modern look and clear visibility on control desks.
-
Momentary Action: Resets immediately after being pressed, ideal for start/stop or signaling functions.
-

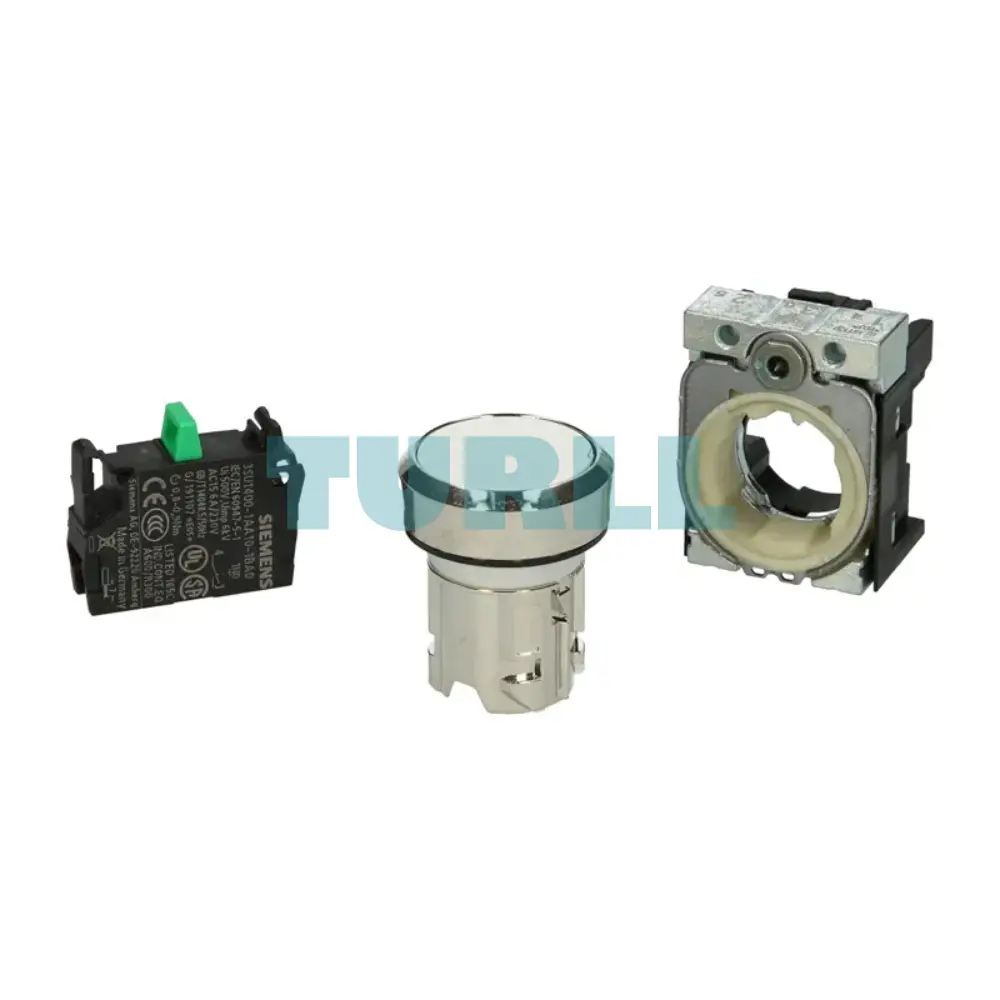

Complete Unit: Includes the actuator, holder, and 1 NO (Normally Open) contact block for immediate out-of-the-box installation.
-
Secure Wiring: Features robust screw terminals to ensure vibration-proof electrical connections.
Function
-
Provides momentary switching control in automation systems
-
Used for start, stop, reset, and command inputs
-
Suitable for control panels, machinery, and industrial equipment
-
Ensures reliable NO (Normally Open) circuit activation
Technical Specification
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Finish: Shiny
-
Color: White
-
Actuator Type: Flat pushbutton
-
Contact Type: Momentary
-
Contact Configuration: 1 NO (Normally Open)
-
Terminal Type: Screw terminal
Visit 3SU1150-0AB60-1BA0 for more detail info
For more our products visit turll
Download
| Weight | 0.091 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |

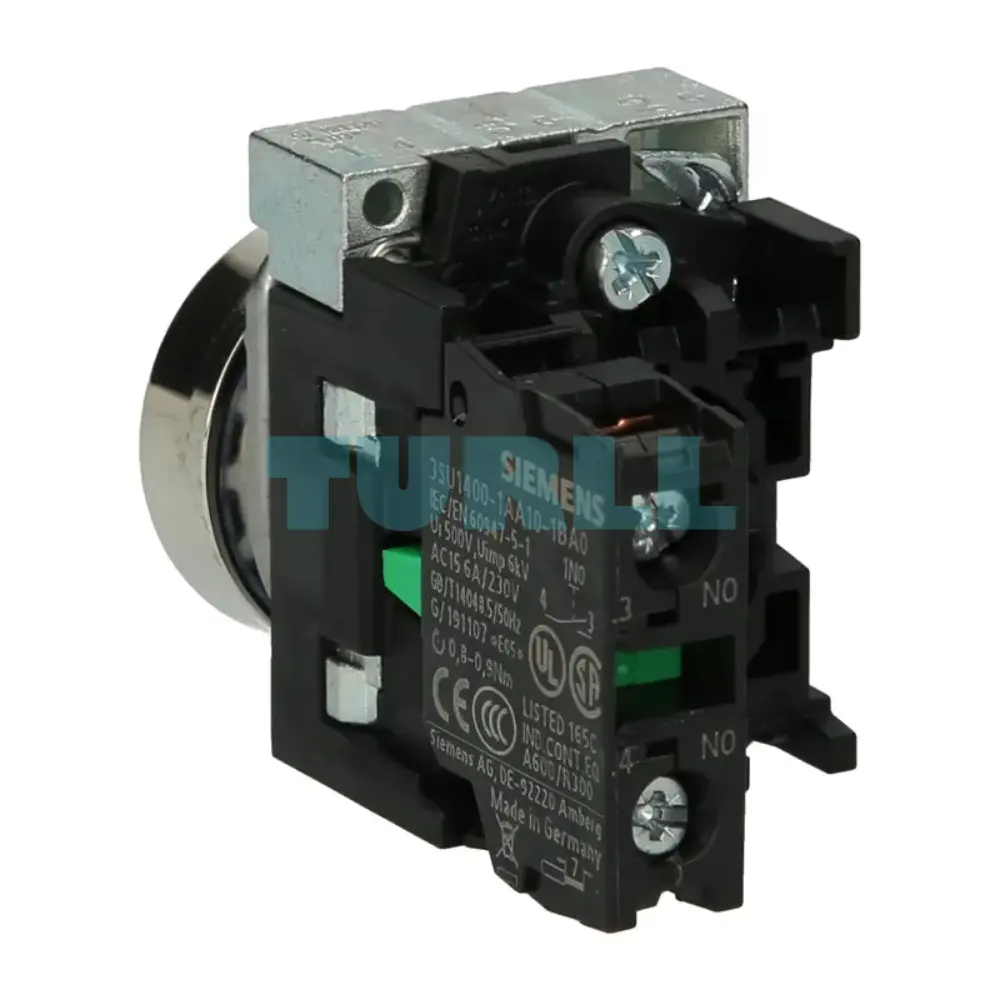

| ● of supplied contact module at position 1 | 3SU1400-1AA10-1BA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | 3SU1050-0AB60-0AA0 |
| number of command points | 1 |
| design of the actuating element | Button, flat |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| marking of the actuating element | Customized labeling, text in lower case letters |
| number of contact modules | 1 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 0 |
| product function positive opening | No |
| product component light source | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

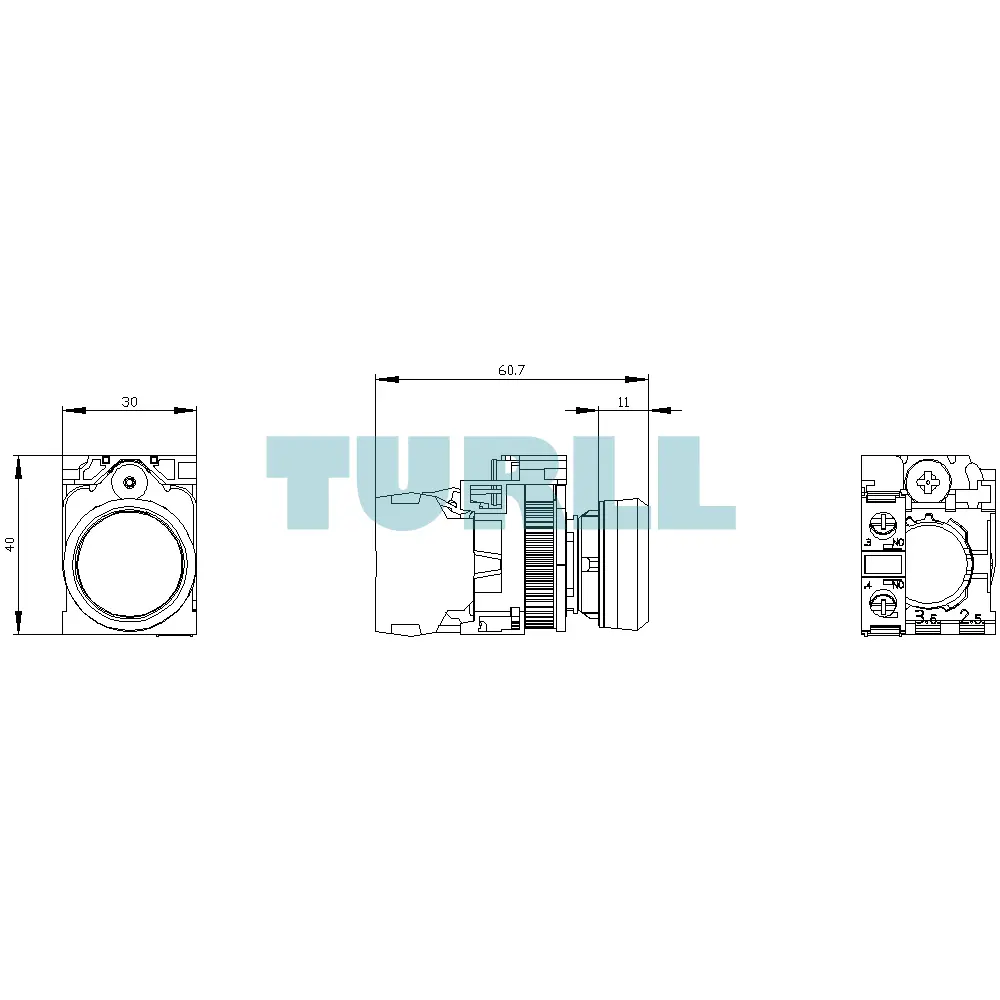

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| last modified: | 10/1/2021 |
