1FK2104-4AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$521.33
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor with 1.27 Nm torque, IP64 protection, absolute encoder, and seamless integration into SINAMICS systems.
1FK2104-4AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

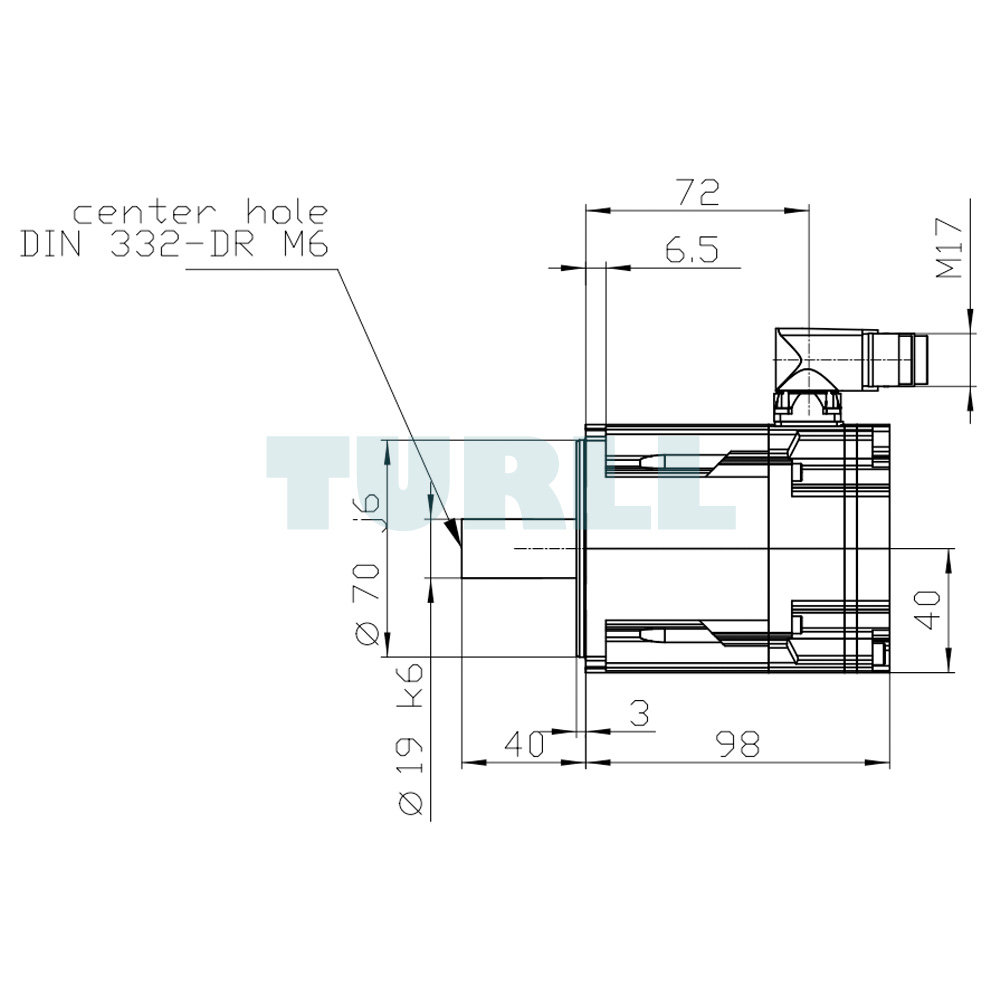

The SIEMENS 1FK2104-4AF00-0SB0 is a high-quality SIMOTICS S-1FK2 High Dynamic servo motor designed for demanding industrial automation tasks. With a rated torque of 1.27 Nm and a power rating of 0.4 kW at 3000 rpm (380–480 V), as well as 0.2 kW at 1500 rpm (200–240 V), this motor delivers reliable and precise performance across a range of applications. Its IP64 degree of protection ensures durability in challenging environments, while the cylindrical shaft (D19x40 mm) provides robust mechanical connection. Equipped with an absolute encoder single-turn 22-bit (AS22DQC) and DRIVE-CLiQ plug M17, the motor is optimized for seamless integration with SINAMICS drive systems.
The SIMOTICS S-1FK2 family is well known for its compact design, high power density, and impressive overload capacity. These attributes make it a versatile solution for motion control tasks requiring accuracy, reliability, and consistent torque delivery. As part of the broader SIMOTICS portfolio, this model brings together efficiency, precision, and modern connectivity.
Overview
The 1FK2 series of servo motors is engineered to meet the essential challenges of servo drive technology. With streamlined variants and limited options, the range ensures easy selection and deployment in automation projects. These motors serve as the foundation of the SINAMICS S210 servo drive system, providing exceptional dynamics and efficient control.
The extended 1FT2 series builds upon the 1FK2 family, offering additional rated speeds, torque levels, and broader configuration possibilities. This provides engineers with more flexibility to address highly demanding tasks and adapt to complex industrial settings.
SIMOTICS S-1FK2 High Dynamic and Compact Motors
The SIMOTICS S-1FK2 High Dynamic motors feature low inertia, enabling rapid response for applications involving light loads and frequent motion cycles. Meanwhile, the Compact versions deliver stable, precise control for medium to high load requirements, offering reliable operation with medium moments of inertia. Together, these models ensure an optimal balance of performance and versatility for a wide variety of automation challenges.
Download
Product Code: 1FK2104-4AF00-0SB0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
