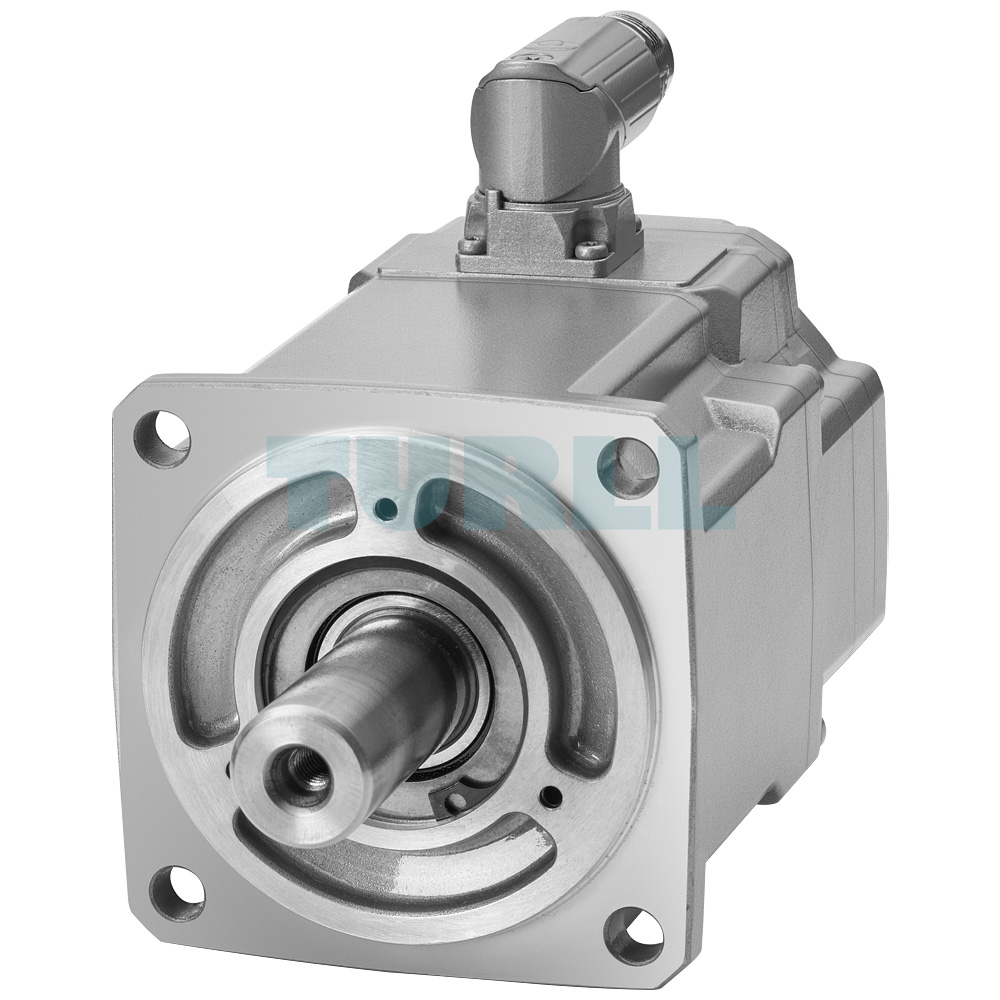

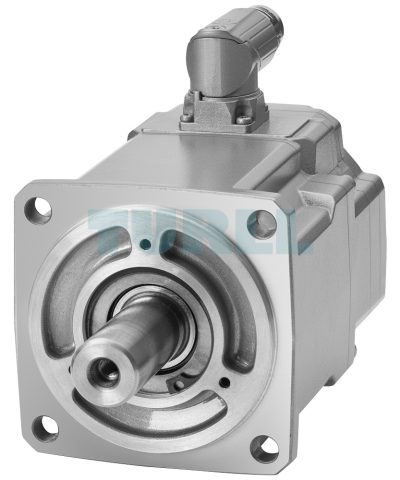

1FK2104-4AF10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$828.58
Compact SIEMENS SIMOTICS S-1FK2 HD servo motor with 1.27 Nm torque, 0.4 kW power, IP64 protection, holding brake, and high-precision encoder.
1FK2104-4AF10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
The SIEMENS 1FK2104-4AF10-1MA0 is a high-quality SIMOTICS S-1FK2 HD servo motor designed for precision, reliability, and efficiency in industrial automation. Engineered with advanced synchronous motor technology, it delivers superior dynamic performance and stable operation across demanding applications. With a rated torque of 1.27 Nm and a power output of 0.4 kW at 3000 rpm (380–480 V) or 0.2 kW at 1500 rpm (200–240 V), this servo motor offers flexibility to meet varying system requirements. The inclusion of a holding brake ensures additional operational safety, while its IP64 protection rating makes it suitable for robust industrial environments.

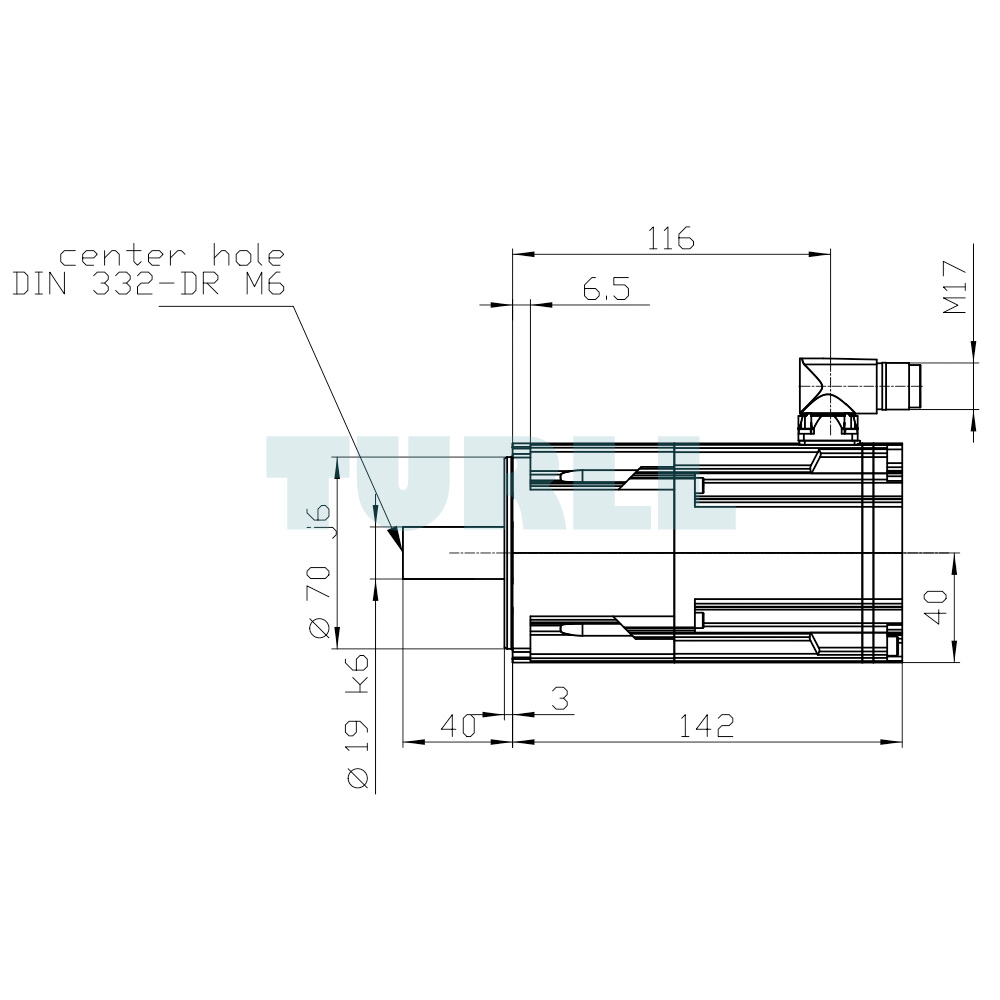

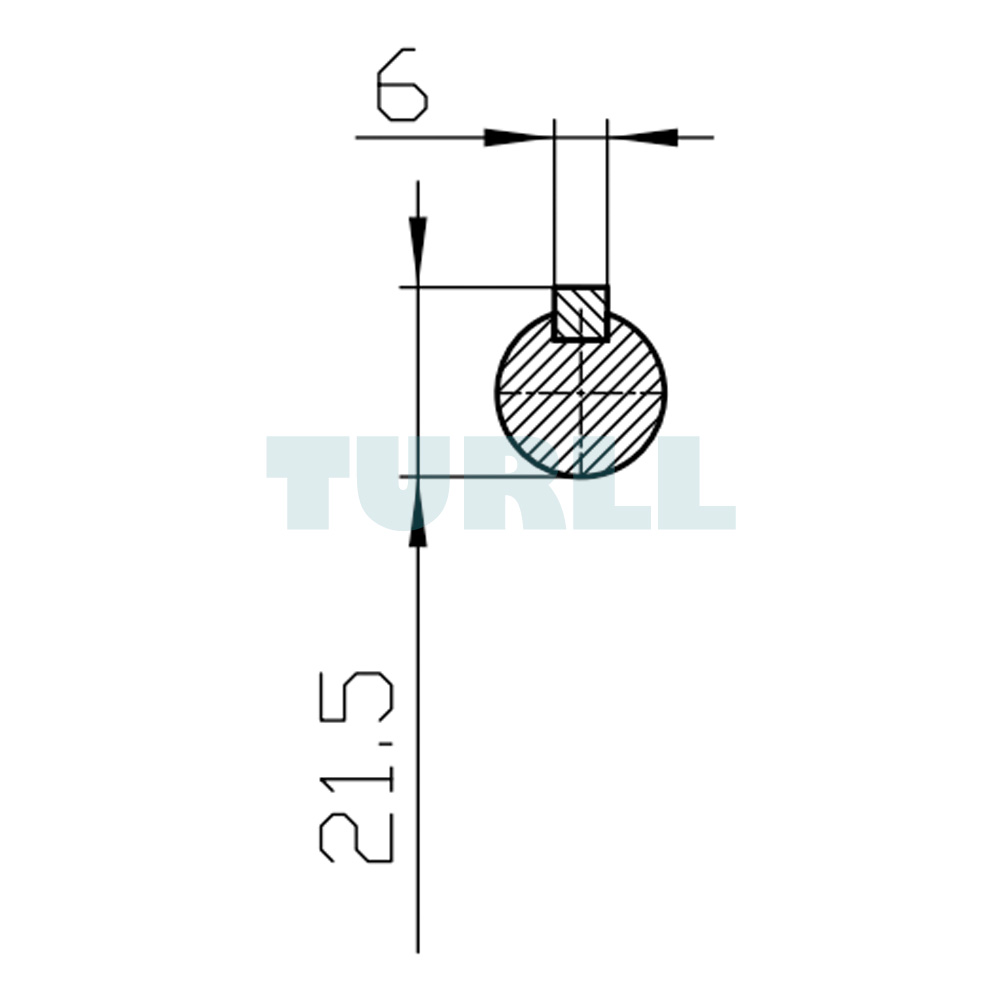

The unit comes with a D19x40 mm shaft equipped with a feather key, an absolute encoder with 22-bit + 12-bit multiturn resolution (encoder AM22DQC), and a rotatable M17 plug with OCC interface. This combination guarantees precise motion control, reliable feedback, and seamless integration into automation networks. Compact yet powerful, it is optimized for applications requiring accuracy, stability, and dynamic responsiveness.
Overview
The SIMOTICS S-1FK2 motor series is recognized for its compact design, high power density, and excellent overload capability. These motors address the essential challenges of servo drive technology, offering simple selection with limited variants while still providing the performance necessary for modern automation. The 1FK2 family forms the foundation of the SINAMICS S210 drive system, ensuring optimal compatibility and integration.
In addition, the 1FT2 motor family extends the 1FK2 range by offering more finely graded speeds, expanded torque levels, and greater customization options. This makes it possible to address more complex drive requirements and perform reliably even in demanding conditions.
SIMOTICS S-1FK2 Motor Types
- High Dynamic motors: Designed with low inertia for highly dynamic applications involving lightweight moving masses.
- Compact motors: Provide precise, stable control for medium to high mass applications with moderate inertia requirements.
Download
Product Code: 1FK2104-4AF10-1MA0
More Siemens products at Turll.com
| Weight | 2.9 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
