SIEMENS SIMOTICS S-1FK2 high-dynamic servo motor, 1.27 Nm, 0.4 kW at 3000 rpm, with encoder, IP65 protection, and integrated holding brake.
Backorder available · Factory lead time 2–3 weeks.

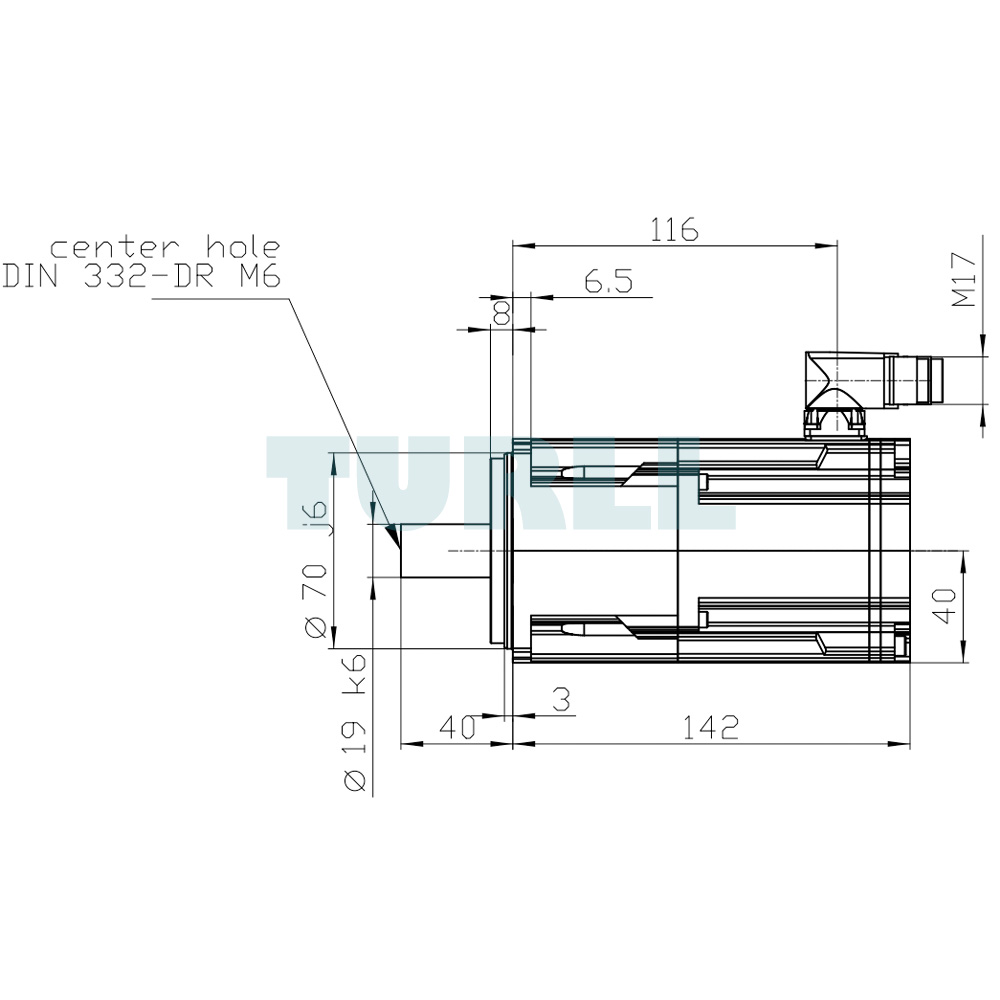

The SIEMENS 1FK2104-4AF11-0SB0 is a SIMOTICS S-1FK2 high-dynamic servo motor designed to deliver reliability, accuracy, and performance in modern automation environments. Built with a rated torque of 1.27 Nm and power ratings of 0.4 kW at 3000 rpm (380–480 V) or 0.2 kW at 1500 rpm (200–240 V), this servo motor is engineered for flexible use in different industrial applications. The integrated holding brake, degree of protection IP65, and compact cylindrical shaft (D19x40 mm) ensure robust operation even in demanding conditions. Additionally, the device features a high-resolution single-turn absolute encoder (AS22DQC, 22-bit) and DRIVE-CLiQ plug connectivity for seamless integration with SINAMICS drive systems.
One of the key strengths of the SIMOTICS S-1FK2 family is its excellent balance between compact design and dynamic performance. The lightweight construction and low moment of inertia allow for fast response times, making it suitable for applications where precision, positioning, and speed are critical. These motors are widely used across sectors such as robotics, packaging machinery, handling systems, and other automation solutions that require efficiency and long service life.
The 1FK2 servomotor range offers a streamlined portfolio that simplifies selection while meeting the essential challenges of servo drive technology. Compact, rugged, and highly dynamic, these motors are optimized for SINAMICS S210 servo drives, ensuring smooth and precise operation in industrial automation. For advanced performance needs, the extended 1FT2 series builds upon the 1FK2 line by providing more finely graded speed levels, torque variations, and additional configuration options to address specialized applications.
The SIMOTICS S-1FK2 motors are available in both high-dynamic and compact variants. High Dynamic models achieve exceptional responsiveness with low inertia, making them ideal for fast-moving, low-mass applications. Compact versions offer stable control for medium to high load inertia requirements, combining precise positioning with robust mechanical strength. The combination of advanced encoder technology, secure IP65 housing, and easy connectivity ensures dependable integration into industrial systems.
Product Code: 1FK2104-4AF11-0SB0
More Siemens products at Turll.com
| SKU / Model | 1FK2104-4AF11-0SB0 |
|---|---|
| Weight | 2.9 kg |
| Dimensions | 452 × 250 × 267 mm |
Request a quote for project quantities, discontinued or obsolete models, and pro-forma invoice / bank transfer orders. Our sourcing team responds fast.
