1FK2104-4AK10-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$658.03
SIEMENS SIMOTICS S-1FK2 HD servo motor, 0.6 kW, 1.27 Nm torque, IP64 protection, absolute encoder, holding brake, OCC interface, and compact design for industrial automation.
1FK2104-4AK10-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

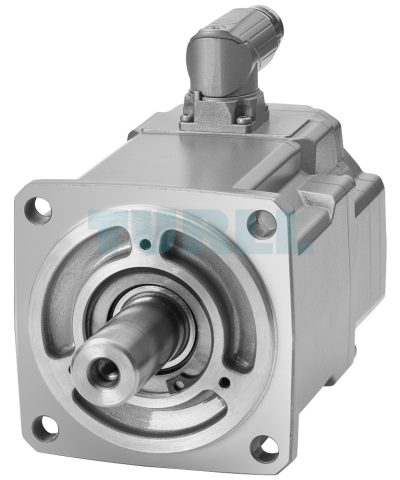

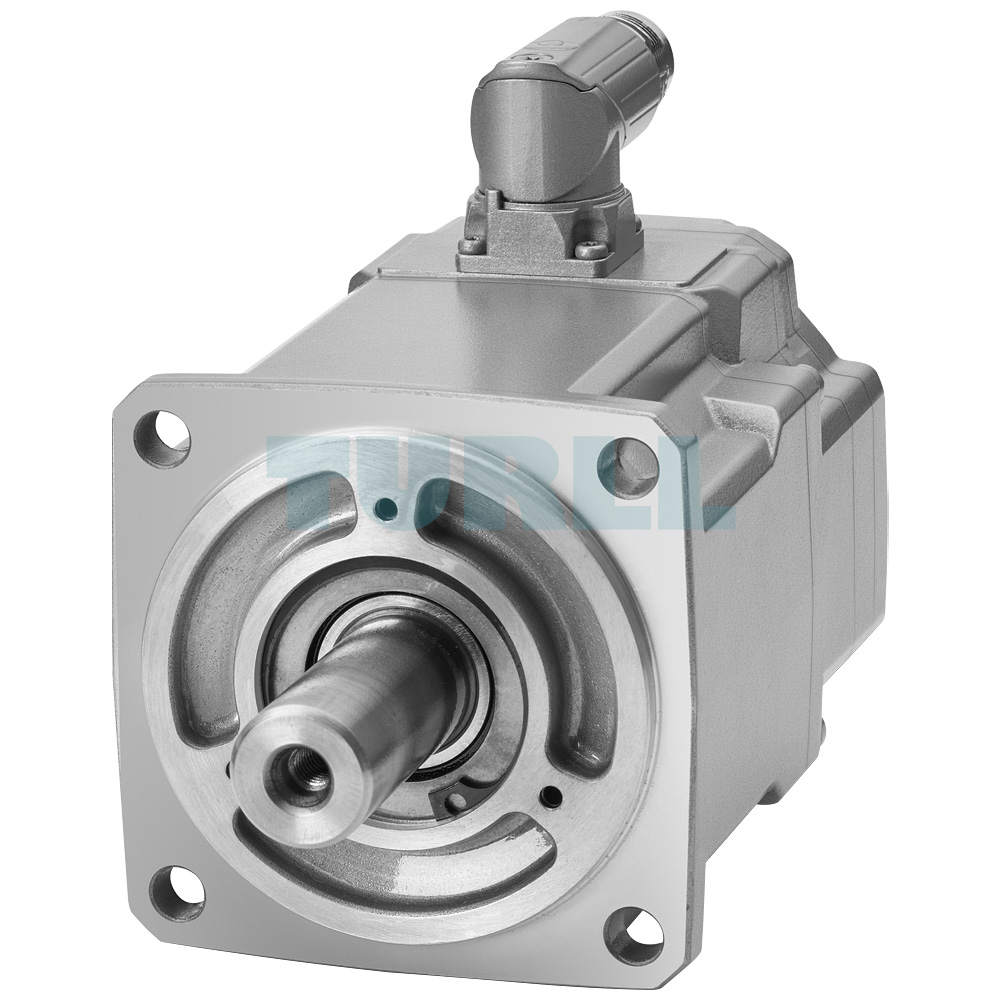

The SIEMENS 1FK2104-4AK10-0SA0 SIMOTICS S-1FK2 HD servo motor is a high-performance synchronous motor designed for industrial automation tasks requiring precision, reliability, and compact design. This servo motor provides a rated torque of 1.27 Nm with a power output of 0.6 kW at 6000 rpm (380–480 V) and 0.4 kW at 3000 rpm (200–240 V). With an integrated holding brake, cylindrical shaft measuring 19×40 mm, IP64 protection, and a 22-bit single-turn absolute encoder (AS22DQC), this motor ensures accurate position feedback and dependable operation in challenging environments. The OCC interface and rotatable M17 plug further enhance its ease of integration.
As part of the SIMOTICS S-1FK2 family, the motor combines compact dimensions with outstanding dynamic performance. Its low inertia allows rapid acceleration and deceleration, making it well-suited for demanding motion control applications with light to medium load requirements. At the same time, the robust mechanical design ensures durability under continuous operation.
Overview
The SIMOTICS S-1FK2 servo motors are engineered for flexibility across a wide range of automation solutions. Their high power density and overload capacity make them ideal for applications in machinery, packaging, robotics, and material handling. The limited number of variants simplifies product selection while providing a consistent solution for drive systems. They form the core motor series for integration with the SINAMICS S210 drive system, ensuring seamless compatibility and optimal performance.
SIMOTICS S-1FK2 Variants
High Dynamic motors: Optimized for applications with low moving masses, offering superior responsiveness through reduced inertia.
Compact motors: Provide precise and stable control for medium to high load applications where reliability and balance of performance are essential.
Download
Product Code: 1FK2104-4AK10-0SA0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
