1FK2104-4AK11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-4AK11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

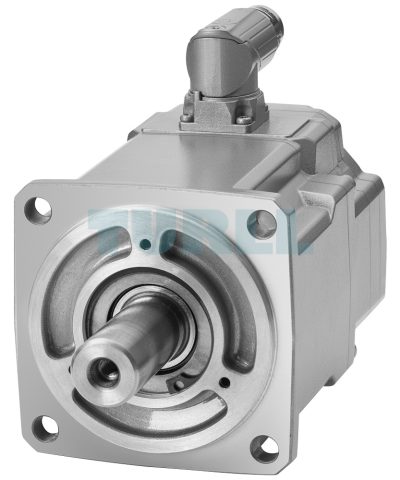

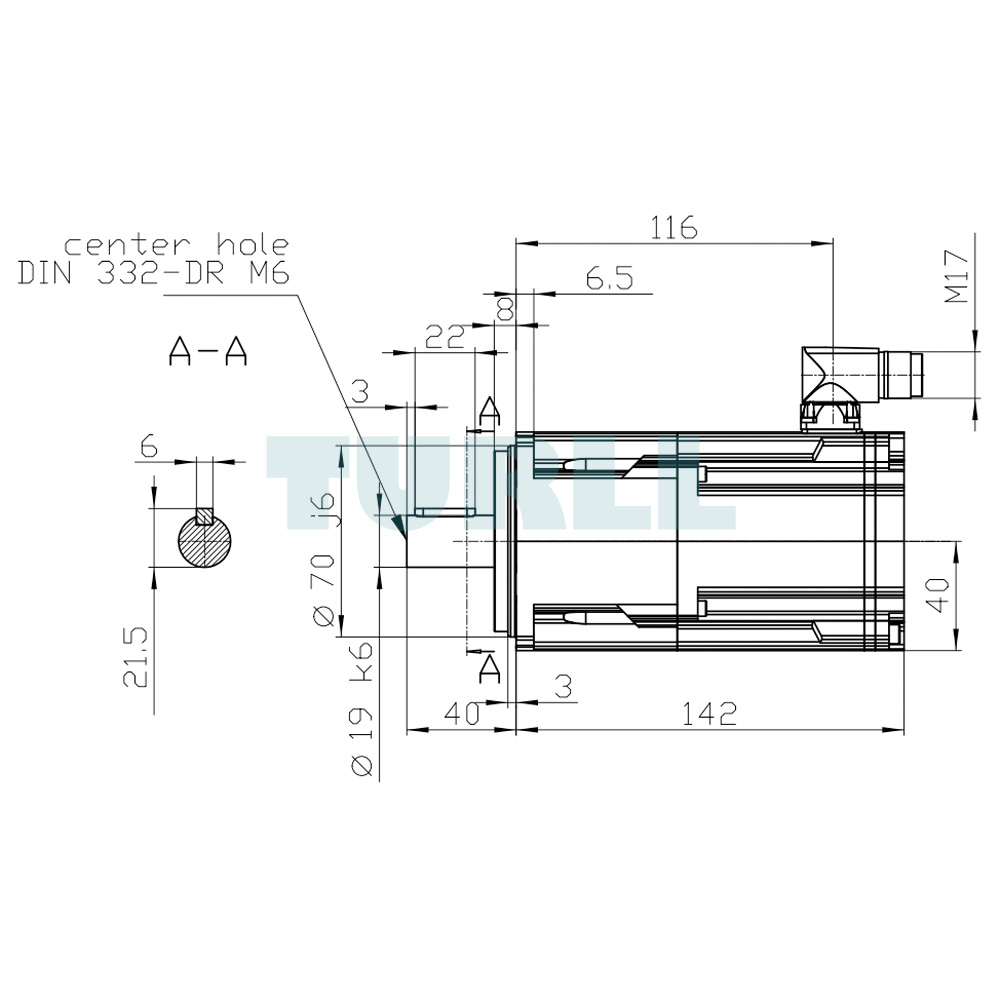

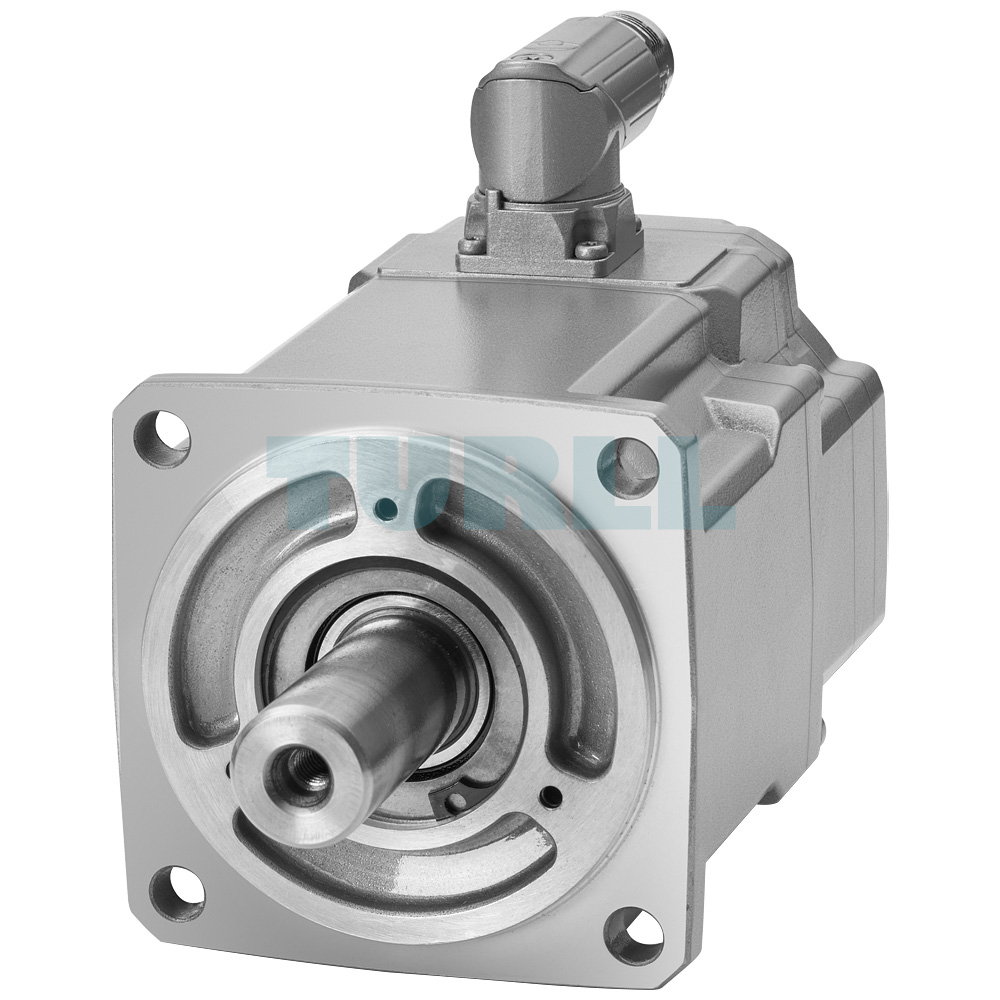

The SIEMENS 1FK2104-4AK11-1MA0 SIMOTICS S-1FK2 HD servo motor is a compact, powerful, and dynamic synchronous motor designed to meet the demanding requirements of modern industrial automation. With a rated torque of 1.27 Nm and a nominal power output of 0.6 kW at 6000 rpm under 380–480 V, as well as 0.4 kW at 3000 rpm under 200–240 V, this motor is engineered to deliver exceptional performance across a wide range of applications. Featuring an integrated holding brake, IP65 degree of protection, and a precisely machined shaft of D19x40 mm with feather key, it ensures durability, precision, and safe operation in challenging environments.

The motor comes equipped with a high-resolution 22-bit + 12-bit multiturn absolute encoder (AM22DQC), providing accurate position feedback for precise motion control. With the OCC interface and rotatable M17 plug connection, installation and integration are streamlined, allowing for flexibility in both design and deployment. These features make the 1FK2104-4AK11-1MA0 an excellent choice for applications requiring high levels of efficiency, stability, and dynamic responsiveness.

Overview

The SIMOTICS S-1FK2 series represents the next generation of compact and highly dynamic servomotors tailored for diverse industrial applications. They are specifically designed to combine high power density, overload capacity, and reliability in one streamlined package. The product line forms the foundation of the SINAMICS S210 servo drive system, ensuring seamless compatibility and outstanding drive performance. Offering a limited number of variants, the 1FK2 range simplifies product selection while maintaining versatile applicability.

Additionally, the extended 1FT2 motor portfolio builds upon the 1FK2 family by offering even more finely tuned rated speeds, torque levels, and multiple configurations, addressing the growing needs of advanced drive technology. Whether for precision handling, automation, or demanding machinery, these motors deliver consistent results even in tough operating conditions.

SIMOTICS S-1FK2 Variants

• High Dynamic: Low inertia design for applications requiring rapid acceleration and deceleration with light moving masses.
• Compact: Stable, precise control suitable for medium to heavy moving masses with moderate inertia requirements.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AK11-1MA0
