1FK2104-5AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

The SIEMENS 1FK2104-5AF01-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed for precision, durability, and efficiency in industrial environments. With a rated torque of 2.4 Nm and power output of 0.75 kW at 3000 rpm (380–480 V) or 0.375 kW at 1500 rpm (200–240 V), this synchronous motor offers reliable performance across different voltage ranges. Its compact build and IP65 degree of protection make it highly resistant to dust, moisture, and harsh operating conditions, ensuring a long service life.

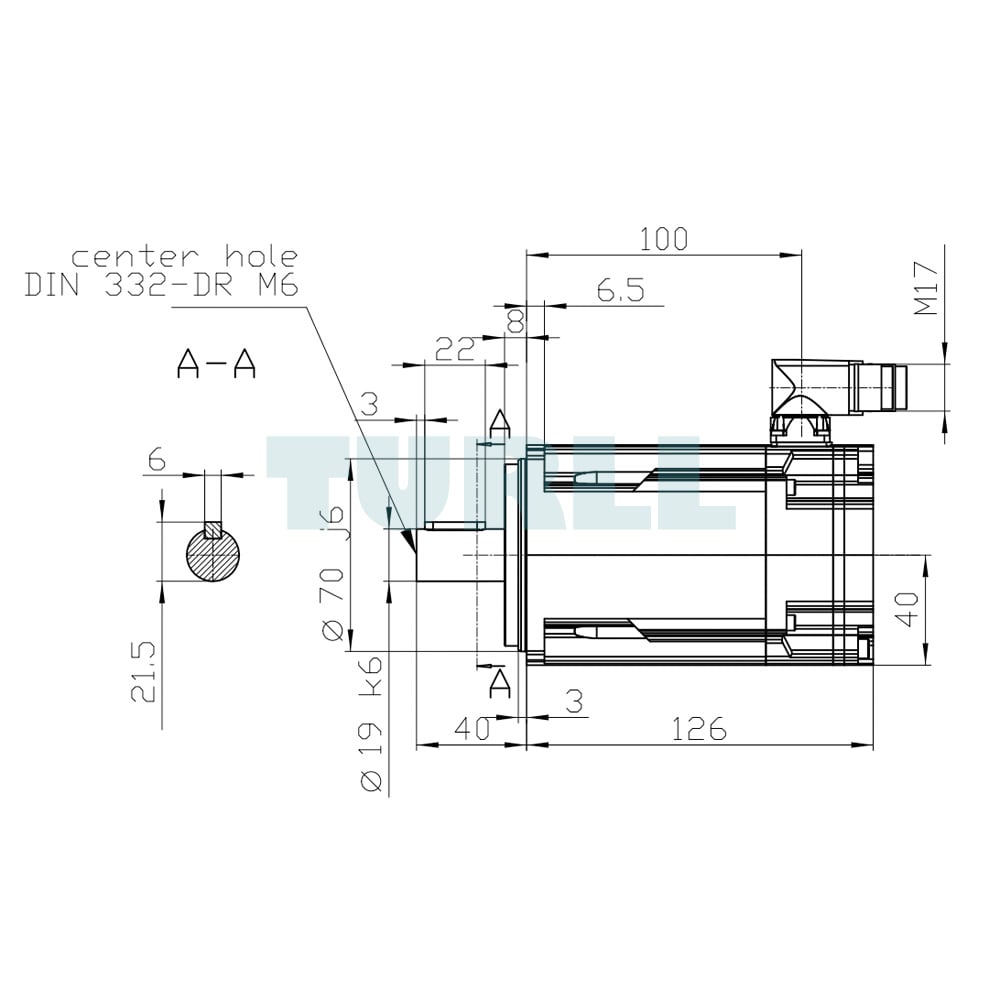

Equipped with a single-turn 22-bit absolute encoder (AS22DQC), a DRIVE-CLiQ M17 interface, and a standardized power connector, the motor delivers excellent feedback accuracy and seamless integration with SINAMICS drive systems. Its shaft design of 19x40 mm with feather key adds mechanical reliability, while the high overload capability allows stable operation even under challenging conditions.

Overview

The SIMOTICS S-1FK2 portfolio represents compact, high-performance motors that address the essential demands of modern servo drive technology. With enhanced dynamic response and simplified variant selection, the 1FK2 series is at the core of the SINAMICS S210 servo drive system. The motor family is suitable for applications such as packaging, robotics, machine tools, and other automation tasks where precision and speed are critical.

For more specific performance requirements, the 1FT2 series extends the range by offering additional torque levels, refined speed gradations, and multiple variants. Together, these product families provide scalable solutions for advanced drive technology, ensuring seamless adaptation to diverse industrial needs.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AF01-1SB0
