1FK2104-5AF10-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AF10-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

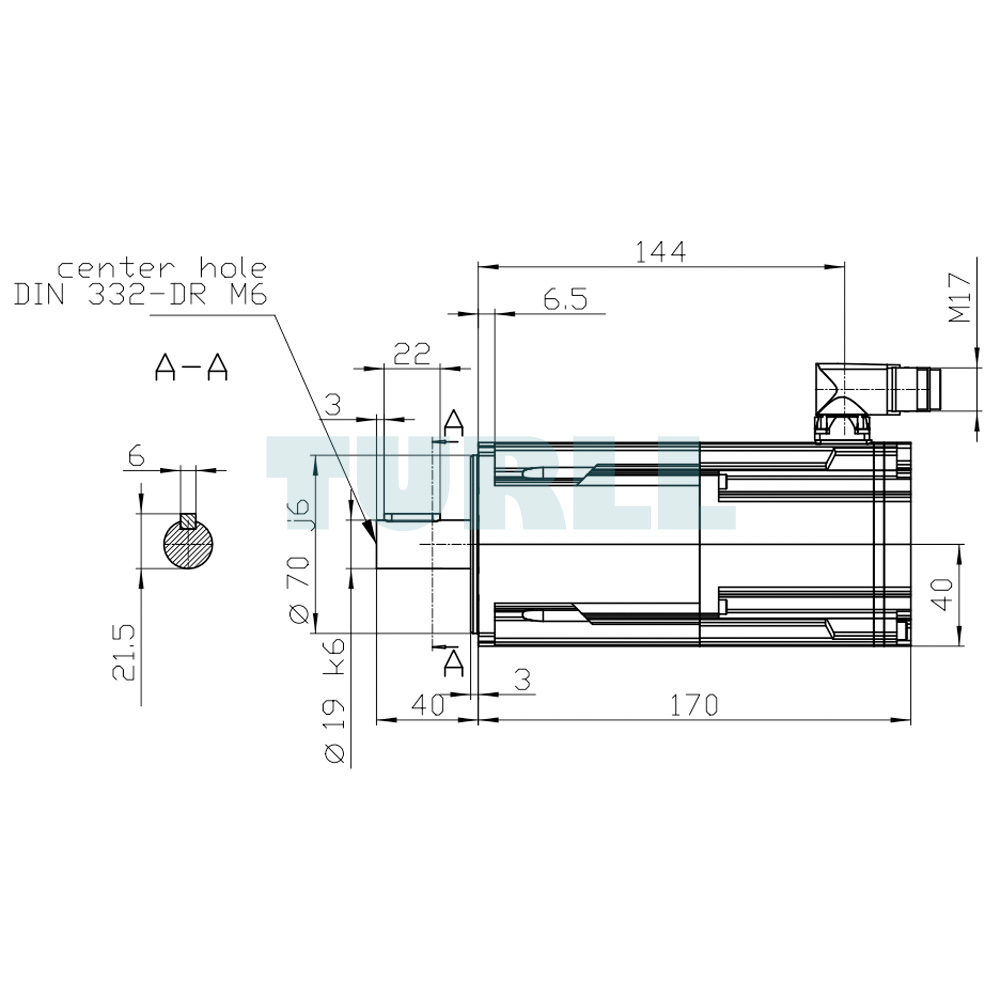

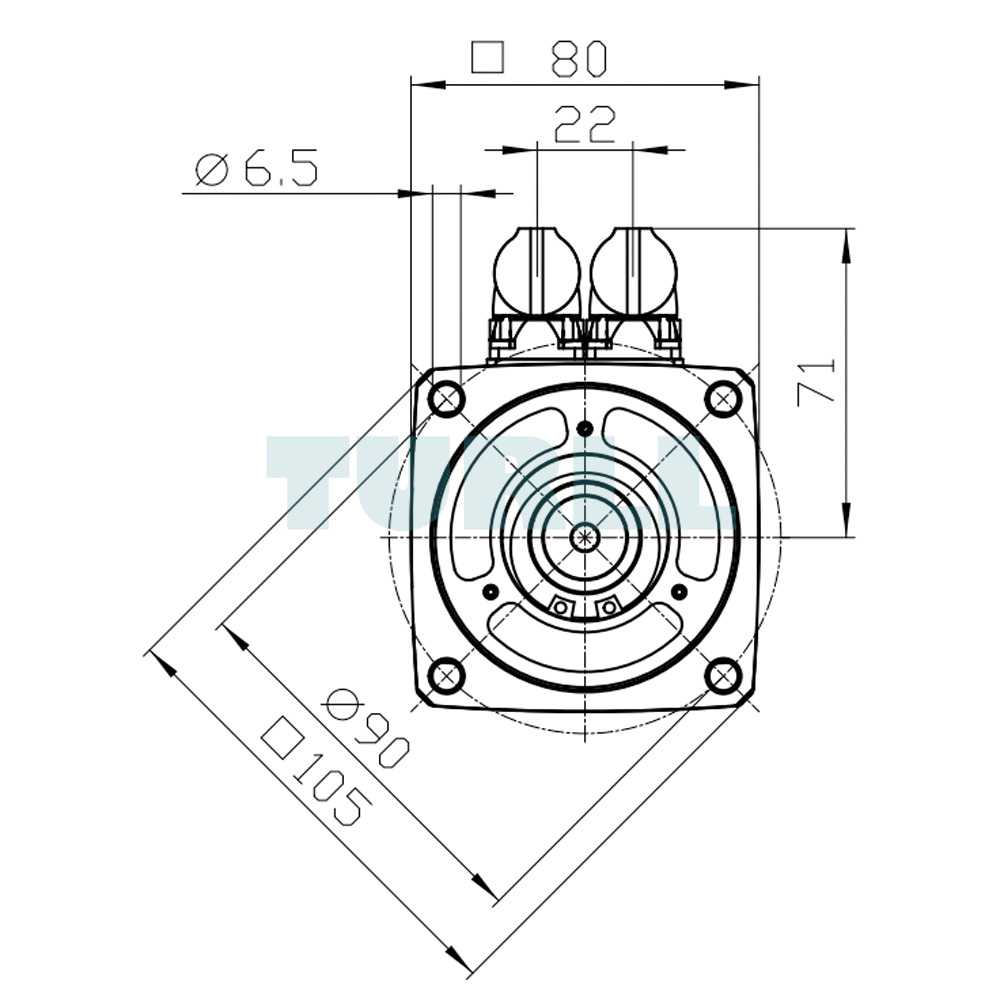

The SIEMENS 1FK2104-5AF10-1MB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed for precise, reliable, and energy-efficient motion control in demanding industrial environments. With a rated torque of 2.4 Nm and power rating of 0.75 kW at 3000 rpm (380–480 V) or 0.375 kW at 1500 rpm (200–240 V), this compact synchronous motor combines power density and efficiency in a highly durable form factor. Featuring an integrated holding brake, IP64 protection, and a robust shaft (19×40 mm with feather key), it delivers both long service life and consistent performance.

The motor is equipped with an absolute encoder AM22DQC, offering 22-bit single-turn and 12-bit multiturn resolution, ensuring superior accuracy and smooth control. The DRIVE-CLiQ M17 interface provides seamless connectivity with SINAMICS drive systems, simplifying integration in advanced automation setups. Its compact size and lightweight build make it ideal for robotics, packaging, handling systems, and applications where dynamic responsiveness is critical.

Overview

The SIMOTICS S-1FK2 family of motors offers a combination of high dynamic performance, overload capability, and simplified variant selection. These motors form the foundation of the SINAMICS S210 servo drive system, delivering reliable control for a wide range of automation tasks. The product line ensures flexibility, whether the requirement is for high-speed motion with low inertia or precise stability in medium-inertia applications.

For applications demanding even more performance, the 1FT2 extension of this motor series expands the range with additional torque levels, higher rated speeds, and numerous options. Together, the 1FK2 and 1FT2 motors provide scalable solutions to meet today’s industrial drive challenges.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AF10-1MB0
