SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor, 2.4 Nm torque, 1.07 kW power, IP64 protection, encoder AS22DQC, and DRIVE-CLiQ interface.
Backorder available · Factory lead time 2–3 weeks.

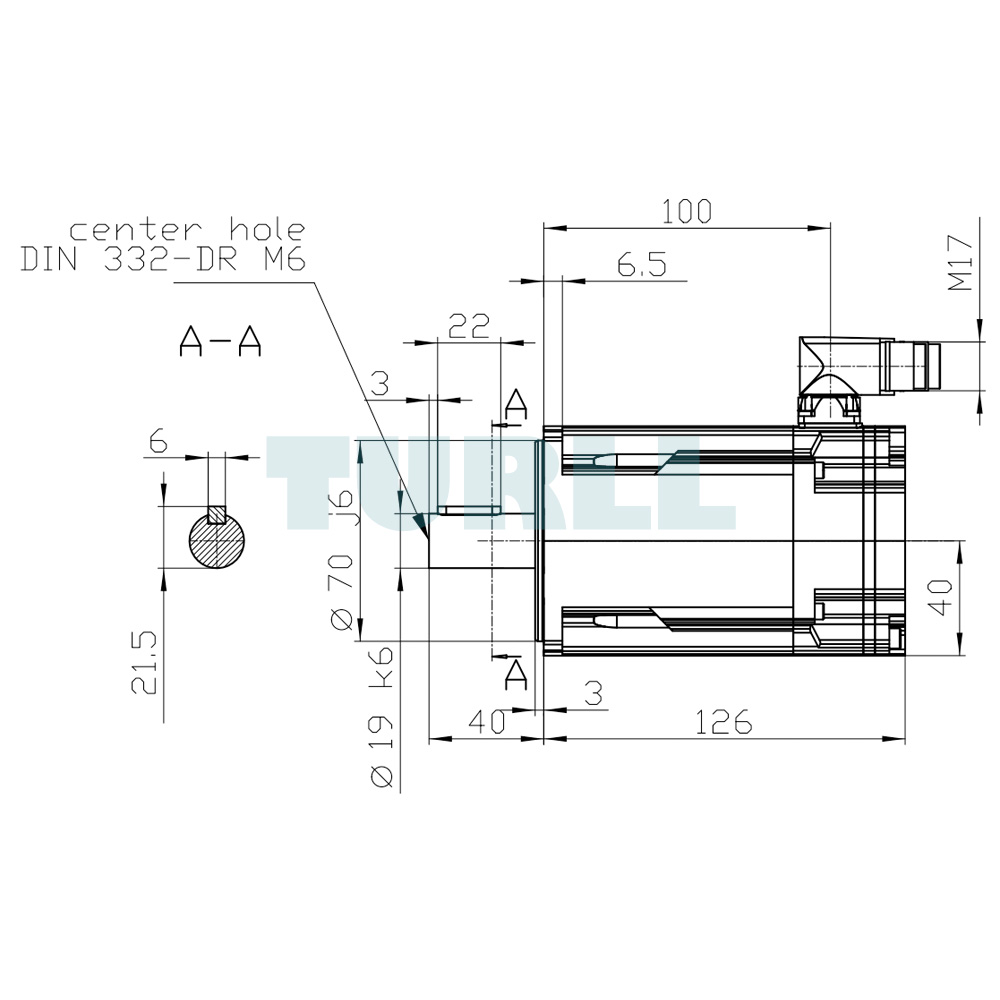

The SIEMENS 1FK2104-5AK00-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed to deliver exceptional precision and efficiency in advanced automation environments. With a rated torque of 2.4 Nm, this synchronous motor provides a power output of 1.07 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V). Built with a durable shaft design of 19x40 mm including a feather key, combined with an IP64 degree of protection, the motor ensures dependable operation even under challenging industrial conditions.
This model features an absolute single-turn 22-bit encoder (AS22DQC) for high-resolution position feedback, as well as a DRIVE-CLiQ plug M17 for seamless connectivity with SINAMICS drive systems. Its compact construction and optimized performance characteristics make it particularly well-suited for robotics, packaging machinery, material handling equipment, and other applications requiring both speed and accuracy. The balance between high power density and robust overload capability makes this motor a versatile solution for a wide range of dynamic tasks.
The SIMOTICS S-1FK2 portfolio is known for compact dimensions, low inertia, and high responsiveness. These motors form the foundation of the SINAMICS S210 drive system, offering simplified selection and consistent performance. For customers requiring more refined options, the complementary SIMOTICS S-1FT2 series expands the range with additional torque ratings, speed levels, and configuration variants, enabling precise adaptation to unique drive challenges.
Whether used in high-speed dynamic processes or stable control applications with higher load inertia, the S-1FK2 family provides reliable performance. Their adaptability makes them an essential choice for industries aiming to enhance productivity through modern motion control solutions.
Product Code: 1FK2104-5AK00-1SB0
More Siemens products at Turll.com
| SKU / Model | 1FK2104-5AK00-1SB0 |
|---|---|
| Weight | 2.85 kg |
| Dimensions | 452 × 267 × 250 mm |
Request a quote for project quantities, discontinued or obsolete models, and pro-forma invoice / bank transfer orders. Our sourcing team responds fast.
