1FK2104-5AK01-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$796.16
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor, 2.4 Nm torque, 1.07 kW power, IP65 protection, cylindrical shaft, multiturn encoder, and DRIVE-CLiQ connectivity.
1FK2104-5AK01-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

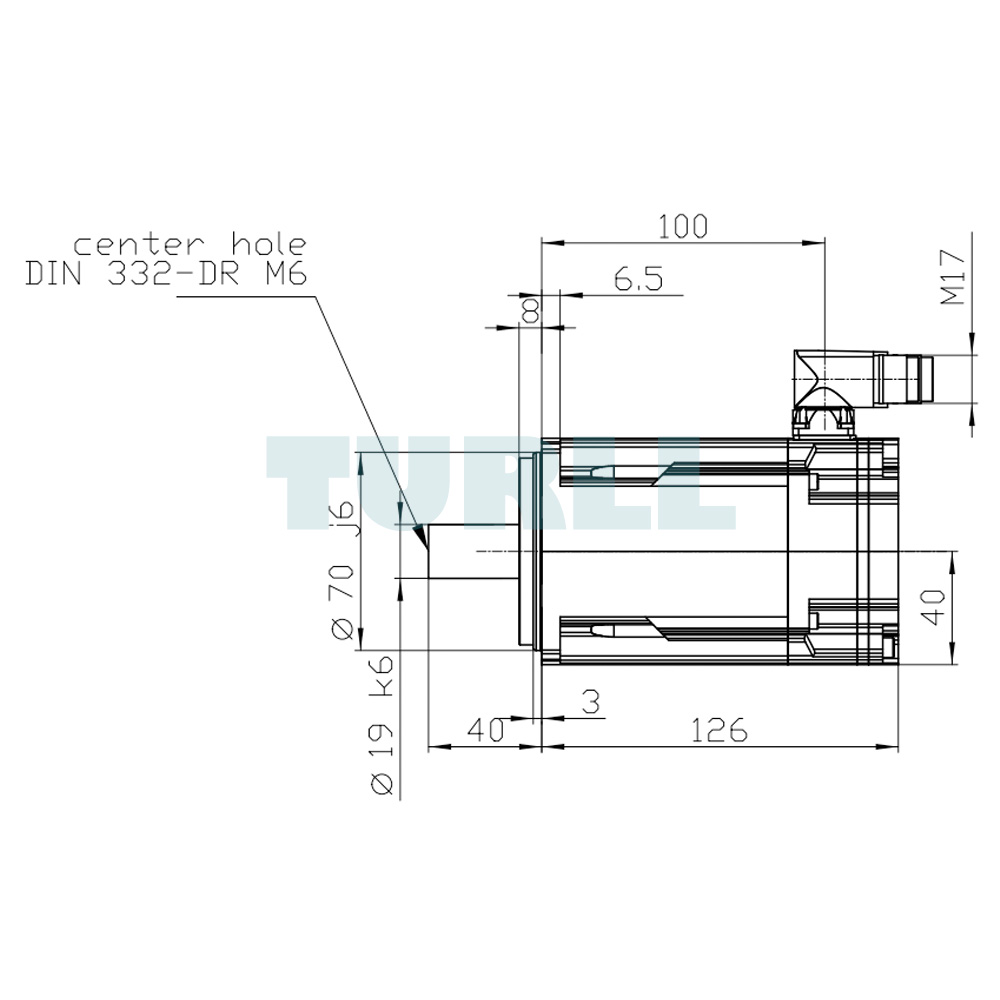

The SIEMENS 1FK2104-5AK01-0MB0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact and powerful synchronous motor built to meet the demanding requirements of modern automation systems. With a rated torque of 2.4 Nm, this motor delivers 1.07 kW at 6000 rpm (380–480 V) or 0.75 kW at 3000 rpm (200–240 V), making it suitable for a variety of industrial tasks. Its IP65 protection rating ensures durability in harsh environments, while the cylindrical shaft design (D19x40 mm) enhances mechanical stability in precision-driven applications.
This motor is equipped with a high-resolution 22-bit absolute encoder combined with a 12-bit multiturn encoder (AM22DQC), providing precise feedback for advanced control requirements. Integrated DRIVE-CLiQ M17 connectors allow seamless communication with SINAMICS drive systems, ensuring straightforward setup and reliable performance. With its compact build and high dynamic response, the 1FK2104-5AK01-0MB0 offers exceptional performance in robotics, packaging, and machine tool applications.
Overview
The SIMOTICS S-1FK2 motor family combines compact dimensions with superior power density and overload capacity, providing reliable solutions for a wide range of servo drive requirements. These motors are central to the SINAMICS S210 servo drive system, offering simplicity in selection and versatility in operation. By balancing compact design with high output, the 1FK2 series supports precise and dynamic movement in demanding applications.
The extended SIMOTICS 1FT2 motor series builds upon the 1FK2 portfolio, offering additional speed gradations, torque variations, and configuration options. This expansion allows industries to address specific performance needs with greater accuracy, ensuring optimized solutions even in complex or challenging environments. Together, the SIMOTICS motor families form a scalable and robust platform for high-performance drive technology.
Download
Product Code: 1FK2104-5AK01-0MB0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
