1FK2104-5AK10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$885.24
SIEMENS SIMOTICS S-1FK2 HD servo motor with 2.4 Nm torque, 1.07 kW power, IP64 protection, absolute encoder AM22DQC, and rotatable OCC interface for precise motion control.
1FK2104-5AK10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

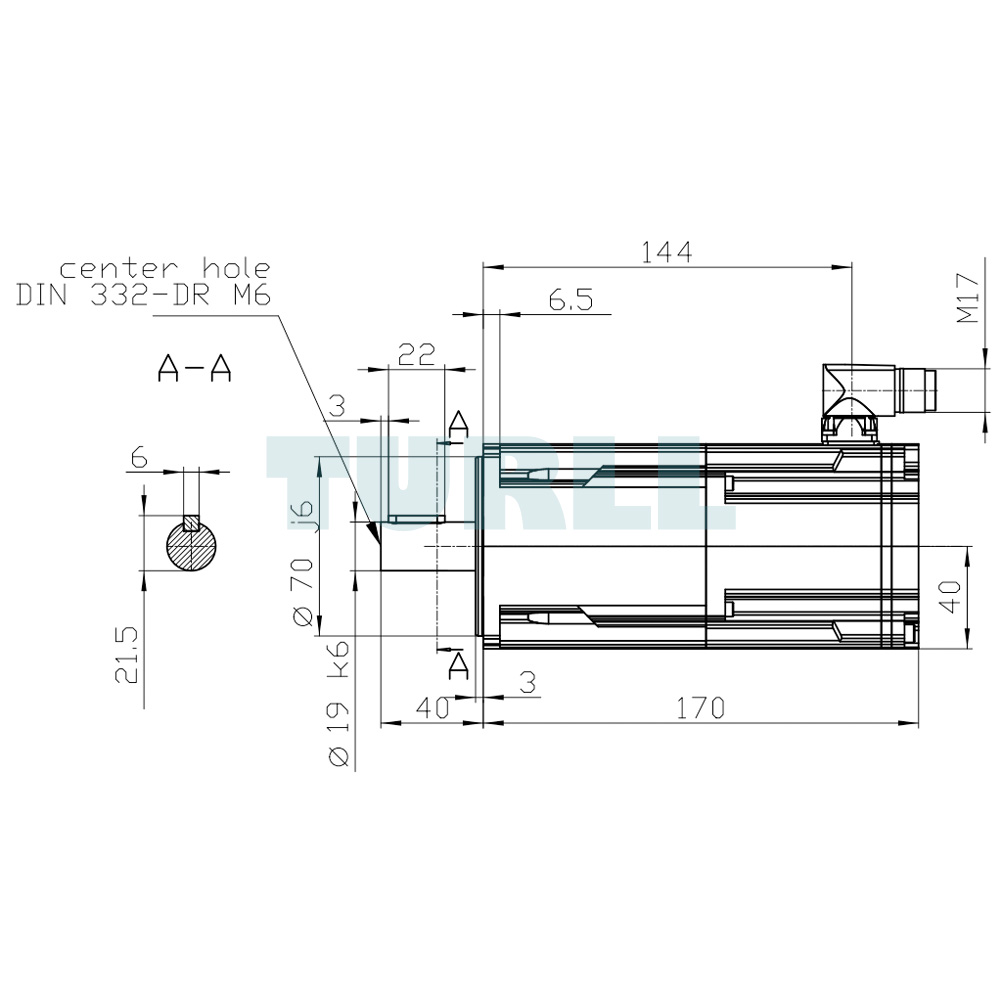

The SIEMENS 1FK2104-5AK10-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor delivers exceptional performance and precision for a wide range of industrial automation tasks. With a rated torque of 2.4 Nm, the motor provides a power output of 1.07 kW at 6000 rpm (380–480 V) or 0.75 kW at 3000 rpm (200–240 V). Its integrated holding brake, IP64 protection, and robust shaft design (19×40 mm with feather key) ensure durability and reliability even in challenging industrial environments. The unit also features a 22-bit single-turn plus 12-bit multiturn absolute encoder (AM22DQC) and a rotatable OCC interface with M17 plug for seamless integration with SINAMICS drive systems.
This compact, high-dynamic motor is ideal for applications requiring rapid, precise motion control with both low and medium to high inertia loads. Its low-inertia design allows for the highest dynamic response, while the precision engineering ensures stable control over medium and high masses. The S-1FK2 family offers a balance of performance, power density, and overload capability, making it a versatile solution for robotics, packaging, machine tools, and other automation systems.
Overview
The SIMOTICS S-1FK2 series forms the core of the SINAMICS S210 servo drive system, providing a simple selection process with a limited number of variants while maintaining high flexibility. For more demanding applications, the 1FT2 motor portfolio extends the range with additional torque levels, finely graded speeds, and multiple options. This modular approach enables engineers to address diverse challenges in modern drive technology while ensuring consistent performance across applications.
Design

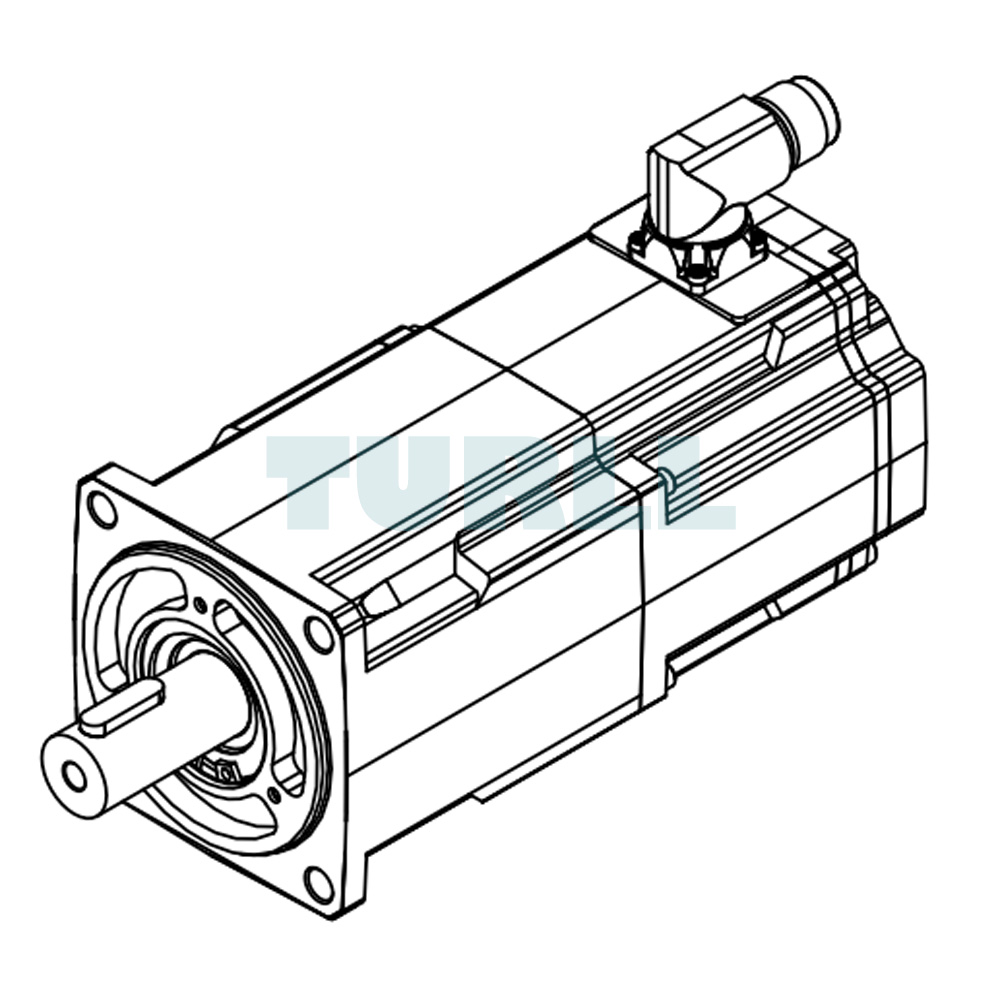

The 1FK2104-5AK10-1MA0 is designed for precise, reliable, and compact operation. Key features include integrated absolute encoder, rotatable OCC interface, IP64 protection, and robust shaft design. The motor is ideal for high-dynamic and compact motion applications where both performance and durability are critical.
Download
Product Code: 1FK2104-5AK10-1MA0
More Siemens products at Turll.com
| Weight | 3.7 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
