1FK2104-6AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

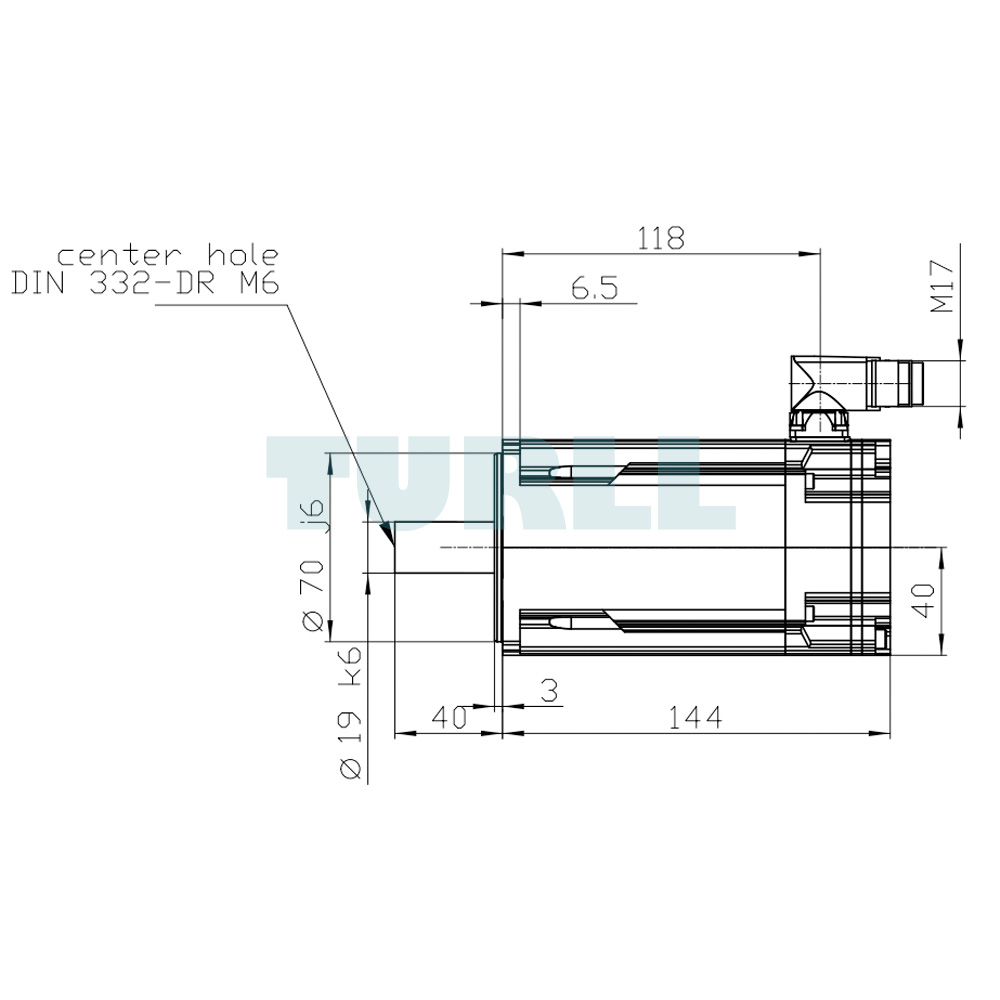

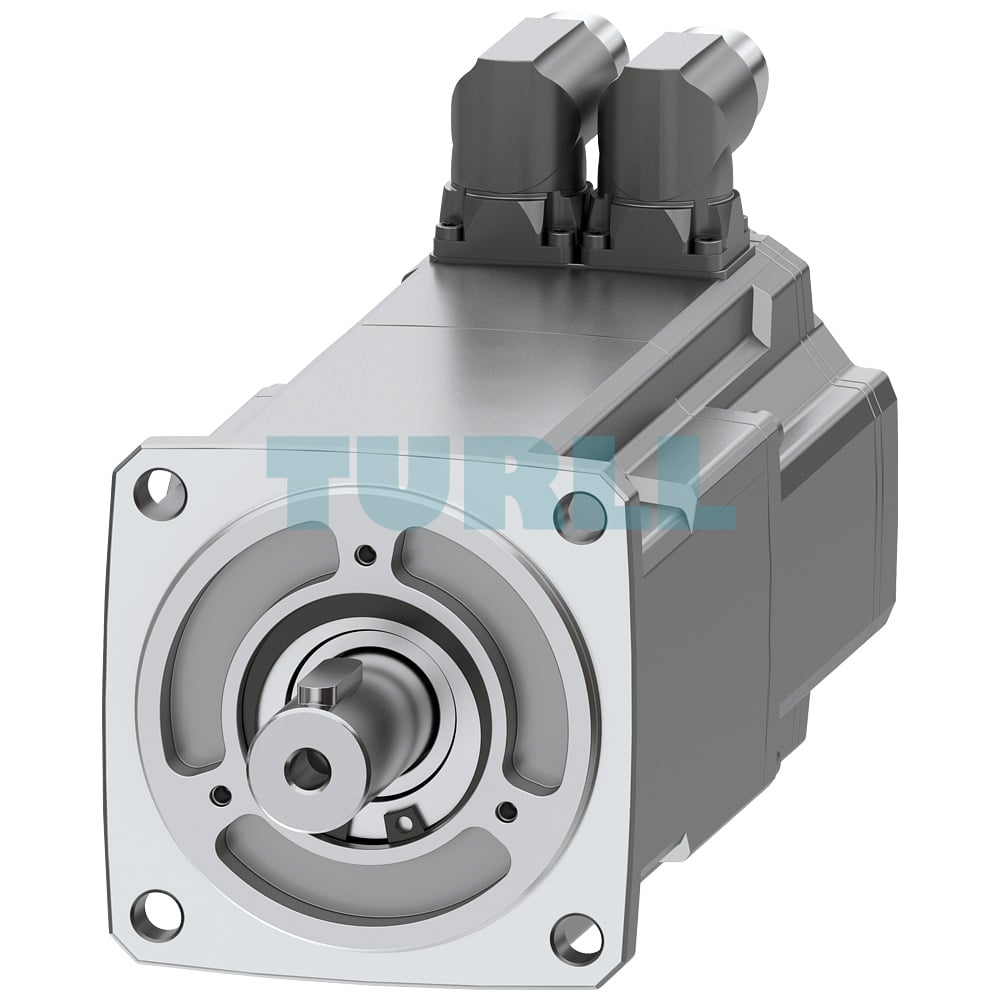

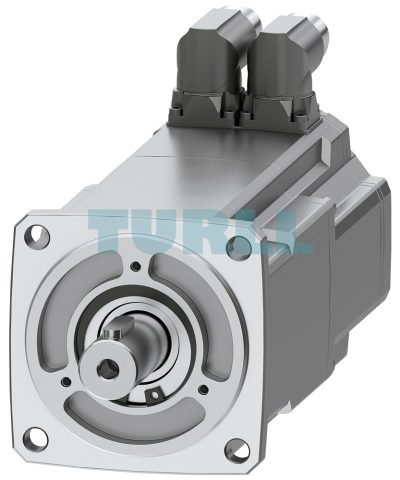

The SIEMENS 1FK2104-6AF00-0SB0 SIMOTICS S-1FK2 High Dynamic servo motor is a reliable and compact synchronous motor designed to provide superior performance in industrial automation. With a rated torque of 3.2 Nm, the motor delivers 1 kW at 3000 rpm (380–480 V) and 0.5 kW at 1500 rpm (200–240 V), making it suitable for a wide range of drive tasks. Built with an IP64 degree of protection and a robust cylindrical shaft measuring 19x40 mm, this motor ensures durability and consistent output even in demanding environments.

Equipped with a 22-bit single-turn absolute encoder (AS22DQC) and DRIVE-CLiQ M17 interface, the 1FK2104-6AF00-0SB0 offers high precision feedback and seamless integration with SINAMICS drive systems. Its power connector is also designed for reliability and efficiency in installation. With its excellent balance of performance and size, this motor is an optimal solution for machine tools, packaging machines, and robotic systems requiring dynamic and precise motion control.

Overview

The SIMOTICS S-1FK2 family stands out for its high power density, overload capability, and compact design. These motors are core components of the SINAMICS S210 servo drive system, enabling users to achieve both speed and accuracy in industrial automation. The product line offers carefully selected variants, simplifying motor choice while ensuring performance across multiple applications.

Extending beyond the 1FK2 portfolio, the 1FT2 series introduces finer speed gradations and higher torque options, delivering solutions for advanced requirements. Together, they provide flexibility, precision, and reliability in modern servo drive technology, meeting the needs of industries where stability and responsiveness are critical.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF00-0SB0
