1FK2204-5AF00-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AF00-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 servo motor with product code 1FK2204-5AF00-1MB0 is a compact, powerful, and reliable drive solution designed for industrial applications where precision and performance are essential. Delivering a rated torque of 2.4 Nm and a rated power output of 0.75 kW at 3000 rpm, this synchronous motor provides optimal performance in both high and medium dynamic applications. It also offers 0.375 kW at 1500 rpm when operated within the 200–240 V range. With a protection class of IP64, the motor ensures durability and dependable operation even in demanding environments.

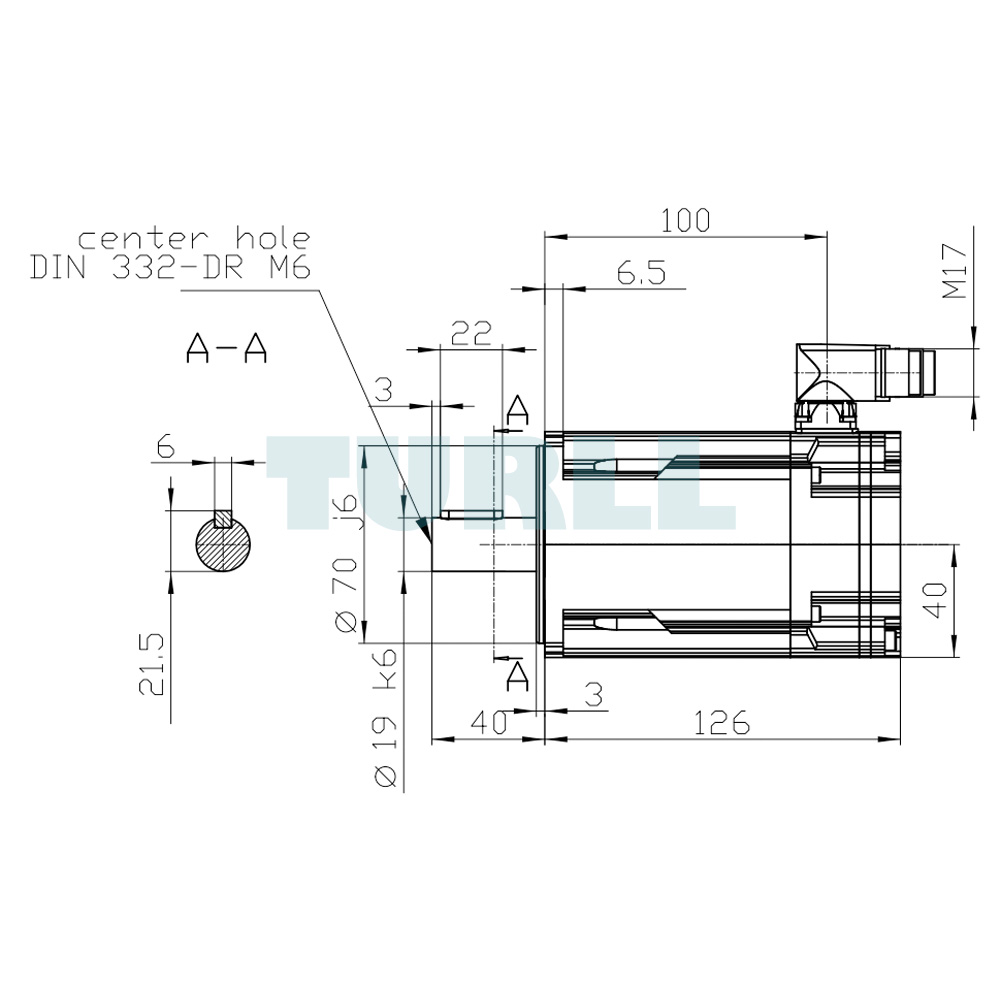

This motor features a shaft dimension of D19x40 mm with a feather key for secure power transmission. It comes equipped with a 22-bit absolute encoder combined with a 12-bit multiturn system (AM22DQC) for precise positioning feedback. The integrated DRIVE-CLiQ interface simplifies connectivity, while the compact M17 plug-in connections for both power and encoder streamline installation. These design features make it well-suited for integration into automated systems where reliability and accuracy are critical.

Overview

The SIMOTICS S-1FK2 motor family is known for high power density, robust construction, and exceptional overload capacity. It offers engineers a simplified range of variants, making product selection straightforward while maintaining broad application flexibility. These motors are an ideal match for the SINAMICS S210 servo drive system, enabling a seamless combination of advanced motor technology with modern drive solutions.

Additionally, the extended SIMOTICS S-1FT2 series further expands the performance portfolio with more finely tuned speed ratings, higher torque options, and diverse configurations, making it possible to address specialized automation tasks with even greater precision.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic Motors: Low inertia design enables rapid acceleration, making them suitable for applications with fast cycle times and light moving masses.
• Compact Motors: Optimized for stable control in applications with medium to high load inertia, ensuring smooth performance and efficiency.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF00-1MB0
