1FK2204-5AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

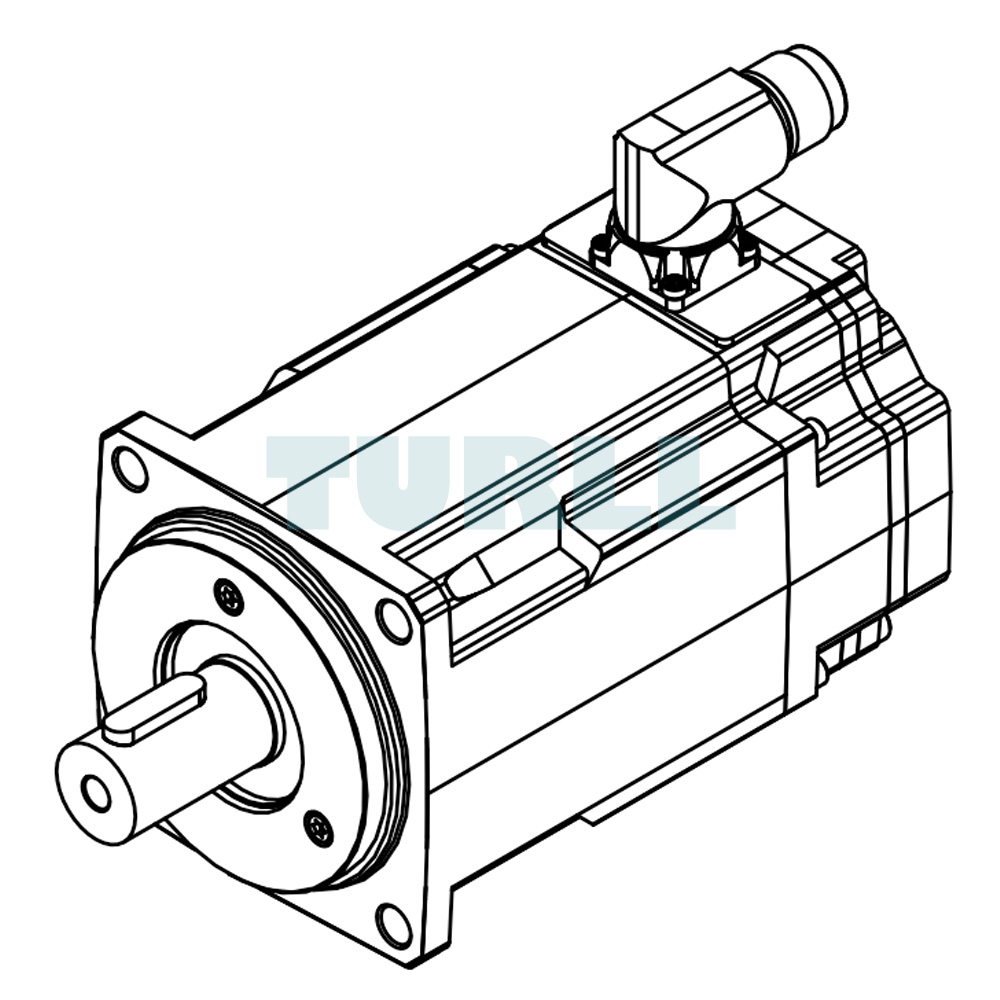

The SIEMENS 1FK2204-5AK01-1SA0 is a premium SIMOTICS S-1FK2 CT servo motor engineered to deliver efficiency, precision, and long-term reliability in industrial automation. Designed for demanding applications, this high-quality synchronous motor combines compact design with powerful performance, making it an excellent choice for modern manufacturing and automation environments.

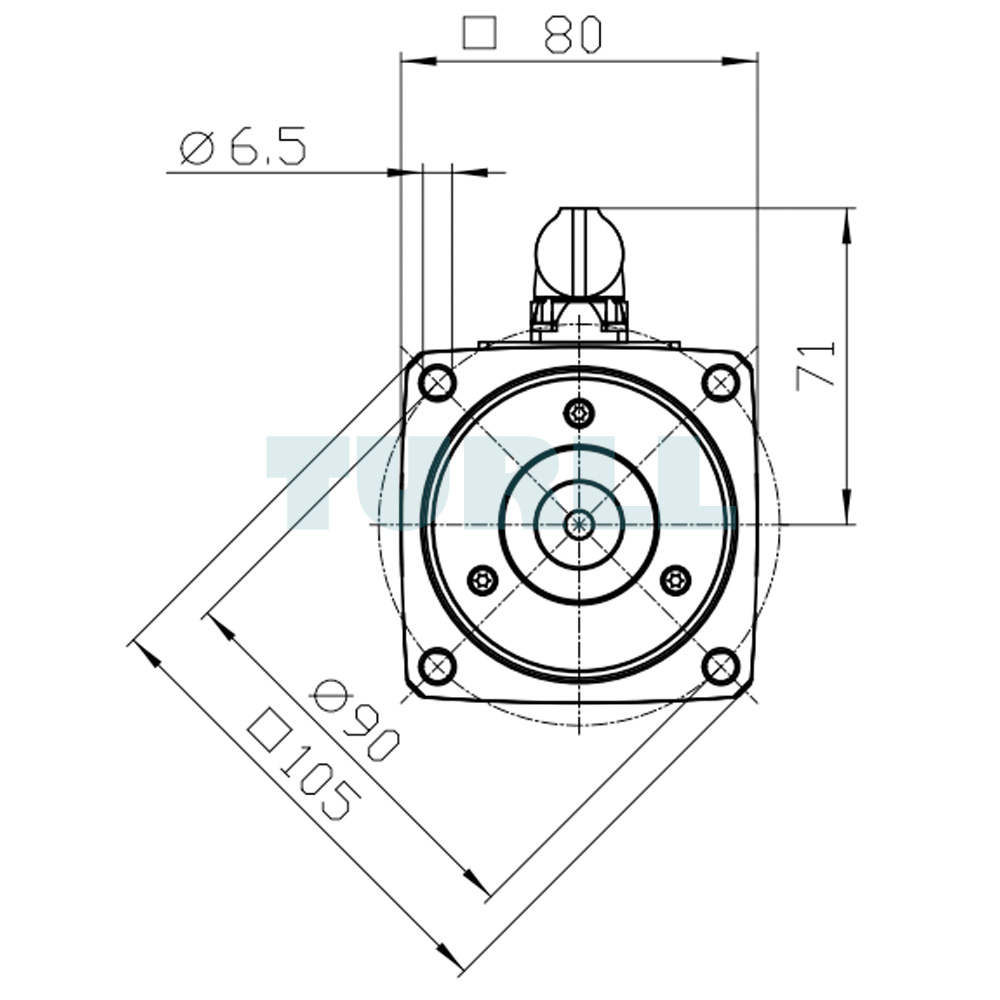

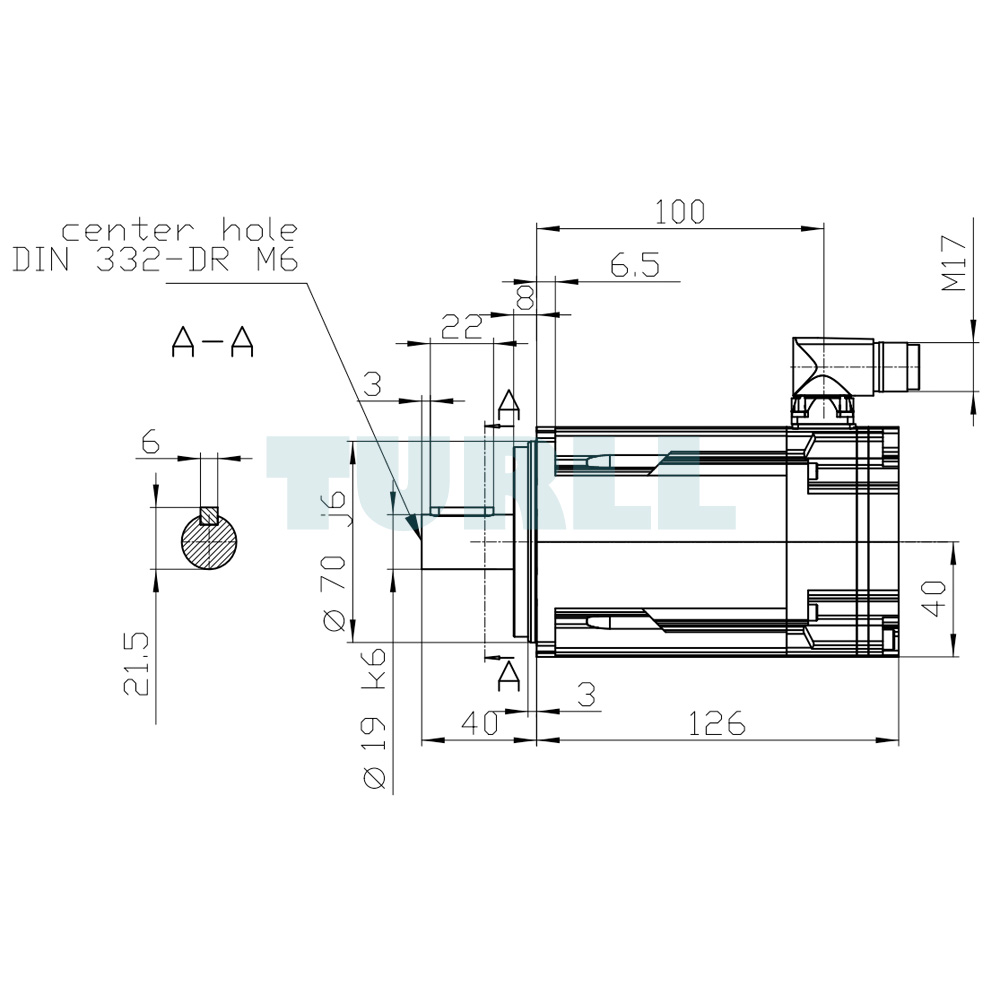

With a torque rating of 2.4 Nm and a power output of 0.57 kW at 6000 rpm (380–480 V), as well as 0.75 kW at 3000 rpm (200–240 V), the motor ensures excellent adaptability to a wide range of speed and load requirements. The device features an IP65 degree of protection, offering resistance to dust and water, which increases durability in challenging conditions. Its shaft, measuring 19×40 mm with a feather key, provides robust mechanical integration for reliable operation.

This model includes an absolute single-turn 22-bit encoder (AS22DQC) and OCC interface, ensuring accurate positioning and control. The rotatable M17 plug connection further enhances flexibility during installation, making integration simple and efficient.

Overview

The SIMOTICS S-1FK2 family is renowned for compact size, high power density, and overload capability. These motors are designed for dynamic performance and precise control in servo drive systems. They are perfectly matched with SINAMICS S210, enabling a seamless drive solution that supports applications requiring both speed and precision.

The 1FK2 motors are designed for versatility while maintaining straightforward configuration and selection. They address essential challenges in servo drive technology with high dynamic response and efficient energy use. In addition, the related 1FT2 motors extend the range with additional torque levels and refined speed options, providing even more flexibility for specialized applications.

SIMOTICS S-1FK2 High Dynamic Motors

These motors deliver exceptional response due to their low inertia, making them ideal for applications involving highly dynamic movements with minimal mass.

SIMOTICS S-1FK2 Compact Motors

Compact variants are engineered for stability and precision when controlling medium-to-high moving masses, offering balanced performance with optimized inertia.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK01-1SA0
