1FK2204-5AK10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New
$885.24
The SIEMENS 1FK2204-5AK10-1MA0 SIMOTICS S-1FK2 CT servo motor offers high dynamic performance and precise control for industrial automation, with holding brake, IP64 protection, and 22-bit absolute encoder.
1FK2204-5AK10-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New
The SIEMENS 1FK2204-5AK10-1MA0 SIMOTICS S-1FK2 CT servo motor is an exclusive, high-performance solution for precision industrial applications. This compact and highly dynamic synchronous motor delivers exceptional power density, reliability, and flexibility for a wide variety of tasks in automated systems. Its rated torque of 2.4 Nm, combined with power output of 0.57 kW at 6000 rpm (380-480 V) and 0.75 kW at 3000 rpm (200-240 V), makes it ideal for applications requiring precise motion control and rapid response times.

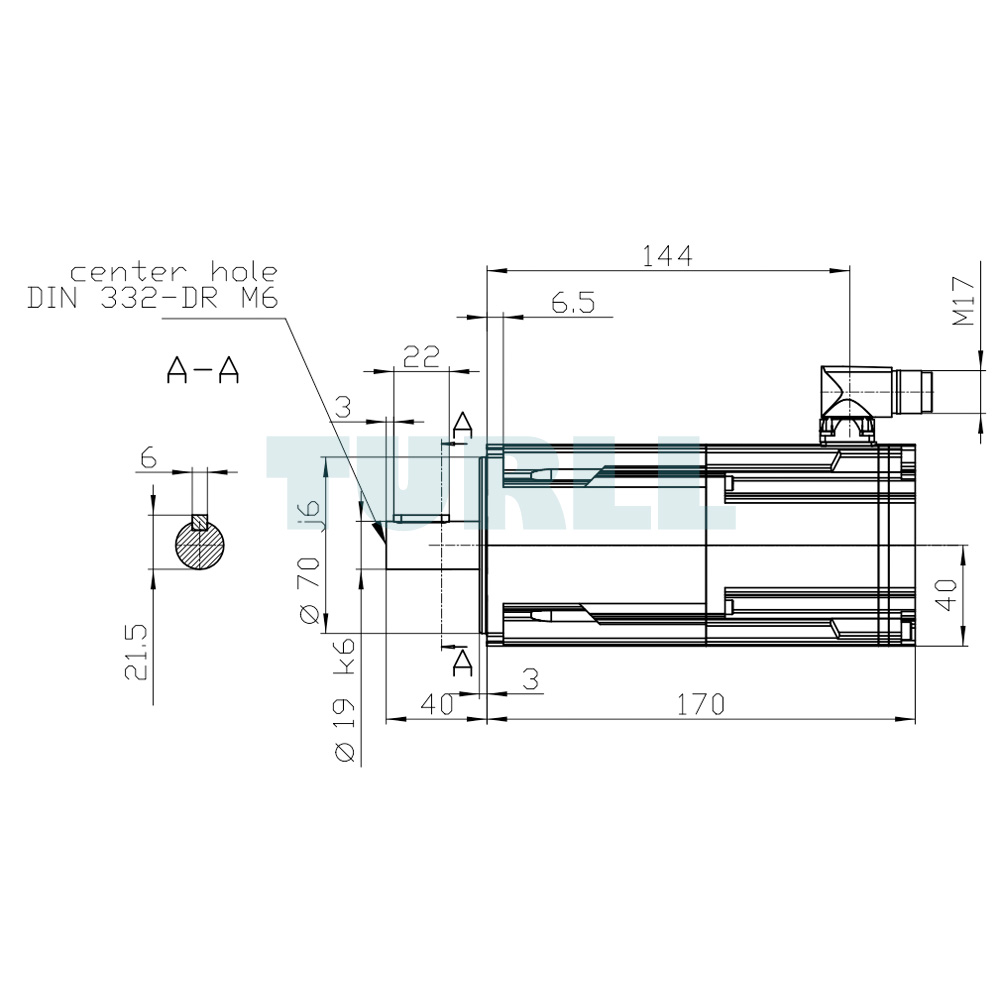

Equipped with a holding brake and IP64 protection, the 1FK2 servo motor ensures secure operation even in challenging industrial environments. The motor shaft, measuring D19x40 mm with a feather key, allows for robust mechanical integration, while the 22-bit absolute encoder with 12-bit multiturn functionality (AM22DQC) provides high-resolution feedback for accurate position control. The motor also features an OCC interface and rotatable M17 plug, enhancing connectivity and installation flexibility.
Overview
The SIMOTICS S-1FK2 series is specifically designed for compact, highly dynamic performance. These servo motors excel in applications with low to medium moved masses, providing precise, stable control and rapid acceleration. The 1FK2 motors are the backbone of the SINAMICS S210 servo drive system, offering simplified variant selection and efficient system integration. For applications requiring more nuanced speed or torque adjustments, the 1FT2 motors extend the portfolio, providing additional options and variations.
High Dynamic and Compact Design
- High dynamic response due to low rotor inertia, enabling precise control of rapidly moving loads.
- Compact design for easy integration into limited spaces while maintaining superior performance.
- Stable and precise operation for medium to high mass loads, ensuring optimal motion control in industrial automation systems.
- Robust IP64 enclosure suitable for harsh environments, enhancing durability and longevity.
Download
Product Code: 1FK2204-5AK10-1MA0
More Siemens products at Turll.com
| Weight | 3.75 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
