1FK2204-6AF00-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF00-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

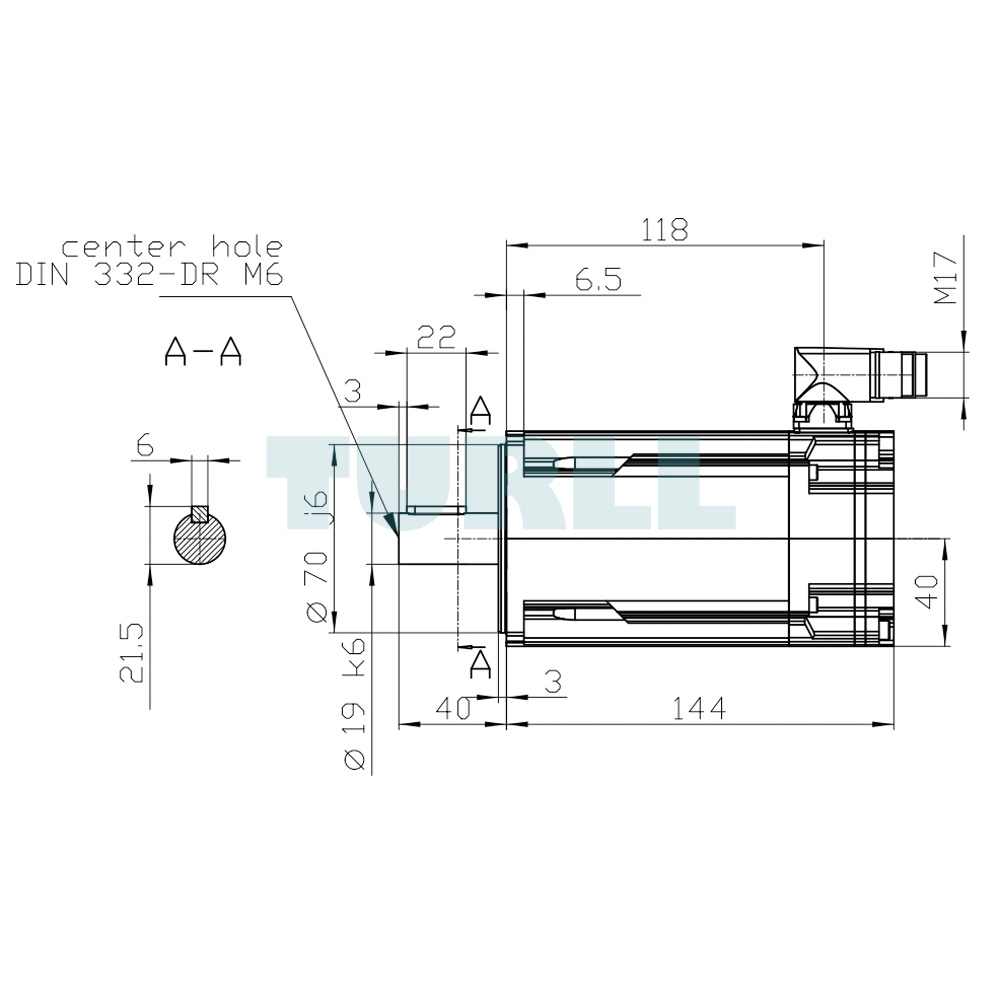

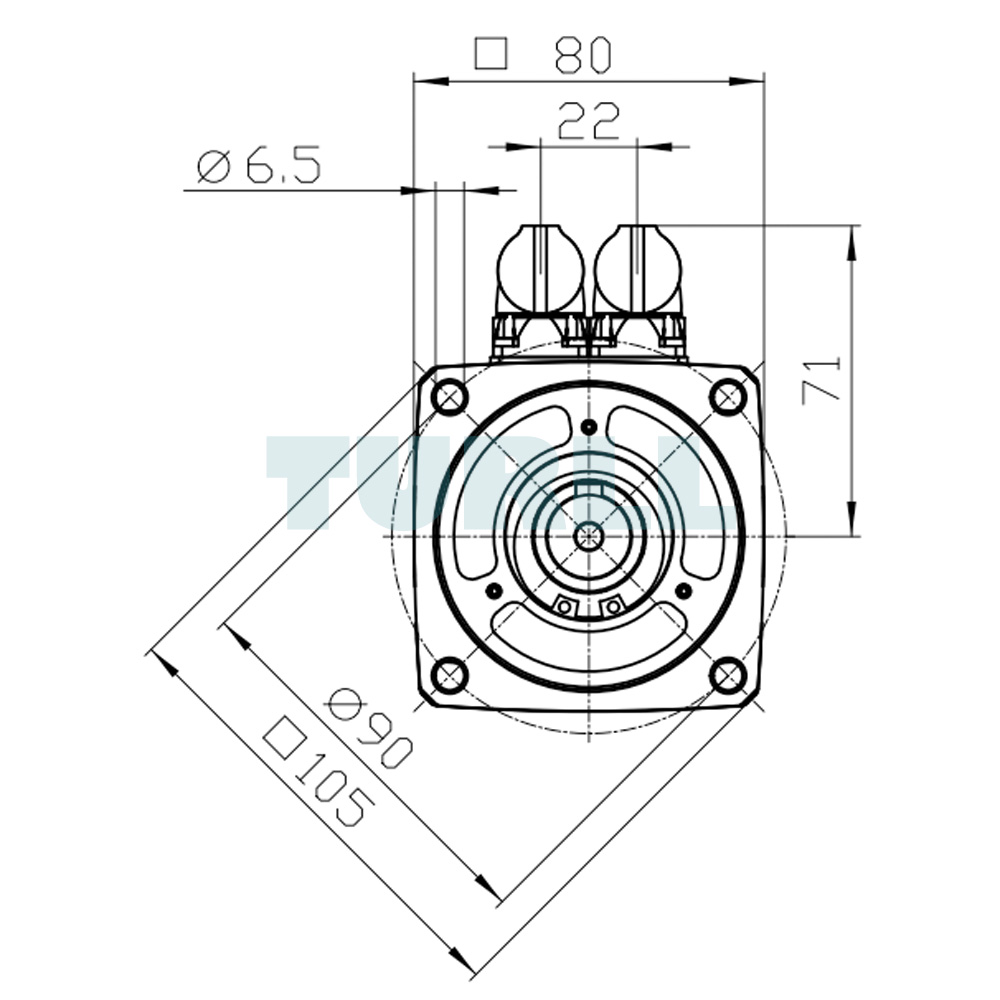

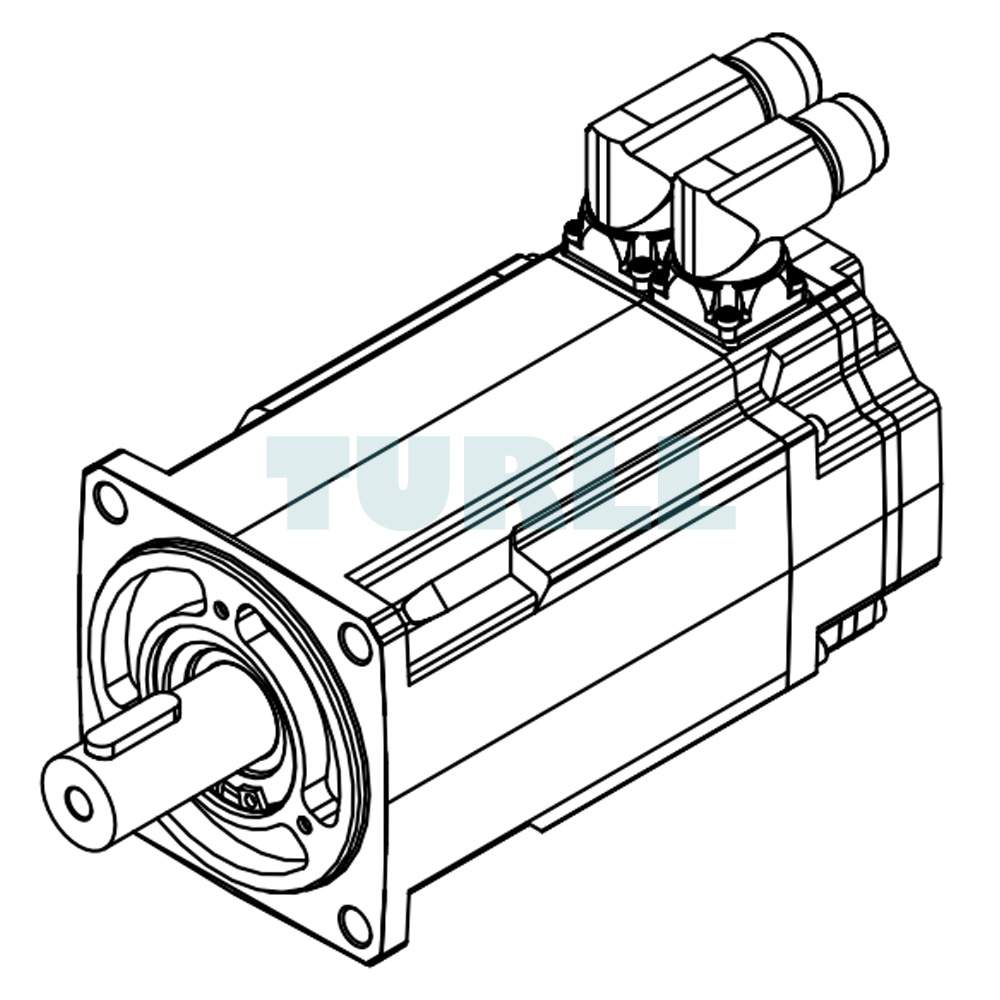

The SIMOTICS S-1FK2 CT servo motor with code 1FK2204-6AF00-1SB0 represents a premium solution for modern drive technology, delivering exceptional precision, compact design, and reliable performance in demanding industrial environments. This model provides a continuous torque of 3.2 Nm and rated power of 1 kW at 3000 rpm (380–480 V) as well as 0.5 kW at 1500 rpm (200–240 V). With degree of protection IP64 and a robust shaft design (D19x40 mm with feather key), the motor is engineered for durability, stability, and long service life.

The unit comes equipped with a 22-bit single-turn absolute encoder (AS22DQC) and integrated DRIVE-CLiQ plug M17, ensuring accurate position feedback and seamless connectivity with SINAMICS drive systems. A power connector in size M17 adds to the user-friendly configuration, allowing quick integration into existing automation setups. Its compact build and optimized cooling enable high power density while maintaining efficiency in continuous operation.

Overview

The SIMOTICS S-1FK2 series is designed to meet a broad range of industrial applications where high precision and reliable motion control are essential. These motors feature outstanding overload capability, high efficiency, and an excellent balance of performance and flexibility. Their compact construction makes them ideal for space-constrained installations, while their dynamic response allows smooth and accurate motion, even under challenging load conditions.

The portfolio extends further with the 1FT2 range, offering additional torque levels, finely graded speed options, and a wide selection of variants to address more complex drive requirements. This expanded family enables precise adaptation to diverse application scenarios, from straightforward automation processes to highly dynamic, multi-axis machinery.

SIMOTICS S-1FK2 Advantages

• High dynamic response with low inertia for applications requiring rapid acceleration and deceleration.
• Compact and robust design suitable for medium to high load movements with stable control.
• Flexible integration with SINAMICS S210 servo drive systems for enhanced performance.
• Reliable operation in demanding environments thanks to IP64 protection.

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF00-1SB0
