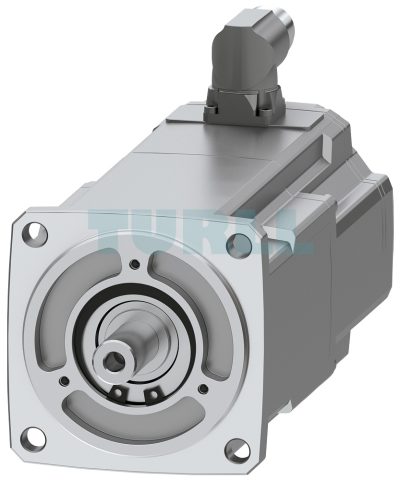

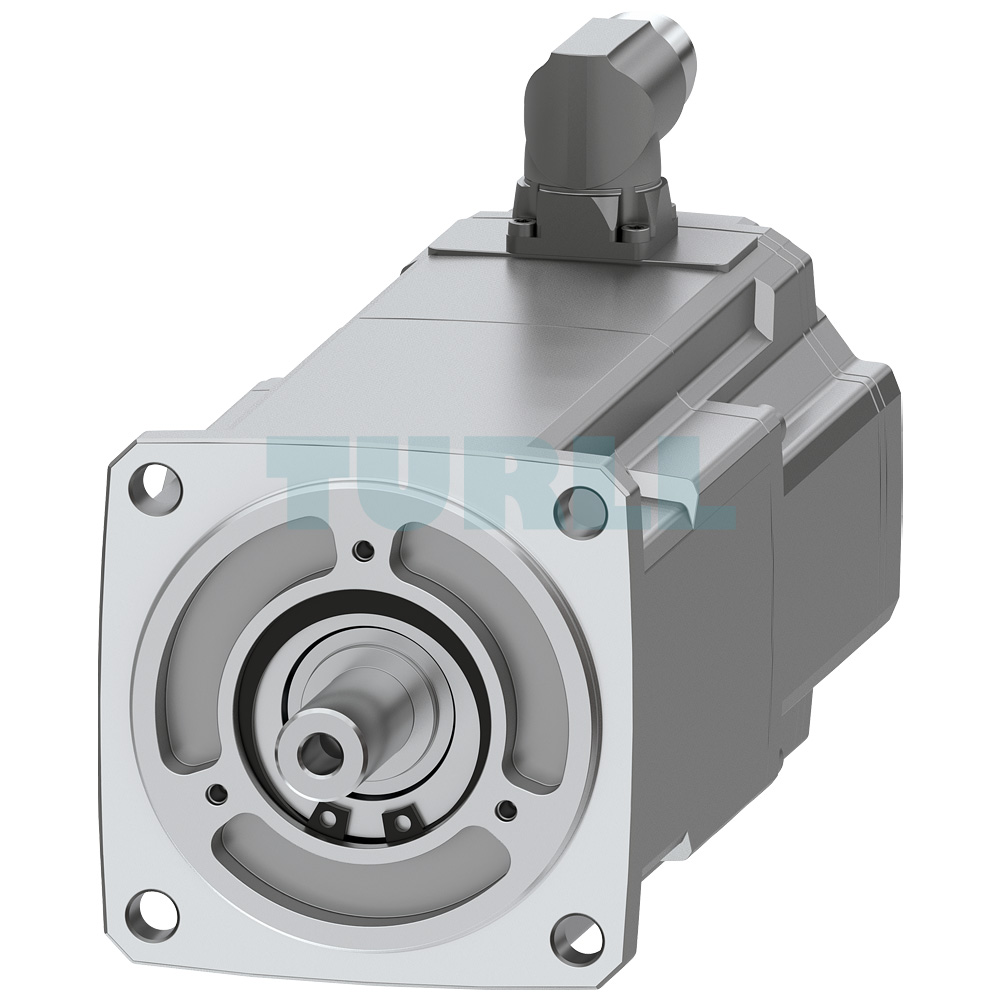

1FK2204-6AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS 1FK2204-6AF11-1SA0 SIMOTICS S-1FK2 CT servo motor is a high-performance, compact solution designed for precision motion control in industrial automation applications. With a rated torque of 3.2 Nm and a nominal power of 1 kW at 3000 rpm (380-480 V) or 0.5 kW at 1500 rpm (200-240 V), this servo motor combines excellent dynamic response, high power density, and robust protection for demanding environments. The motor is equipped with a holding brake and features a D19x40 mm shaft with a feather key, along with a 22-bit single-turn absolute encoder (AS22DQC) and a rotatable M17 plug, enabling versatile and precise integration into various automation systems.

Engineered for high dynamic performance, the SIMOTICS S-1FK2 series delivers low inertia and fast response, ideal for applications requiring rapid acceleration and precise positioning. Its compact design ensures stable control even when handling medium to high masses, making it suitable for a wide range of industrial machinery and servo drive solutions. The motor’s degree of protection IP65 ensures reliable operation in environments where dust and moisture are present, while the OCC interface allows seamless communication with control systems, enhancing overall system efficiency.

Overview

The SIMOTICS S-1FK2 servomotors are built to address the essential challenges of modern servo drive technology. They are part of the core components for the SINAMICS S210 servo drive system and offer a simple overview and selection due to the limited but carefully optimized variants. These motors are capable of providing precise, stable motion control, and they are well-suited for both compact and high-dynamic industrial applications. The extension of this portfolio, the 1FT2 motors, offers additional torque levels and more finely graded rated speeds, further enabling tailored solutions for specialized tasks.

Key Features

• High dynamic response with low inertia for rapid movements
• Compact design for precise control of medium to high masses
• 22-bit single-turn absolute encoder for accurate positioning
• OCC interface for seamless integration with drive systems
• Rotatable M17 plug for flexible installation
• Robust IP65 protection for reliable operation in challenging environments
• Holding brake for safe and stable operation

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF11-1SA0
