1FK7040-2AK71-1CH1-ZJ29 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$3,808.00
The SIEMENS SIMOTICS S 1FK7040-2AK71-1CH1-ZJ29 is a high-precision synchronous motor delivering 0.69 kW output and 1.6 Nm torque at 6000 rpm. Featuring an integrated 24-bit +12-bit encoder and a planetary gearbox, it ensures outstanding positioning accuracy and durability for demanding automation applications.
1FK7040-2AK71-1CH1-ZJ29 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

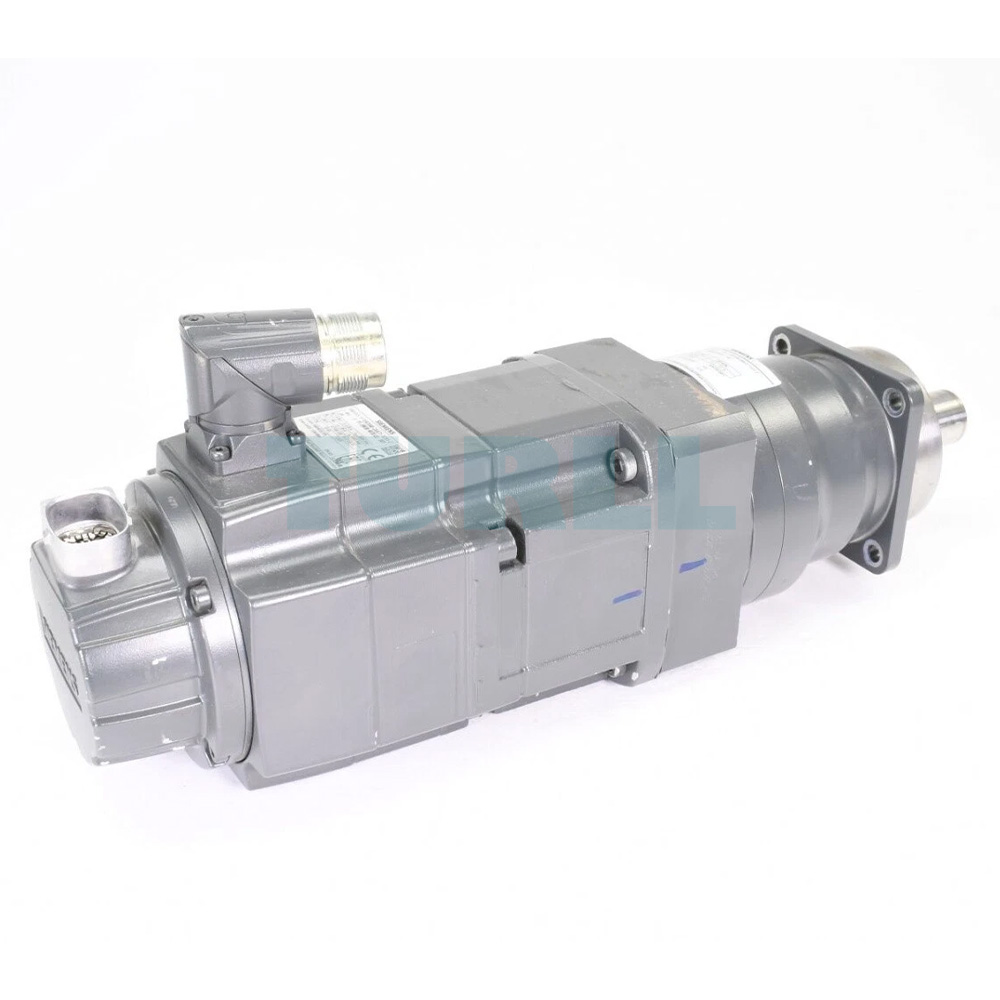

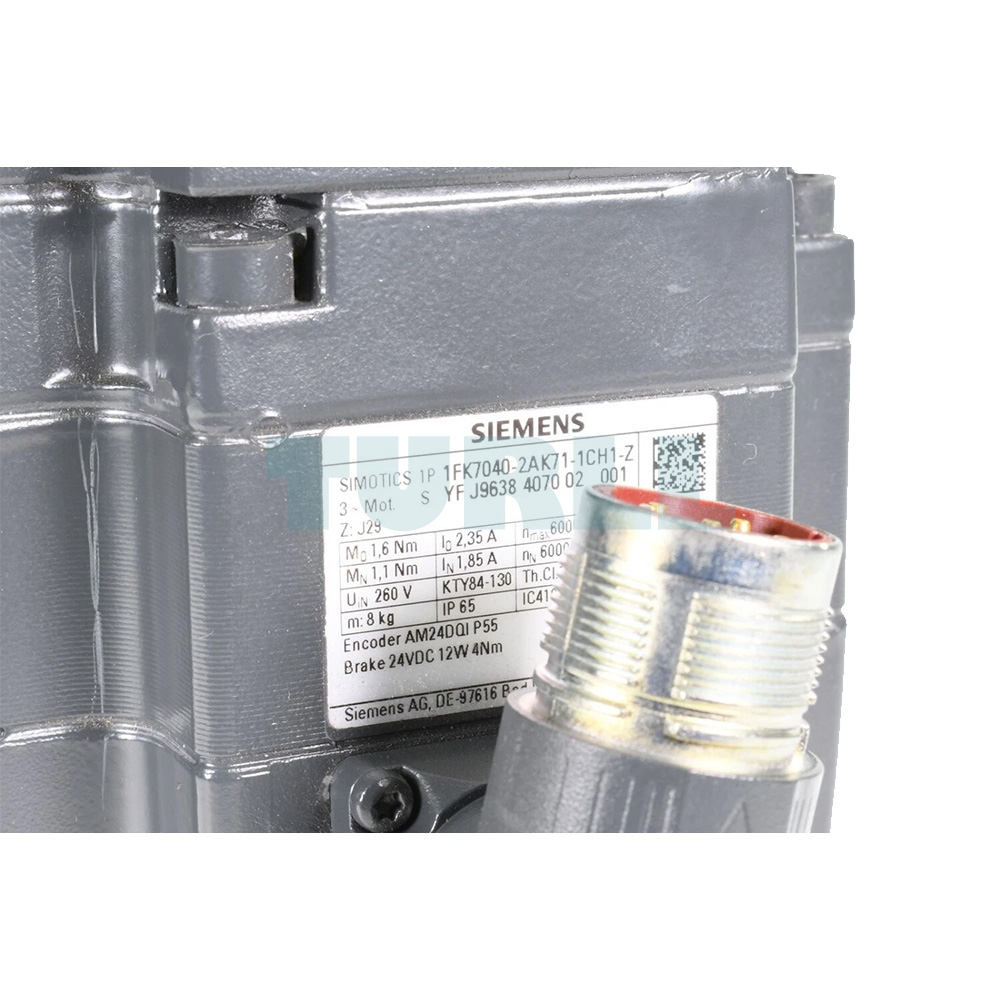

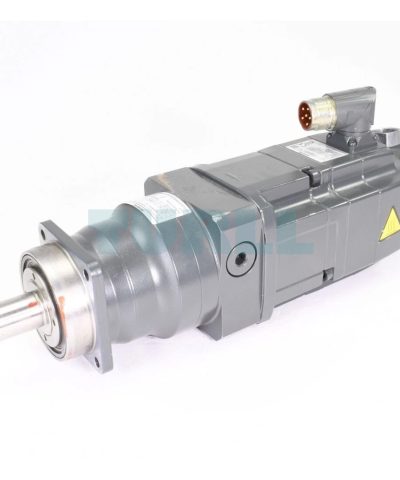

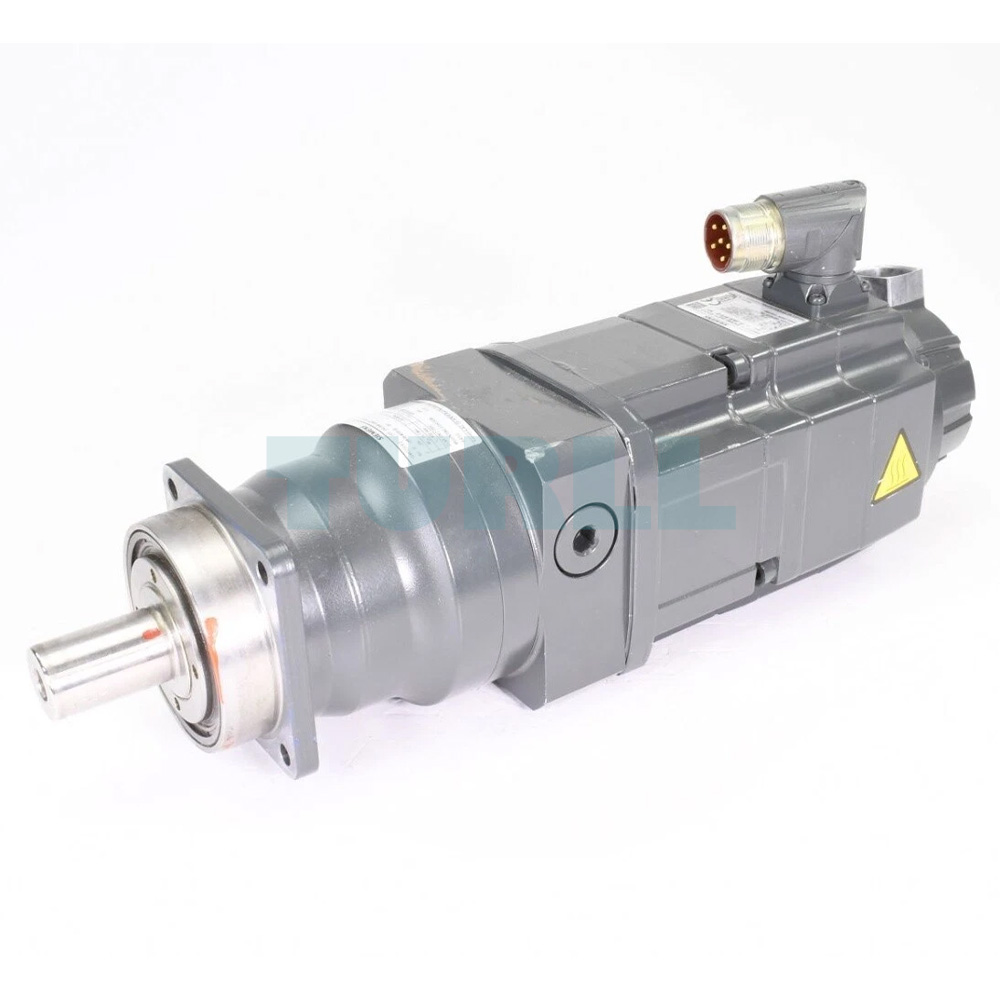

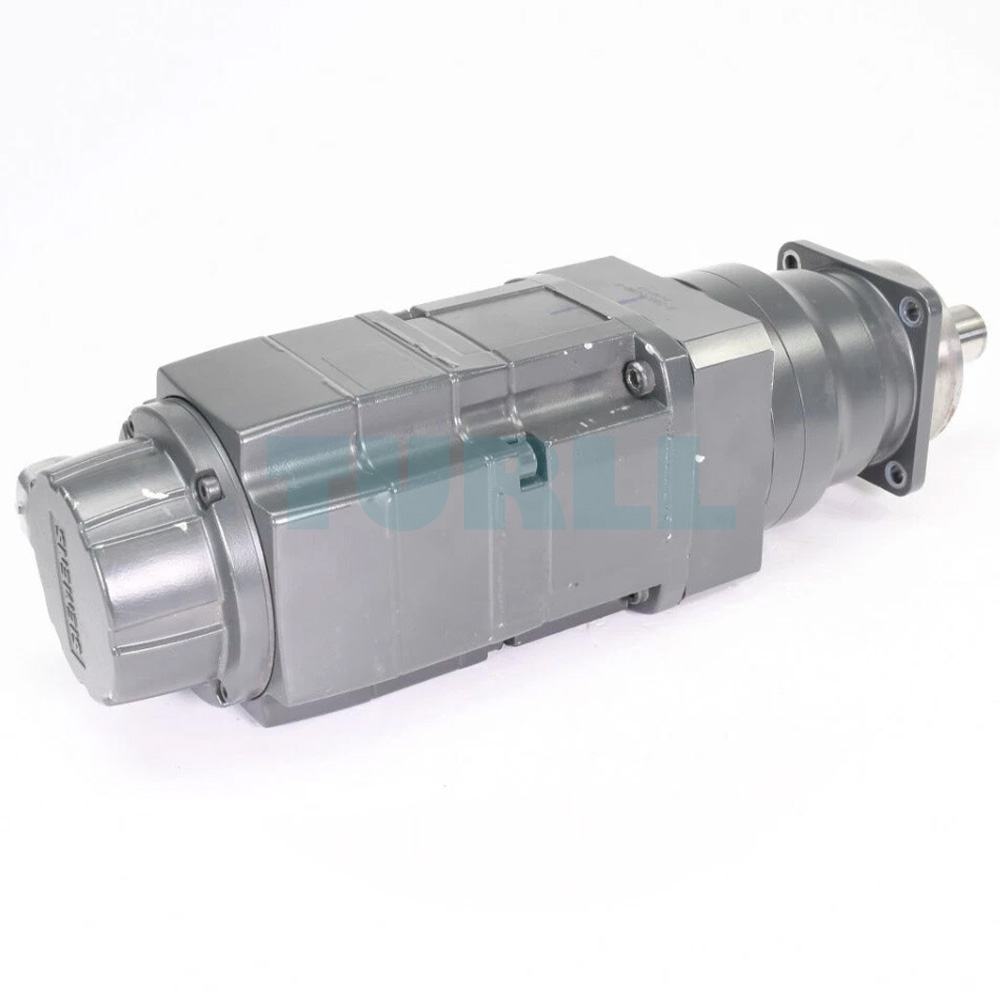

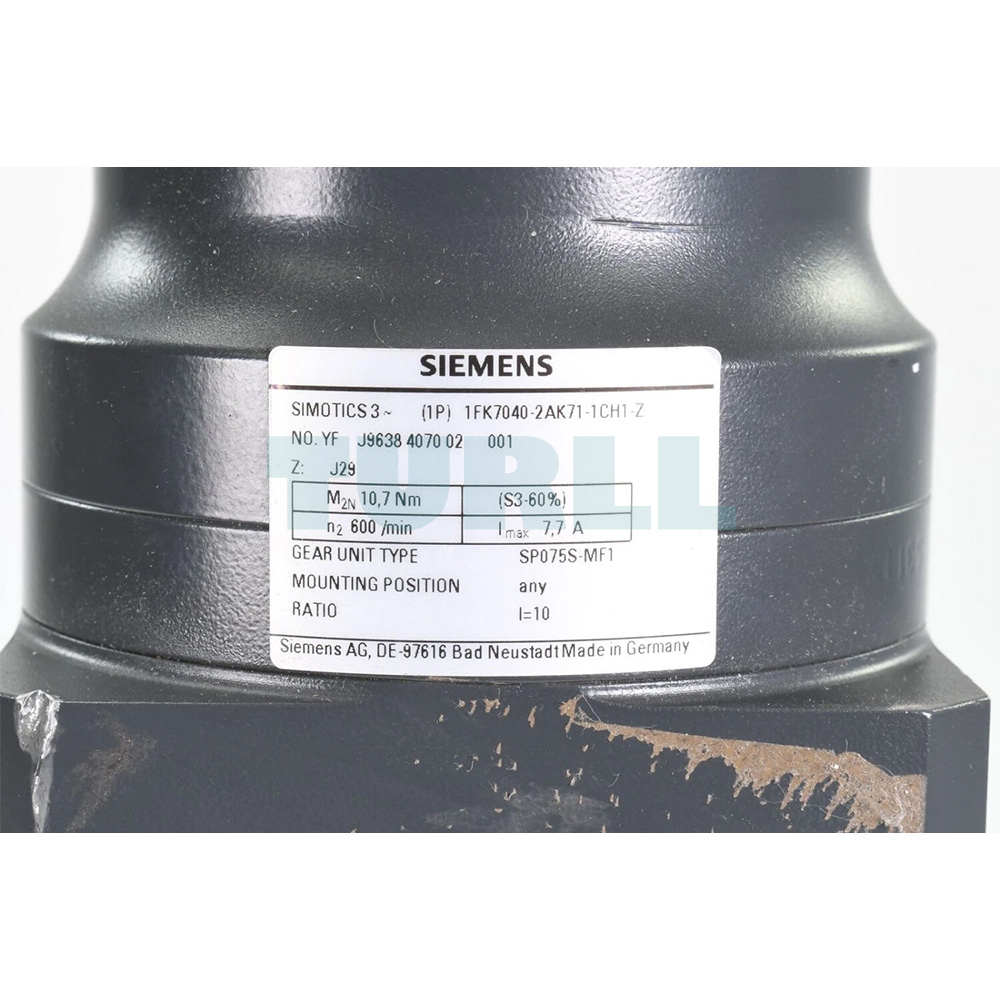

The SIEMENS SIMOTICS S 1FK7040-2AK71-1CH1-ZJ29 is a premium synchronous motor engineered for precision, performance, and reliability in industrial automation. Designed as part of the SIMOTICS S-1FK7 series, it delivers smooth operation with a power rating of 0.69 kW, 600V DC supply, and 1.6 Nm torque at 6000 rpm. This compact and naturally cooled motor features an IP65 protection degree, smooth shaft, rotatable power connector, and a holding brake for secure operation. It integrates an advanced 24-bit +12-bit multi-turn absolute encoder with DRIVE-CLiQ interface (AM24DQI), ensuring high-resolution position feedback and seamless synchronization with SINAMICS drives. Combined with the ALPHA SP+ SP 075S-MF1 planetary gearbox (1 stage, i=10), this motor guarantees outstanding precision and dynamic control.
Overview
The SIMOTICS S-1FK7 family is designed for universal applications requiring high performance and compact size. Built with permanent magnet technology, these motors achieve exceptional torque density and stability across varying loads. Their integrated encoder systems provide accurate speed and position control, while the robust mechanical design allows maintenance-free operation. When paired with SINAMICS S120 or S220 drive systems, the 1FK7 motors form a highly efficient automation solution with outstanding energy efficiency and functionality. The heat is dissipated naturally through the motor housing, eliminating the need for external cooling and simplifying installation. These motors are suitable for machine builders who demand performance consistency and long-term durability in continuous industrial use.
Applications and Benefits
The SIMOTICS S-1FK7 range offers various configurations — Compact, High Dynamic, and High Inertia — to meet specific operational demands. Compact models save space while providing exceptional torque output, High Dynamic versions deliver rapid acceleration due to low rotor inertia, and High Inertia variants ensure smooth control for variable load operations. The 1FK7040-2AK71-1CH1-ZJ29 motor supports numerous applications, including robotics, packaging, wood and glass processing, textile and printing machinery, and precision handling systems. Its exceptional build quality, adaptability, and advanced feedback system make it an ideal choice for demanding industrial motion control tasks.
Download
Product Code: 1FK7040-2AK71-1CH1-ZJ29
More Siemens products at Turll.com
| Weight | 7.1 kg |
|---|
