1FK7042-2AF71-1CG0-ZN16 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

1FK7042-2AF71-1CG0-ZN16 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

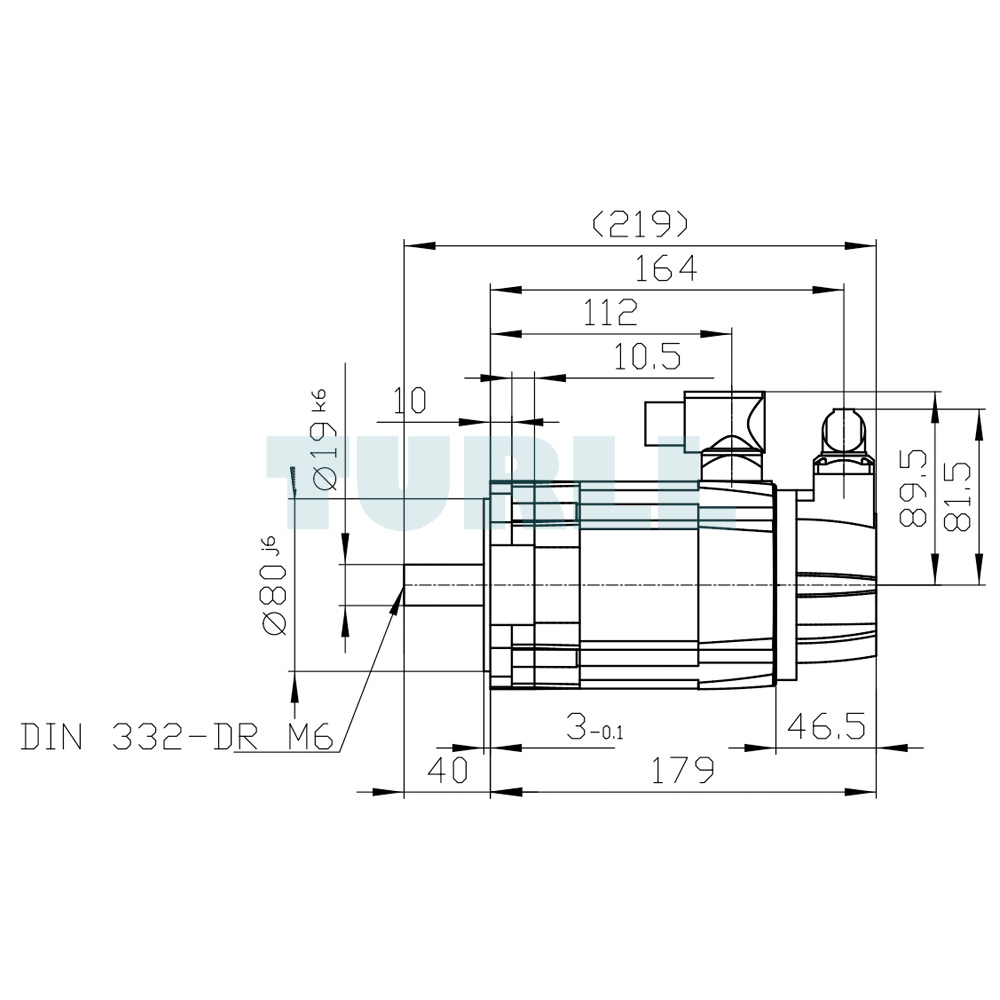

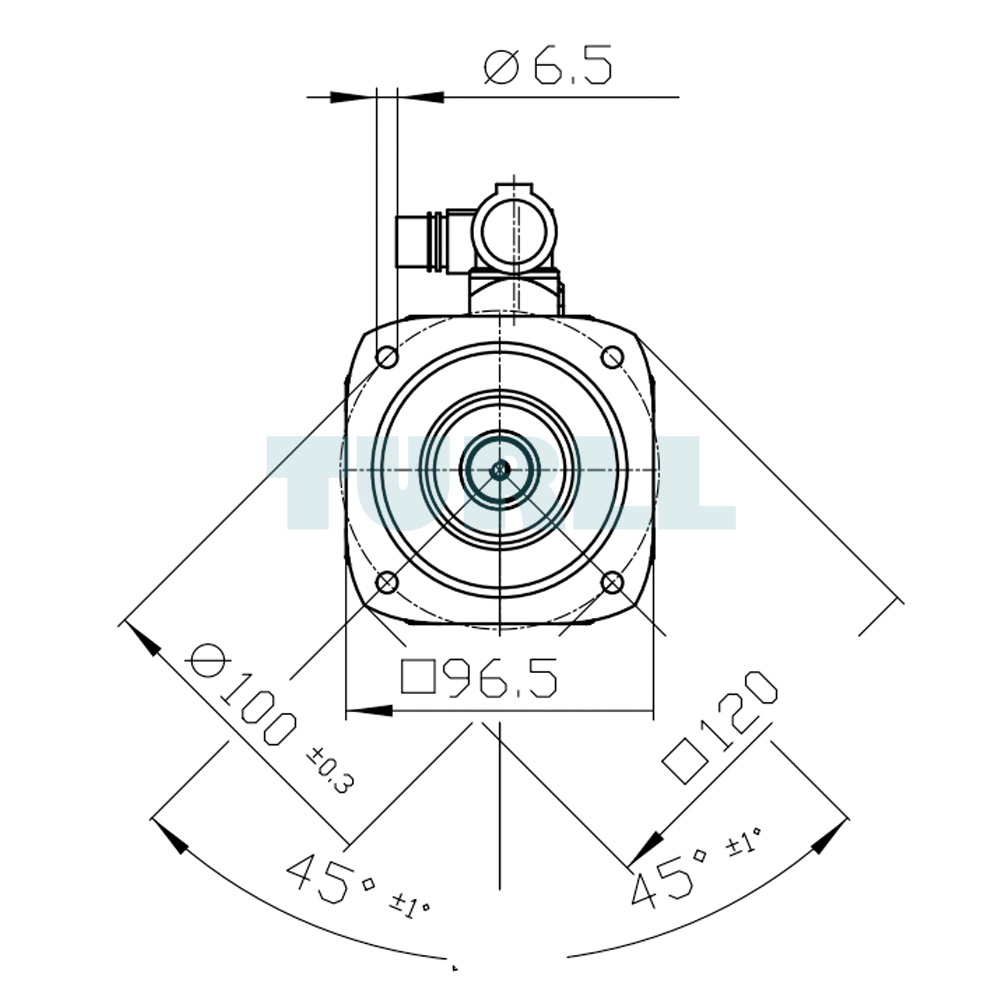

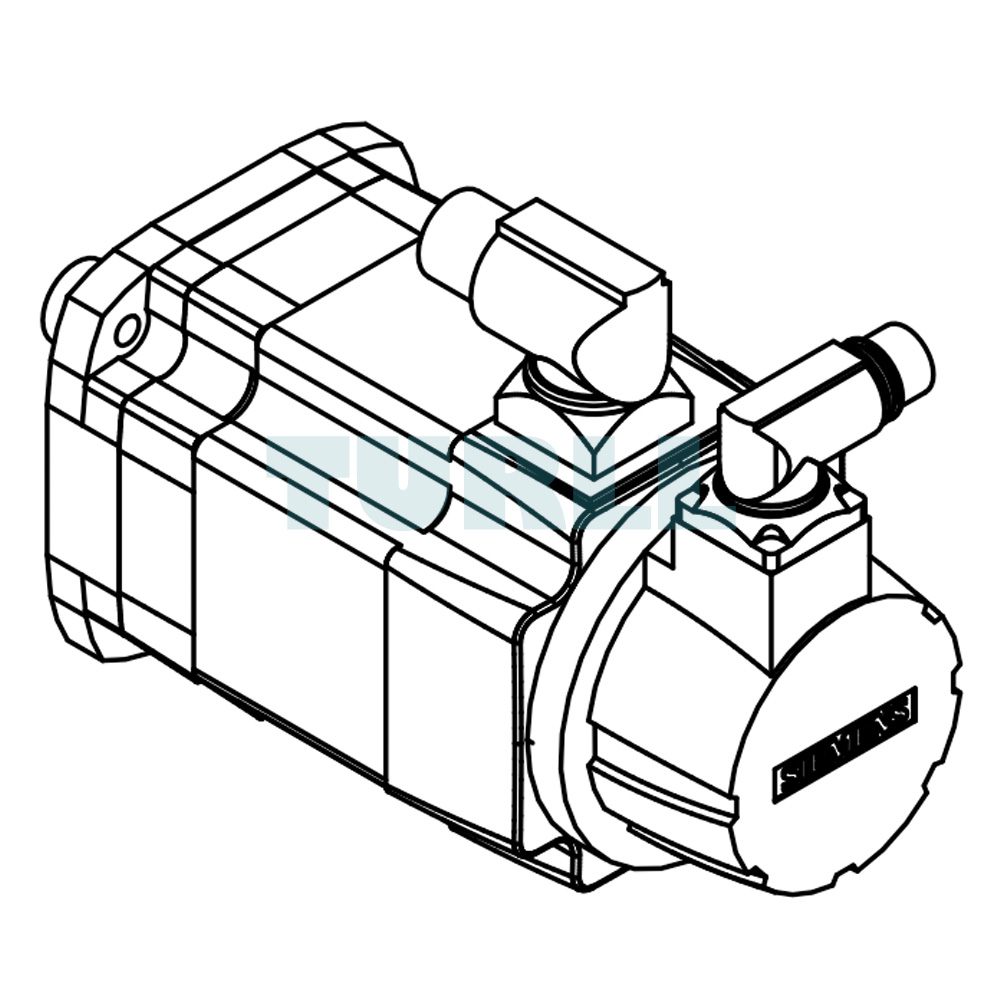

The SIEMENS SIMOTICS S-1FK7 motor with part number 1FK7042-2AF71-1CG0-ZN16 is a high-performance synchronous servo motor engineered for demanding automation environments. Delivering a continuous power of 0.82 kW and a rated torque of 3 Nm at 3000 rpm, this model provides exceptional efficiency and stability. Designed with a plain shaft and a naturally cooled IMB 5 (IM V1, IM V3) flange, it ensures reliable mechanical integration and smooth power transmission in a wide variety of industrial applications.

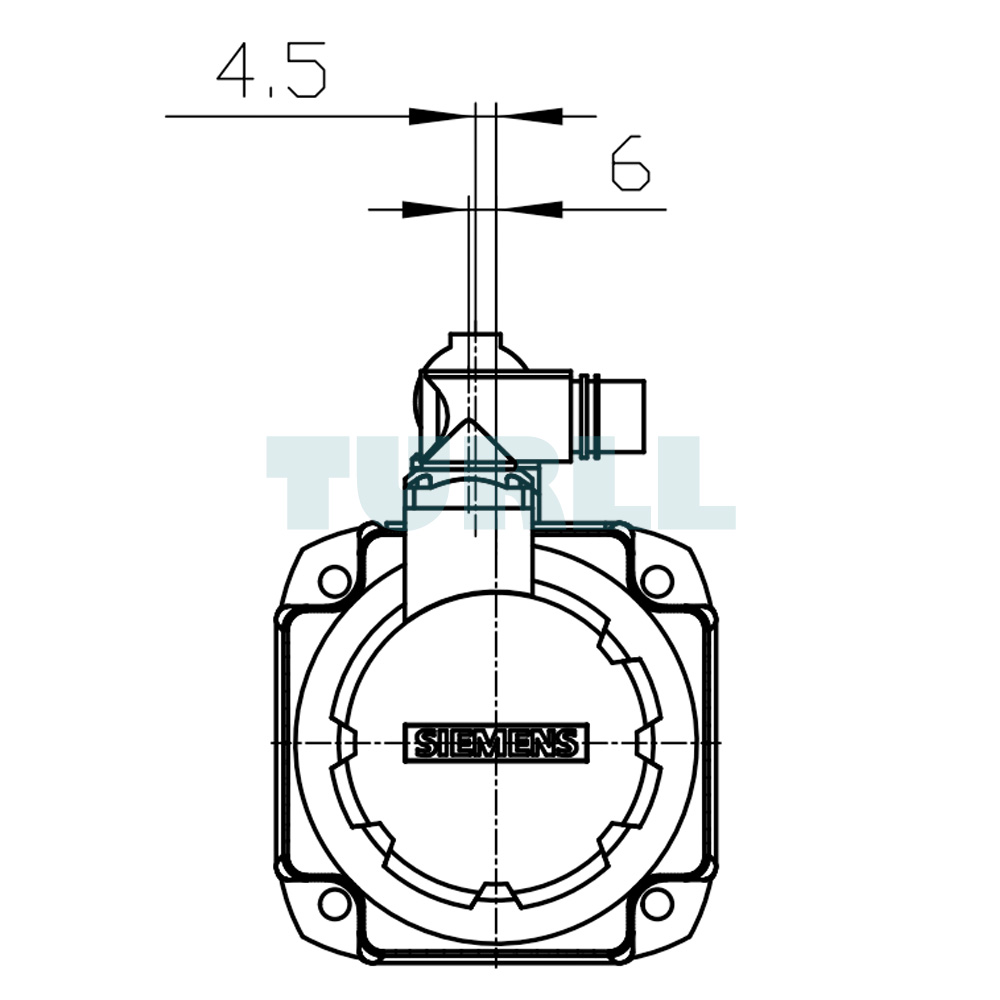

This motor features an absolute 24-bit + 12-bit multiturn encoder with DRIVE-CLiQ interface (AM24DQI) for precise motion control and synchronization with SINAMICS S120 or S220 drive systems. The 1FK7042-2AF71-1CG0-ZN16 variant includes enhanced chemical resistance (version N16) and an M17 encoder connector, offering improved protection in challenging operating conditions. With its IP64 degree of protection and absence of a holding brake, it provides consistent operation even in environments exposed to moisture or airborne contaminants.

Overview

The SIMOTICS S-1FK7 motor family from SIEMENS represents a new standard in compact, permanent-magnet synchronous technology. These motors can be perfectly tailored to multiple industrial requirements through an extensive range of mechanical versions, encoder types, and gear units. The high power density design allows space-saving installation and flexibility across a broad array of automation systems.

When paired with SINAMICS drives, the 1FK7 motors deliver fast response, high precision, and robust performance. Each motor is optimized for natural convection, with heat effectively dissipated via the housing surface to maintain temperature stability. These compact drives achieve outstanding overload capacity and enable dynamic motion sequences for demanding production cycles.

Applications

The 1FK7042-2AF71-1CG0-ZN16 motor is suitable for diverse applications such as machine tools, packaging and printing machines, robotics, handling systems, and equipment used in woodworking, plastics, glass, or textile production. Its versatile design, minimal commissioning effort, and precise speed regulation make it an excellent choice for automation engineers seeking dependable long-term operation and reduced maintenance.

Download

Data Sheet (PDF)

Product Code: 1FK7042-2AF71-1CG0-ZN16
