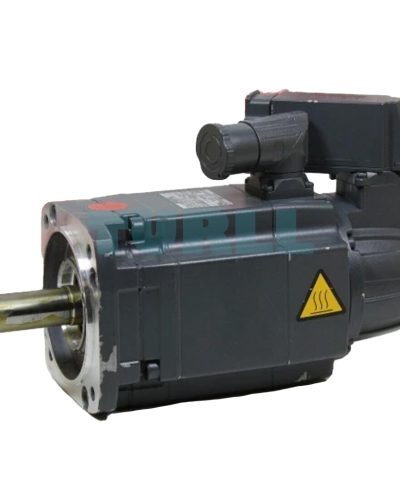

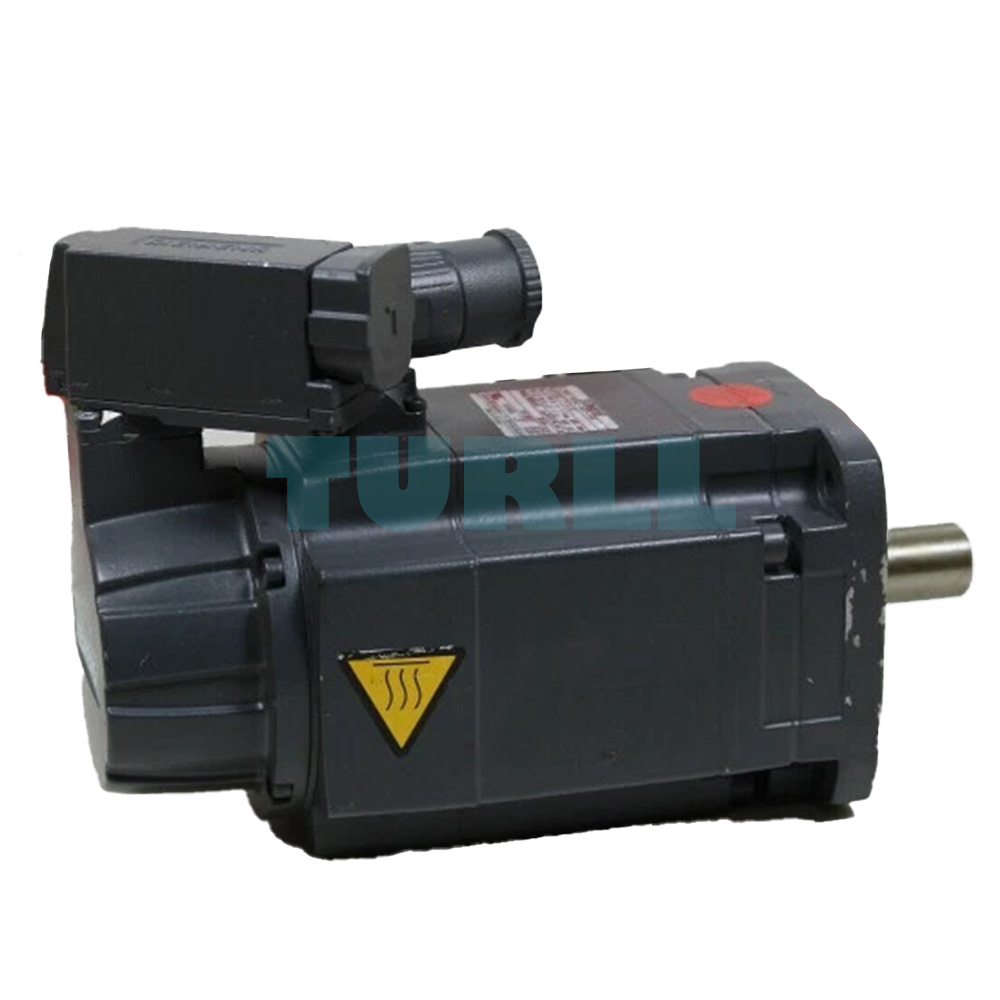

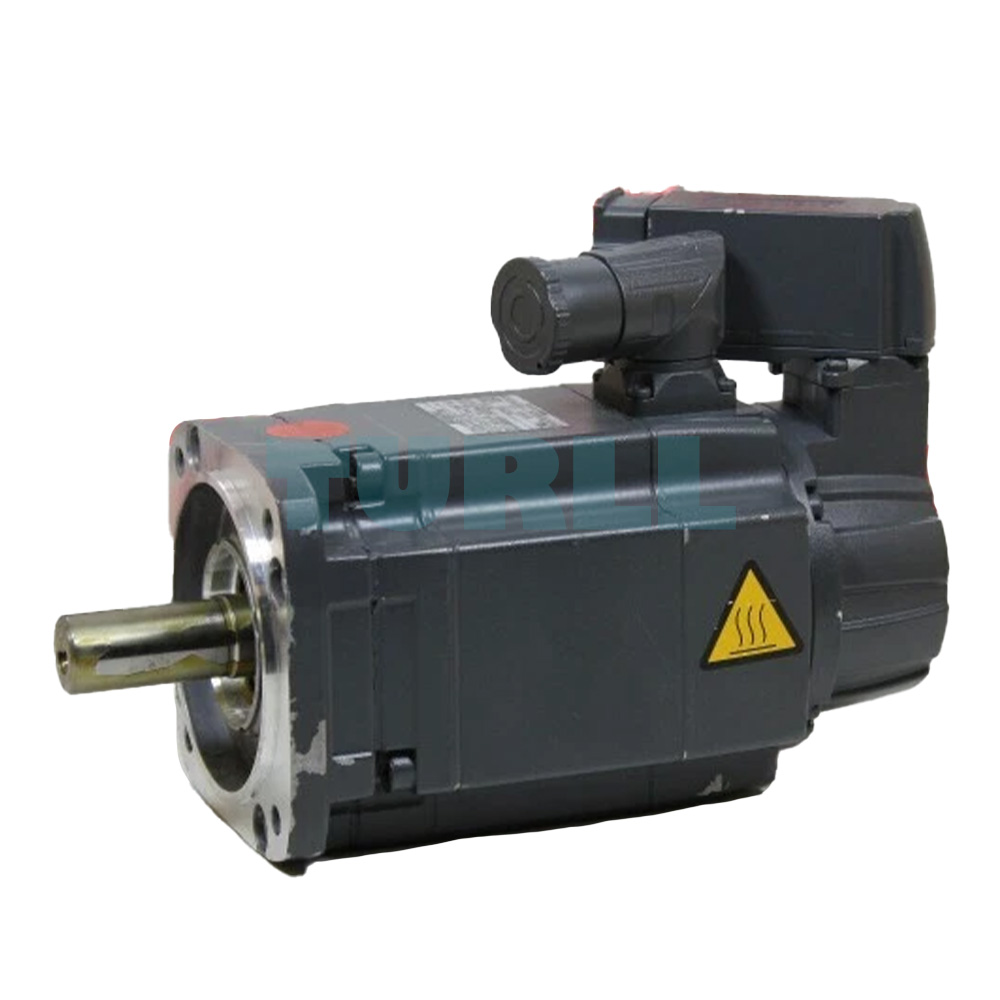

1FK7042-2AK71-1FG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$1,910.55
The SIEMENS SIMOTICS S 1FK7042-2AK71-1FG0 is an exclusive high-precision synchronous motor delivering 0.94 kW at 6000 rpm with 3 Nm torque, ideal for robotics and automated machinery.
1FK7042-2AK71-1FG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
The SIEMENS SIMOTICS S 1FK7042-2AK71-1FG0 is a high-performance permanent-magnet synchronous motor engineered for precision, reliability, and long-term durability in modern automation systems. Delivering 0.94 kW rated power and 3 Nm torque, this motor ensures smooth motion at up to 6000 rpm under a 600 V DC supply. Its compact frame with natural cooling and IP64 protection rating guarantees dependable operation even in challenging environments, making it ideal for machine tools, robotics, and industrial automation.
This exclusive SIMOTICS S motor features an absolute encoder AM22DQ with 22-bit + 12-bit multiturn resolution and a DRIVE-CLiQ interface for accurate position feedback. The plain shaft with tolerance N and the rotatable power connector simplify installation and enhance flexibility in multi-axis configurations. Thanks to its naturally cooled design, heat is dissipated through the housing, minimizing maintenance requirements and extending service life.
Overview
SIMOTICS S-1FK7 motors are compact synchronous drives that combine high torque density with advanced control performance. When paired with SINAMICS S120 or S220 drive systems, they form a powerful automation solution capable of precise positioning, stable speed control, and seamless integration into complex machinery. Their modular structure and encoder options allow engineers to adapt them to a wide range of industrial uses.
Benefits
- Space-saving construction with outstanding power density
- Universal applicability for diverse industrial sectors
- High dynamic response with minimal rotor inertia
- Robust closed-loop control under varying loads
- Reduced commissioning effort and simplified setup
Applications
- Machine tools and robotics
- Packaging and printing machinery
- Wood, glass, ceramic, and textile processing
- Automation of auxiliary axes and precision equipment
Download
Product Code: 1FK7042-2AK71-1FG0
Find more Siemens products at Turll.com
| Weight | 4.601 kg |
|---|
