1FK7044-4CH71-1RG1 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$1,621.56
The SIEMENS SIMOTICS S Synchronous Motor 1FK7044-4CH71-1RG1 offers 1.4 kW power, 4500 rpm speed, 4.5 Nm torque, IP65 protection, and a 20+12-bit encoder with DRIVE-CLiQ interface, built for precision motion control.
1FK7044-4CH71-1RG1 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

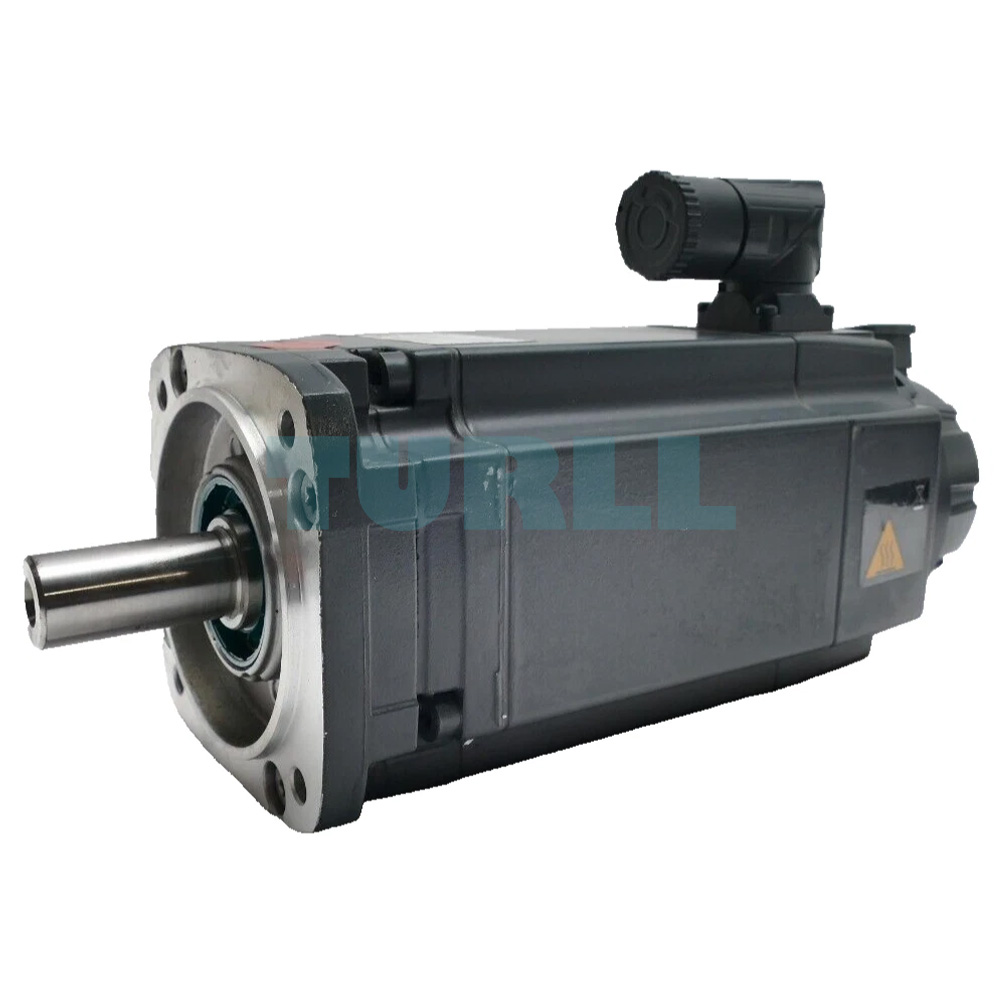

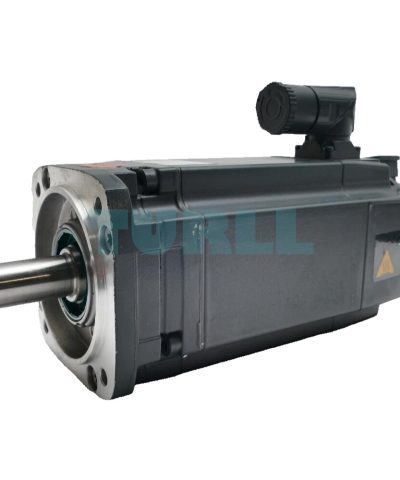

The SIEMENS SIMOTICS S Synchronous Motor 1FK7044-4CH71-1RG1 represents cutting-edge engineering for precision motion control and efficiency. Designed for high-dynamic industrial applications, this compact motor delivers 1.4 kW nominal power and operates with a 600 V DC link voltage. It provides a torque of 4.5 Nm at 100K and a rated speed of 4500 rpm, ensuring smooth and reliable performance across demanding automation environments. Featuring a naturally cooled design and protection class IP65, the motor is both durable and efficient under continuous operation. The rotatable power connector, 20-bit + 12-bit multiturn absolute encoder with DRIVE-CLiQ interface, and plain shaft with tolerance N make this motor ideal for high-precision motion tasks where control, responsiveness, and robustness are crucial.
Overview
The SIMOTICS S-1FK7 motor series is a compact family of permanent-magnet synchronous motors designed to meet the growing requirements of modern machine systems. Offering a wide selection of encoders, gearboxes, and mechanical interfaces, these motors adapt seamlessly to a variety of applications. When paired with the SINAMICS S120 or S220 drive system, the SIMOTICS S-1FK7 series forms a highly integrated drive solution with excellent accuracy and functionality. Its optimized heat dissipation and maintenance-free operation ensure reliability in continuous industrial use, even in challenging environments. The motor’s compact size and high power density allow easy integration into space-restricted machines.
Benefits
- Exceptional power density enables space-saving installation.
- Wide adaptability across automation and motion control tasks.
- High dynamic response due to low rotor inertia.
- Reliable closed-loop control for variable load conditions.
- Minimal commissioning effort and fast optimization.
Applications
- Machine tools and industrial robots
- Packaging, textile, and printing machinery
- Wood, glass, ceramic, and stone processing systems
- Auxiliary motion and positioning axes
Download
Product Code: 1FK7044-4CH71-1RG1
Discover more Siemens products at Turll.com
| Weight | 7.401 kg |
|---|
