1FK7060-2AC71-1CH1-ZJ16 SIEMENS Exclusive SIMOTICS S Synchronous Motor 1FK7 Series Original Brand New

1FK7060-2AC71-1CH1-ZJ16 SIEMENS Exclusive SIMOTICS S Synchronous Motor 1FK7 Series Original Brand New

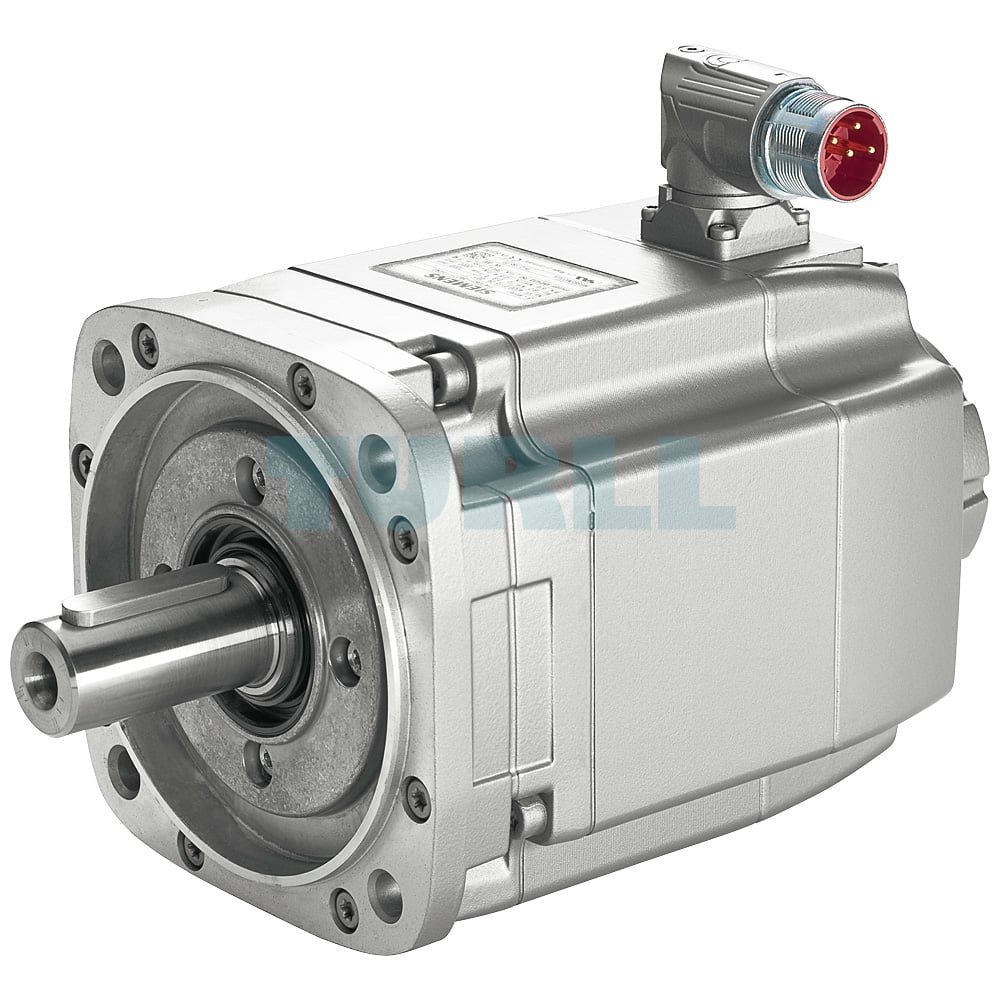

The SIEMENS 1FK7060-2AC71-1CH1-ZJ16 SIMOTICS S Synchronous Motor is a precision-engineered drive component designed for high-performance automation and motion control systems. Delivering a rated power of 1.1 kW and a nominal torque of 6 Nm, this naturally cooled servo motor is built to perform efficiently in dynamic industrial environments. Operating at 2000 rpm with a 600 V DC link voltage, it provides superior performance consistency, energy efficiency, and long-term reliability. Its rugged IMB 5 mechanical design supports mounting in both IM V1 and IM V3 configurations, offering flexibility for different installation needs.

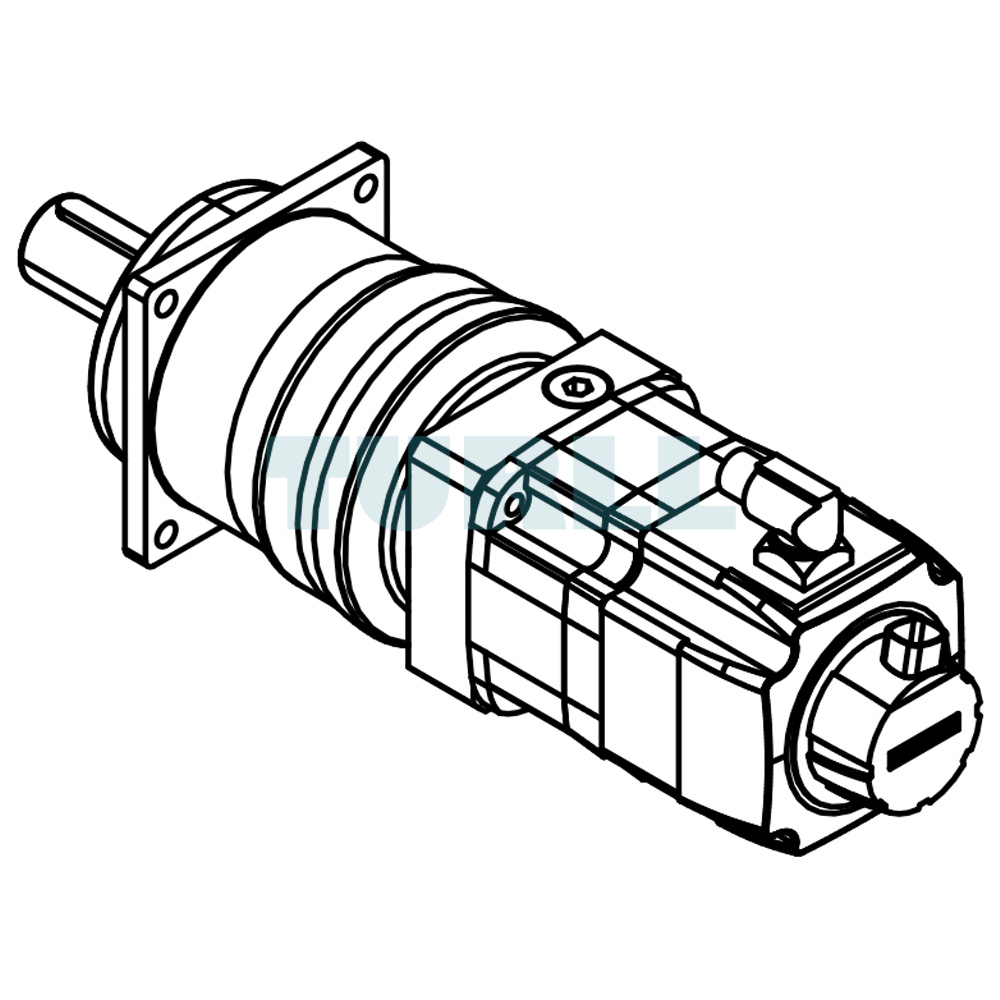

Equipped with a Drive-CLiQ AM24DQI absolute encoder system, the motor ensures high-resolution feedback with a 24-bit + 12-bit multi-turn capability. The smooth shaft features a high-precision tolerance N finish with an integrated holding brake, delivering accurate torque transmission and mechanical stability. The entire assembly is rated at IP65, guaranteeing excellent protection against dust and water ingress in demanding operating conditions. In this configuration, the motor integrates seamlessly with the ALPHA SP+ SP 140S-MF2 planetary gearbox (J16), featuring a two-stage design with a 40:1 gear ratio and feather key for robust, backlash-optimized power transmission.

Overview

SIMOTICS S-1FK7 motors are compact, permanent-magnet synchronous motors engineered to deliver exceptional performance across a broad range of motion applications. Their modular design allows flexible adaptation with different encoder systems and gearboxes, ensuring an ideal configuration for each task. These motors can be perfectly paired with the SINAMICS S120/S220 drive systems to form a high-efficiency, feature-rich servo solution capable of precise speed and position control.

• High power density enables space-saving installation in compact machines
• Universal usability across machine tool and automation applications
• Efficient heat dissipation through natural cooling design
• Strong overload capacity for demanding duty cycles
• Exceptional stability through low rotor inertia and robust construction

Applications

This SIMOTICS S motor is ideal for integration into machine tools, robotics, handling systems, packaging machinery, and various industrial automation setups. It is also well-suited for applications in glass, wood, ceramics, and textile processing, as well as in printing and auxiliary axis operations requiring precision control and consistent torque output.

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AC71-1CH1-ZJ16
