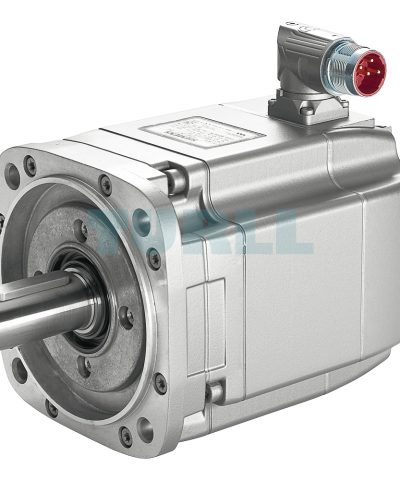

1FK7060-2AF71-1DB1 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$2,178.52
A high-precision SIEMENS SIMOTICS S synchronous motor engineered for demanding industrial applications, offering reliable performance, integrated encoder technology, and robust mechanical construction.
1FK7060-2AF71-1DB1 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
The SIEMENS SIMOTICS S 1FK7060-2AF71-1DB1 motor in this configuration is engineered to deliver strong performance, consistent accuracy, and long-term reliability in demanding industrial environments. Designed with a naturally cooled construction and a robust mechanical layout, it offers dependable operation for applications requiring continuous torque, precise control, and stable rotational characteristics. The motor includes a 1.5 kW power rating, high torque capability, and a 3000 rpm nominal speed, allowing it to support modern automation tasks with excellent responsiveness. Its integrated incremental encoder with DRIVE-CLIQ interface enhances motion precision and system feedback, resulting in smoother and more controlled machine performance.
This unit is built with a rotatable power connector, IMB 5 mounting design, and a shaft equipped with a fitted key. The motor housing features an IP65 degree of protection, offering strong resistance to dust and moisture in industrial environments. A holding brake is also incorporated to increase operational safety and maintain stability when the machine is not in motion. The compact structure and optimized thermal behavior make it suitable for installations where space, efficiency, and reliability are critical.
Overview
The SIMOTICS S-1FK7 1FK7060-2AF71-1DB1 series is recognized for its advanced synchronous motor technology, offering a blend of compact dimensions, broad configuration options, and efficient performance characteristics. These motors integrate seamlessly with SINAMICS S120 or S220 drive systems, forming a versatile solution for precision-driven industrial tasks. A range of encoder systems, gearboxes, and mechanical variations enables engineers to tailor each unit to the specific requirements of their application.
Benefits
- High power density for compact installation spaces
- Wide adaptability for various industrial applications
- Excellent dynamic response in high-performance variants
- Stable closed-loop properties for variable load scenarios
- Reduced commissioning time and minimal optimization effort
Application
- Machine tools and processing centers
- Robotic and handling systems
- Material, packaging, and textile machinery
- Printing, wood, glass, and ceramics equipment
- Auxiliary machine axes requiring precise positioning
Download
Product Code: 1FK7060-2AF71-1DB1
Discover more Siemens products at Turll.com.
| Weight | 7.401 kg |
|---|
