1FK7060-2AF71-1RH1-ZJ22 SIEMENS Exclusive SIMOTICS S Motor Original Brand New

1FK7060-2AF71-1RH1-ZJ22 SIEMENS Exclusive SIMOTICS S Motor Original Brand New

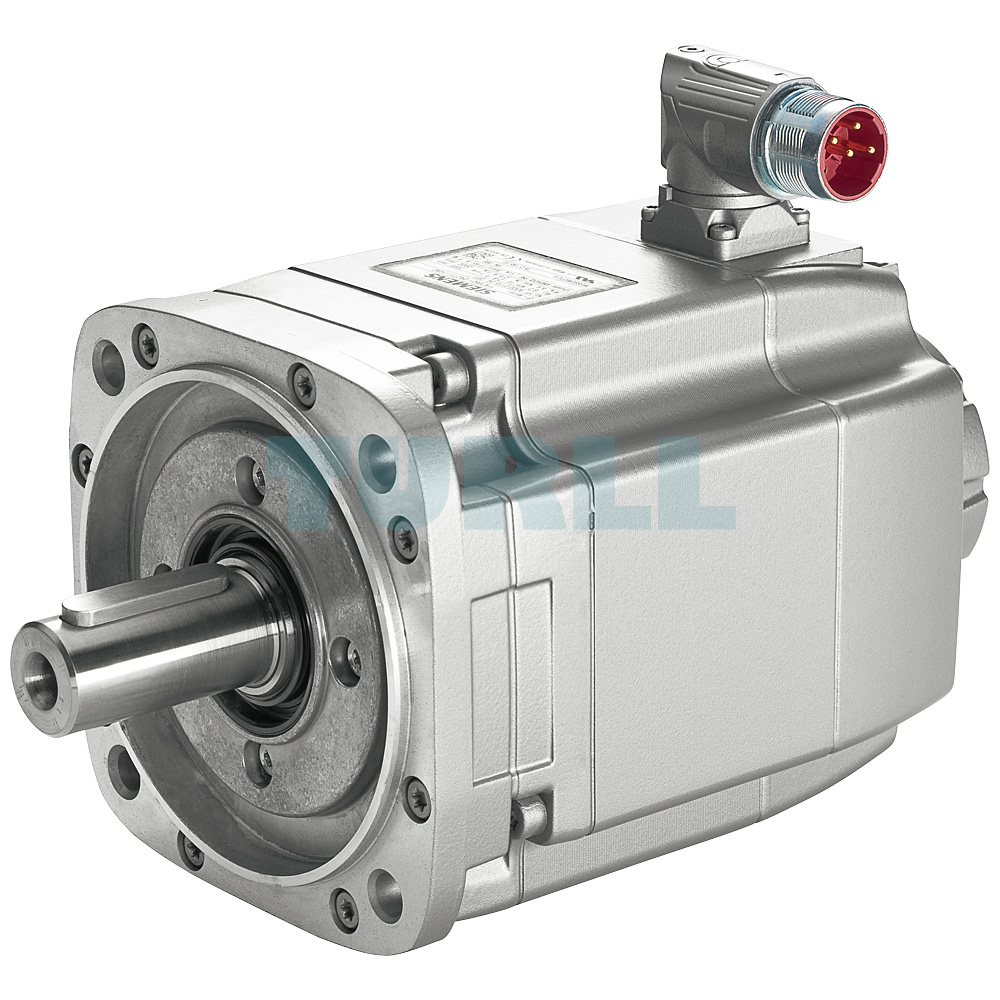

The 1FK7060-2AF71-1RH1-ZJ22 from SIEMENS is a high-performance synchronous motor designed to deliver reliable efficiency, long service life, and precise motion control in modern industrial environments. As part of the SIMOTICS S portfolio, this unit is built using a compact permanent-magnet design that supports smooth operation even under demanding load conditions. It features a nominal power rating of 1.5 kW, a DC link voltage of 600 V, a rated speed of 3000 rpm, and a continuous torque of 6 Nm at 100 K. The naturally cooled structure enables continuous performance without the need for external cooling systems, making it suitable for installations with limited space or strict operational constraints.

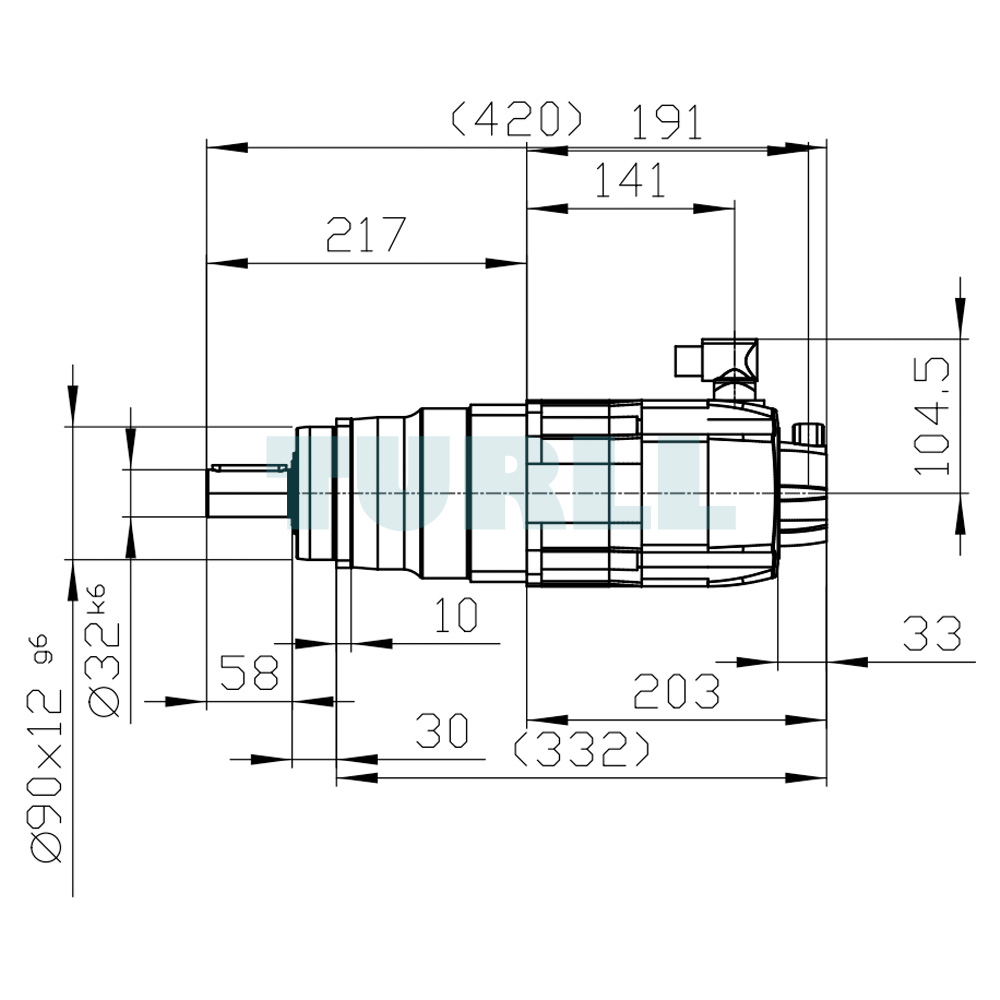

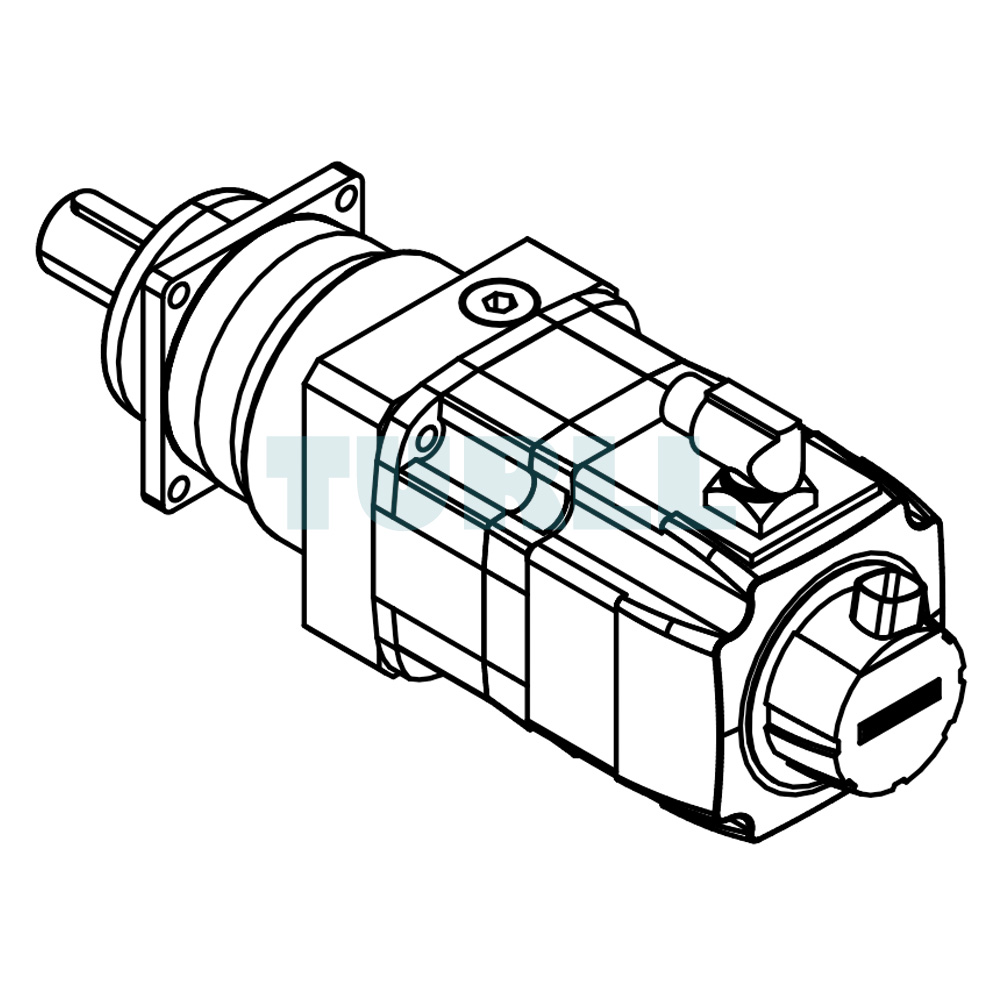

The 1FK7060-2AF71-1RH1-ZJ22 motor includes a rotatable power connector and an advanced multiturn encoder system combining 20-bit resolution with a 12-bit multiturn counter using DRIVE-CLiQ connectivity. This provides exceptional precision for both speed and position feedback, ensuring smooth integration with SINAMICS drive technology. The design incorporates IP65 protection, a smooth shaft with tolerance class N, and a holding brake for enhanced operating stability. The added J22 configuration equips the motor with the ALPHA SP+ planetary gearbox, featuring a single-stage ratio of i=10, offering optimized torque transmission for dynamic machinery.

Overview

SIMOTICS S-1FK7 motors are engineered as compact synchronous units using permanent magnets, enabling a broad spectrum of applications across various machine types. The modular concept allows for combinations with multiple gearbox options, encoder variants, and extended motor sizes, creating adaptable solutions for evolving automation requirements. When paired with SINAMICS S120 or S220 systems, these motors form a highly capable drive package with advanced control and motion functions.

Benefits

• Compact design for efficient installation
• High power density for universal mechanical applications
• Wide configuration range to suit diverse requirements
• Excellent dynamic response for demanding motion profiles
• Robust performance for systems requiring high inertia
• Reduced commissioning effort due to stable closed-loop properties

Application

These motors are well-suited for machine tools, robotics, automated handling equipment, woodworking and material-processing machines, packaging and textile lines, and printing systems. Their versatility makes them an excellent choice for auxiliary axes requiring accurate movement and dependable stability.

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AF71-1RH1-ZJ22
