1FK7060-2AH71-1CG2 SIEMENS Exclusive SIMOTICS S Motor Original Brand New

1FK7060-2AH71-1CG2 SIEMENS Exclusive SIMOTICS S Motor Original Brand New

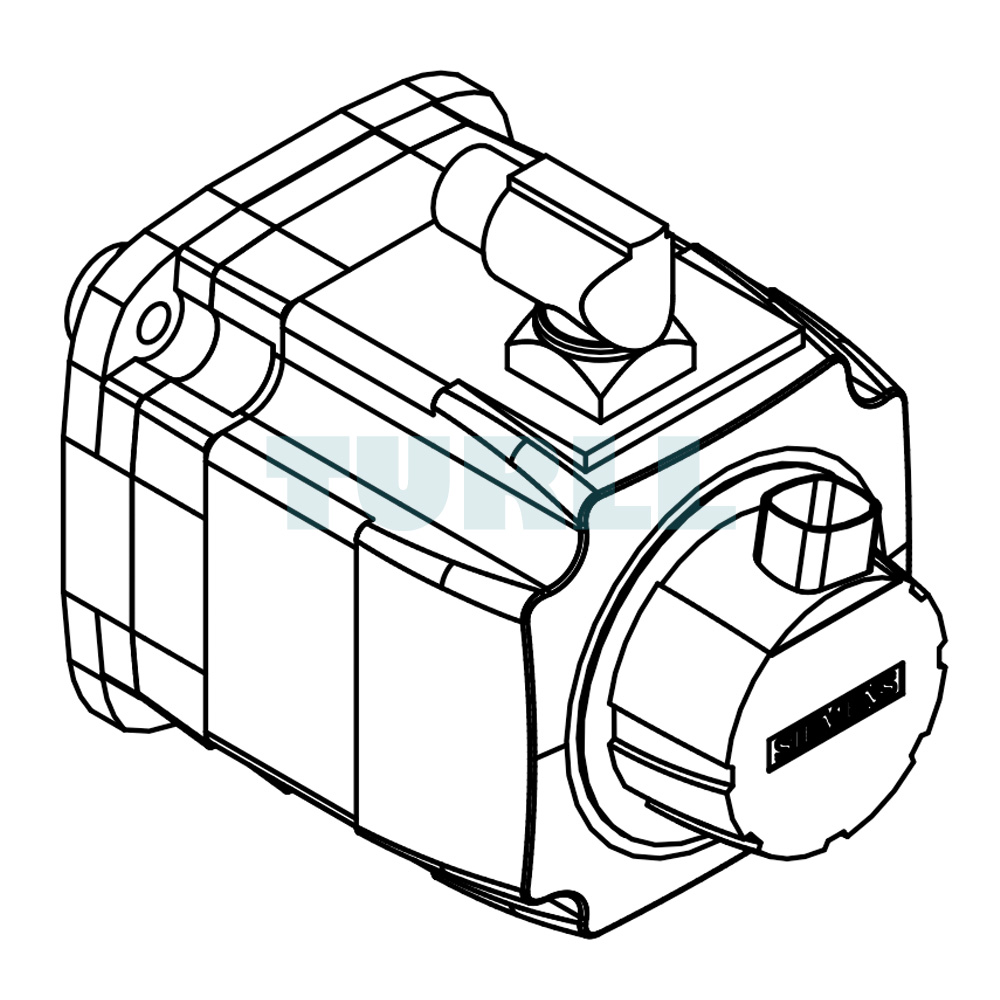

The SIEMENS 1FK7060-2AH71-1CG2 is a high-performance synchronous motor engineered for demanding motion control environments that require accuracy, speed stability, and long-term reliability. As part of the SIMOTICS S family, this model features a compact construction and naturally cooled design, making it suitable for installations where efficiency and performance must be achieved without additional cooling components. With a rated torque of 6 Nm and a nominal speed of 4500 rpm, it provides impressive capability for a wide range of dynamic applications. Its durable mechanical structure also offers excellent protection, including IP65 for the motor housing and IP67 at the drive-end flange.

Equipped with a high-resolution 24-bit absolute encoder combined with a 12-bit multi-turn system based on DRIVE-CLiQ technology, the motor ensures precise feedback for optimized control accuracy. The smooth shaft and rotatable power connector enhance integration flexibility, supporting various mounting orientations and machine layouts. Designed to operate without a holding brake, the motor is ideal for systems where mechanical braking is not required, simplifying overall design while maintaining excellent operating performance.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors built to deliver maximum adaptability. The range includes various encoder and gearbox options, allowing each model to be customized for diverse automation requirements. When combined with SINAMICS S120 or S220 drive systems, they create a powerful motion control platform with expanded functional capability. Their integrated encoder options make them suitable for applications requiring precise speed and position control. Heat dissipation occurs through the motor surface, enabling reliable operation without external cooling.

Design & Benefits

The SIMOTICS S-1FK7 series is available in Compact, High Dynamic, and High Inertia versions. These configurations cover a broad spectrum of machine requirements—from highly responsive systems to those with variable load inertia. Their high power density supports space-saving installations, while robust closed-loop behavior minimizes commissioning effort. Industry applications include machine tools, robotics, handling equipment, packaging systems, woodworking, textile machines, printing machines, and auxiliary automation tasks.

Download

Data Sheet (PDF)

Product Code:
1FK7060-2AH71-1CG2
