1FK7060-2AH71-1RH1 SIEMENS Exclusive SIMOTICS S-1FK7 Original Brand New

1FK7060-2AH71-1RH1 SIEMENS Exclusive SIMOTICS S-1FK7 Original Brand New

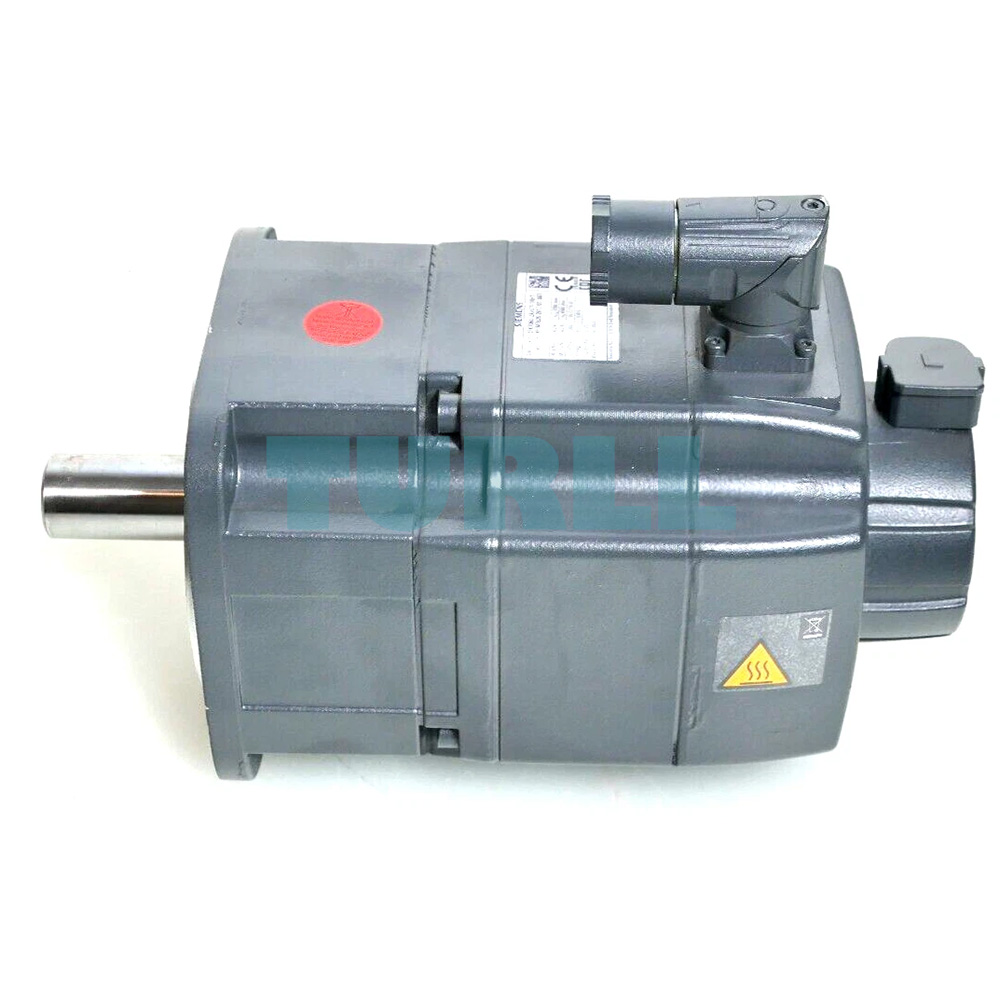

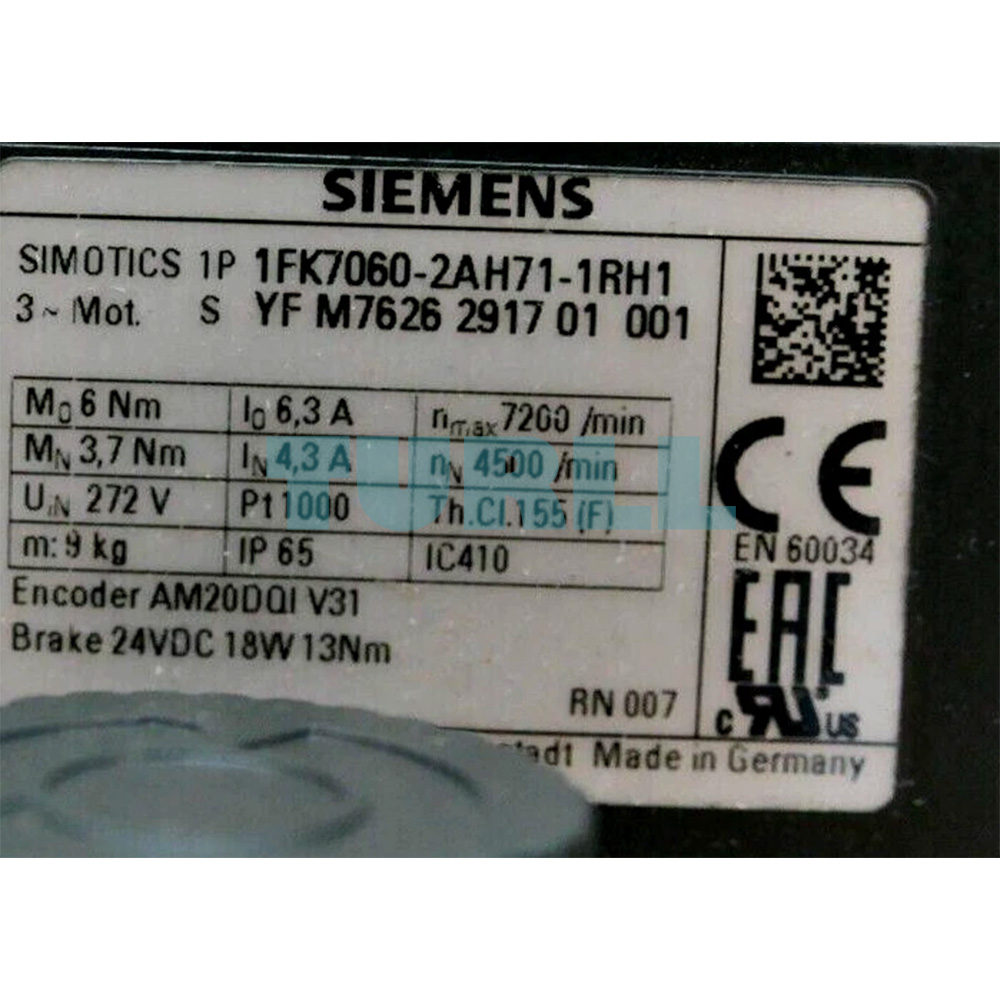

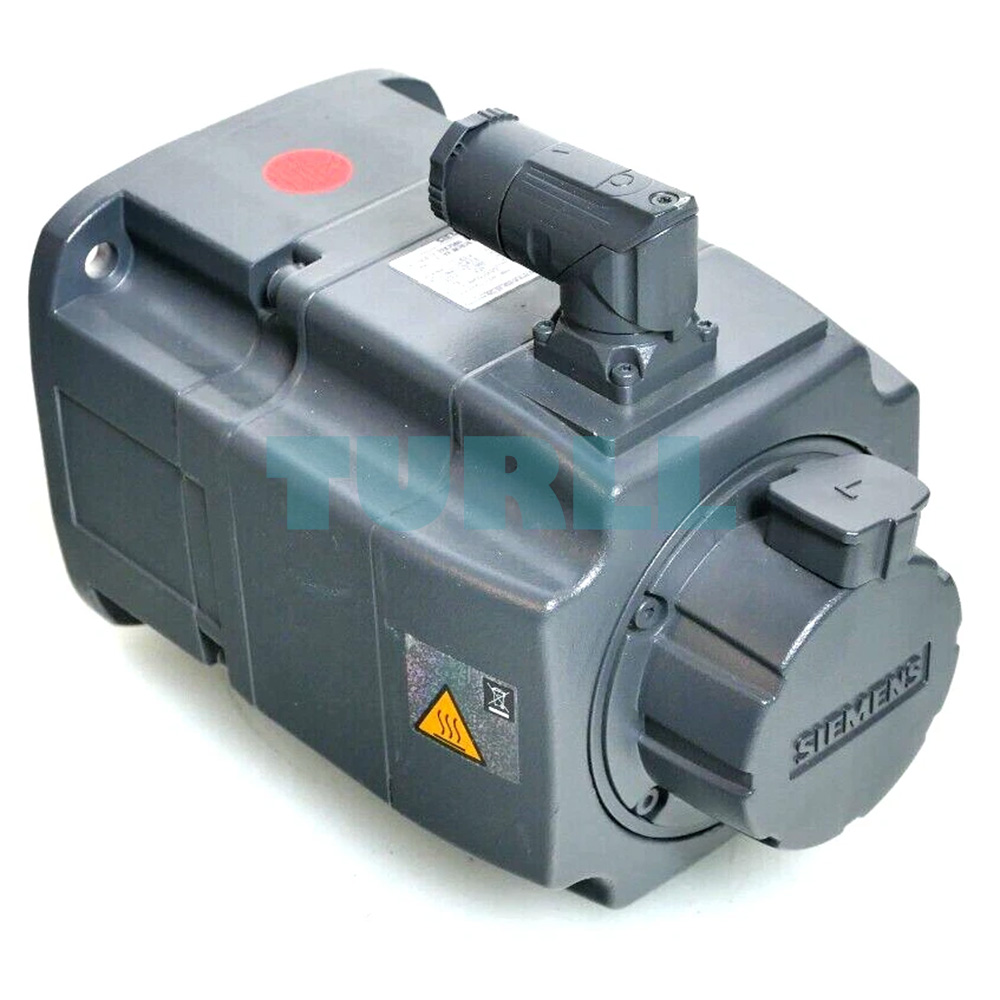

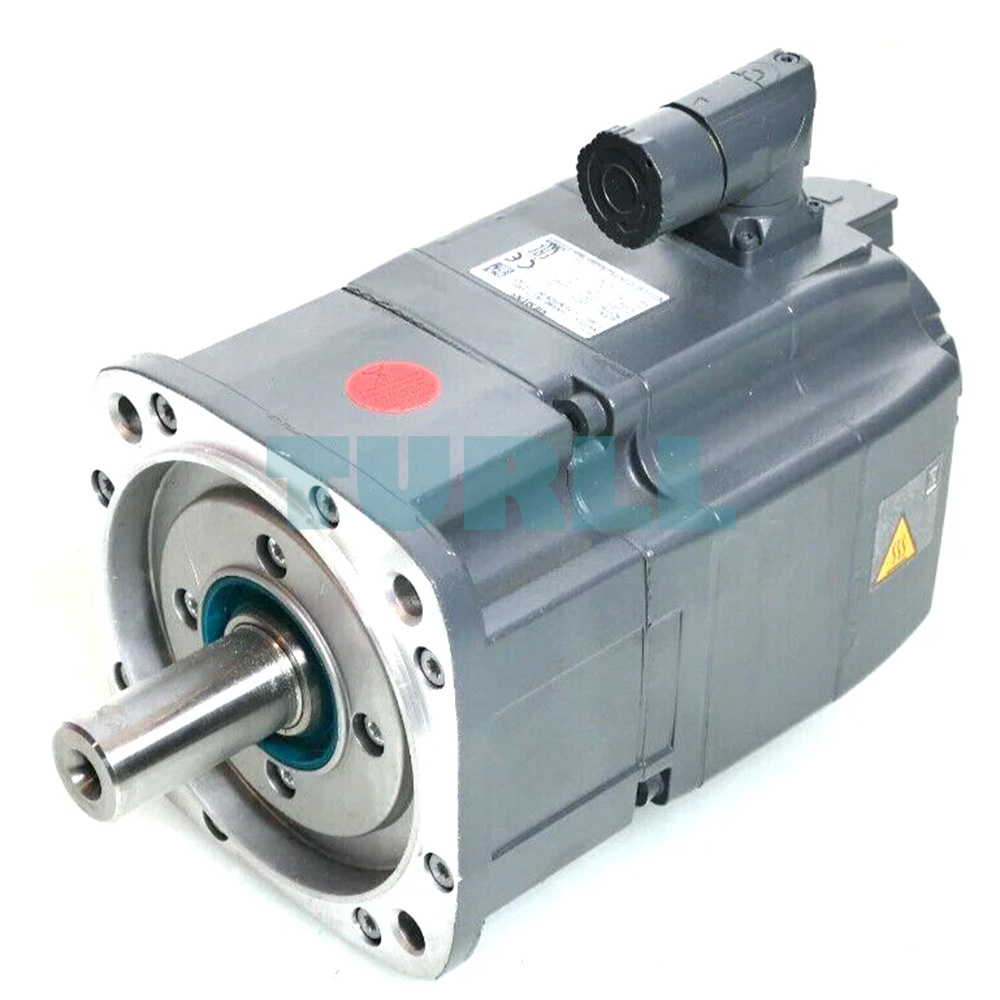

The SIEMENS 1FK7060-2AH71-1RH1 from the SIMOTICS S-1FK7 portfolio is a compact synchronous motor engineered to deliver precision, reliability, and long-term operational stability across demanding industrial environments. This model features a 1.7 kW rated output, a 600 V DC link voltage, and a continuous torque of 6 Nm, making it suitable for applications requiring both accuracy and repeatable performance. With a nominal speed of 4500 rpm and a naturally cooled construction, the motor ensures efficient thermal management through its surface design. The combination of a rotatable power connector, smooth shaft, robust IP65 protection class, and high-resolution absolute encoder enhances ease of integration and ensures secure operation even in challenging conditions.

Equipped with a 20-bit encoder system plus an additional 12-bit multi-turn function using the DRIVE-CLiQ interface, the motor enables advanced position and speed feedback for optimized motion control. The IMB 5 (IM V1, IM V3) mounting configuration offers installation flexibility, while the integrated holding brake adds operational safety in applications requiring controlled stops. Its durable construction and precision feedback structure support stable dynamic behavior, making the motor suitable for continuous industrial workloads and highly automated systems.

Overview

SIMOTICS S-1FK7 1FK7060-2AH71-1RH1 motors are permanent-magnet synchronous units designed for a wide range of automation tasks. Their compact format, combined with numerous gearbox and encoder variations, allows these motors to be matched with specialized machine architectures. When paired with SINAMICS S120 or S220 drive systems, they create a powerful motion platform capable of meeting the performance expectations of modern production lines. The integrated encoder options allow configuration flexibility depending on speed and positioning demands, while the motor’s cooling design ensures reliable heat dissipation without external components.

• Compact mechanical design with high power density
• Multiple variants covering diverse mechanical and dynamic needs
• Optimized for SINAMICS S-series drive integration
• High overload capacity for demanding duty cycles

Benefits

• Space-efficient installation due to excellent power-to-size ratio
• Suitable for a broad range of industrial functions
• High Dynamic variants offer rapid acceleration capabilities
• High Inertia variants provide stable closed-loop control
• Reduced commissioning time with minimal optimization required

Application

• Machine tools
• Robotics and advanced handling equipment
• Machinery for wood, ceramics, glass, and stone processing
• Packaging and textile systems
• Printing and auxiliary axes in automated systems

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AH71-1RH1 —
View Siemens Product Page
