1FK7061-4CF71-1RG2 SIEMENS Exclusive SIMOTICS S Motor Original Brand New
$1,794.25
The SIEMENS 1FK7061-4CF71-1RG2 is a compact synchronous motor designed for precision motion tasks, offering high dynamic response, dependable thermal behavior, and flexible encoder integration.
1FK7061-4CF71-1RG2 SIEMENS Exclusive SIMOTICS S Motor Original Brand New
The SIEMENS 1FK7061-4CF71-1RG2 is a high-quality synchronous motor engineered for demanding industrial motion applications. As part of the SIMOTICS S-1FK7 High Dynamic series, this unit delivers precise motion performance through advanced permanent-magnet technology and an optimized rotor design. With a rated power of 1.7 kW and a 6.4 Nm torque rating at 100 K, it is suitable for systems requiring smooth operation and reliable torque behavior across a wide speed range. This model operates at 600 V DC and reaches a nominal speed of 3000 rpm, making it a dependable solution for a variety of machine architectures.

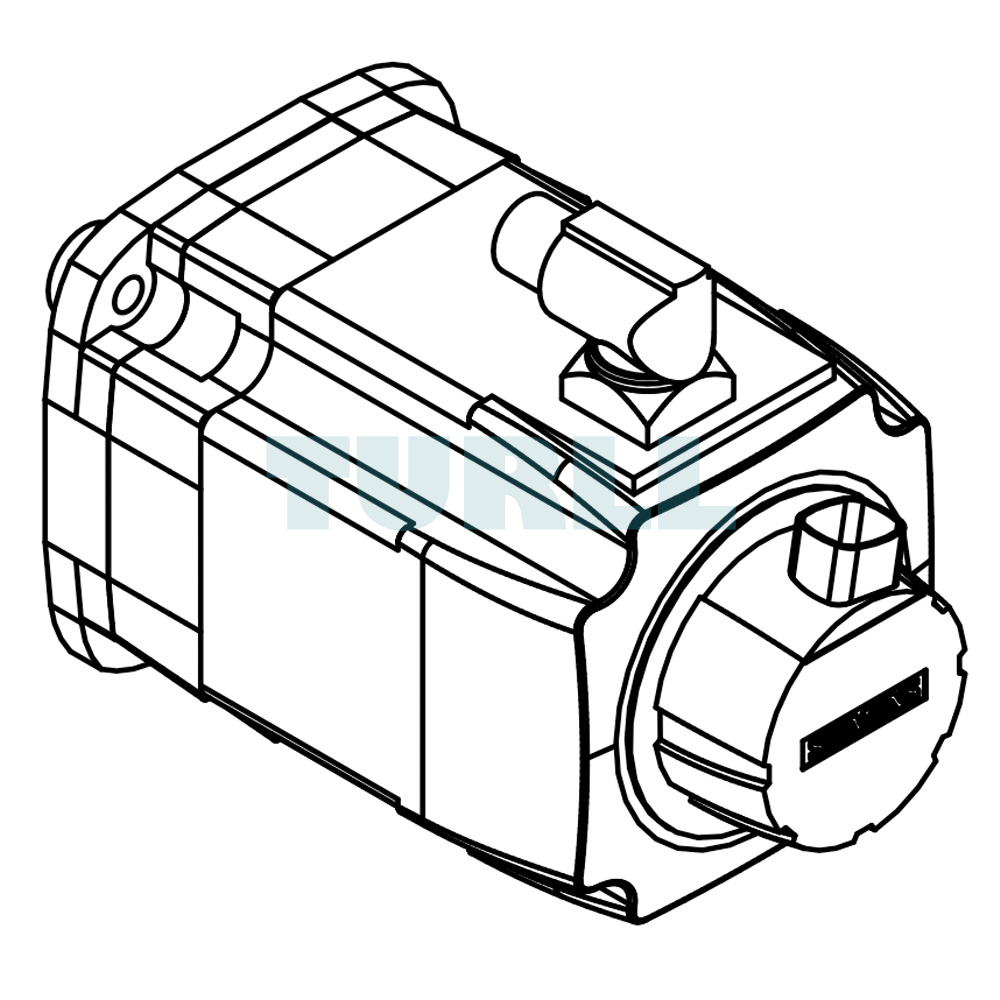

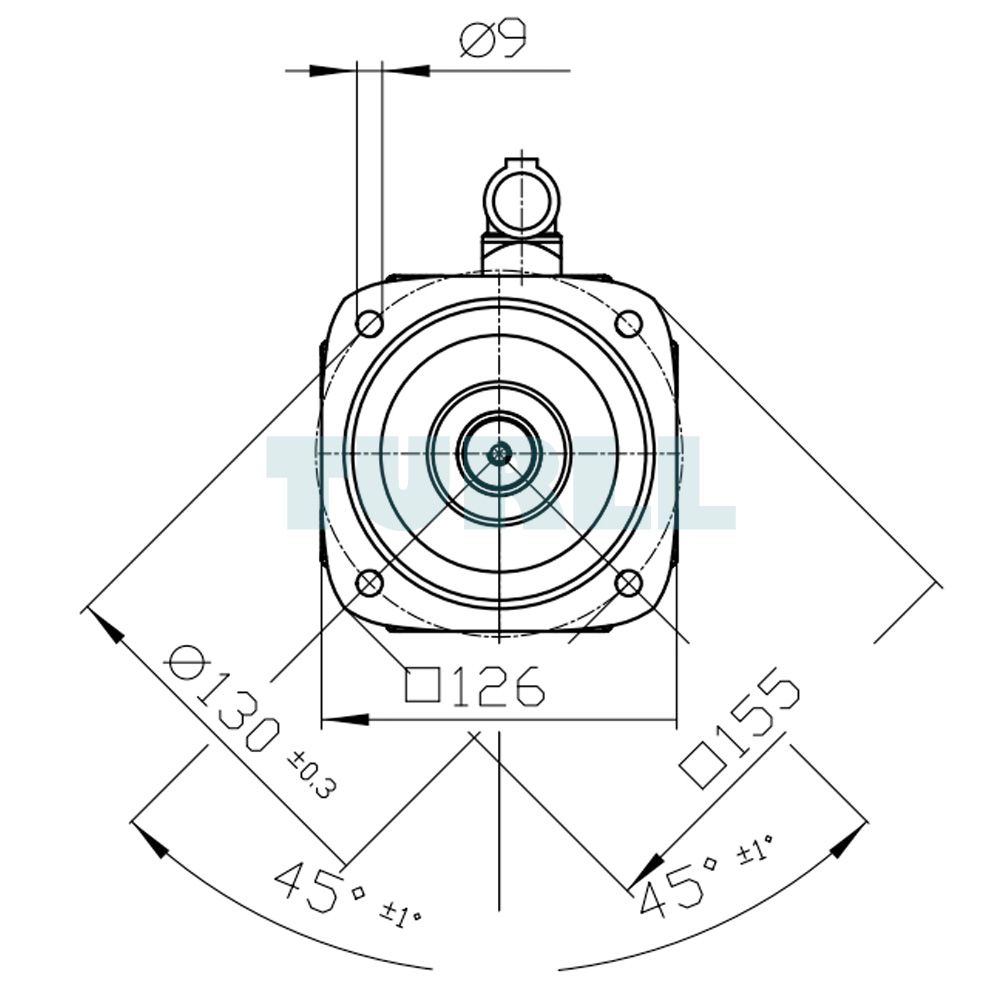

A key strength of this motor lies in its naturally cooled construction and robust mechanical configuration. The IMB 5 frame, combined with a durable flange design, supports stable installation in vertical or horizontal orientations. The unit features a rotatable power connector for flexible routing and simplified integration. Equipped with a 20-bit single-turn plus 12-bit multi-turn absolute encoder using DRIVE-CLiQ (AM20DQI), it ensures precise position feedback and seamless communication within modern drive systems. The shaft is manufactured to tolerance class N to guarantee smooth mechanical transmission, and the absence of a holding brake makes it ideal for dynamic or continuous-motion applications.
The protection class of IP65 for the housing and IP67 at the drive-end flange ensures reliable operation even in challenging environments where dust, humidity, or process contamination may be present. These attributes enhance its long-term resilience and enable consistent operation in advanced industrial automation.
Overview
SIMOTICS S-1FK7 motors are compact synchronous motors built for versatility, precision, and mechanical robustness. Their modular design, together with a wide range of encoders and gearbox options, enables seamless adaptation across numerous machine platforms. These motors can be paired with SINAMICS S120 or S220 drive systems to create a highly flexible automation platform with sophisticated control functions.
They are designed for surface cooling without external air circulation, and their thermal characteristics allow high overload capability. With multiple configuration options, these motors deliver reliable dynamic response for a broad spectrum of industrial machinery.
Benefits
- Compact construction enabling space-efficient installation
- Configurable design for many machine types
- Wide motor selection for different operating profiles
- High Dynamic variants with fast acceleration characteristics
- High Inertia variants for stable closed-loop performance
- Reduced commissioning effort with stable load adaptation
Application
- Machine tools and auxiliary axes
- Robotic systems and handling equipment
- Processing systems for wood, glass, ceramics, and stone
- Packaging, textile, and plastics machinery
- Printing and material-processing equipment
Download
Product Code: 1FK7061-4CF71-1RG2 —
View Siemens Product Page
More siemens products at Turll.com
| Weight | 9.501 kg |
|---|
