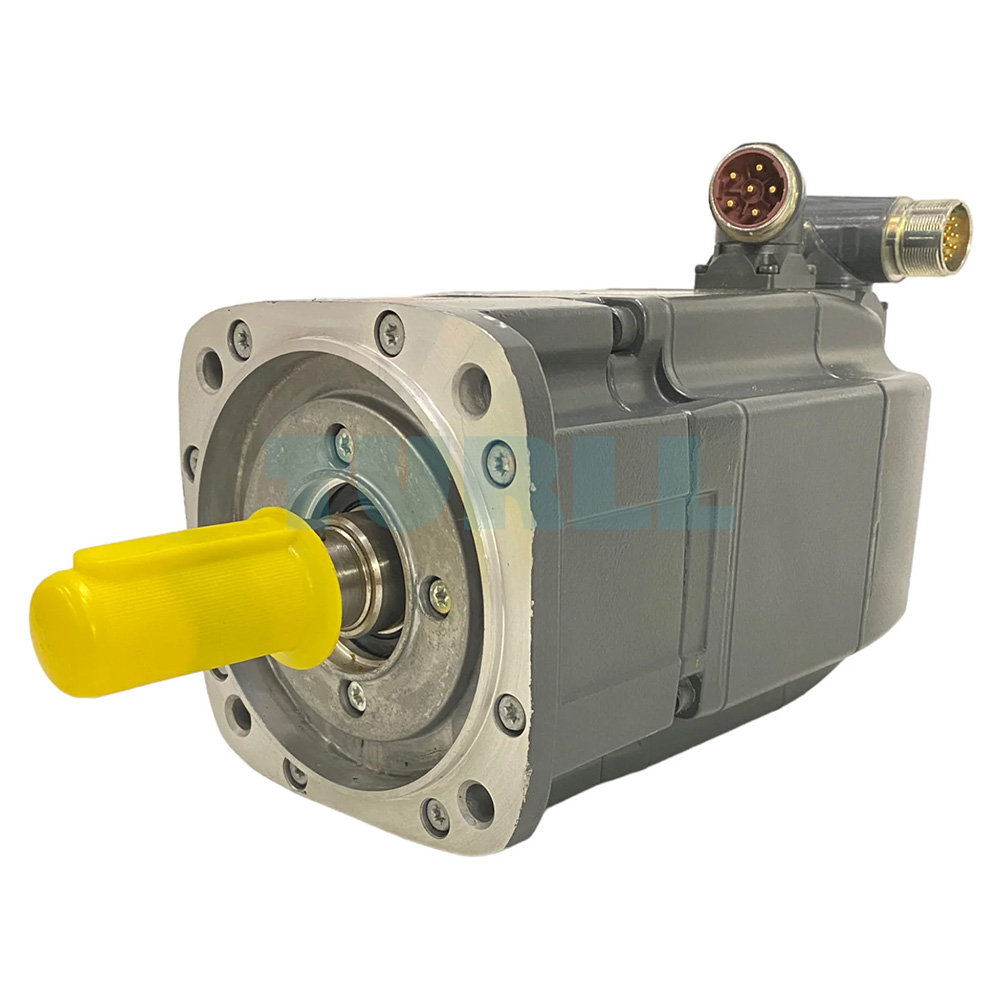

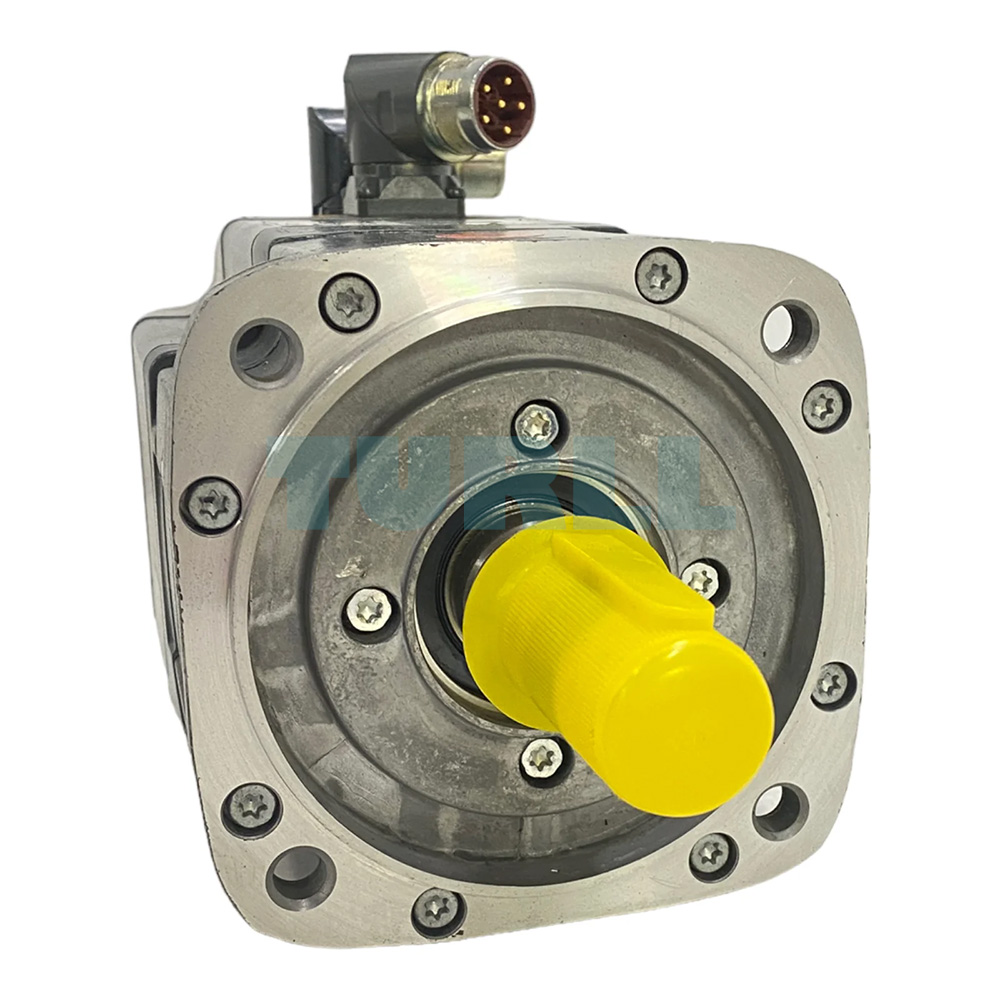

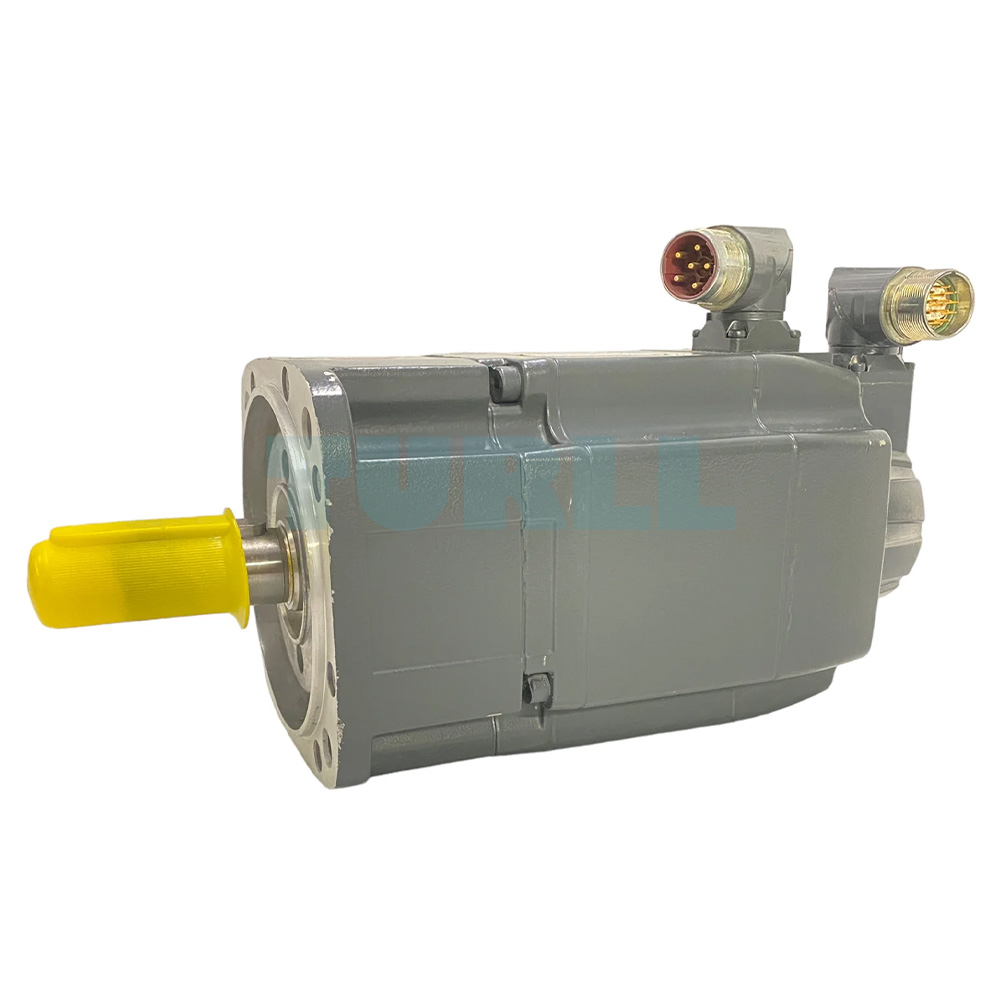

1FK7062-2AC71-1DB0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7062-2AC71-1DB0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

The SIEMENS 1FK7062-2AC71-1DB0 SIMOTICS S motor is a reliable synchronous motor engineered for precision-driven industrial applications that demand consistent torque, accurate speed regulation, and dependable long-term performance. As part of the SIMOTICS S-1FK7 series, this model delivers smooth operation through a compact yet durable design. With a rated torque of 8.5 Nm, a nominal speed of 2000 rpm, and a power class of 1.5 kW, it is well-suited for automation setups requiring strong low-speed torque and controlled dynamic movement. Its natural cooling configuration ensures stable operation without external cooling components, enhancing ease of integration across industrial machinery.

This version includes a rotatable power connector, allowing flexible installation in space-restricted machine layouts. The incremental 22-bit encoder with DRIVE-CLiQ (IC22DQ) provides high-resolution feedback for stable closed-loop control. A shaft with a fitted key improves mechanical coupling reliability, while the integrated holding brake increases operational safety during load holding or static positioning. The motor’s IP64 protection class supports operation in challenging environments where exposure to dust or moisture cannot always be avoided.

Overview

SIMOTICS S-1FK7 motors are highly adaptable synchronous motors designed for a broad range of motion-control tasks. Their compact structure, wide selection of variants, and compatibility with SIEMENS SINAMICS S120 and S220 drive systems allow them to achieve advanced motion functions with exceptional responsiveness. These motors are built for reliable performance across modern automated systems that demand rapid positioning and stable torque delivery.

The series offers strong thermal behavior, high overload capability, and precise encoder systems suitable for speed and position control. This makes the motors ideal for both general-purpose automation and sophisticated machinery.

Design & Key Features

• Permanent-magnet synchronous design with excellent power density
• Incremental encoder IC22DQ, 22-bit resolution with DRIVE-CLiQ interface

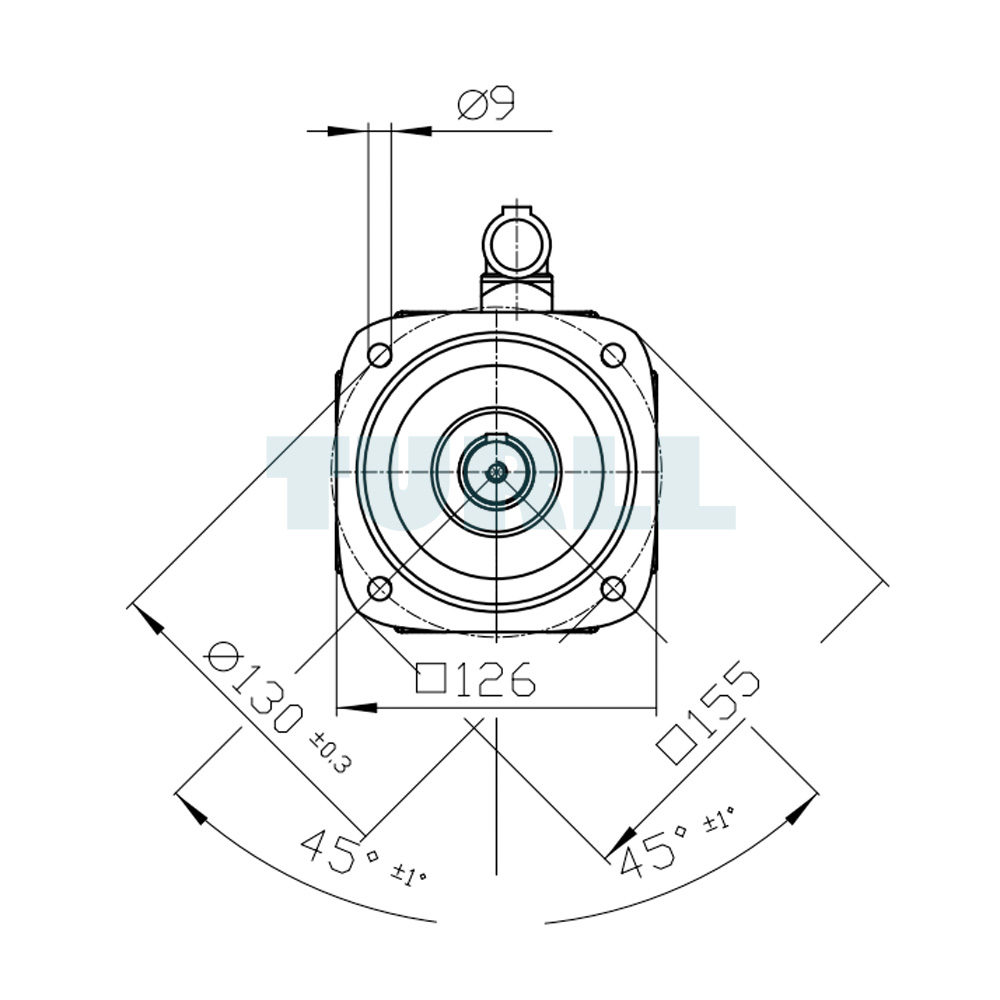

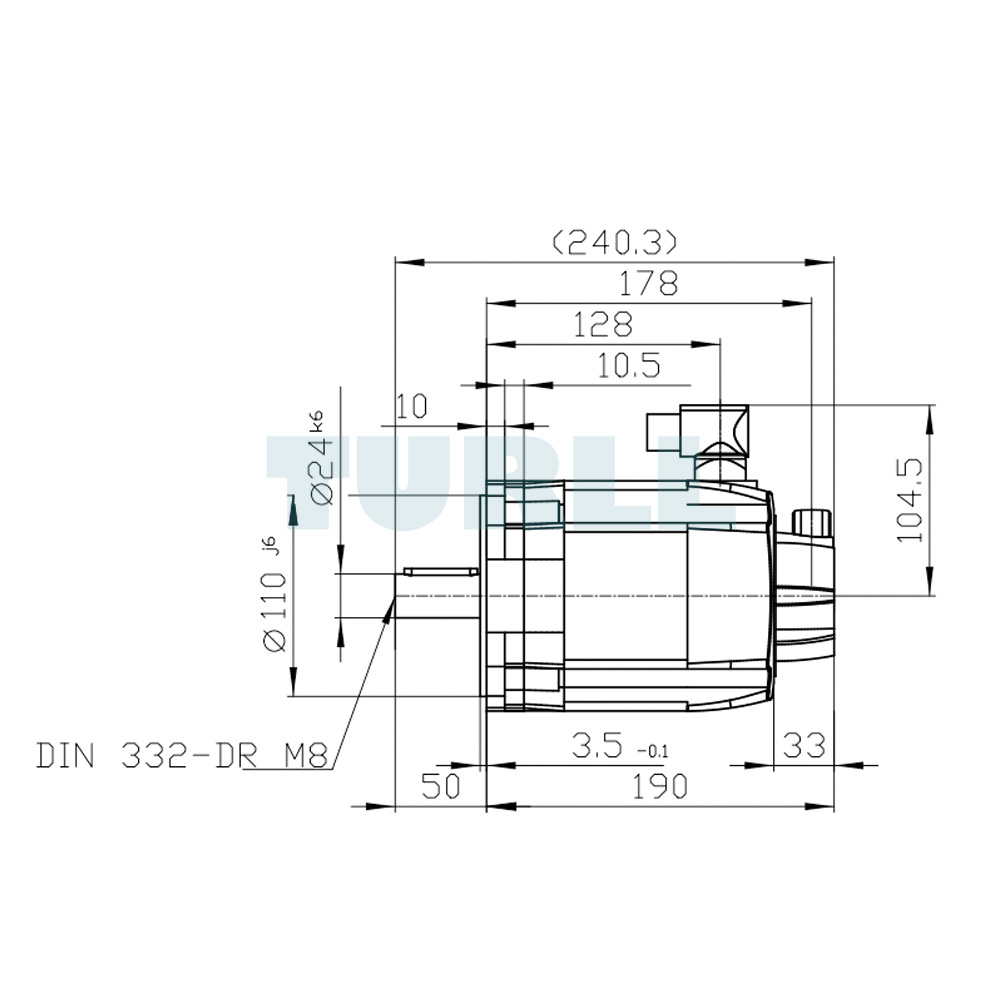

• Flexible mounting with IMB 5 construction and flange type 1

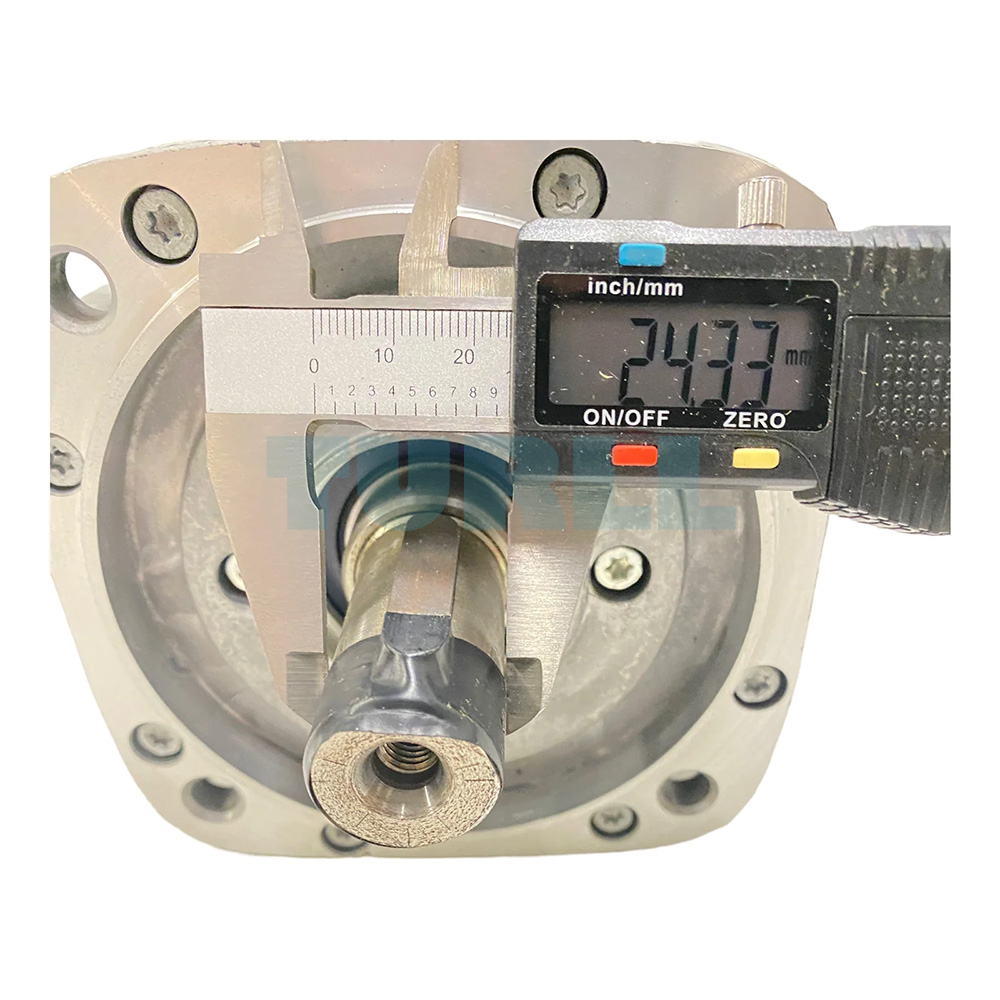

• Reliable shaft with fitted key, tolerance class N
• Integrated holding brake for secure load retention
• Natural cooling through motor housing surface
• Protection class IP64 for demanding industrial environments

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AC71-1DB0
