1FK7062-2AC71-1RH2 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AC71-1RH2 SIEMENS Exclusive Synchronous Motor Original Brand New

The SIEMENS 1FK7062-2AC71-1RH2 is a high-performance synchronous motor designed to support demanding automation environments that require precision, reliability, and consistent torque output. As part of the SIMOTICS S-1FK7 family, this motor offers an excellent combination of compact construction and advanced functionality. With a 1.5 kW power rating, 600 V DC link voltage, and a continuous torque of 8.5 Nm, it is well suited for applications that depend on stable motion performance. Its naturally cooled structure allows thermal dissipation through the motor’s exterior surfaces, providing dependable operation without additional cooling accessories, making integration efficient and straightforward.

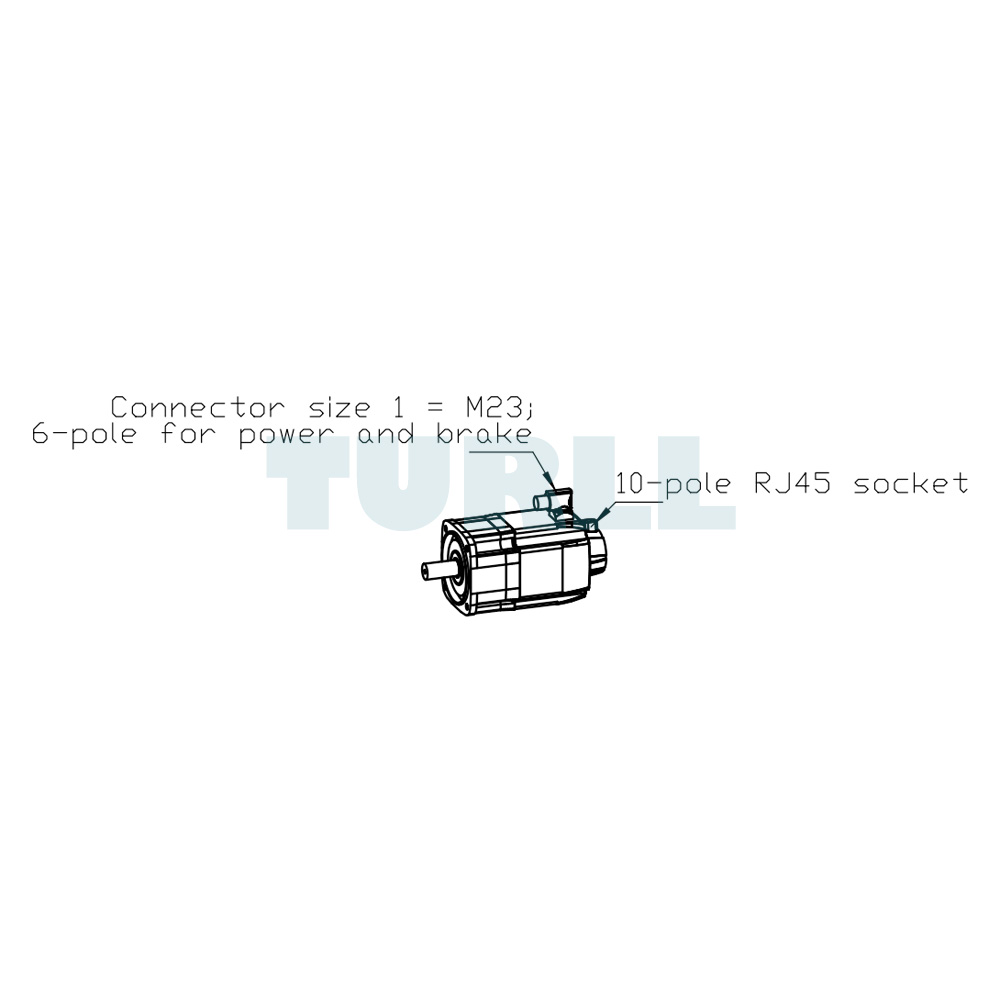

The motor includes a sophisticated encoder system, combining a 20-bit single-turn resolution with a 12-bit multiturn encoder, connected via the DRIVE-CLiQ interface. This provides accurate feedback for both speed and position control, enhancing motion accuracy in advanced system architectures. The smooth shaft design contributes to reduced mechanical wear, while the integrated holding brake supports secure positioning in static or power-off conditions. The unit also features strong ingress protection ratings of IP65 at the drive end flange and IP67 on additional protected areas, enabling long-lasting performance even in challenging industrial environments.

Overview

The SIMOTICS S-1FK7 motor series is built around permanent-magnet synchronous technology, offering compact dimensions and a wide selection of versions tailored to modern machine requirements. Their compatibility with SINAMICS S120 and S220 drive systems unlocks extended functionality, providing a unified and powerful automation platform. These motors operate without external cooling components, relying on their rugged construction and efficient thermal behavior to maintain stability under demanding loads.

Key Features

• High power density enabling compact and flexible installations
• A broad range of configurations suitable for diverse machine designs
• Dynamic behavior achieved through optimized inertia characteristics
• Stable closed-loop performance for applications with fluctuating loads
• Reduced tuning requirements for smooth commissioning

Common application sectors include robotics, handling systems, packaging machines, machine tools, printing equipment, and material-processing technology. Its dependable mechanical build, advanced encoder integration, and smooth operational behavior make it a strong choice for projects requiring precision, endurance, and long-term reliability.

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AC71-1RH2
