1FK7062-2AF71-1RH1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1RH1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

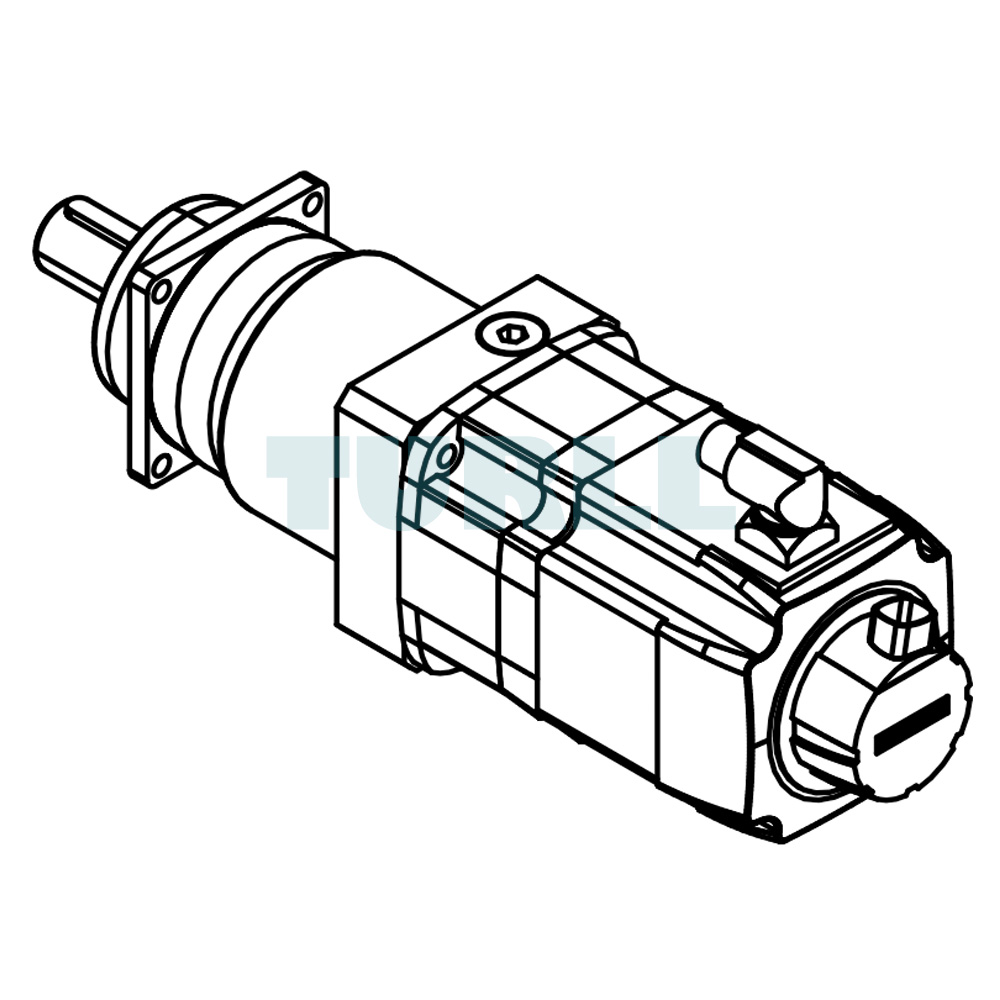

The 1FK7062-2AF71-1RH1-ZJ13 SIEMENS synchronous motor is engineered to deliver precise performance for demanding automation environments that require high stability and refined motion accuracy. As part of the SIMOTICS S-1FK7 family, this model integrates advanced permanent-magnet technology, ensuring dependable operation in a compact mechanical structure. With a 1.9 kW power rating, 600 V DC link voltage, and a nominal speed of 3000 rpm, it provides steady torque output and smooth running characteristics suitable for applications that demand reliable behavior over long operating cycles.

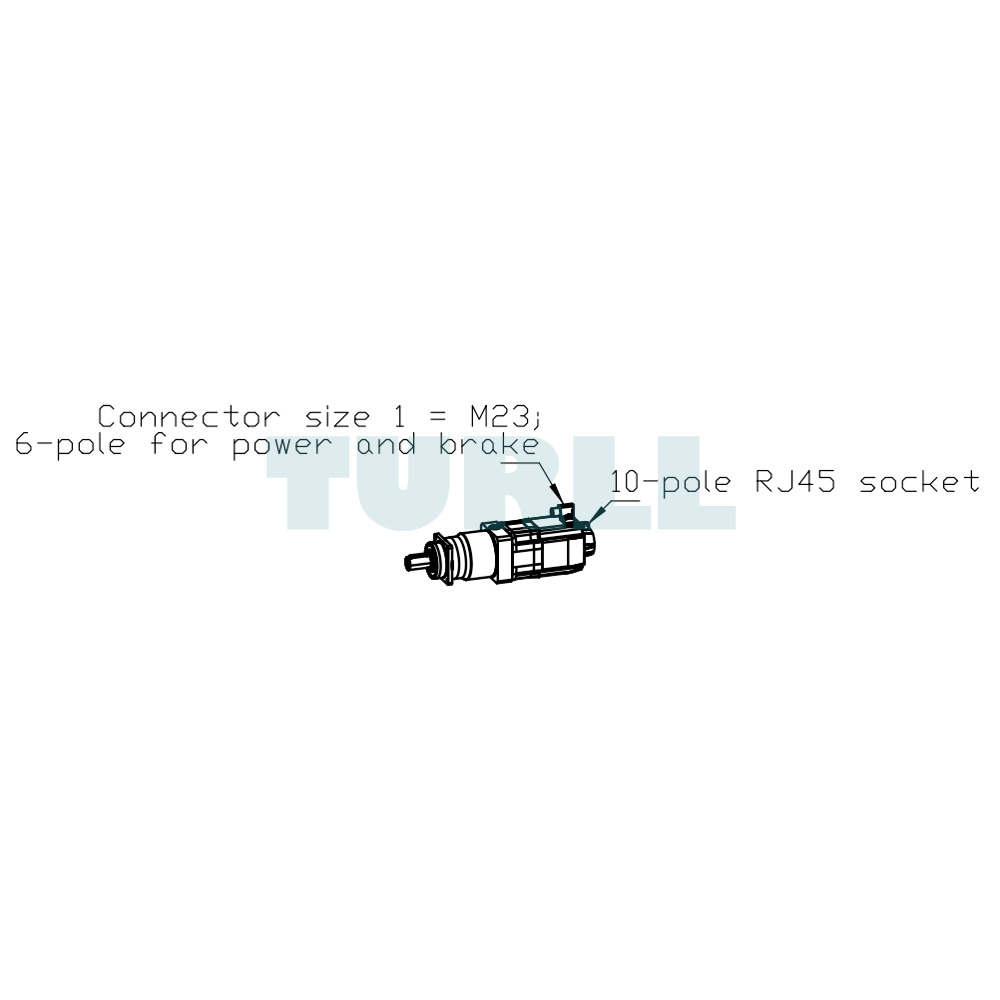

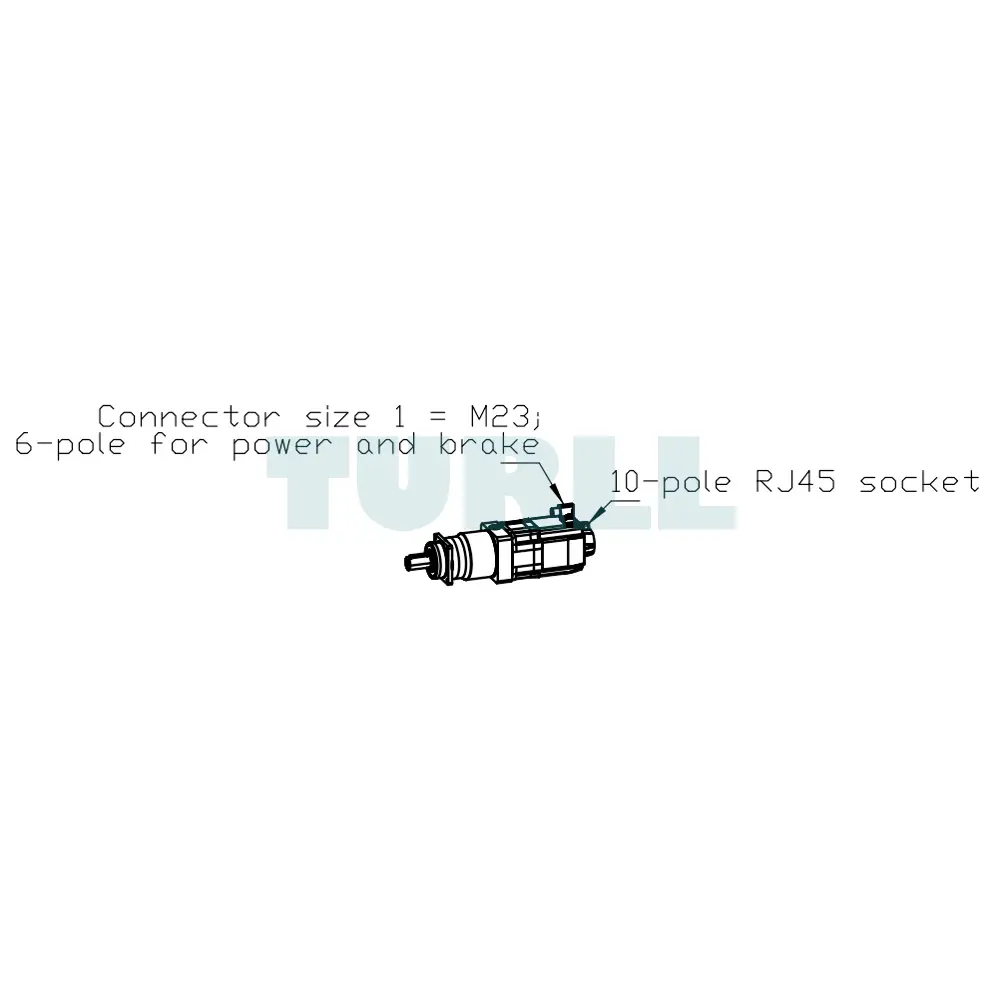

This version features a rotatable power connector for streamlined assembly within complex machine layouts. Its integrated AM20DQI encoder combines 20-bit absolute single-turn resolution with an additional 12-bit multi-turn capability, enabling enhanced positioning accuracy through the DRIVE-CLiQ interface. The smooth shaft, manufactured within tight tolerances, contributes to consistent mechanical alignment and repeatability across a variety of industrial processes. The included holding brake further improves operational stability during standstill conditions, ensuring safe and controlled system behavior.

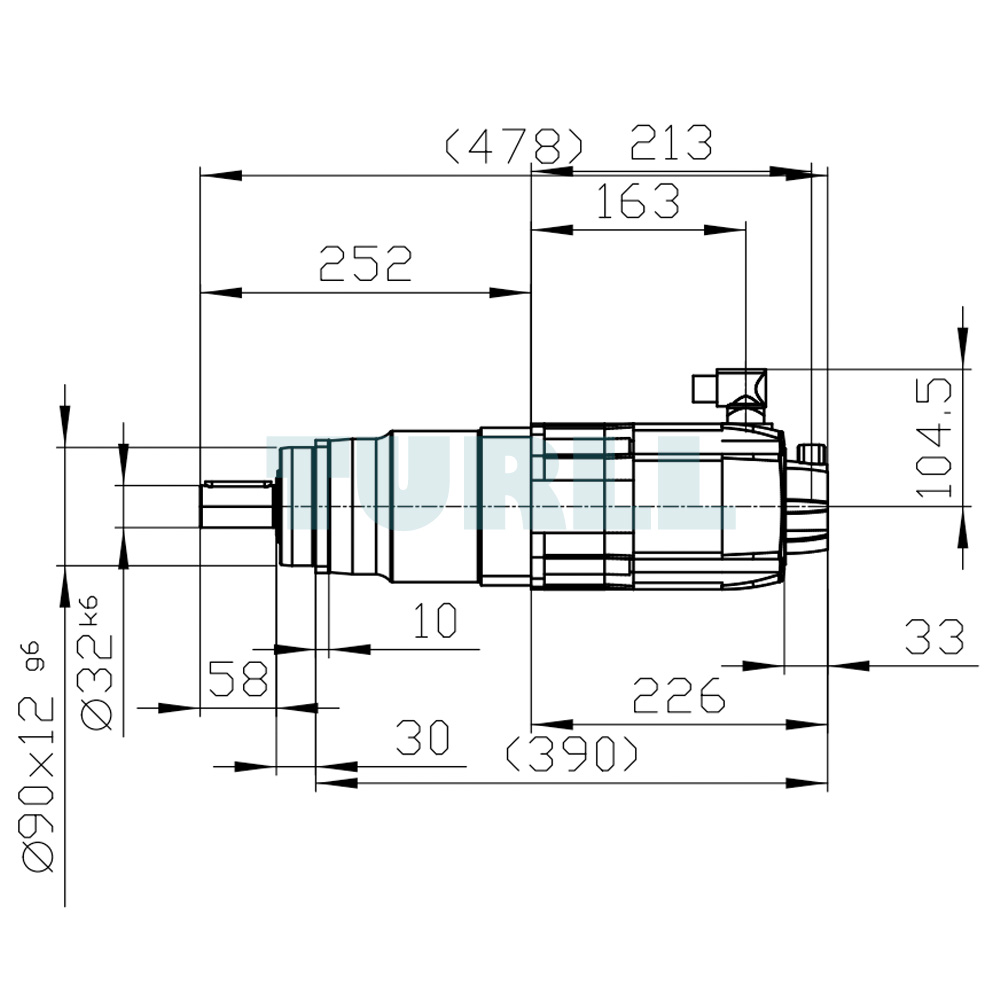

A notable configuration feature of the 1FK7062-2AF71-1RH1-ZJ13 is the ALPHA SP+ planetary gear unit (SP 100S-MF2), offering a two-stage design with a ratio of 20. This gearing setup supports high torque transfer within limited installation space, making it suitable for systems that require compact mechanical solutions without compromising strength or efficiency.

When matched with SINAMICS S120 or S220 drive systems, the motor forms a coordinated drive package with excellent dynamic control capabilities. Its overload resilience, naturally cooled construction, and consistent thermal behavior make it attractive for continuous-duty operations. These characteristics ensure adaptability for modern production environments where flexibility, reliable feedback control, and predictable operation are essential.

Overview

SIMOTICS S-1FK7 motors are compact synchronous units designed to accommodate a wide variety of industrial tasks. Their permanent-magnet platform, combined with an extensive set of options, enables seamless integration across both standard and highly specialized applications. When used with SINAMICS systems, they provide strong dynamic performance and stable closed-loop operation with minimal commissioning effort.

The naturally cooled design eliminates the need for additional cooling components and relies on effective surface heat dissipation. The motors exhibit a high overload margin, supporting challenging operating profiles involving repetitive acceleration and deceleration.

Benefits

• High power density for reduced installation footprint
• Flexible configuration range for universal industrial use
• Low rotor inertia for fast dynamic response
• Steady closed-loop control even under variable load conditions
• Minimal setup and reduced adjustment overhead

Applications

• Machine tools
• Robotics and handling automation
• Wood, glass, ceramics, and stone processing
• Packaging and textile machinery
• Printing and material transformation systems
• Auxiliary axes for multifunctional machines

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1RH1-ZJ13
