1FK7062-2AF71-1UB0 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1UB0 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1UB0 SIEMENS synchronous motor is part of the trusted SIMOTICS S-1FK7 platform, engineered for applications that demand precision, consistent behavior, and long operating life. This model features a compact structure that allows easy integration into modern machine layouts, making it suitable for installations where performance and footprint must work together. Its naturally cooled design ensures that heat is efficiently released through the motor housing, supporting stable performance during continuous or cyclic operation.

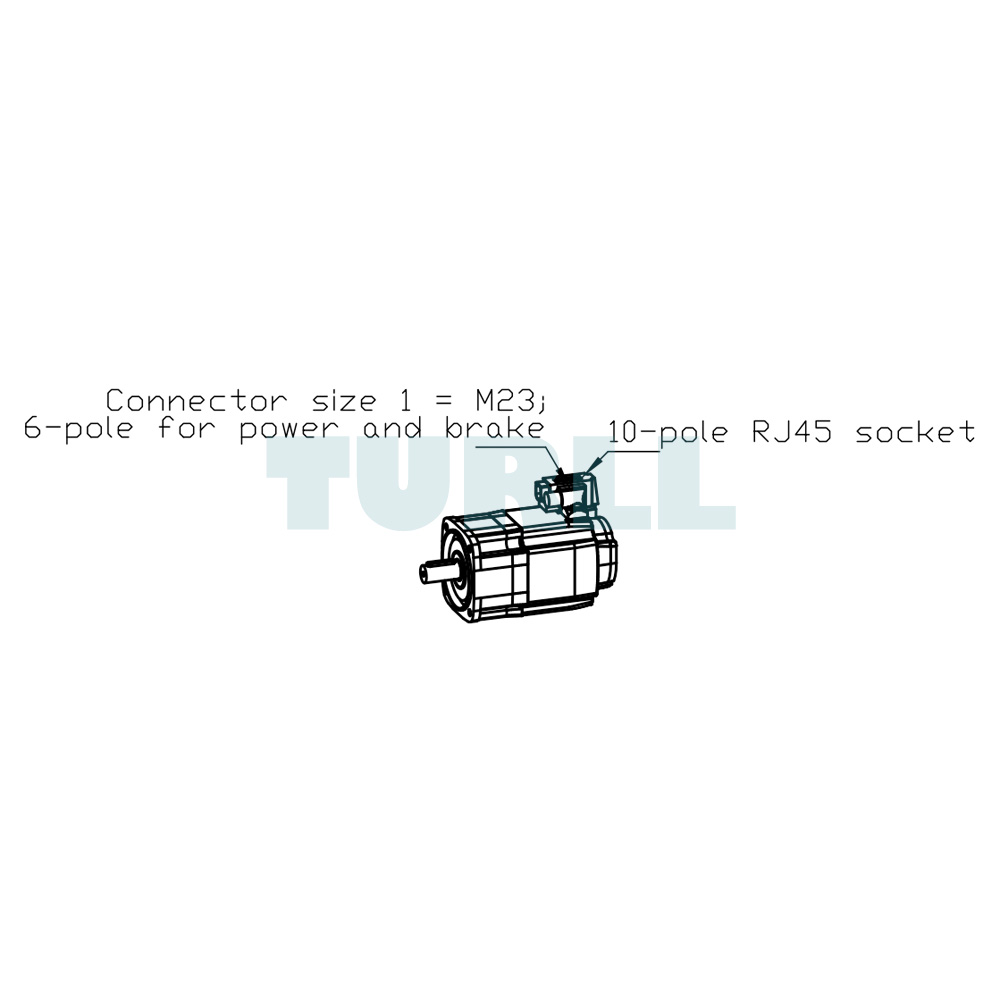

With a rated power of 1.9 kW and a DC link voltage of 600 V, the 1FK7062-2AF71-1UB0 is designed to deliver reliable torque output of 8.5 Nm at a rated speed of 3000 rpm. The motor includes a rotatable power connector to simplify cable routing in restricted machine spaces. It is also equipped with a multi-pole resolver and DRIVE-CLiQ interface, providing high-quality feedback for demanding positioning tasks. The shaft with a feather key and integrated holding brake expands its usability across many mechanical setups, offering both flexibility and secure load control.

This synchronous motor integrates seamlessly with SINAMICS S120 and S220 drive systems, forming a robust motion solution with smooth dynamic characteristics. Whether used in handling systems, robotics, or fabrication processes, the combination of strong overload tolerance and predictable thermal behavior supports accuracy across repeated cycles. The high protection class (IP64) safeguards the motor against dust intrusion and splashing water, reinforcing its suitability for industrial environments.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors developed for universal industrial applications. The wide selection of options, encoder systems, gear units, and mounting variants ensures that each unit can be configured precisely for its intended task. When combined with SINAMICS drives, they provide fast response, steady torque production, and reliable closed-loop behavior.

These motors are built for operation without external cooling, relying on their surface to dissipate heat. Their strong overload capability and balanced construction make them suitable for both fast and demanding machine cycles.

Benefits

• Space-saving installation with high power density
• Versatile selection suitable for many applications
• Dynamic behavior supported by low rotor inertia
• Stable closed-loop characteristics for fluctuating loads
• Reduced commissioning effort and simplified optimization

Applications

• Machine tools
• Robotics and handling systems
• Glass, wood, ceramics, and stone processing
• Packaging, plastics, and textile machinery
• Printing machines
• Auxiliary industrial axes

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1UB0
