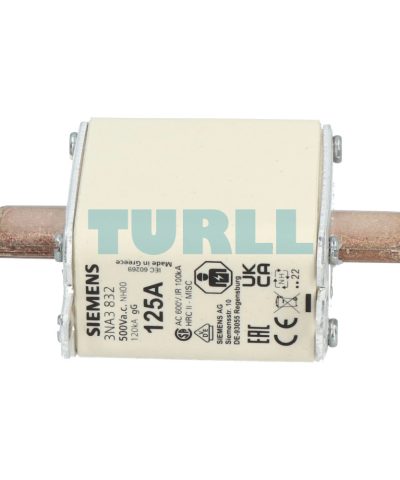

Siemens 3NA3832 LV HRC Fuse Element, NH00, 125A, gG, 500V AC / 250V DC Original Brand New
$30.28
High-performance LV HRC (Low Voltage High Rupturing Capacity) fuse element designed for NH00 size applications. Featuring a 125A rated current and gG operating characteristics, it provides full-range protection for cables and lines in industrial power systems.
Availability: In stock
Overview
The Siemens 3NA3832 represents the gold standard in circuit protection. This NH00-size fuse is engineered for reliability, ensuring safety in low-voltage electrical distributions. With its gG (general purpose) application class, it effectively handles both overload and short-circuit protection. The inclusion of live grip lugs and a front indicator allows for easy status monitoring and safe handling during maintenance.
Key Benefit
-
Superior Reliability: Manufactured by Siemens to ensure long-term stability and precise tripping characteristics.
-
Enhanced Safety: Features live grip lugs for secure installation and removal within compatible fuse bases.
-
Clear Diagnostics: The integrated front indicator provides an immediate visual signal when the fuse has blown, reducing downtime.
-
Versatile Application: Dual-rated for both AC (500V) and DC (250V) environments.
Function & Features
-
Protection Class gG: Optimized for the protection of cables, power lines, and general industrial equipment.
-
High Breaking Capacity: Designed to safely interrupt high fault currents to prevent equipment damage.
-
NH00 Standardized Design: Compact footprint that fits standard LV HRC fuse holders and disconnectors.
-
Low Power Loss: Engineered for energy efficiency, minimizing heat dissipation within the switchboard.
Visit 3NA3832 for more detail info
For more our products visit turll
Download
| Weight | 0.200 kg |
|---|---|

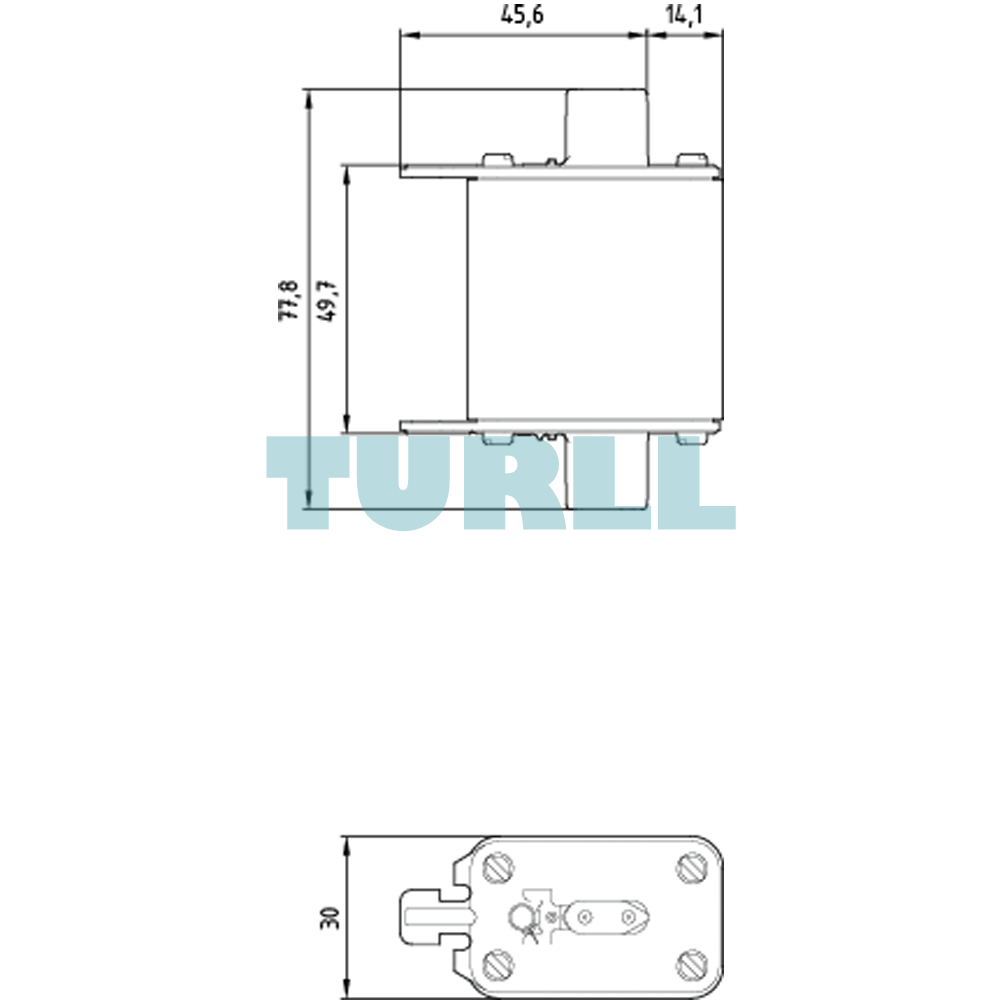

| Dimensions | 83.00 × 95.00 × 67.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | NH00 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA |
| ● acc. to IEC 60947-2 / rated value | 120 kA |
| power loss [W] | 8.9 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 8.9 W |
| operational current | – |
| ● at 30 °C / rated value | 122.5 A |
| ● at 40 °C / rated value | 118.75 A |
| ● at 45 °C / rated value | 115 A |
| ● at 50 °C / rated value | 112.5 A |
| ● at 55 °C / rated value | 110 A |
| ● at 60 °C / rated value | 107.5 A |
| ● at AC / rated value | 125 A |
| width / of the enclosure | 30 mm |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -5 °C |
| ● maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category / during storage | 90% at 20°C |
| Test Certificates | other Marine / Shipping |
