Siemens 5SN4106-7CN Miniature Circuit Breaker 6A C-Char 10kA 1-Pole
Original price was: $7.58.$4.08Current price is: $4.08.
Siemens 5SN4106-7CN miniature circuit breaker, 6A, C-trip, 10kA breaking capacity, 1-pole, 230/400V AC. IEC 60898-1 certified. Compact 1-module (17.5mm) DIN rail mount. In stock — fast worldwide shipping.
Availability: In stock

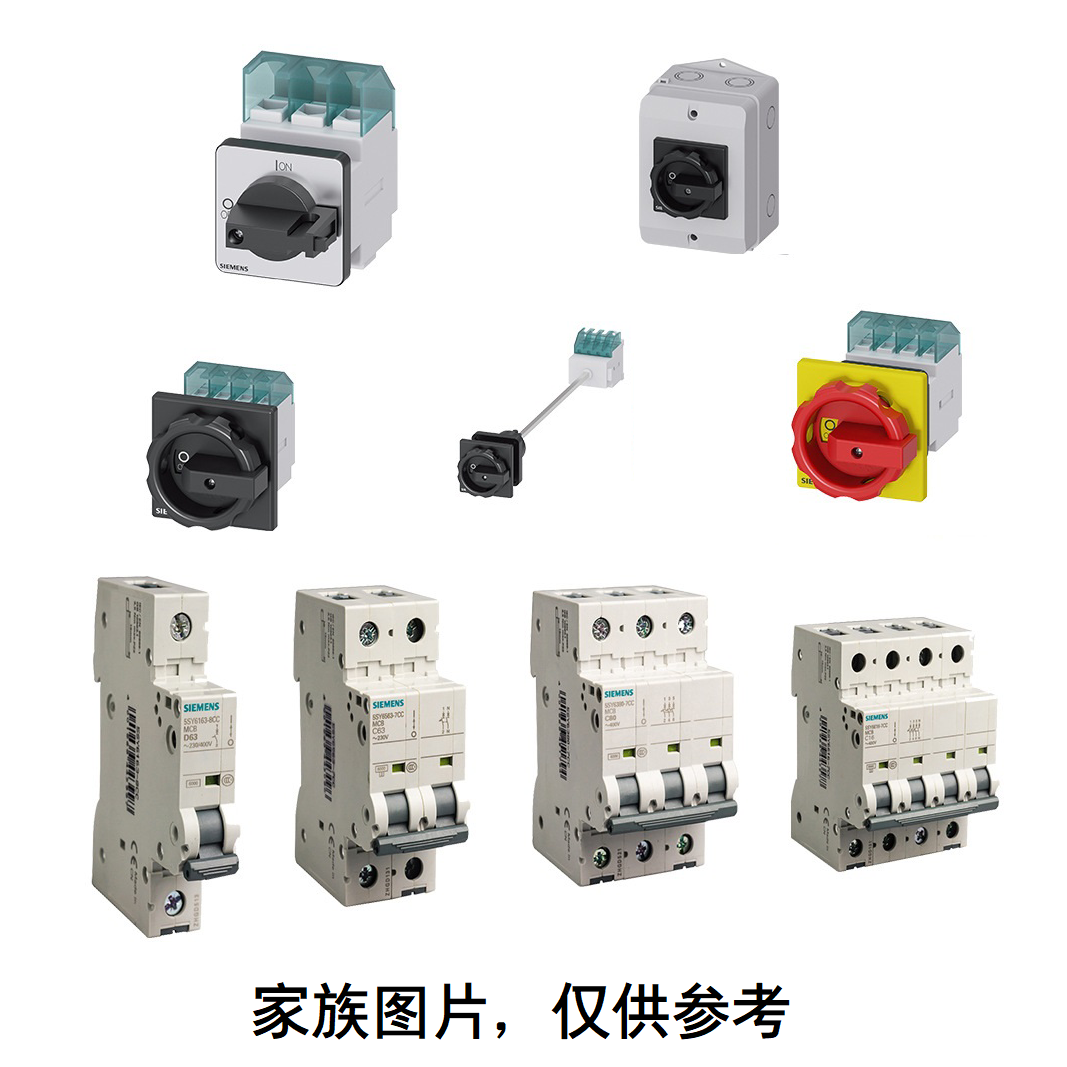

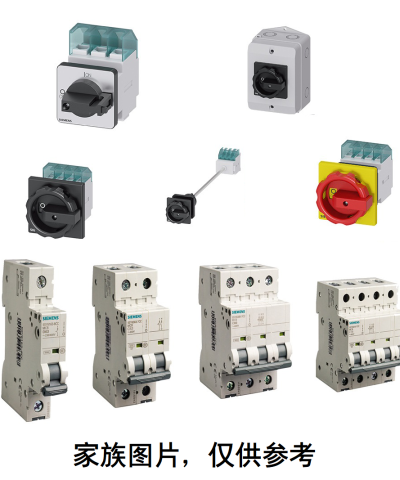

Siemens 5SN4106-7CN Miniature Circuit Breaker
The Siemens 5SN4106-7CN is a high-performance, 1-pole miniature circuit breaker (MCB) from the acclaimed 5SN4 series. Engineered for reliable overcurrent and short-circuit protection, this 6A C-characteristic breaker delivers 10kA breaking capacity in a compact 1-module DIN rail format — the go-to choice for residential, commercial, and light-industrial electrical distribution worldwide.
Product Highlights
| Rated Current | 6A continuous |
| Breaking Capacity | 10kA (IEC 60898-1) |
| Tripping Curve | C (5–10× In) |
| Voltage | 230/400V AC |
| Poles | 1-Pole |
| Mounting | 35mm DIN Rail (EN 60715) |
| Module Width | 17mm (1 mod.) |
| Weight | 0.1kg (~100g) |
Product Description
Designed and manufactured by Siemens AG (Germany), the 5SN4106-7CN miniature circuit breaker provides dependable circuit protection for loads up to 6 amperes. Its C-characteristic tripping curve (5–10× rated current) makes it ideal for general-purpose circuits including:
- Lighting circuits in residential and commercial buildings
- Socket outlet circuits with moderate inrush loads
- Small motor starter circuits (up to ~1kW)
- Control panel and automation cabinet wiring
- Solar PV combiner and junction box protection
With a 10kA breaking capacity per IEC 60898-1, this breaker safely interrupts fault currents up to 10,000 amperes — providing a high safety margin for most installation environments. The compact 1-module design (17.5mm width) maximizes DIN rail space in distribution boards.
Full Technical Specifications
| Parameter | Value |
|---|---|
| Siemens Article Number | 5SN4106-7CN |
| SKU | 52200001194 |
| Product Family | 5SN4 High Breaking Capacity MCB |
| Rated Current (In) | 6A |
| Breaking Capacity (Icn) | 10kA (IEC 60898-1 / EN 60898-1) |
| Tripping Characteristic | C (General Purpose: 5–10× In) |
| Number of Poles | 1-Pole (1P) |
| Voltage Rating (AC) | 230V / 400V AC |
| Dimensions (W×H×D) | 17 × 90 × 70 mm |
| Weight | Approx. 100g |
| Mounting | 35mm DIN Rail (EN 60715 TH35) |
| Module Width | 1 mod. (17mm) |
| Country of Origin | China |
| Lifecycle Status | Active (Delivery Release) |
| Compliance | IEC 60898-1, EN 60898-1 |
Ideal Applications
- Residential: Lighting circuits, general socket outlets, kitchen appliance circuits
- Commercial: Office distribution boards, retail lighting, HVAC control power
- Industrial: Control cabinet wiring, PLC power supply protection, sensor circuits
- Renewable Energy: Solar PV junction box protection, battery management systems
- OEM: Machine builders, panel builders, switchgear manufacturers
Compatible Accessories
| Type | Description |
|---|---|
| 5ST3 Auxiliary Contact | 1NO+1NC signal contact for remote status indication |
| 5SU1 RCD Module | Residual current device add-on for earth fault protection |
| 5SM2 Shunt Release | Remote trip release for emergency shutdown circuits |
| 5SN4106-8CN | Same specs, D-characteristic (10–20× In for high inrush) |
Frequently Asked Questions
What does “C-characteristic” mean?
The C-trip curve trips magnetically at 5–10× the rated current (30–60A instantaneous for a 6A breaker). This makes it suitable for most general-purpose loads including resistive loads (lighting, heaters) and loads with moderate inrush currents (small motors, transformers under 1kW).
Can I use this on a 400V three-phase system?
Yes. The 5SN4106-7CN is rated for 230/400V AC. On a 3-phase installation, you would use three individual 1-pole breakers (one per phase) for full 3-phase protection.
What DIN rail does this fit?
Standard 35mm top-hat DIN rail per EN 60715 (TH35 type). This is the most common rail type used worldwide.
What’s the difference between 5SN4 and 5SN6?
The 5SN4 is the standard high-breaking-capacity range (10kA). The 5SN6 offers enhanced features including higher breaking capacity (up to 15kA) and compact 1P+N configurations in a single module.
Is this product RoHS compliant?
All current Siemens 5SN series breakers are fully RoHS and REACH compliant.
What’s the difference between C and D characteristics?
C-characteristic trips at 5–10× In (general purpose). D-characteristic trips at 10–20× In (high inrush loads like large motors, transformers, welding equipment). For most residential and commercial applications, C is the correct choice.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 70 × 17 × 90 mm |
| Tripping Characteristic | C (General Purpose) |
| Voltage Rating | 230/400V AC |
| Module Width | 1 mod. (17.5mm) |
| Standards | IEC 60898-1, EN 60898-1 |
| Country of Origin | China |
| Rated Current (In) | 6A |
| Breaking Capacity (Icn) | 10kA |
| Number of Poles | 1-Pole |
| Dimensions (W×H×D) | 17.5 × 90 × 70 mm |
| Weight | ~100g |
| Mounting | 35mm DIN Rail (EN 60715) |
