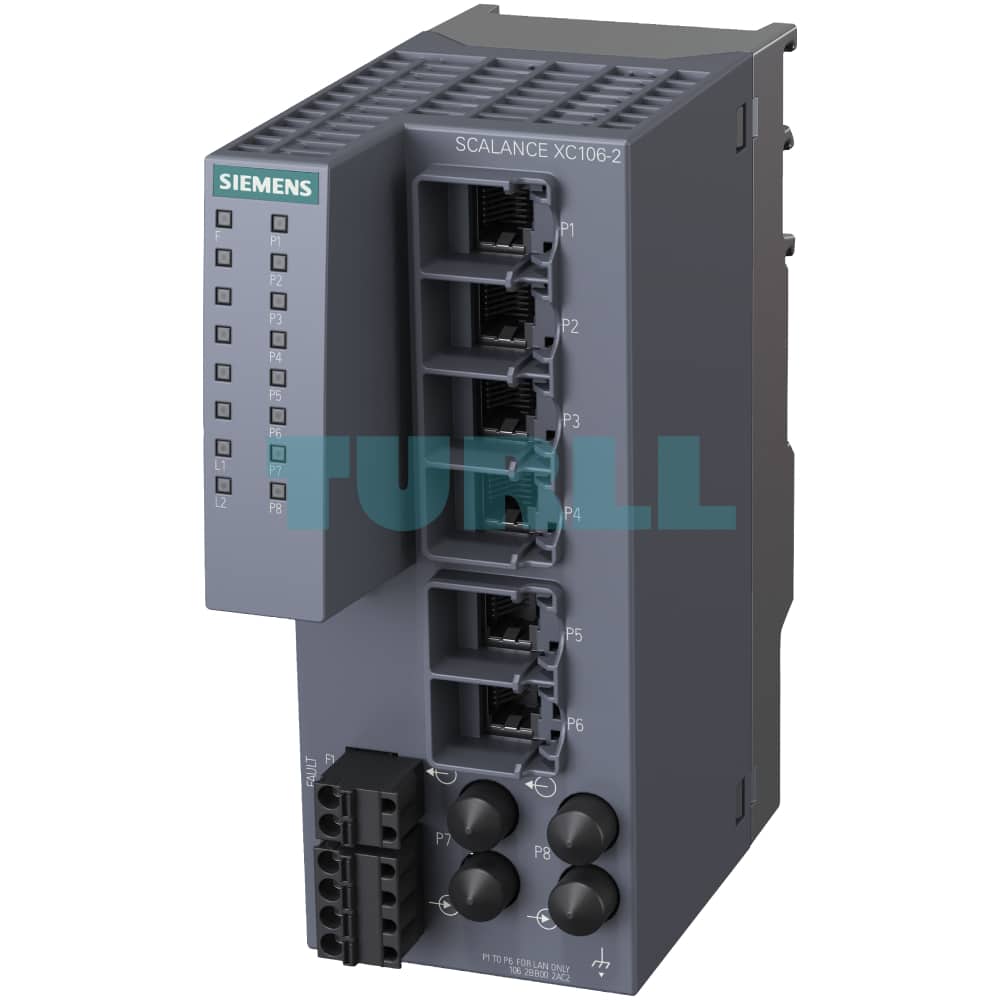

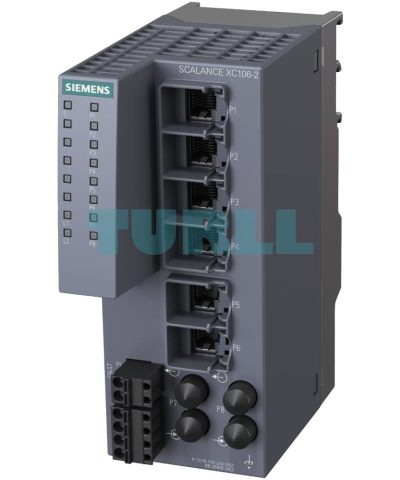

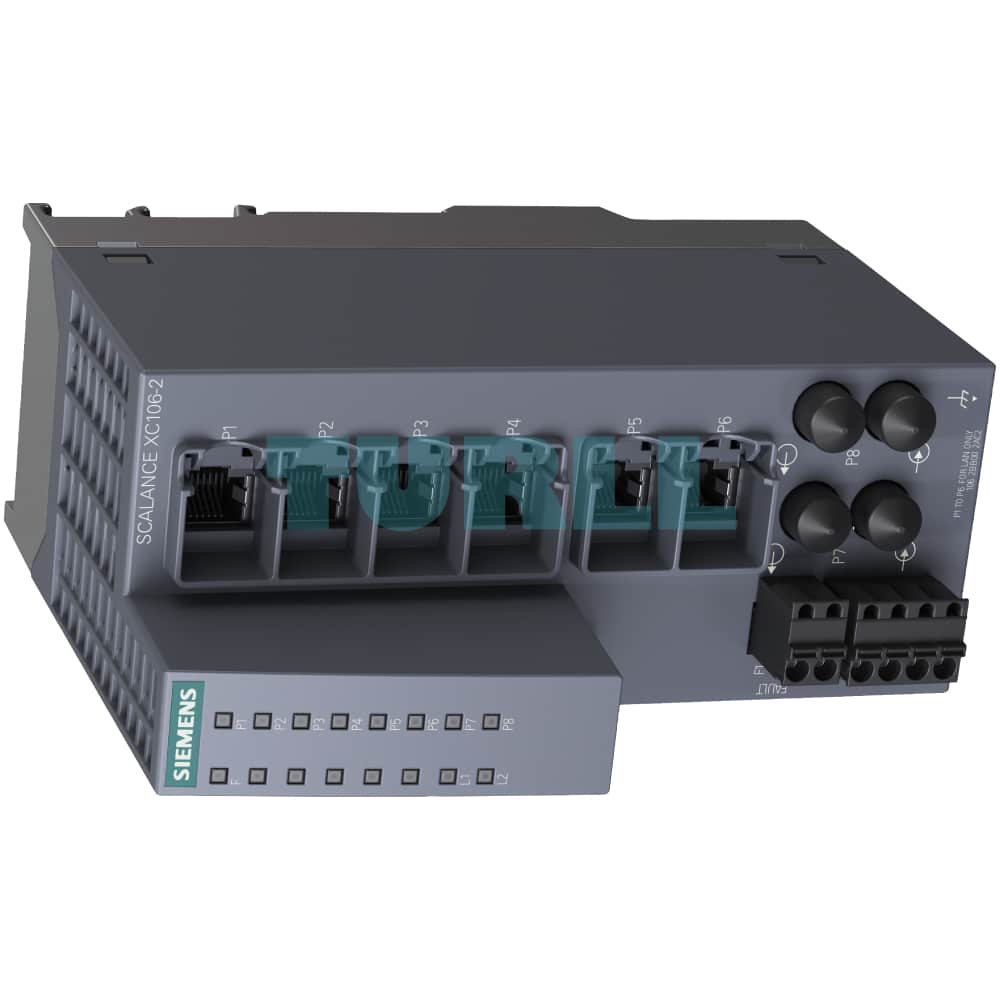

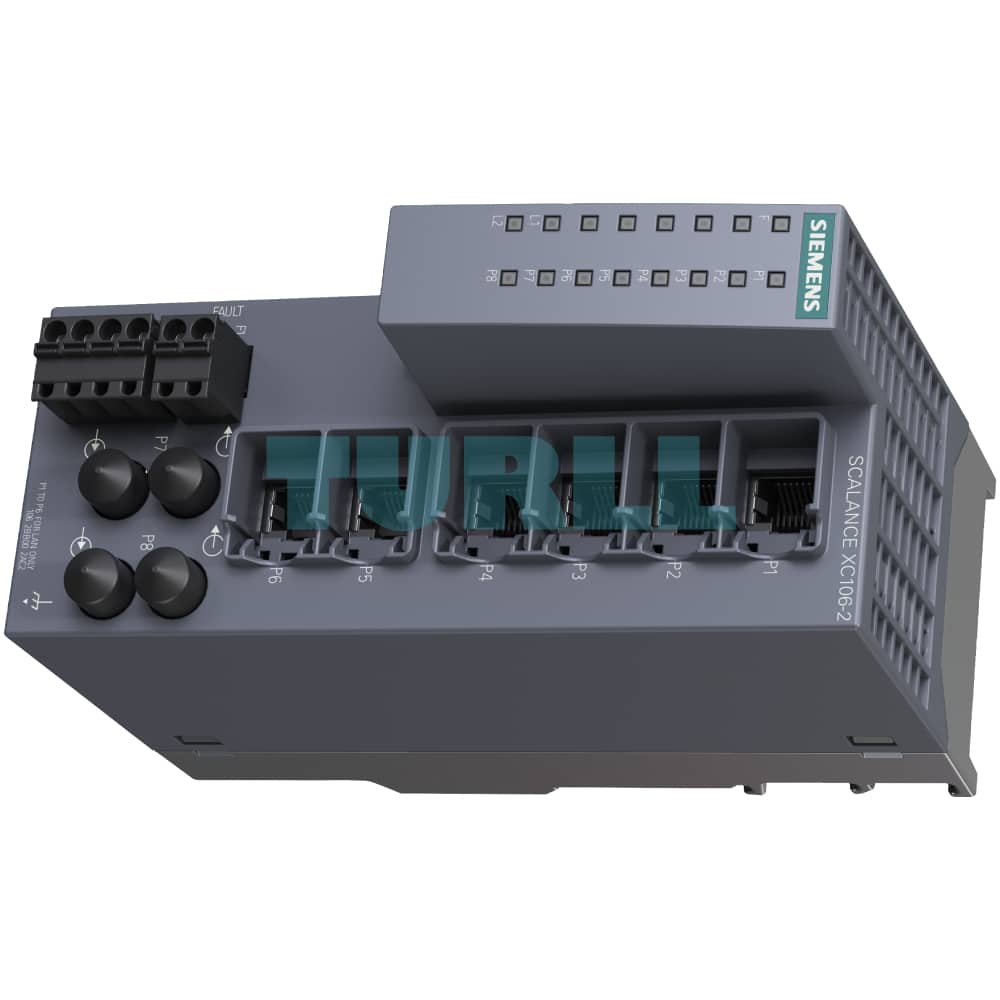

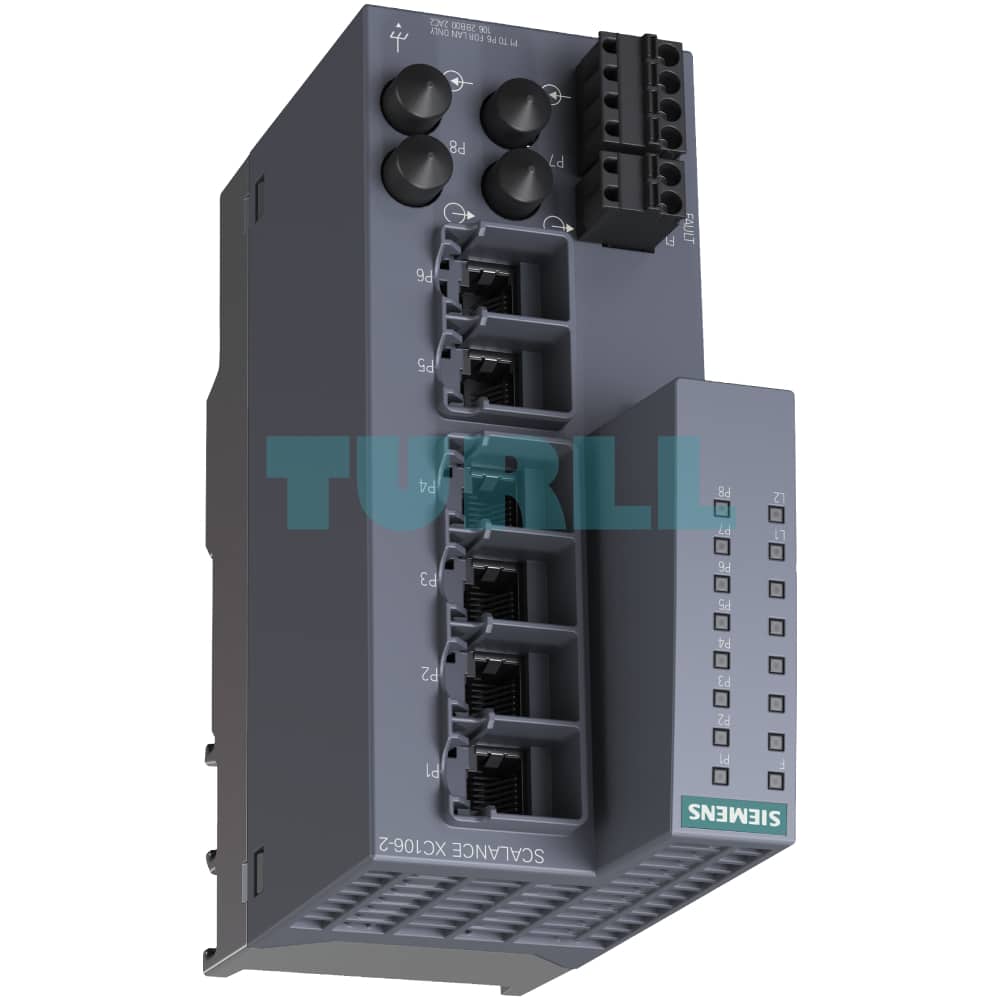

6AG1106-2BB00-7AC2 SIEMENS SIPLUS NET SCALANCE XC106-2 Original Brand New
$3,666.50
6AG1106-2BB00-7AC2
Siemens SIPLUS NET SCALANCE XC106-2 based on 6GK5106-2BB00-2AC2 with conformal coating, -40…+70 °C, SCALANCE XC106-2, unmanaged IE switch, 6x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply manual available as a download
[ez-toc]
Overview
The unmanaged Industrial Ethernet switches of the SIPLUS NET SCALANCE XC-100 product line are optimized for installing Industrial Ethernet networks at transmission rates of 10/100 Mbps in a line and star topology for machine level applications:
- Connection to stations or network in accordance with the port type of the devices optical with ST/BFOC port
- Rugged metal enclosure for space-saving cubicle mounting on standard DIN rail, S7-300 DIN rail, S7-1500 for wall mounting
- Rugged, industry-standard station connections with PROFINET-compatible RJ45 connectors that offer additional strain relief and bending strain relief thanks to latching on the housing (retaining collar)
- Redundant power supply
- Clear diagnostics display on the device by means of LEDs (power, link status, data communication)
- Error signaling contact with easy adjustment using the SET button
Product variant
SIPLUS NET SCALANCE XC106-2
- Construction of optical Industrial Ethernet line or star topologies:
- SIPLUS NET SCALANCE XC106-2;
with 6 electrical ports (RJ45 with retaining collar) and 2 optical ports (ST/BFOC)
- SIPLUS NET SCALANCE XC106-2;
- Diagnostics on the device using LEDs (power, link status, data traffic) and signaling contact (alarm screen form can be set using a button on the device)
- The RJ45 ports are suitable for industrial use and have additional retaining collars: optimized for connecting the IE FC RJ45 Plug 180
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were adopted from the respective standard products. SIPLUS extreme-specific information was added.
Benefits
- Ideal solution for configuring Industrial Ethernet line and star topologies
- Space-saving installation in the control cabinet thanks to compact design in SIMATIC S7-1500 format and mounting option on the SIMATIC S7-1500 DIN rail
- Extended temperature range from -40 °C to +70 °C
- Reliable plug-in connection thanks to rugged device connection with industry-standard FastConnect plugs
- Installation is possible without a patch field by means of IE FC RJ45 plug 180 and IE FC standard cable
- Uncrossed connecting cables can be used due to the integrated autocrossover function
Application
The switches of the SCALANCE XC-100 product line support the inexpensive construction of Industrial Ethernet line or star topologies with switching functions for machine level applications. They are designed for installation in the control cabinet. The devices are approved for ATEX Zone 2 and IECEx, which allow them to be used in hazardous areas. The SCALANCE XC108 also has E1 approval, making the products especially suitable for use in public transportation vehicles. Furthermore, the SCALANCE XC-100 product line features various approvals for shipbuilding applications.
Design
The SCALANCE XC-100 Industrial Ethernet switches with enclosure rear panel made of metal are optimized for mounting on a DIN rail and an S7-1500 DIN rail. Direct wall mounting in various positions is also possible. Thanks to the enclosure dimensions that correspond to those of the SIMATIC S7-1500, the devices are ideally suited for integration into automation solutions and mounting on the SIMATIC S7-1500 DIN rail. Mounting on a SIMATIC S7-300 DIN rail is also possible.
The SCALANCE XC-100 switches feature:
- A 4-pin terminal block for connecting the redundant supply voltage (2 x 24 V DC)
- A raised row of LEDs for displaying status information (power, link status, data communication, signaling contact)
- A 2-pin terminal block for connecting the floating signaling contact
- A SET button for on-site configuration of the signaling contact
The following port types are available:
- 10/100BaseTX, RJ45 port;
automatic detection of data transmission rate (10 or 100 Mbps), with autosensing and autocrossover function for connecting IE FC cables via IE FC RJ45 plug 180 over distances up to 100 m - 100BaseFX, ST/BFOC port;
for direct connection to the Industrial Ethernet glass fiber-optic cables up to 5 km - 100BaseFX, SC port;
for direct connection to the Industrial Ethernet glass fiber-optic cables up to 5 km
Function
- Construction of electrical and optical Industrial Ethernet line or star topologies
- Selected connecting cables can be used due to autocrossover function integrated in the ports
- Load disconnection through integral switch functionality
- Easy network configuration and network expansion
No limitation of the expansion of the network when switches of the SCALANCE XC-100 product line are cascaded
Network topology and network configuration
The SCALANCE XC-100 switches are typically installed with the stations to be connected in a control cabinet. They can be mixed electrically and optically in star and line topologies.
When configuring the network, the following boundary conditions must be observed:
- Length of the twisted pair cable between two SCALANCE XC switches:
- Max. 100 m with Industrial Ethernet FastConnect products
- Length of the optical cables:
- Max. 5 km with Industrial Ethernet glass fiber-optic cables
Star-shaped network topology with SCALANCE XC124 and Power over Ethernet connection via SCALANCE XCM108PoE with line topology to SCALANCE XC106-2 and SCALANCE XB004-2
Diagnostics
The following information is displayed on site by LEDs:
- Power
- Port status
- Data traffic
The Industrial Ethernet switches of the SCALANCE XC-100 line can also be monitored using the floating signaling contact.
6AG1106-2BB00-7AC2
Siemens SIPLUS NET SCALANCE XC106-2 based on 6GK5106-2BB00-2AC2 with conformal coating, -40…+70 °C, SCALANCE XC106-2, unmanaged IE switch, 6x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply manual available as a download.
Visit 6AG1106-2BB00-7AC2
For more our products visit turll.com
| Weight | 0.815 kg |
|---|---|
| Dimensions | 205 × 205 × 137 mm |
