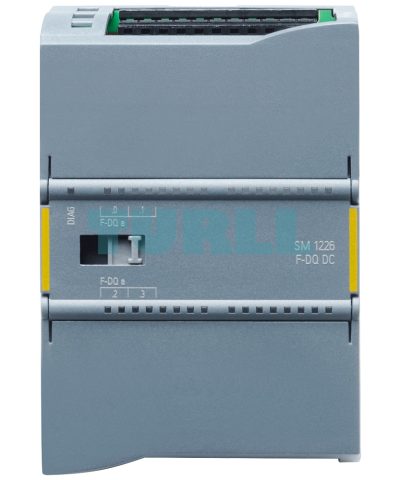

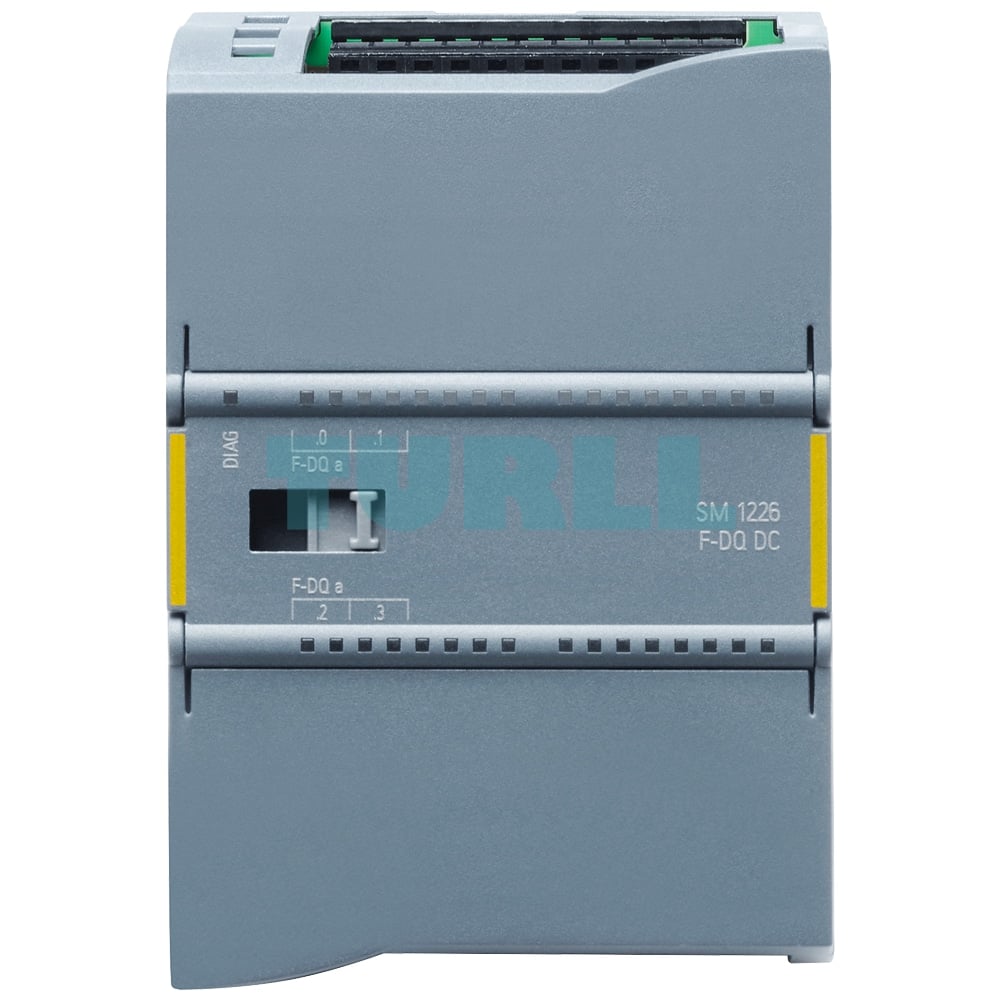

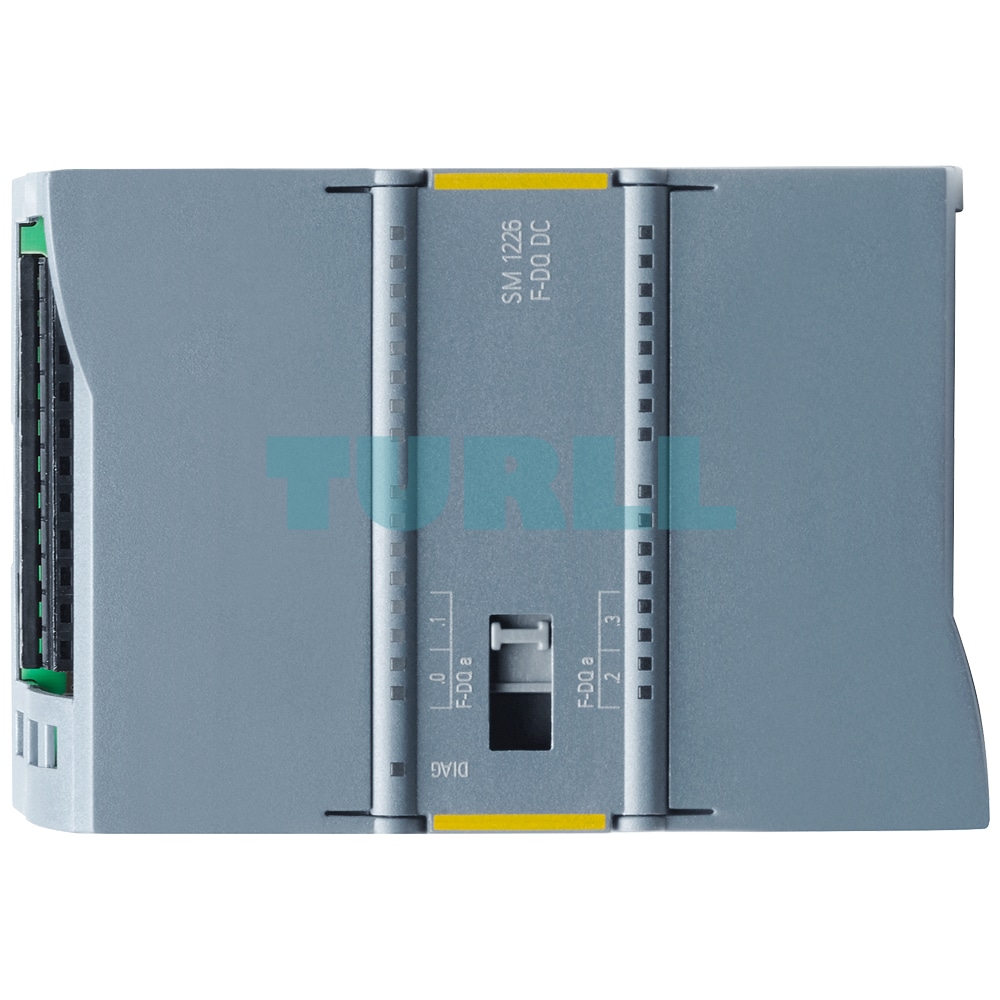

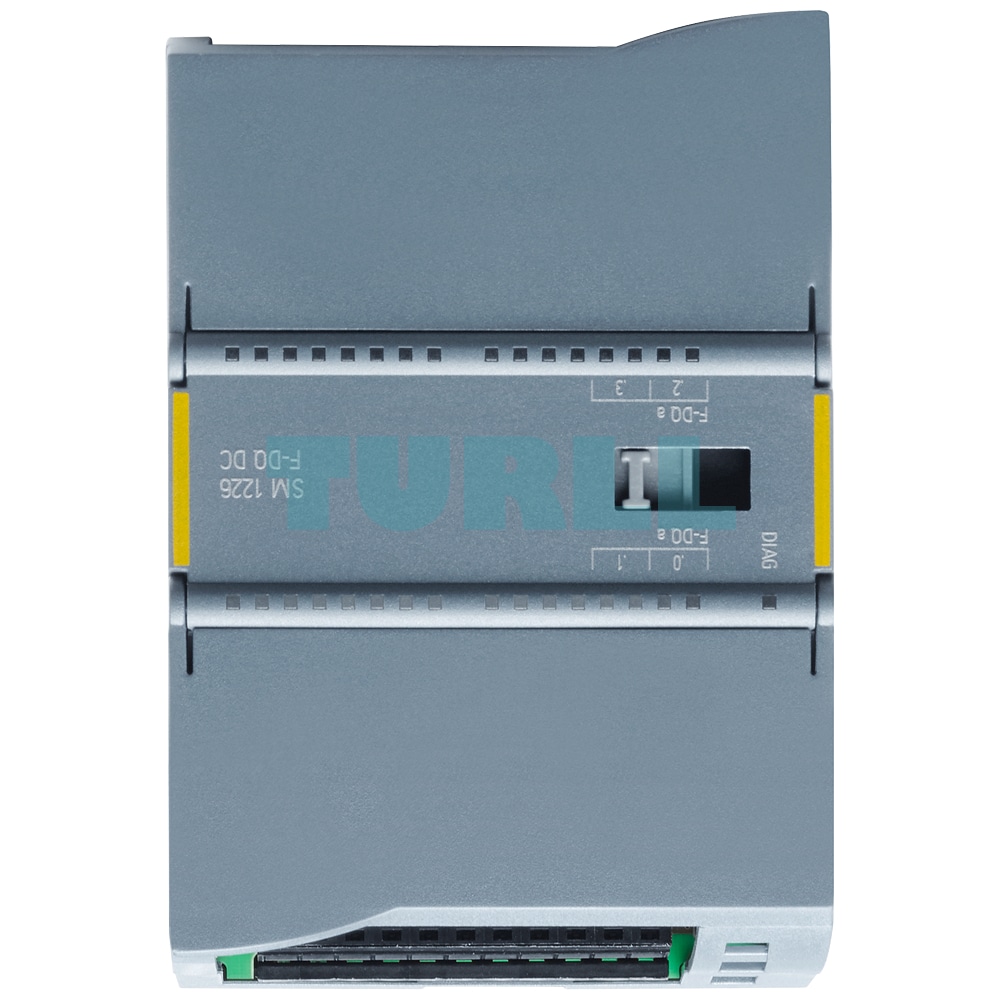

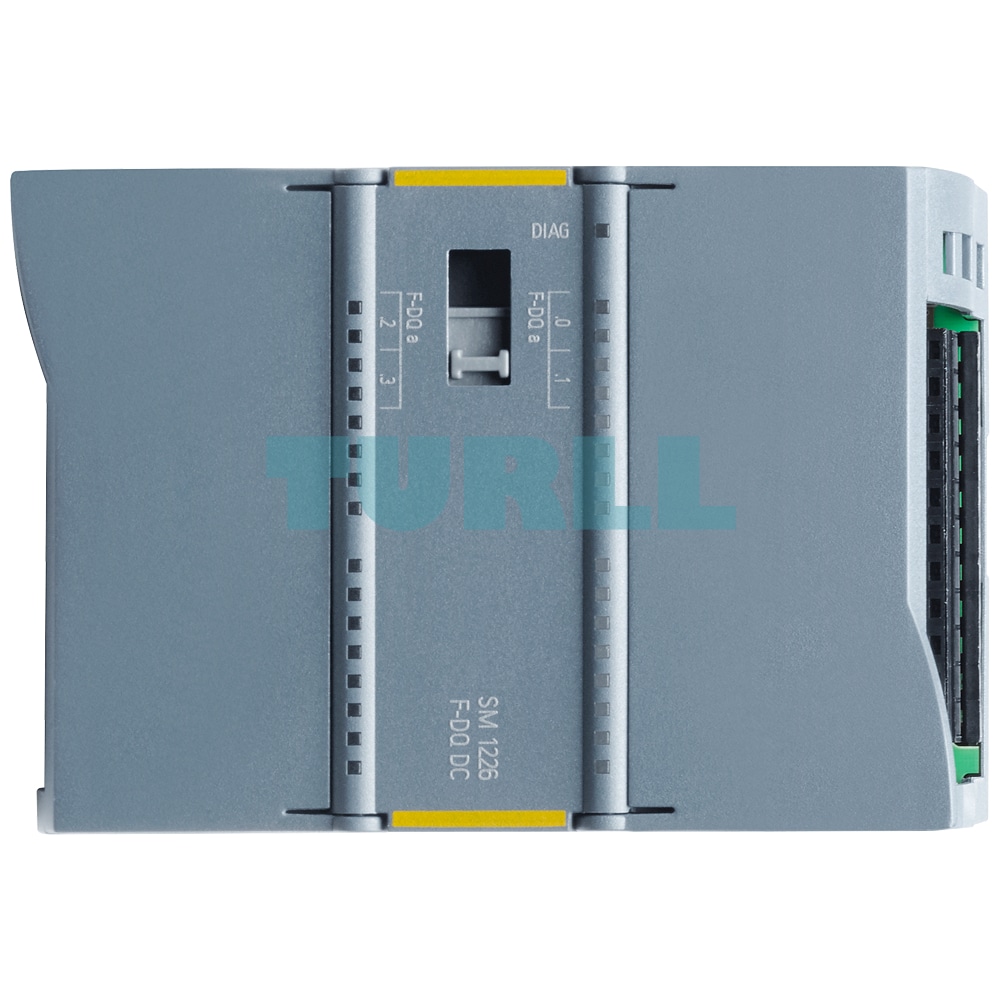

6AG1226-6DA32-5XB0 Siemens SIPLUS S7-1200 SM 1226 F-DQ Original Brand New
$944.02
6AG1226-6DA32-5XB0
Siemens SIPLUS S7-1200 SM 1226 F-DQ 4x24VDC based on 6ES7226-6DA32-0XB0 with conformal coating, -25…+55 °C, F-DQ 4x DC 24V 2A, PROFIsafe, 70 mm width, up to PL e (ISO 13849-1)/ SIL3 (IEC 61508)
[ez-toc]
Overview
- Digital outputs as a supplement to the integral I/O of the CPUs
- Integrated into the overall automation for the implementation of safety-related requirements
- With integrated safety functions
- Communication with fail-safe CPUs via PROFIsafe mechanisms
- For flexible adaptation of the controller to the corresponding task
- For subsequent expansion of the system with additional outputs
- Operable exclusively in the central system
Note
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the corresponding standard products. SIPLUS extreme-specific information was added.
Application
The fail-safe modules of the SIMATIC S7-1200 Controller permit the implementation of safety-related application requirements integrated into the overall automation. The safety functions required for fail-safe operation are integrated in the modules. Communication with the fail-safe SIMATIC S7 CPUs is performed by means of PROFIsafe mechanisms.
The modules can only be operated in central configurations.
Design
- 4 outputs, current sourcing/sinking
- Certified up to SIL 3 (IEC 61508), PL e (ISO 13849)
- Output current 2 A
- Rated load voltage 24 V DC
- Suitable for solenoid valves, DC contactors and indicator LEDs
- Module fault indicator (DIAG; green and red LED)
- Status indicator for each output (green LED)
- Fault indicator for each output (red LED)
- Plain text identification of module type and function class:
- 2D matrix code (article and serial number)
- Color coding of the module type DI: White
- Hardware and firmware version
- Complete article No.
6AG1226-6DA32-5XB0
Siemens SIPLUS S7-1200 SM 1226 F-DQ 4x24VDC based on 6ES7226-6DA32-0XB0 with conformal coating, -25…+55 °C, F-DQ 4x DC 24V 2A, PROFIsafe, 70 mm width, up to PL e (ISO 13849-1)/ SIL3 (IEC 61508)
Visit 6AG1226-6DA32-5XB0
For more our products visit turll.com
| Weight | 0.27 kg |
|---|---|
| Dimensions | 85 × 107 × 90 mm |
